Short to GND In Front Driver Side - Side Squib Circuit

DTC B1822/55 Short to GND in Front Driver Side - Side Squib Circuit

DESCRIPTION

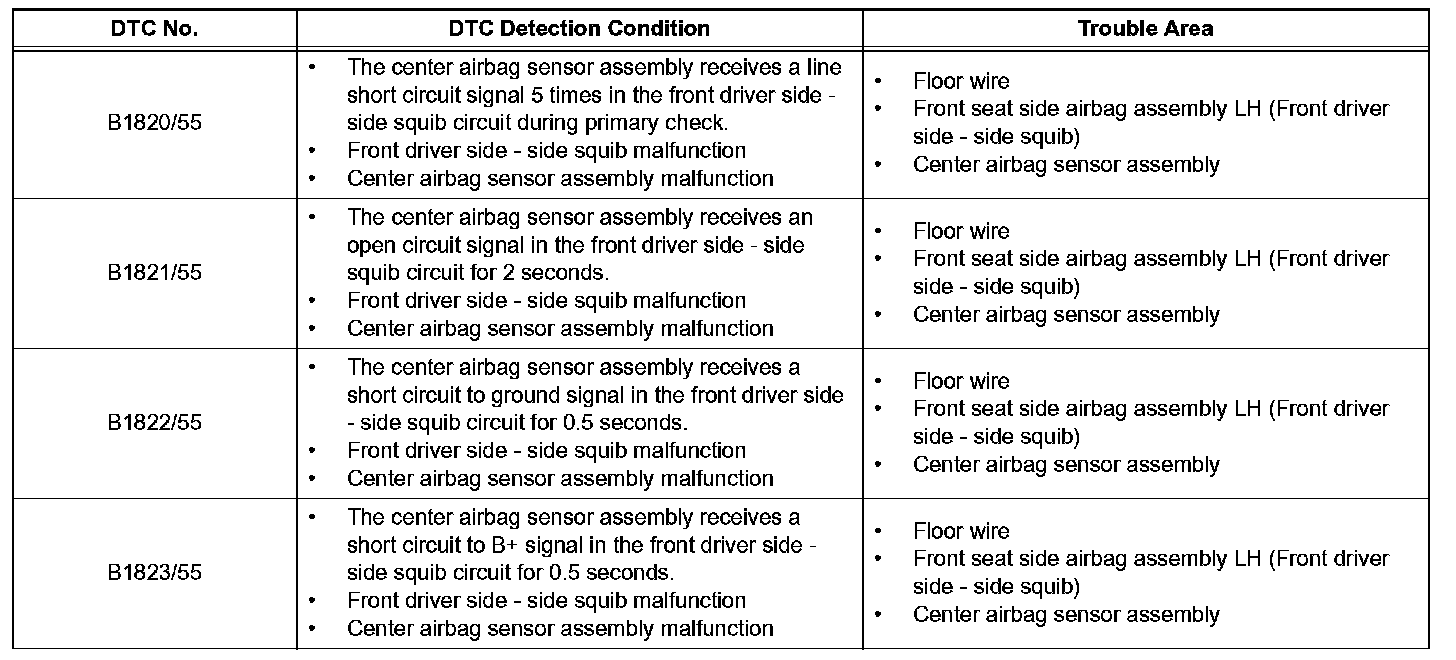

DTC Detection Condition:

The front driver side-side squib circuit consists of the center airbag sensor assembly and the front seat side airbag assembly LH.

This circuit instructs the SRS to deploy when deployment conditions are met.

These DTCs are recorded when a malfunction is detected in the front driver side-side squib circuit.

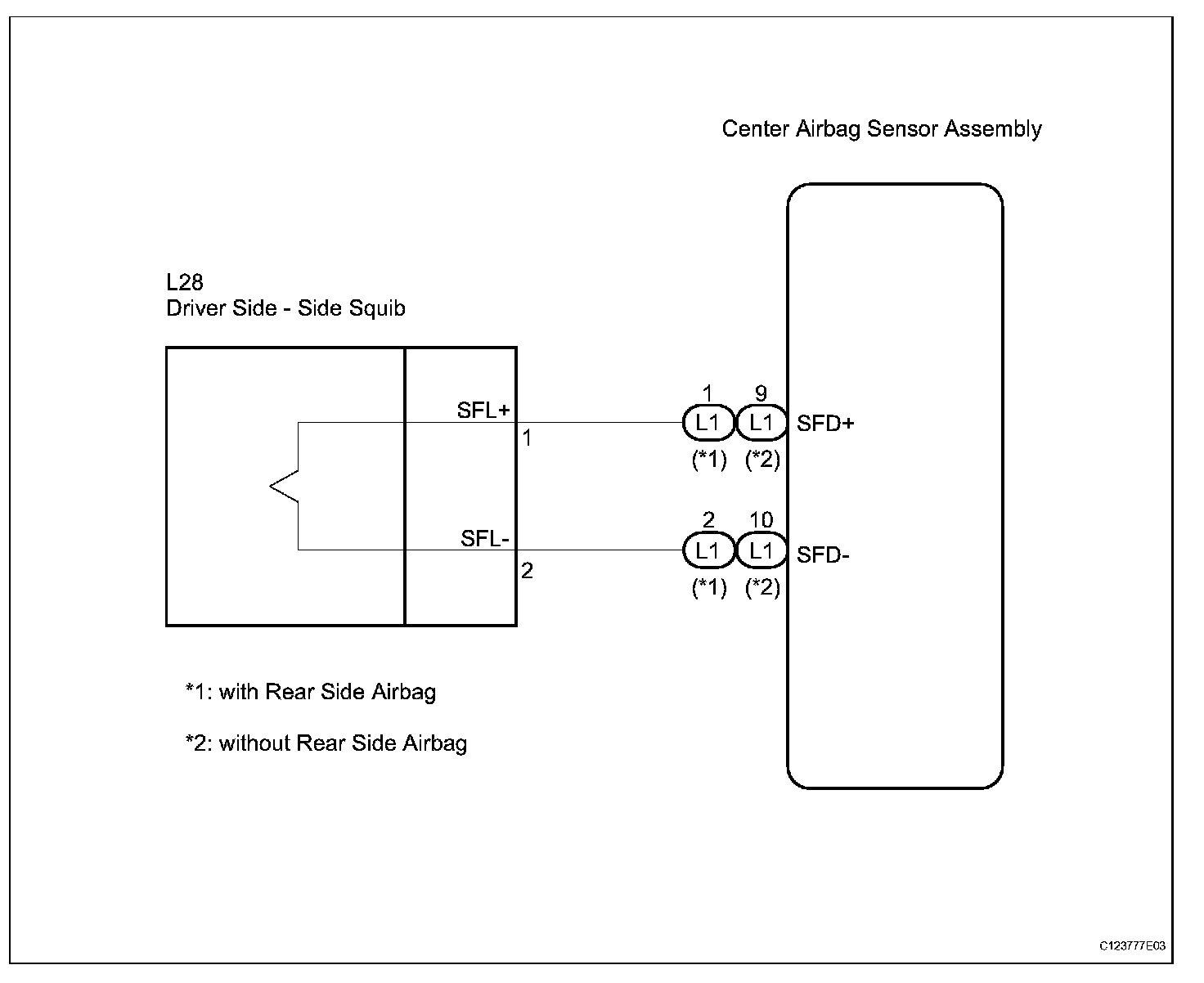

Wiring Diagram:

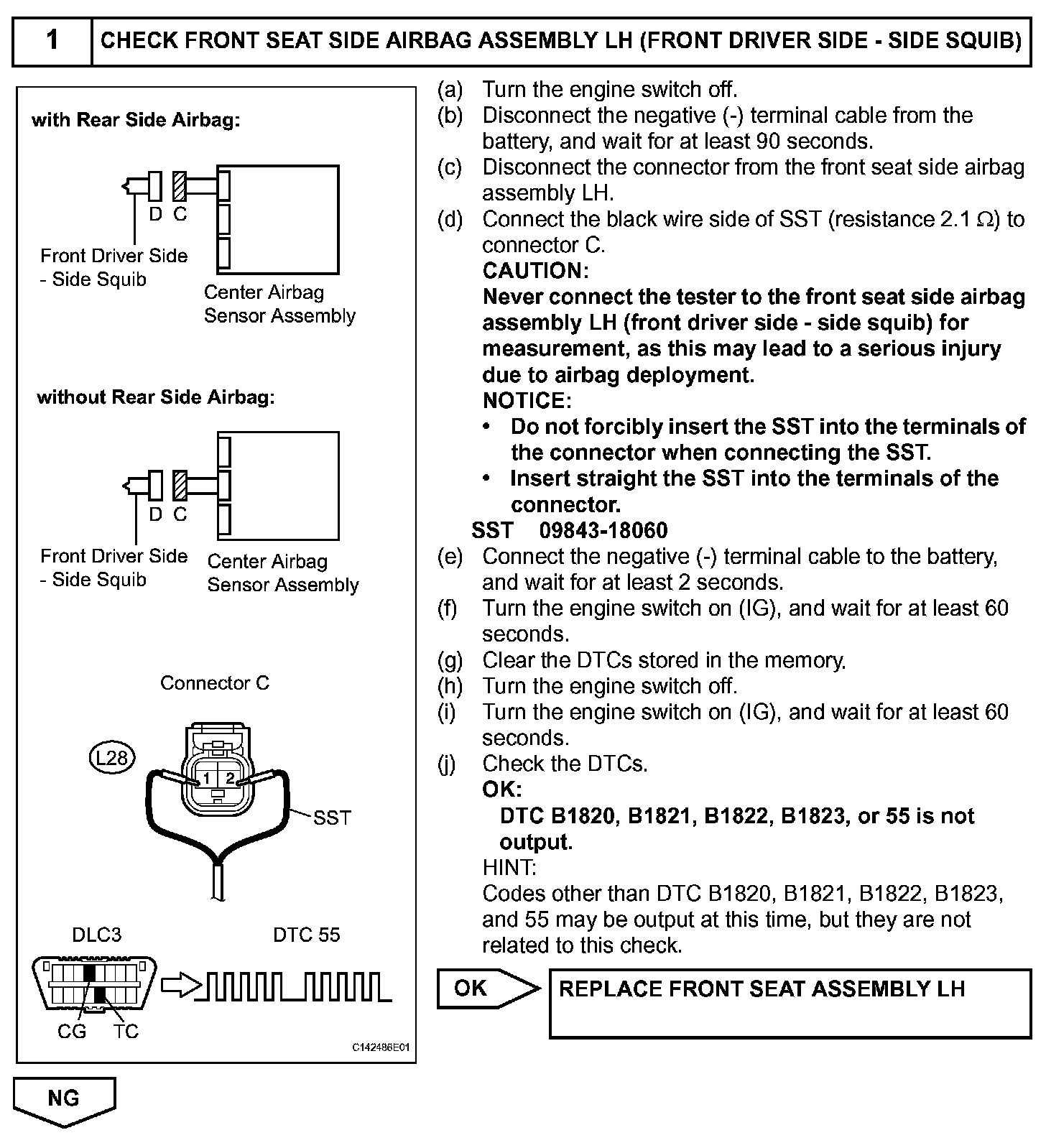

Step 1:

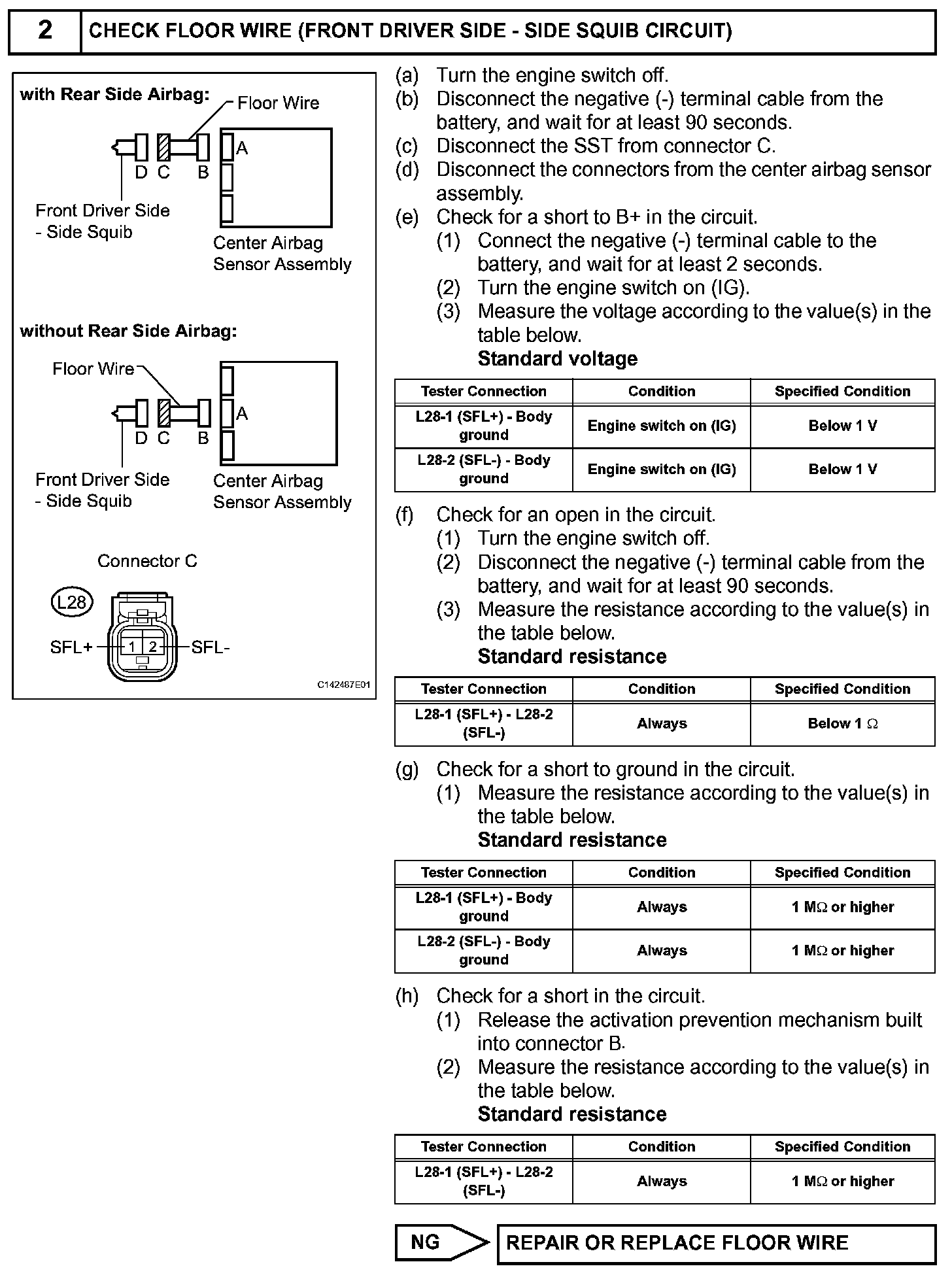

Step 2:

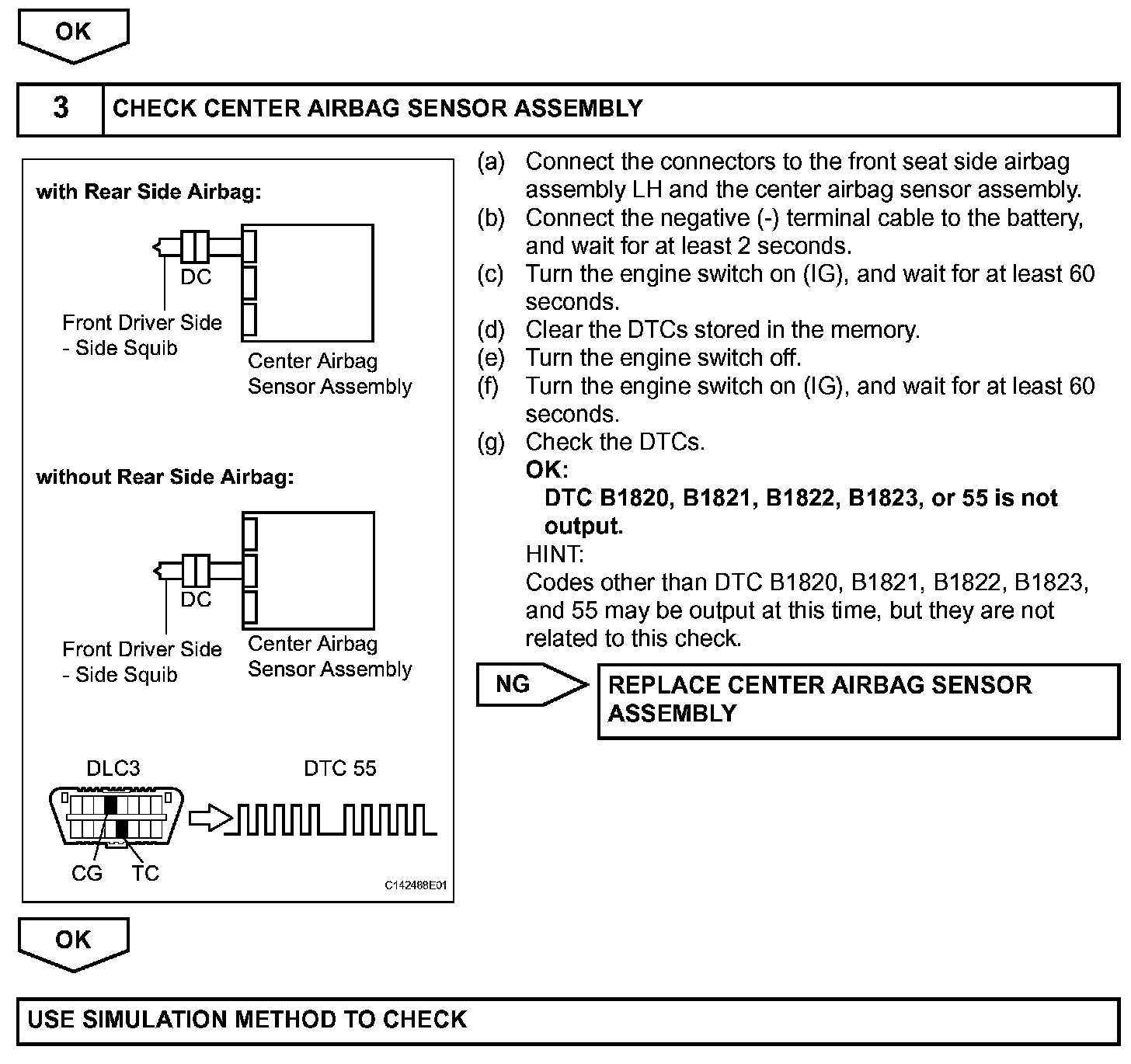

Step 2 (Continued)-3:

INSPECTION PROCEDURE

HINT:
- Perform the simulation method by selecting "check mode" (signal check) with the intelligent tester.
- After selecting "check mode" (signal check), perform the simulation method by wiggling each connector of the airbag system or driving the vehicle on a city or rough road.
