Vehicle Stability Control Systen
DTC U0123/62 Lost Communication with Yaw Rate Sensor ModuleDESCRIPTION

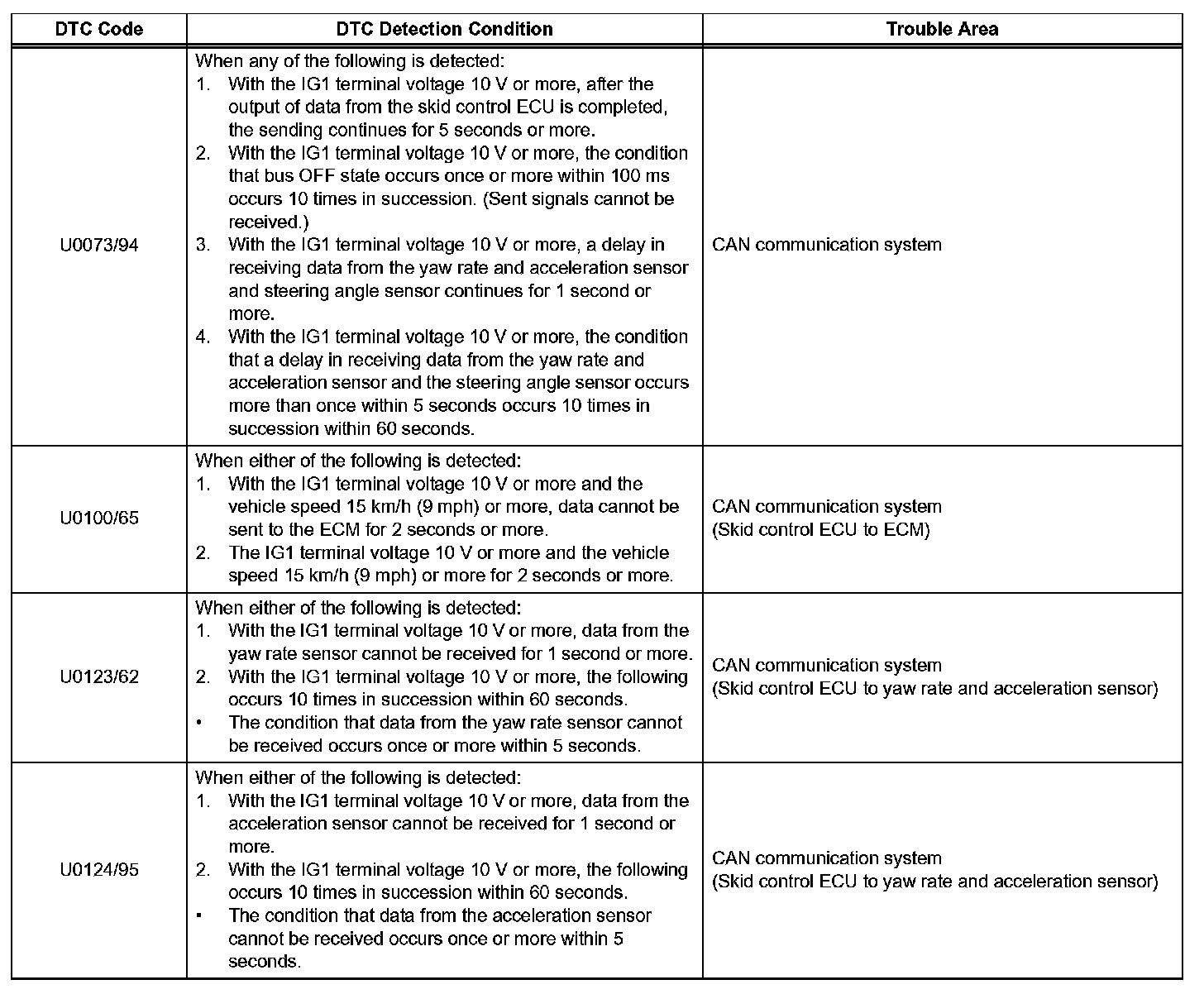

DTC Detection Condition (Part 1):

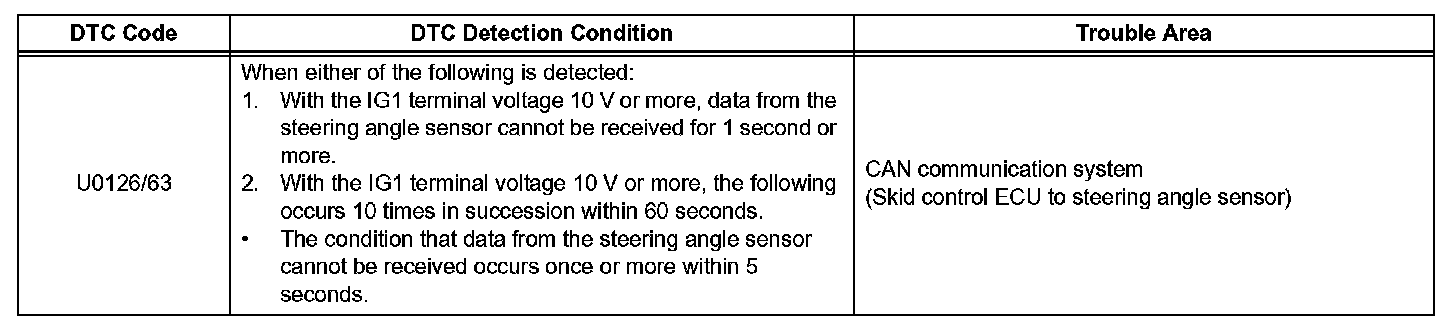

DTC Detection Condition (Part 2):
The skid control ECU receives the signals from the ECM, steering angle sensor, and yaw rate and acceleration sensor via the CAN communication system.
Wiring Diagram:
INSPECTION PROCEDURE

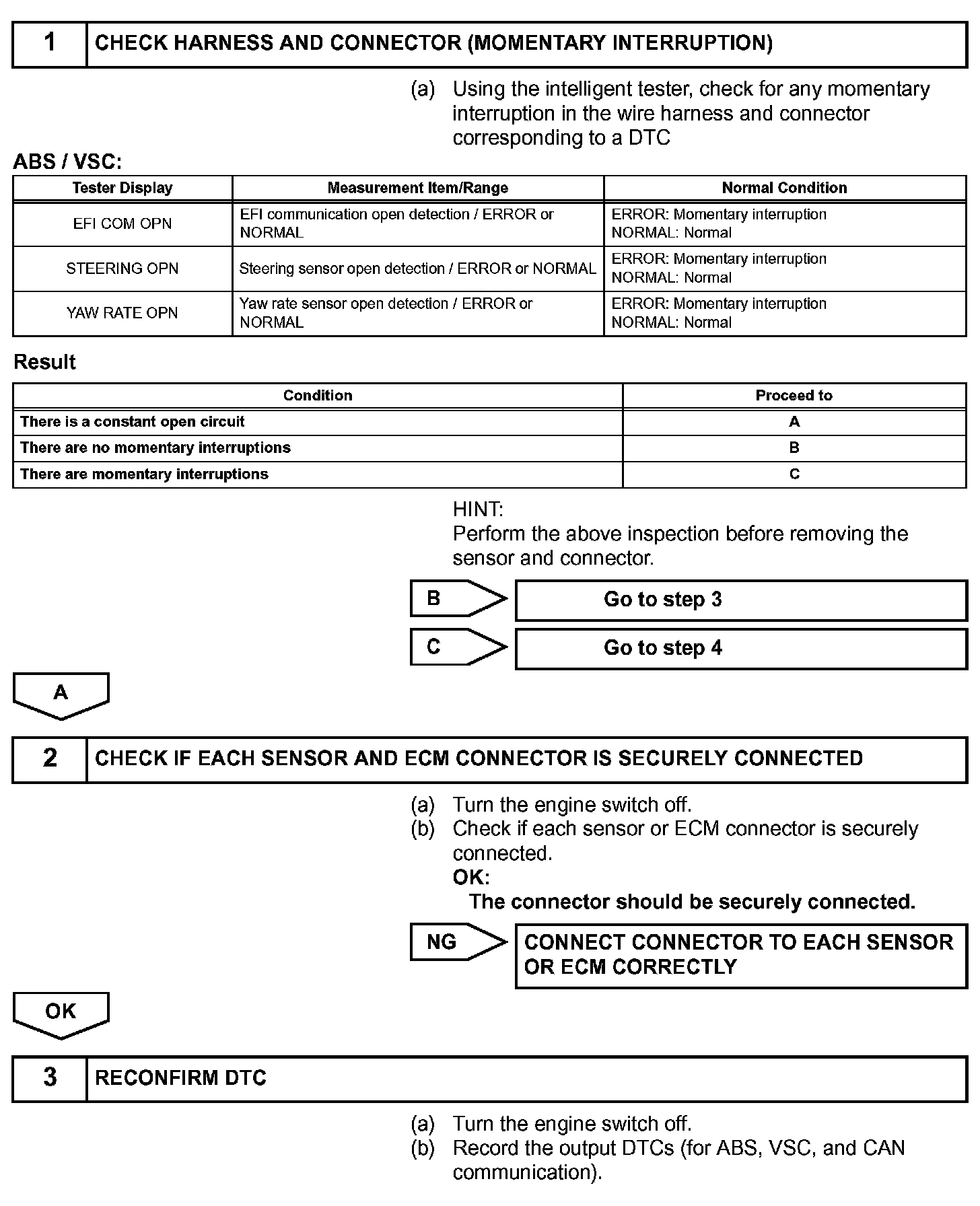

Step 1-3:

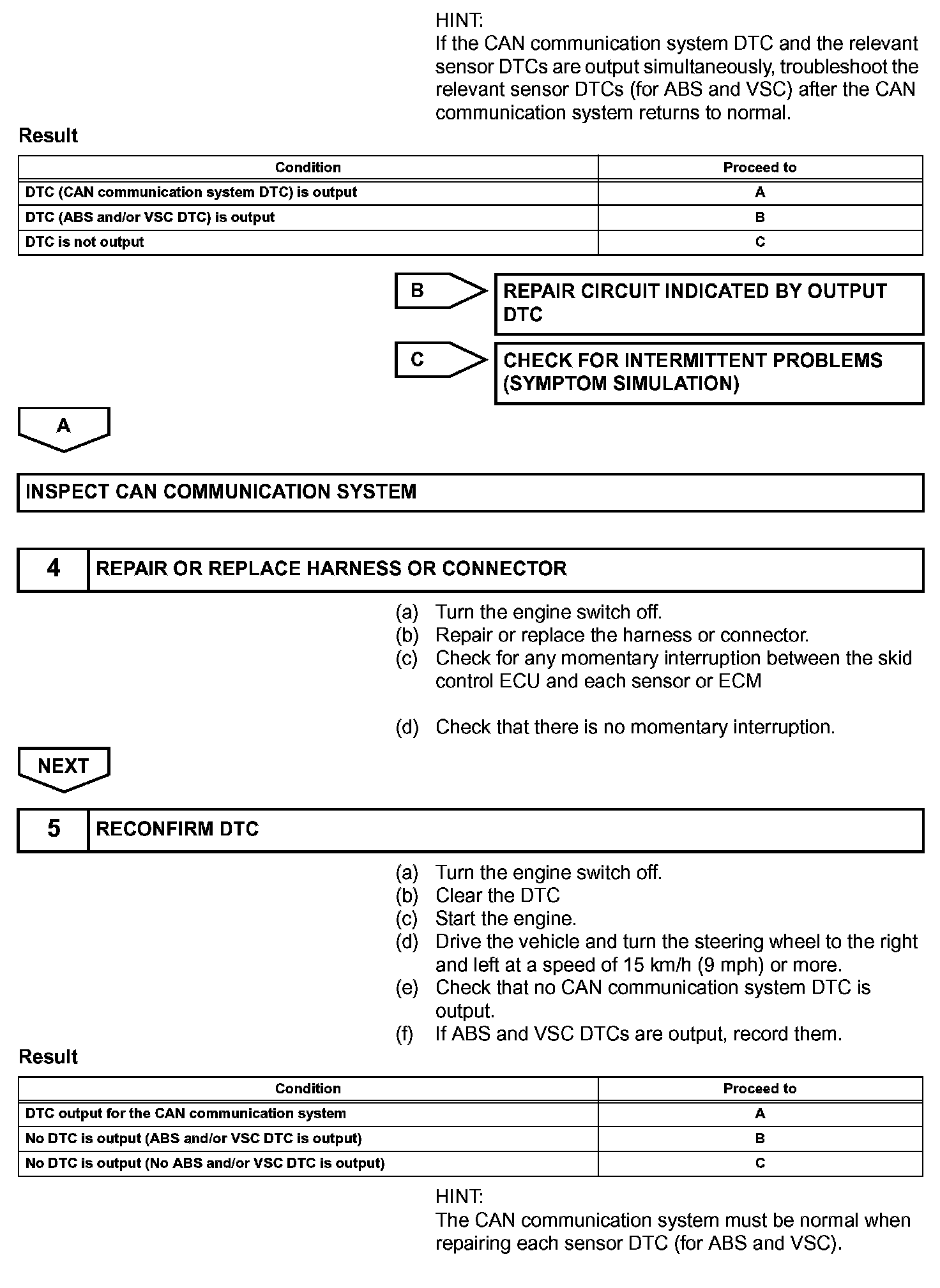

Step 3(Continued)-5:
Step 5(Continued):
