With Manufacturer's Scan Tool

CHECK DTC

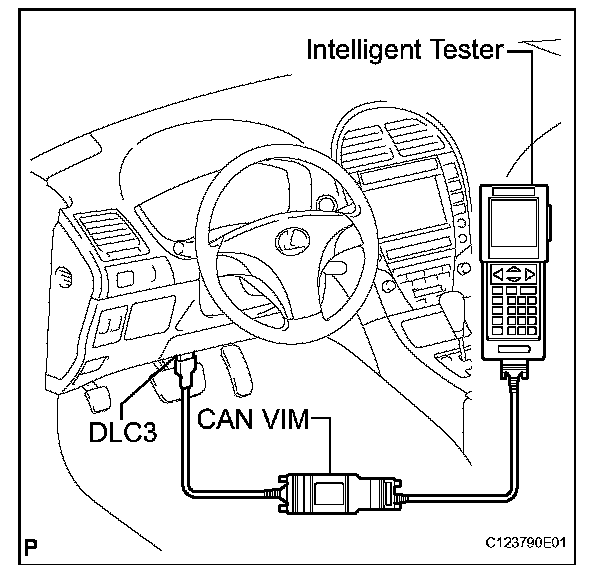

a. Connect the intelligent tester to the DLC3.
b. Turn the engine switch on (IG).
c. Enter the following menu items: DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES.
d. Read the DTC by given the prompts on the tester screen.

HINT: Refer to the intelligent tester operator's manual for further details.
