Luggage Compartment Door Lock Circuit
Luggage Compartment Door Lock CircuitDESCRIPTION
The luggage compartment door unlock motor is built into the luggage compartment door lock assembly.
The main body ECU receives a luggage compartment door unlock signal from the electrical key switch and operates the door lock motor.

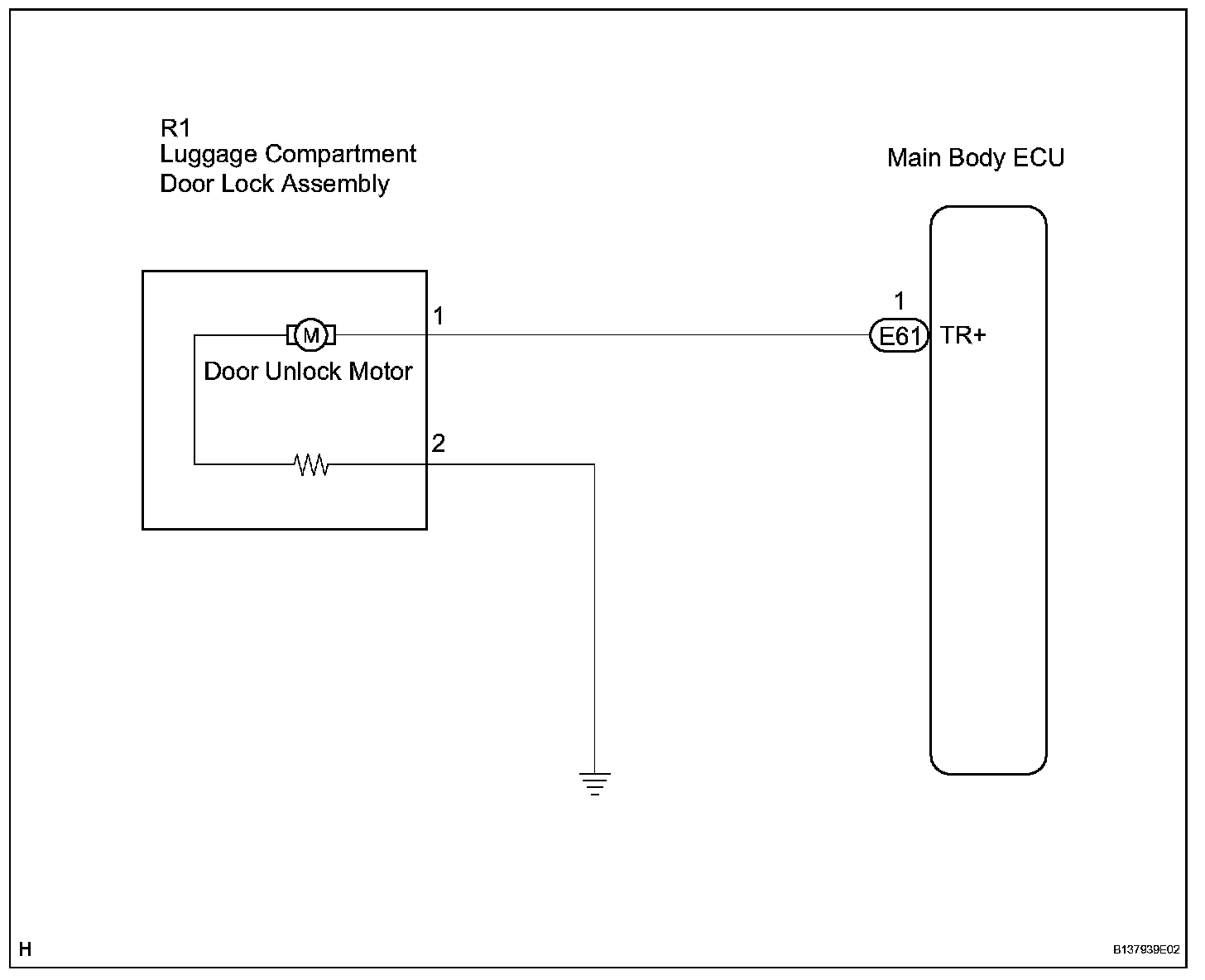

Wiring Diagram:

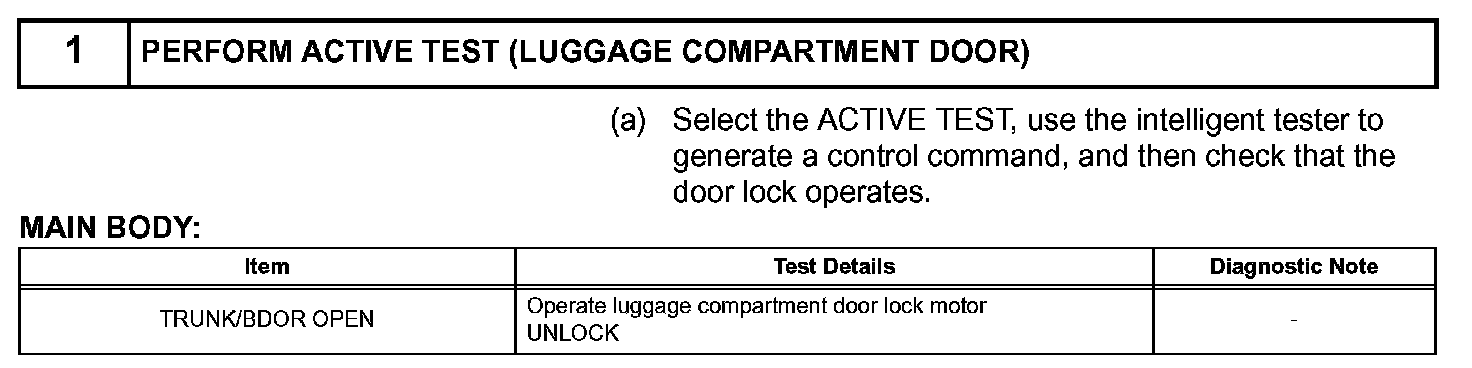

Step 1:
Step 1 (Continued)-2:

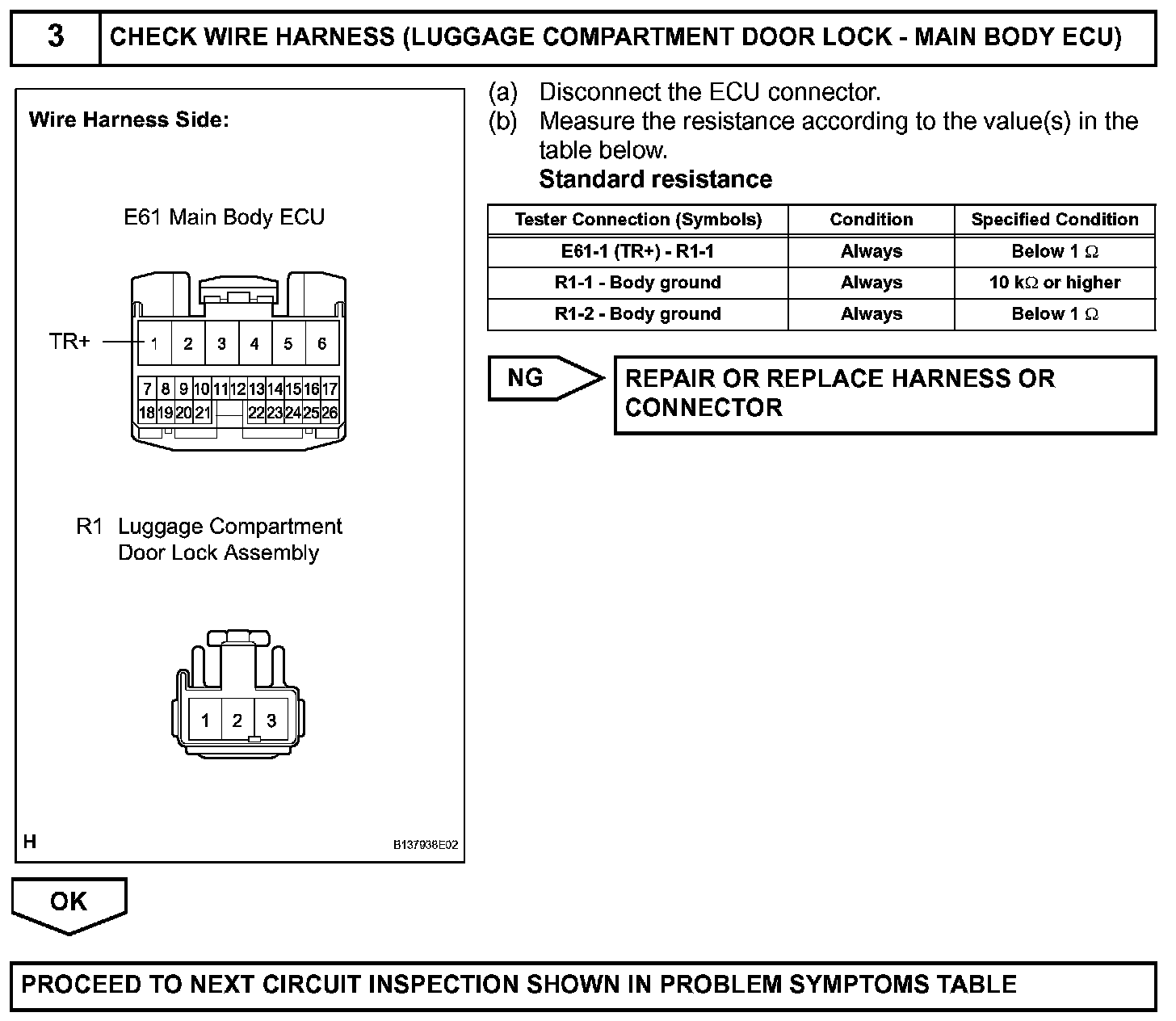

Step 3:

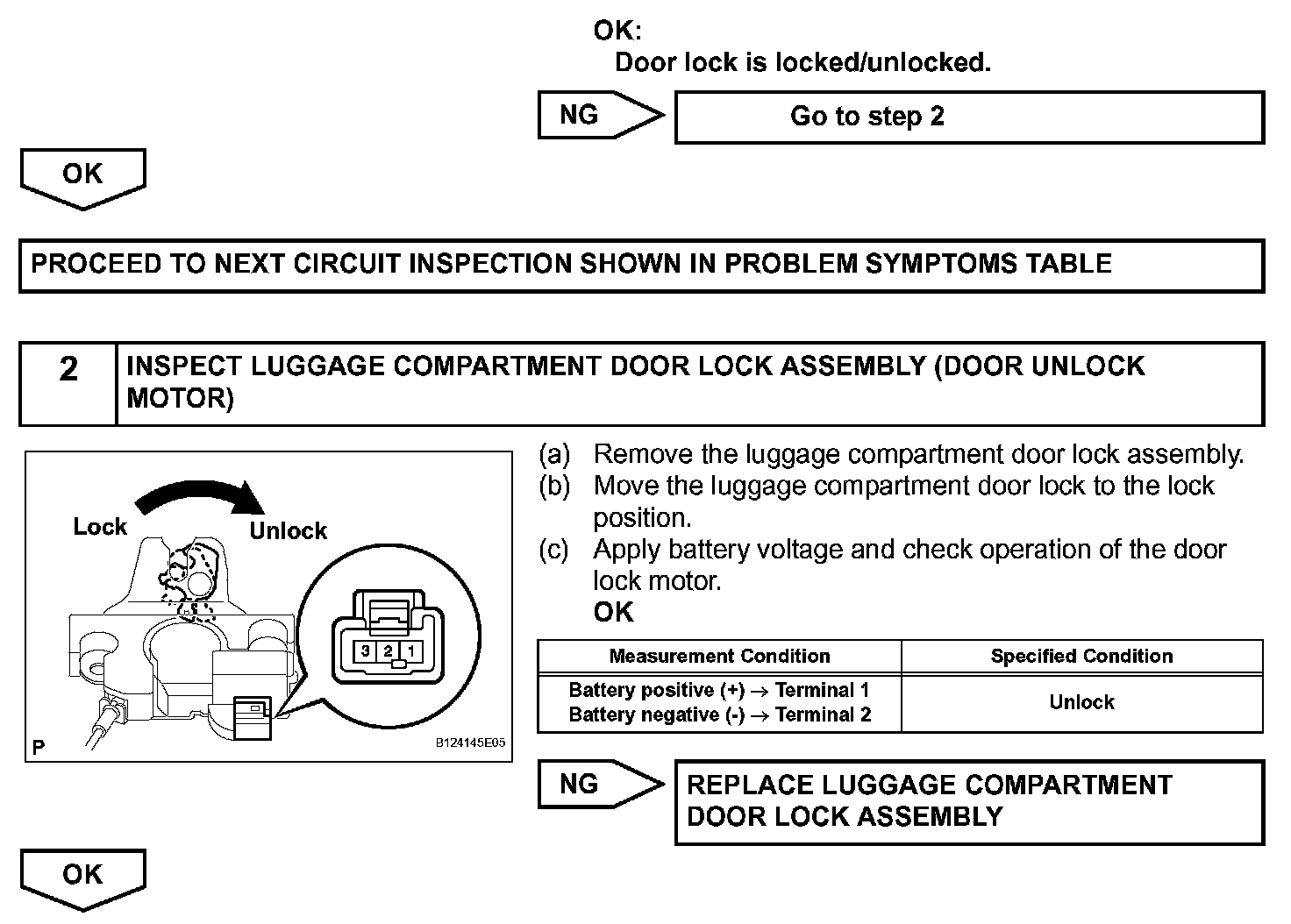

INSPECTION PROCEDURE
