Dynamic Radar Cruise Control

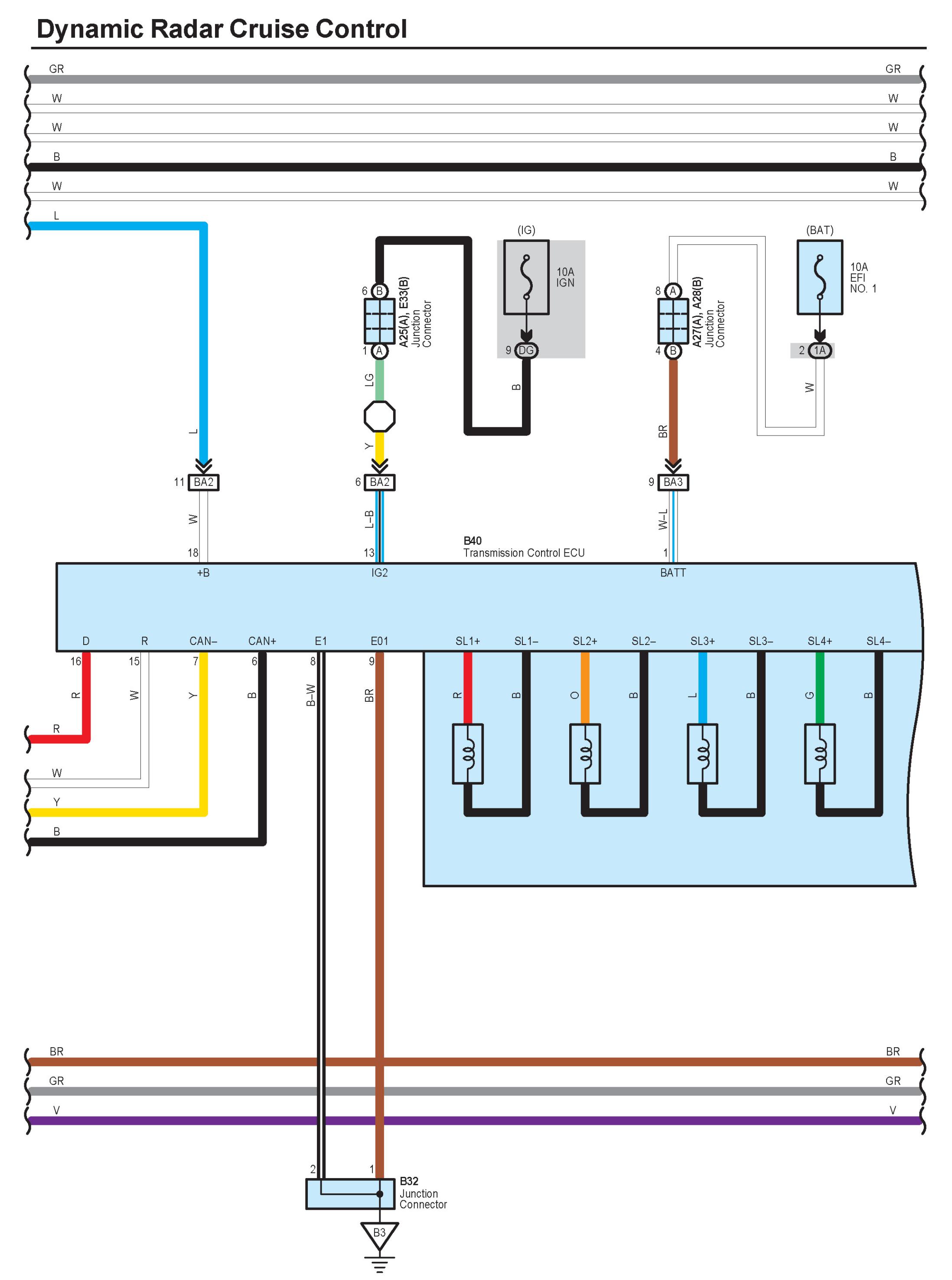

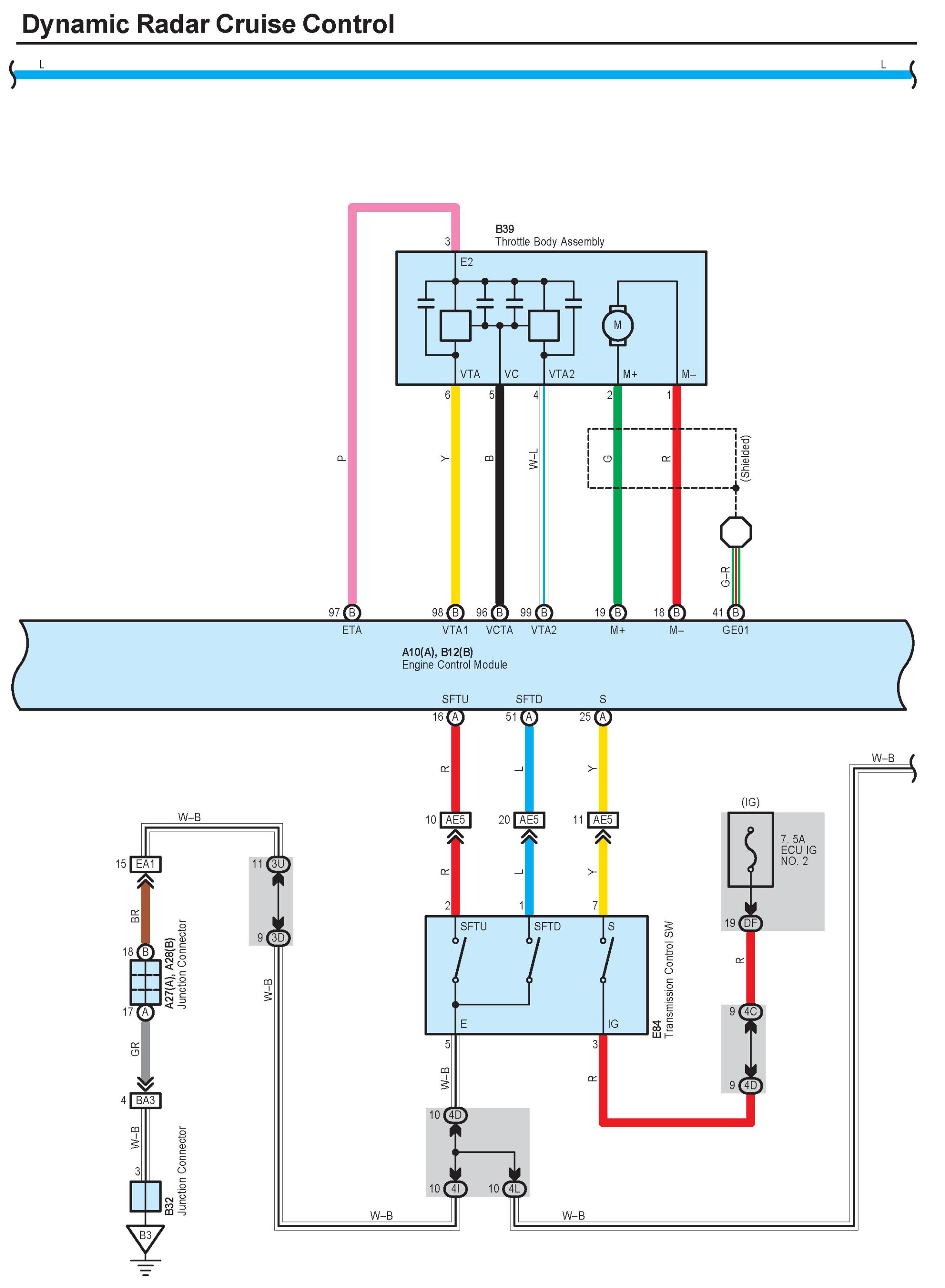

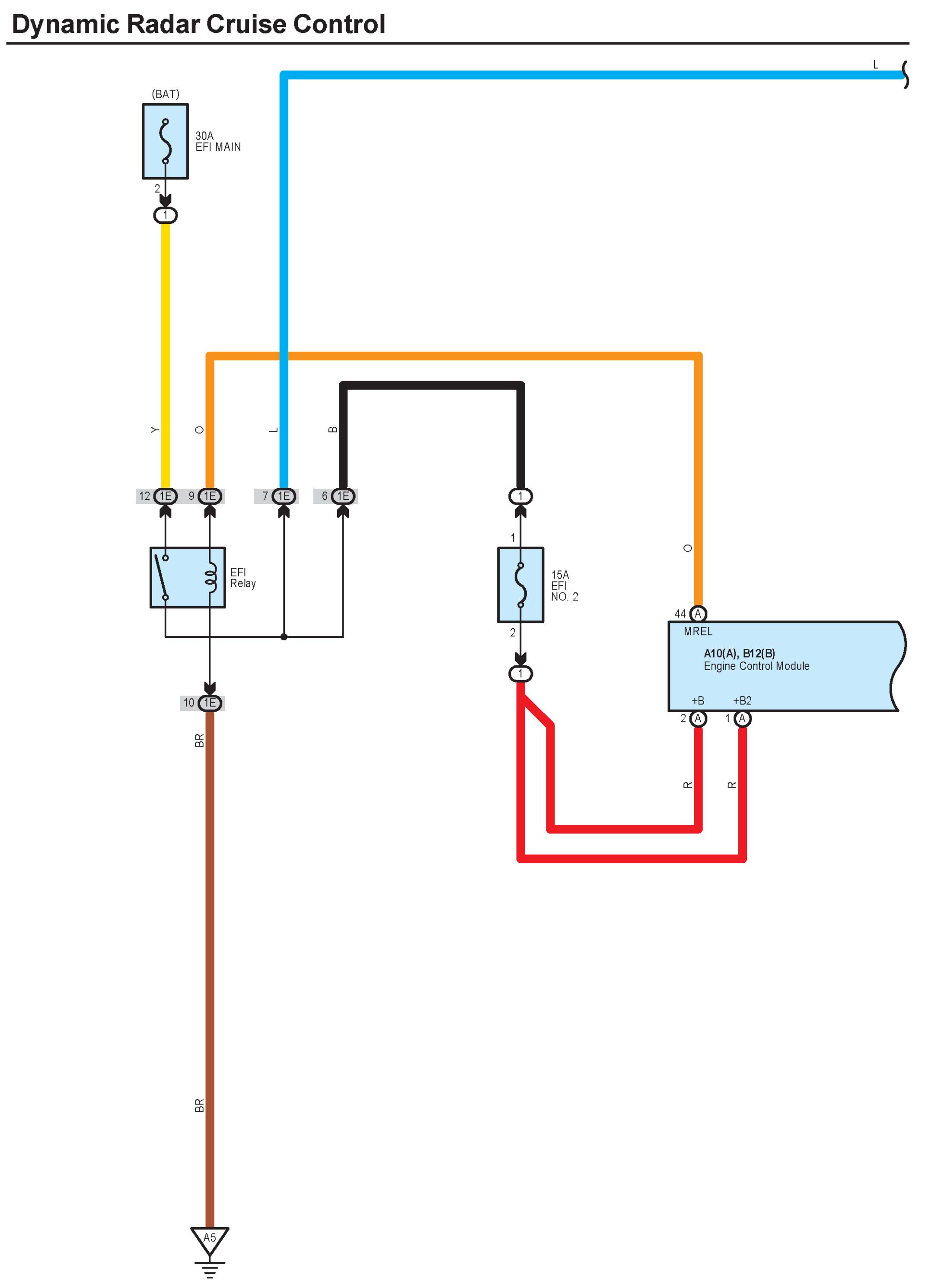

Dynamic Radar Cruise Control Part 1:

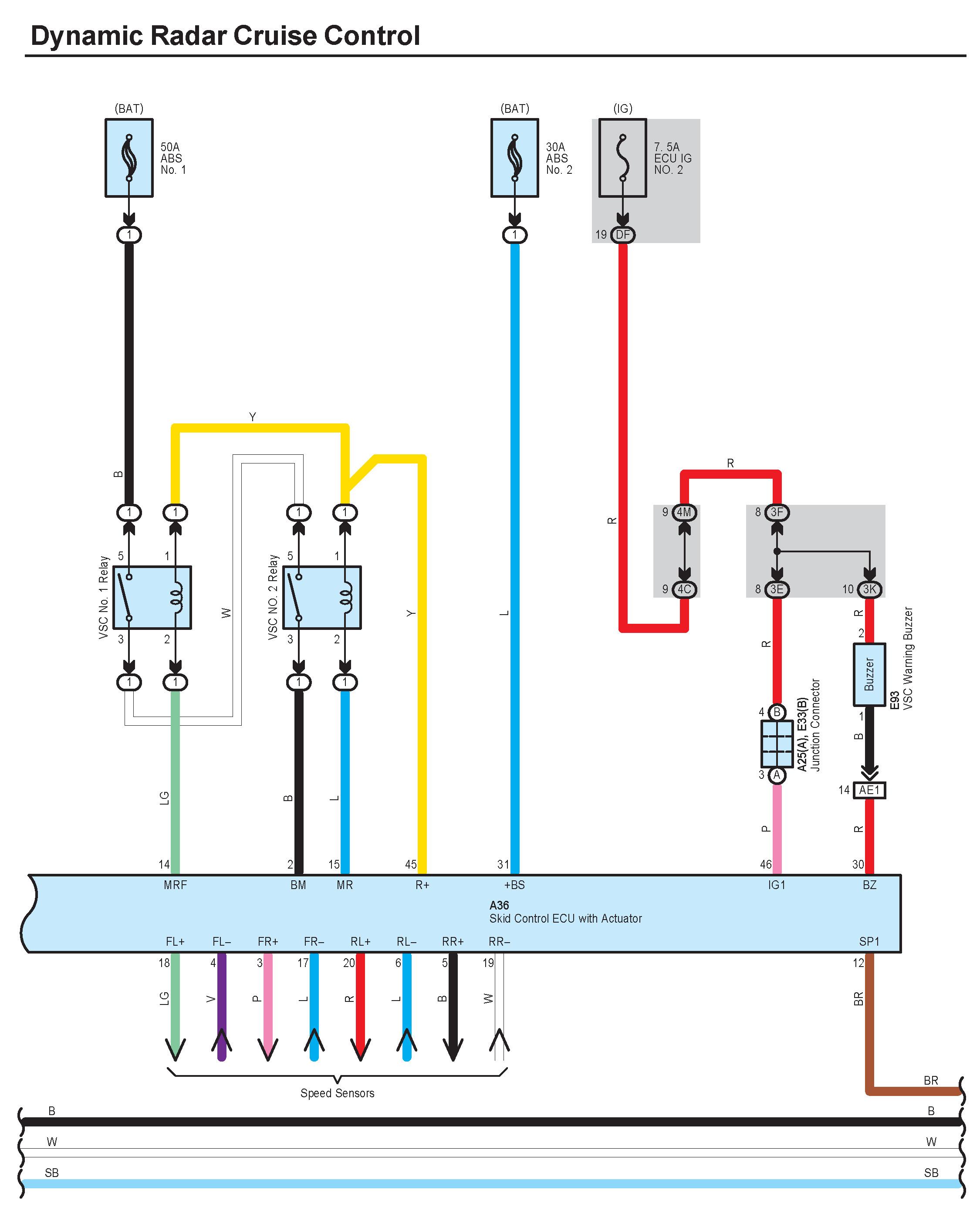

Dynamic Radar Cruise Control Part 2:

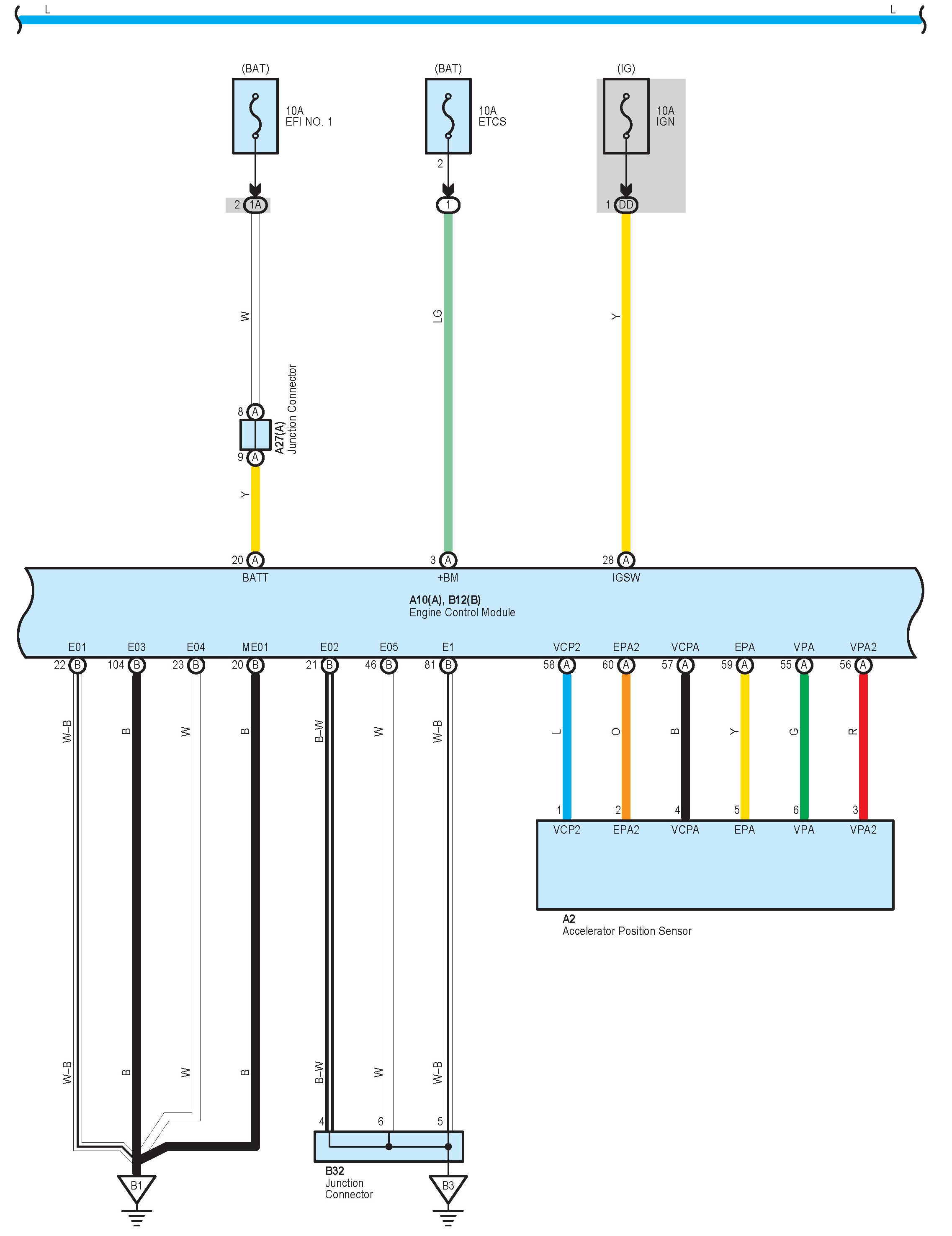

Dynamic Radar Cruise Control Part 3:

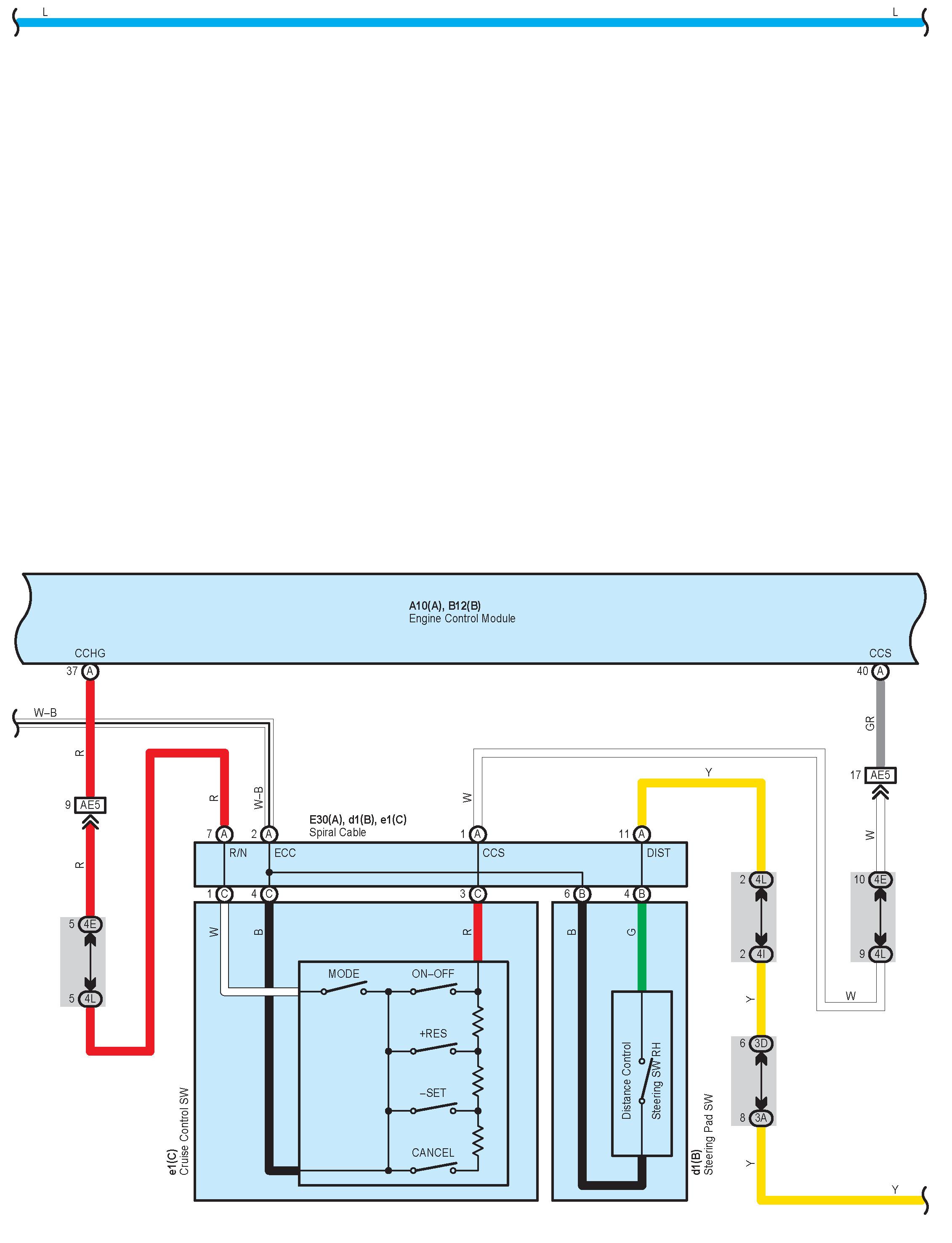

Dynamic Radar Cruise Control Part 4:

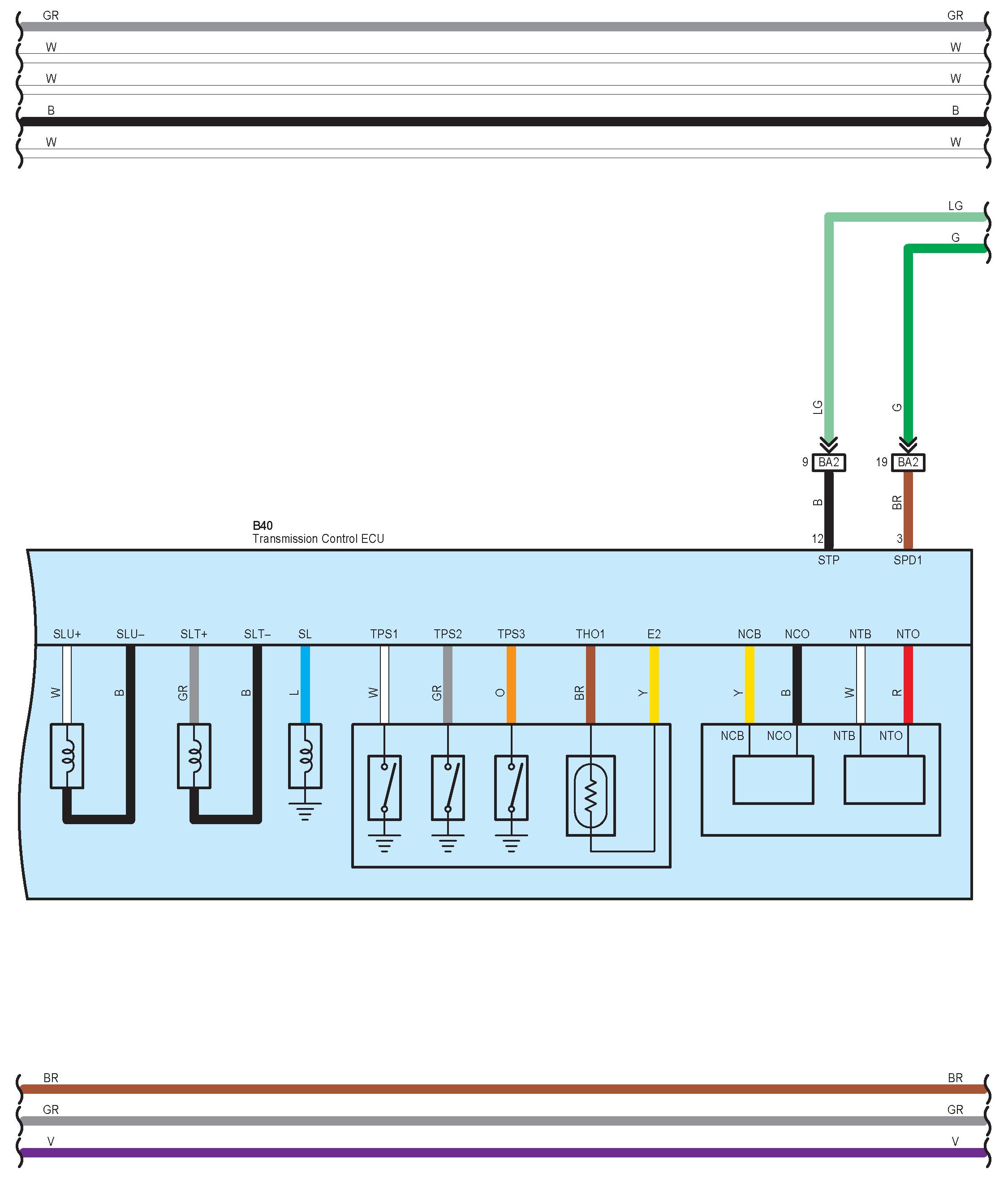

Dynamic Radar Cruise Control Part 5:

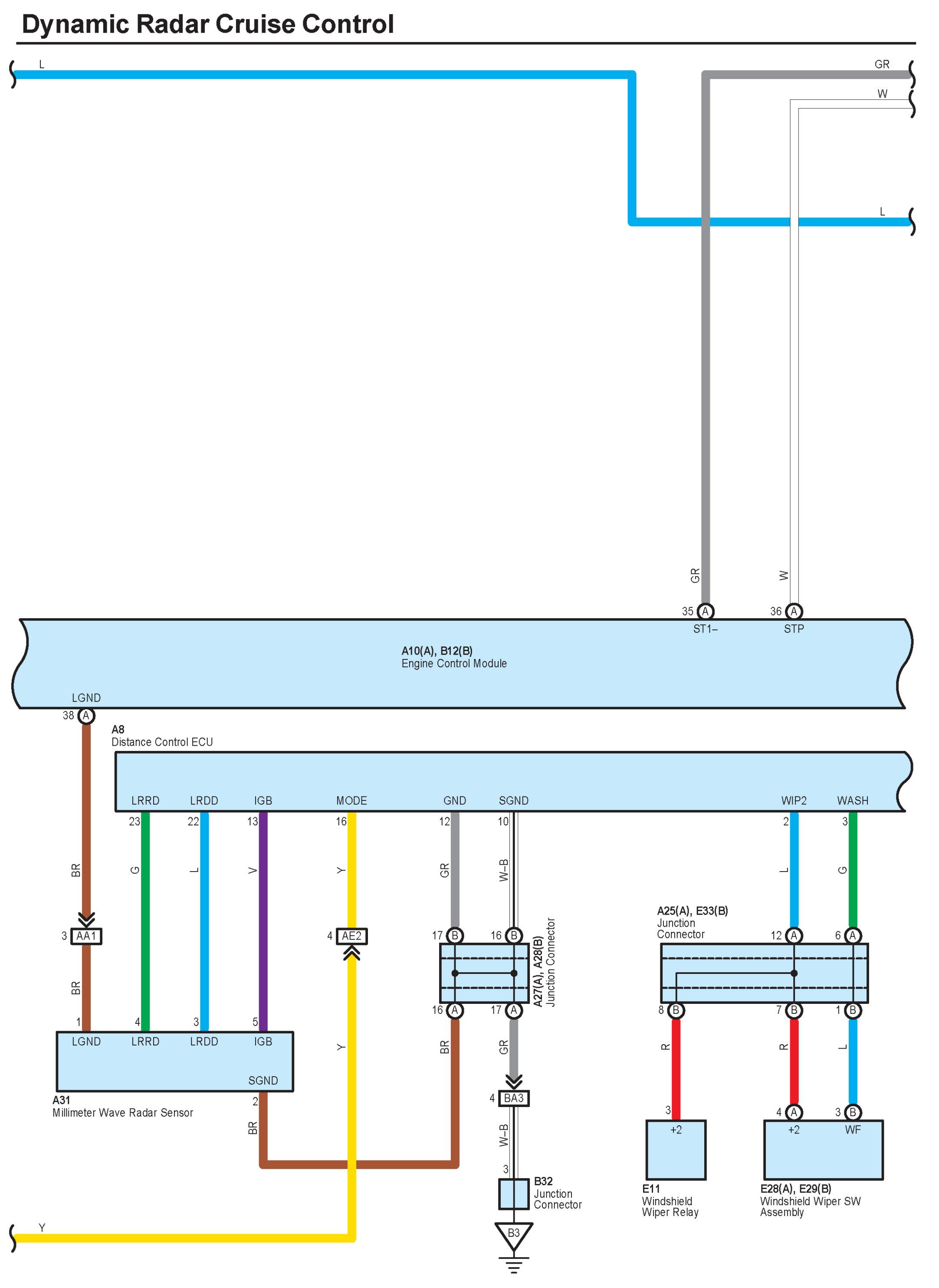

Dynamic Radar Cruise Control Part 6:

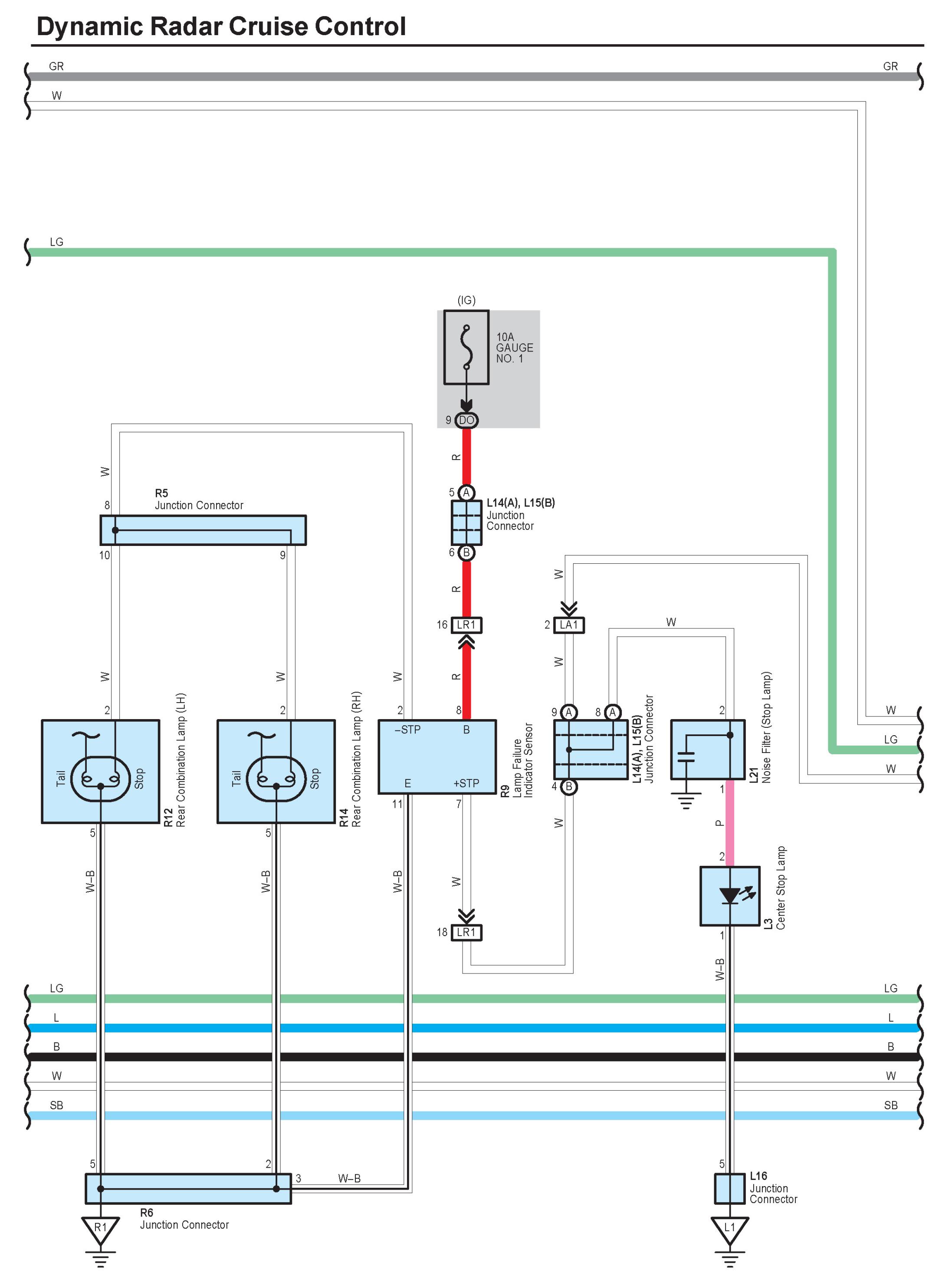

Dynamic Radar Cruise Control Part 7:

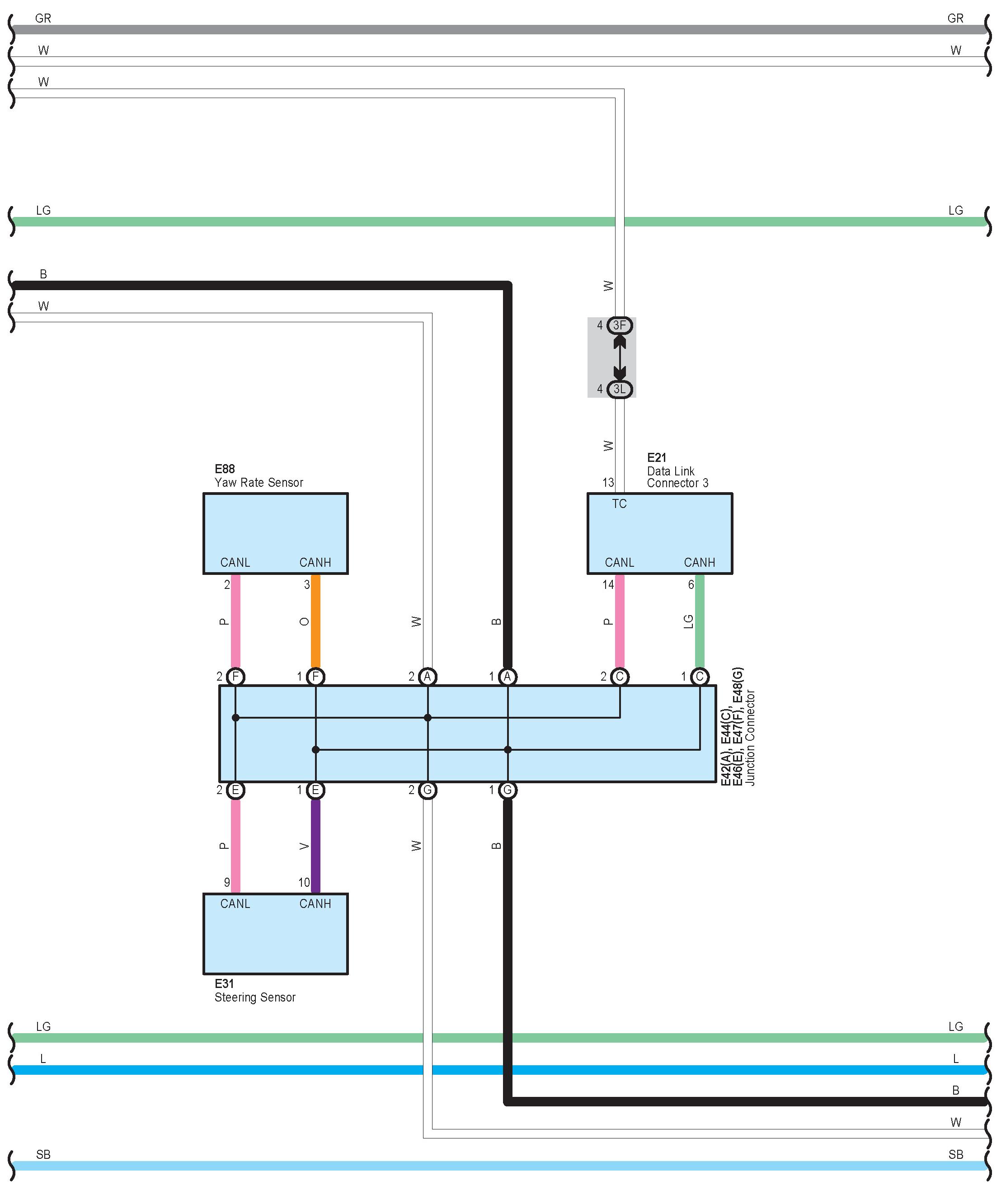

Dynamic Radar Cruise Control Part 8:

Dynamic Radar Cruise Control Part 9:

Dynamic Radar Cruise Control Part 10:

Dynamic Radar Cruise Control Part 11:

Dynamic Radar Cruise Control Part 12:

Dynamic Radar Cruise Control Part 13:

Dynamic Radar Cruise Control Part 14:

Diagram Legend Part 1:

Diagram Legend Part 2:

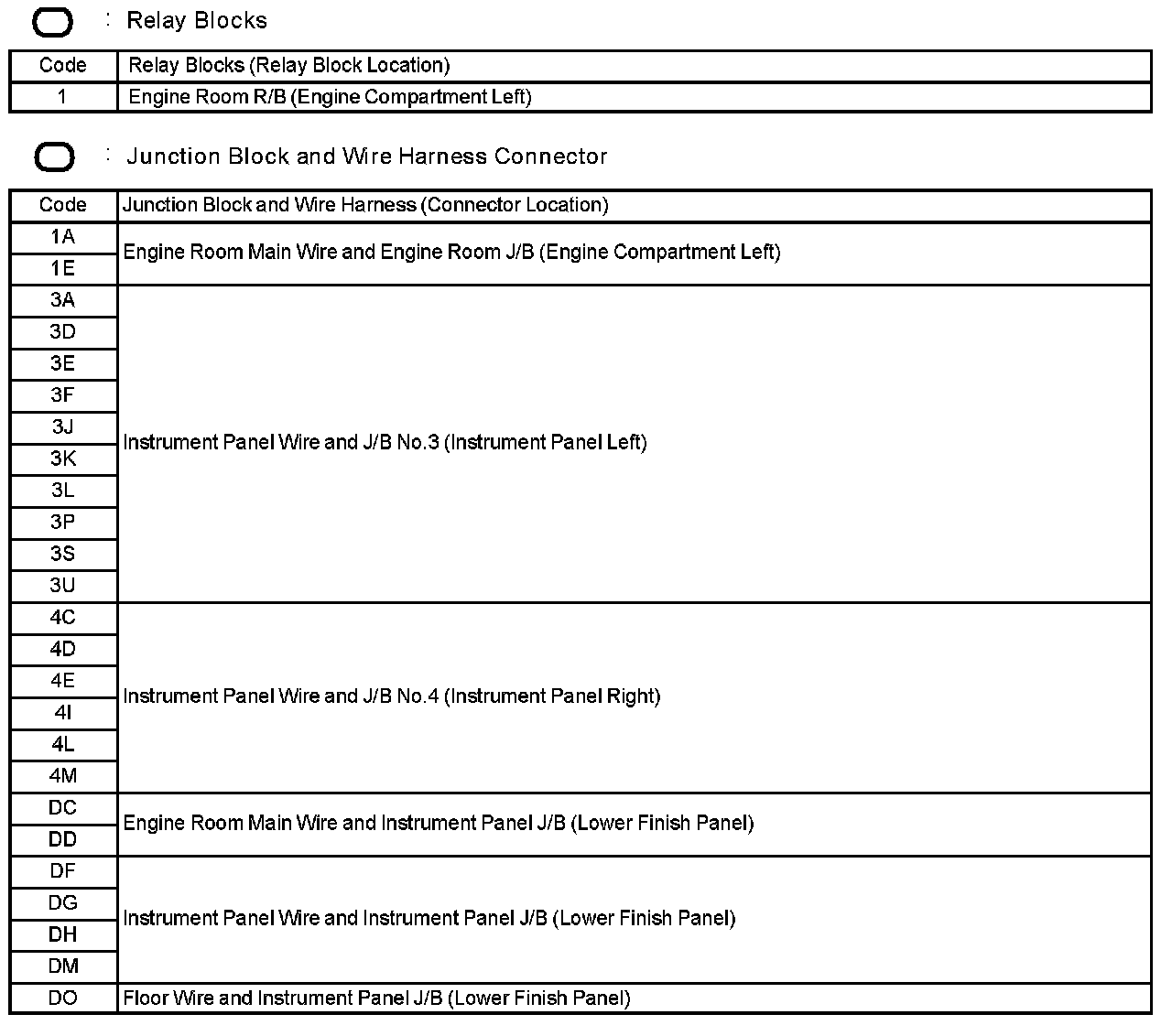

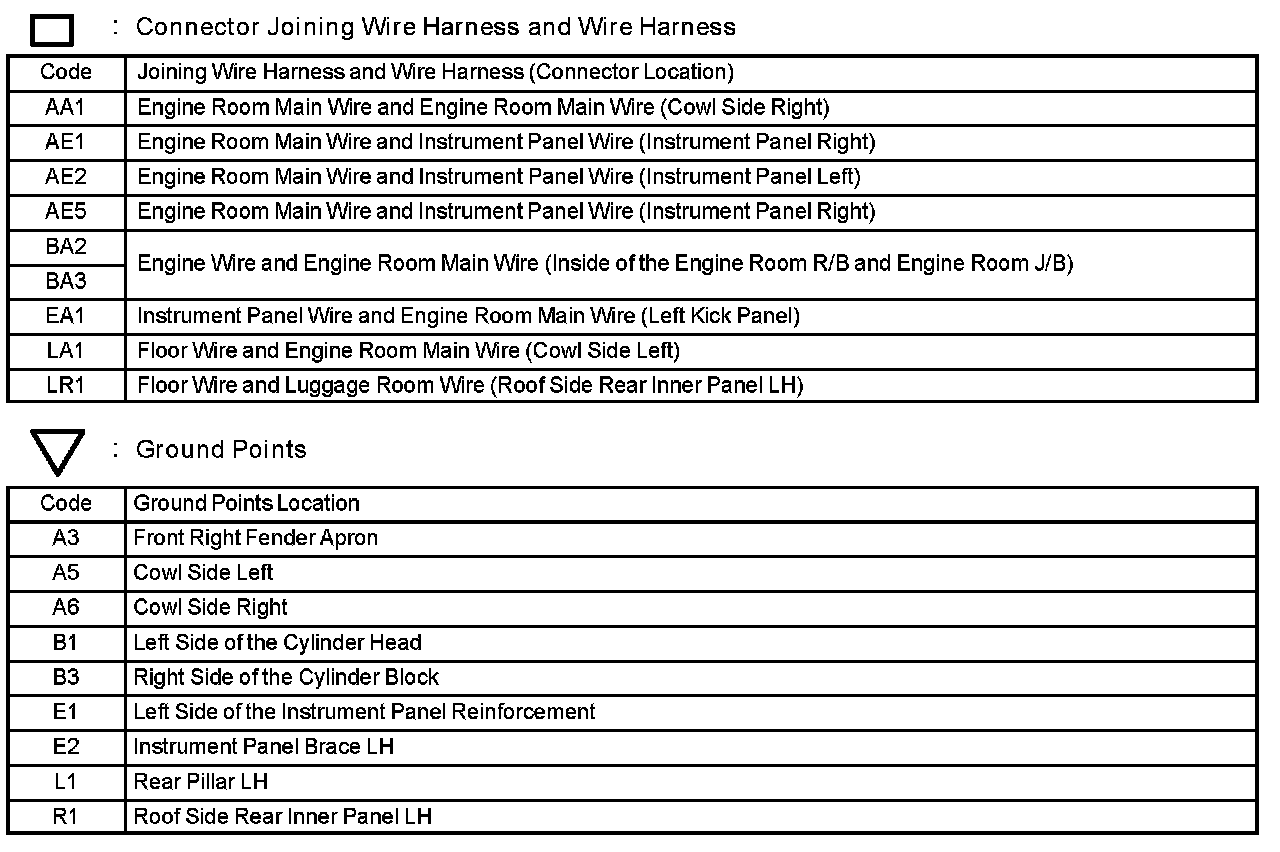

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
