Adaptive Front-Lighting System

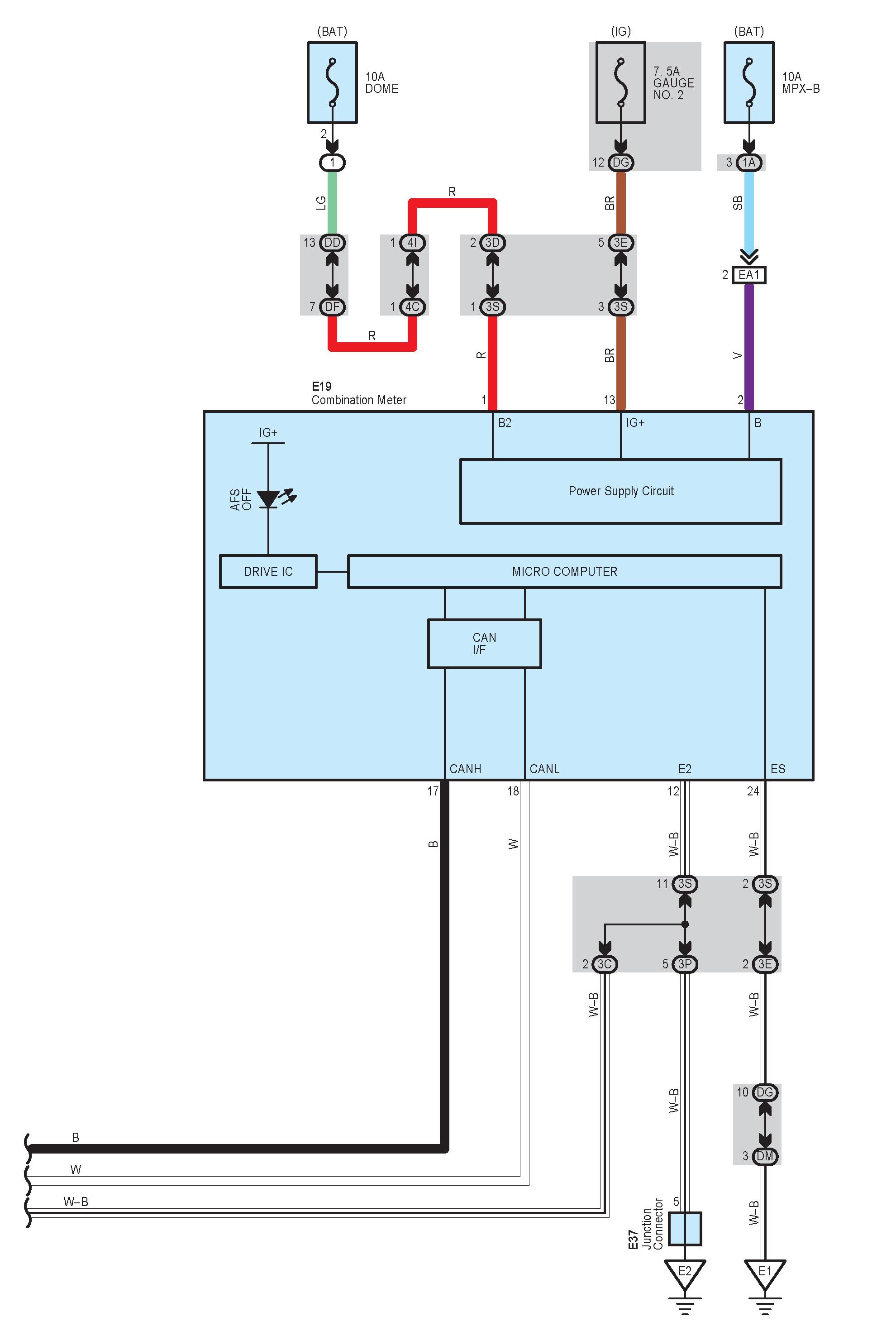

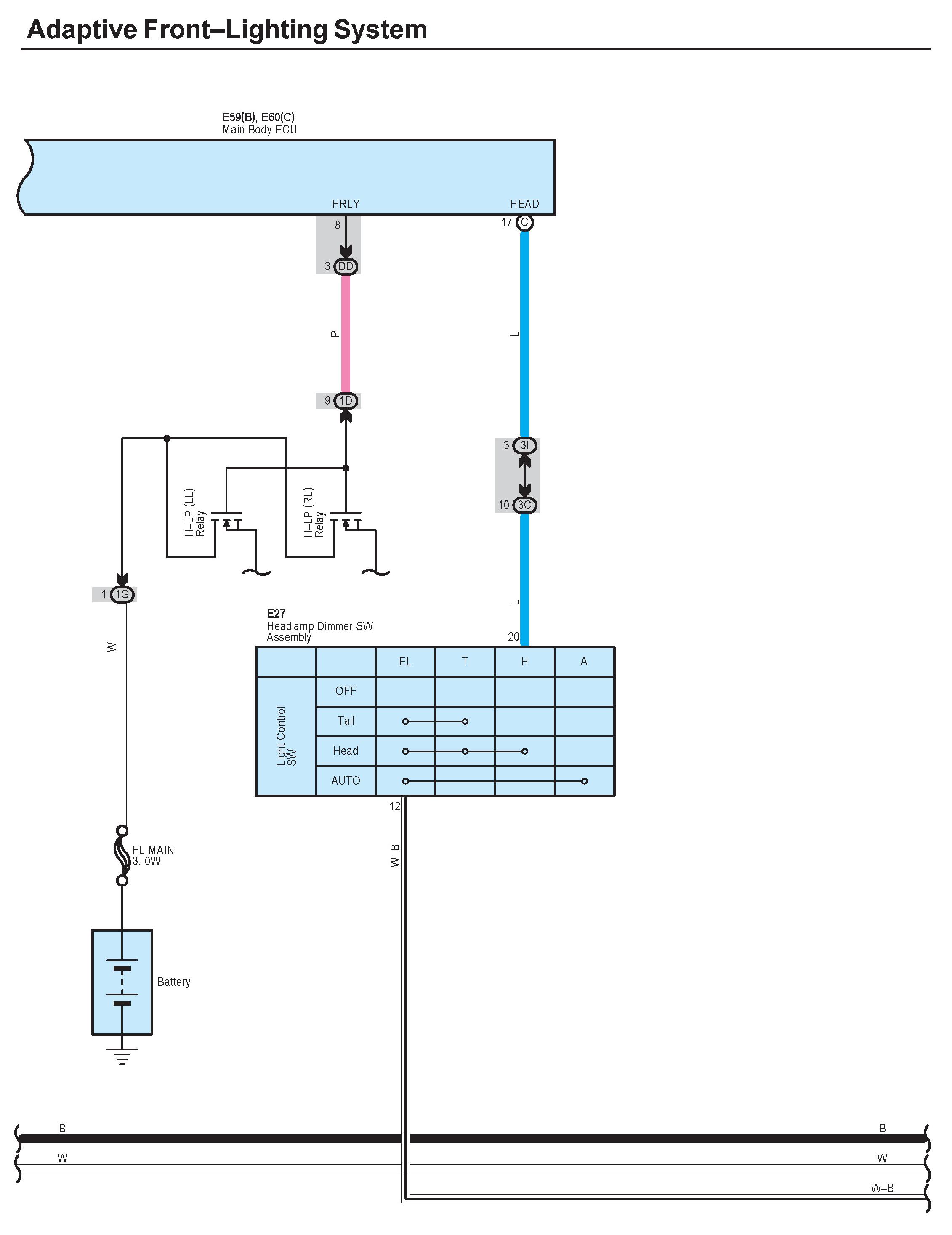

Adaptive Front-Light System Part 1:

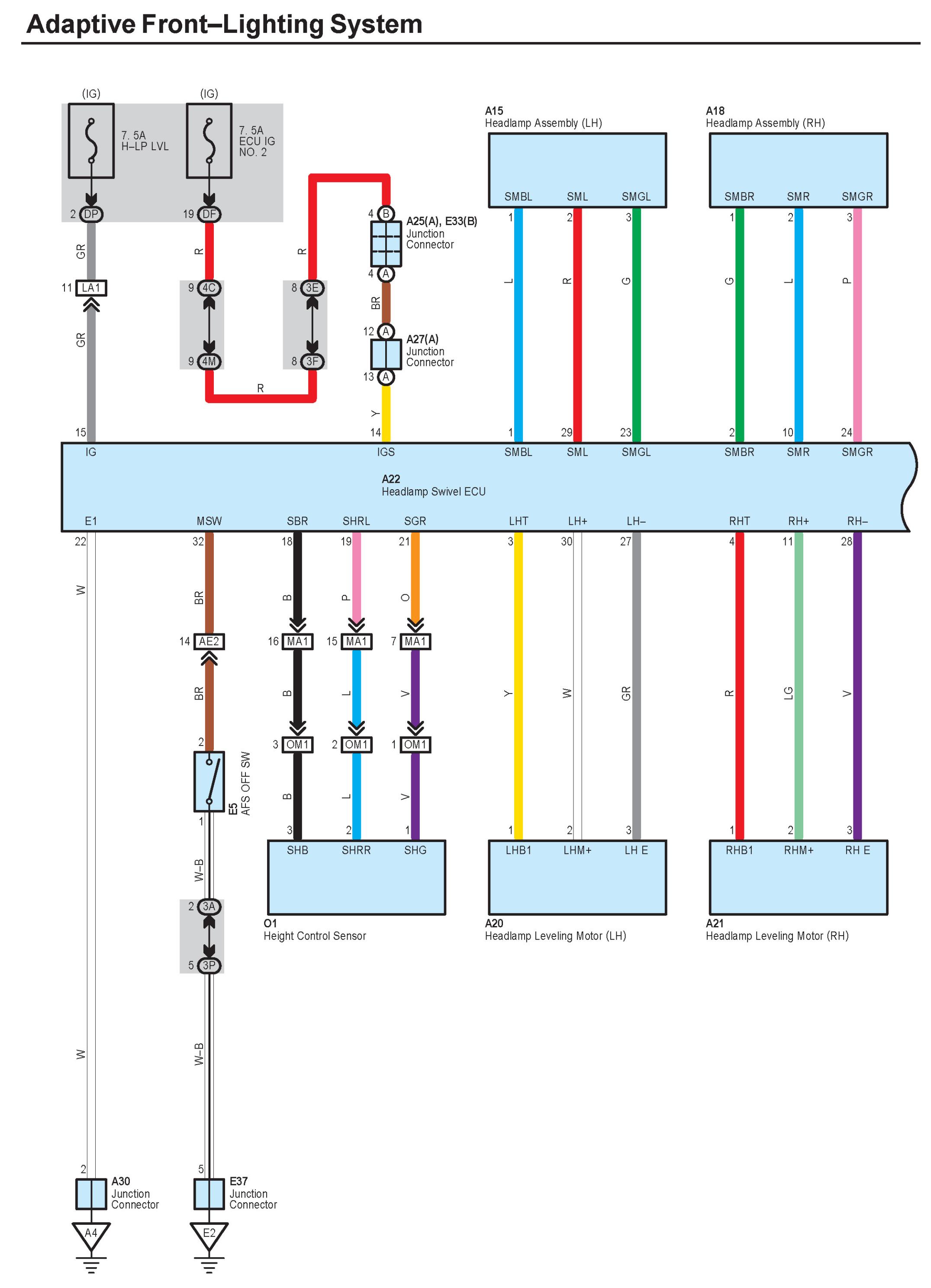

Adaptive Front-Light System Part 2:

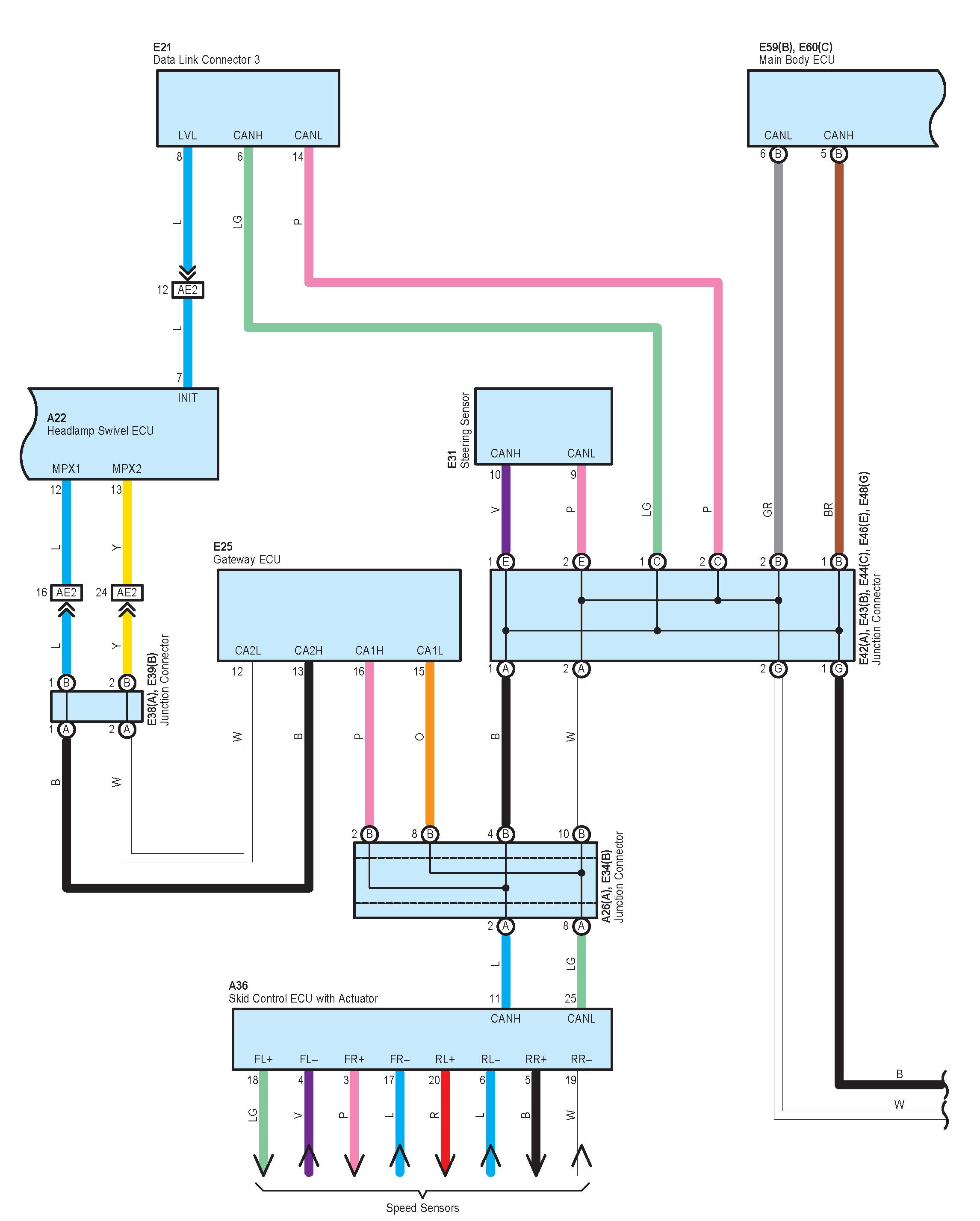

Adaptive Front-Light System Part 3:

Adaptive Front-Light System Part 4:

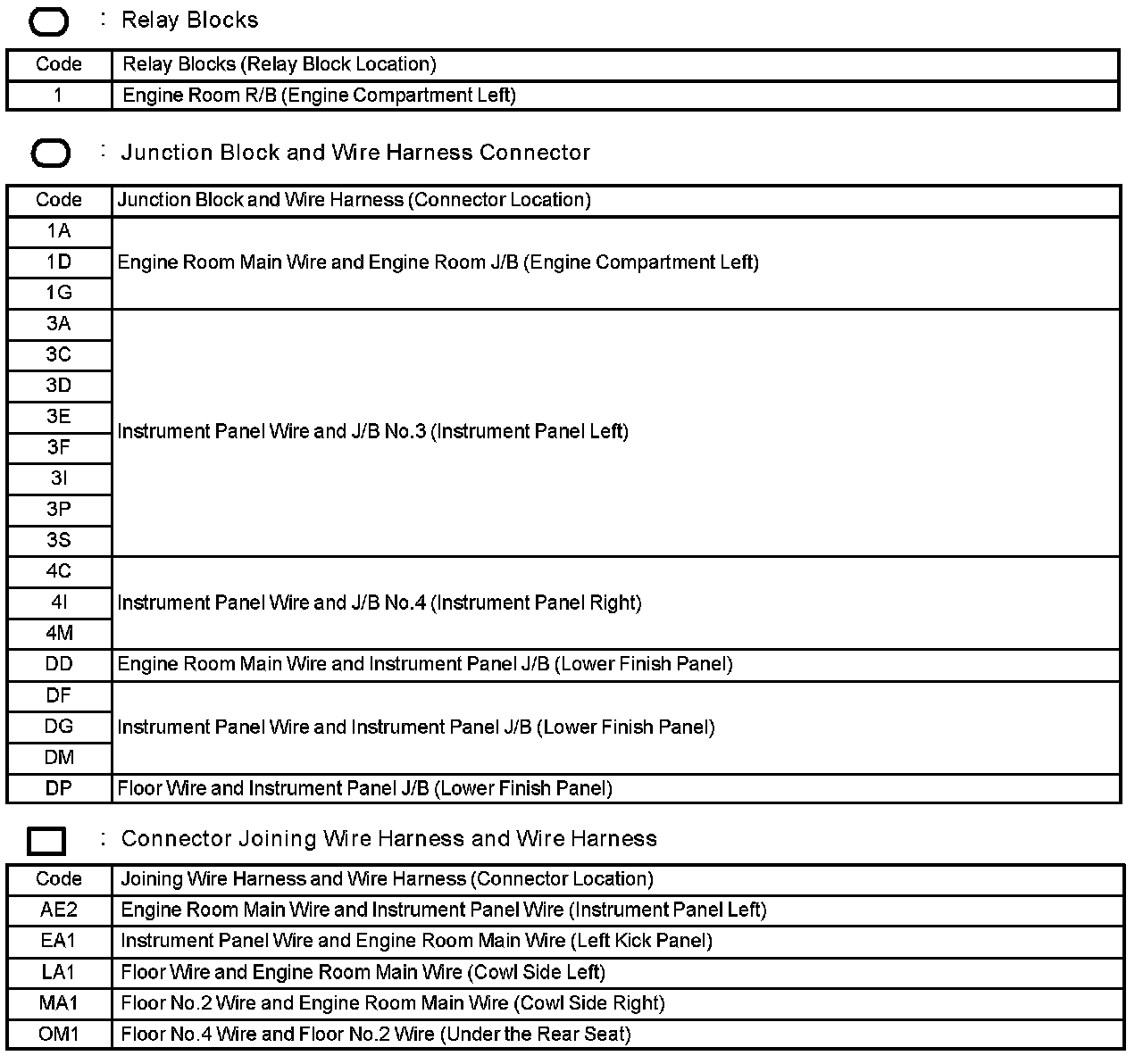

Diagram Legend Part 1:

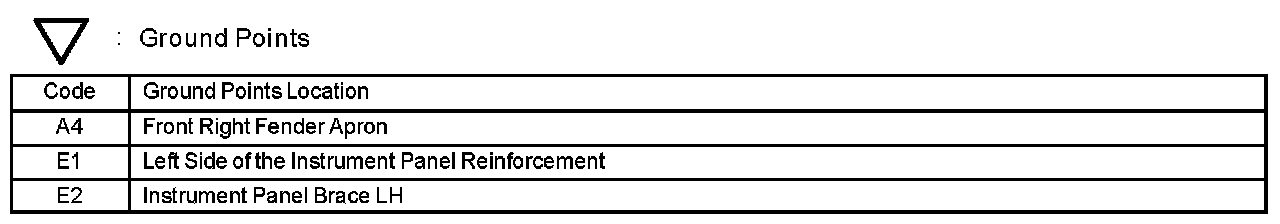

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
