Tachometer Malfunction

Tachometer Malfunction

DESCRIPTION

In this circuit, the meter CPU receives engine revolution signals from the ECM using the CAN communication lines (CAN No. 1 Bus). The meter CPU displays engine revolution data that is calculated based on the data received from the ECM.

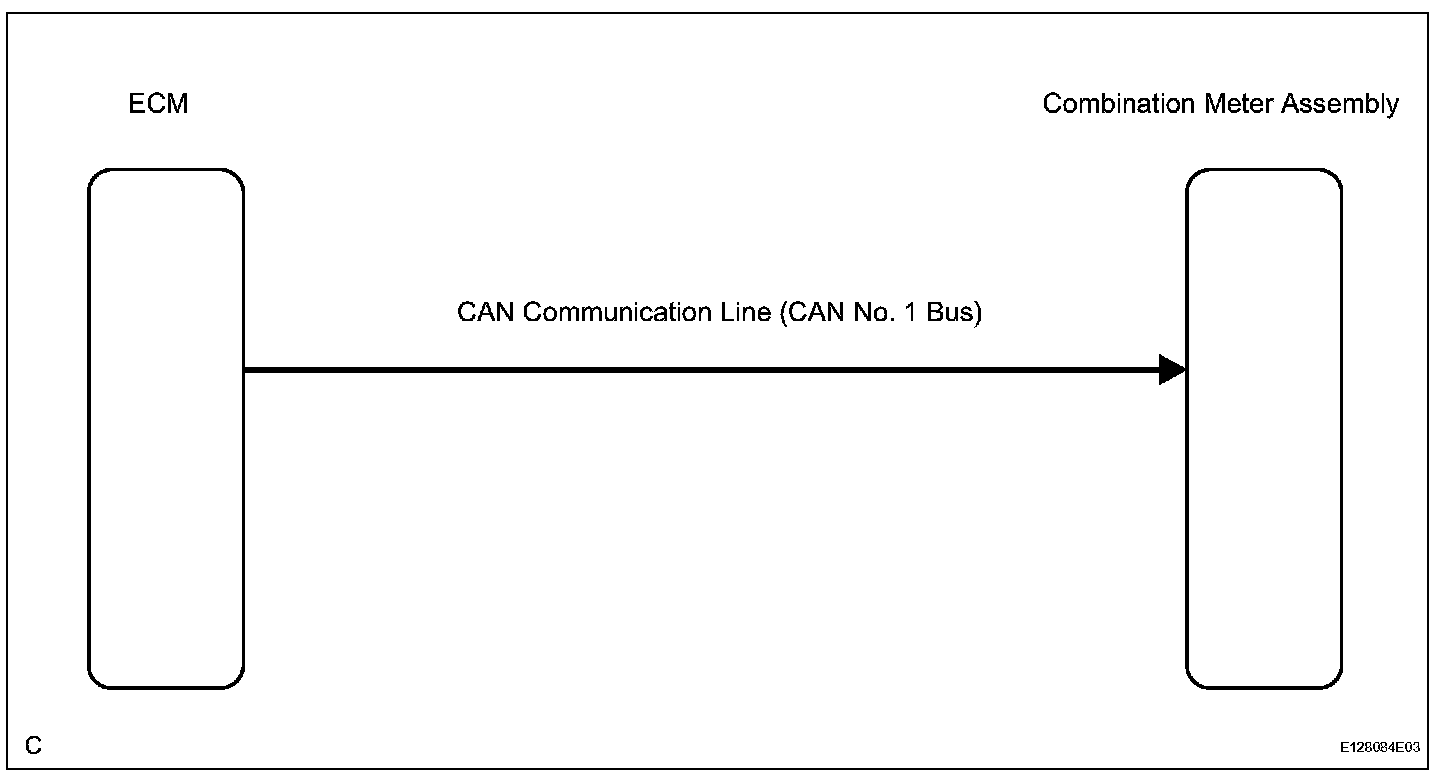

Wiring Diagram:

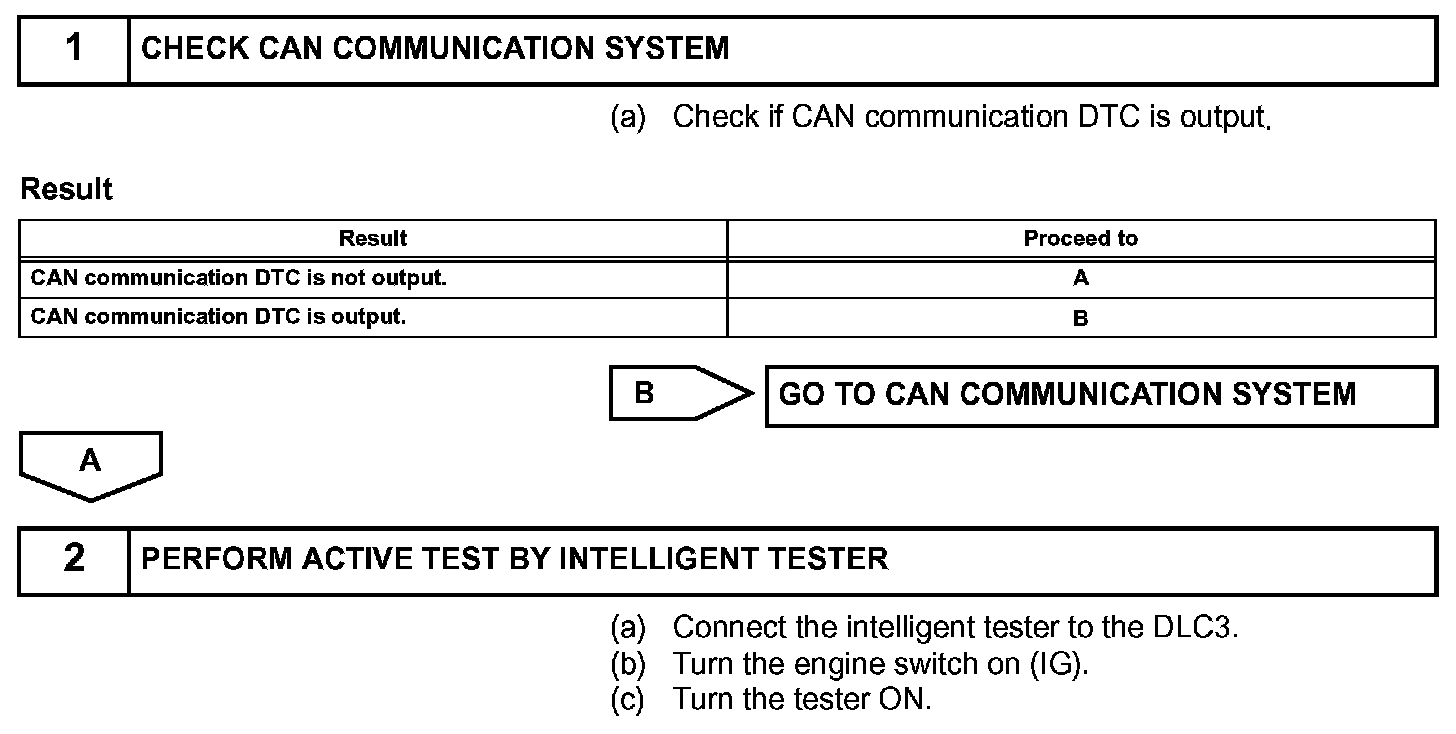

Step 1-2:

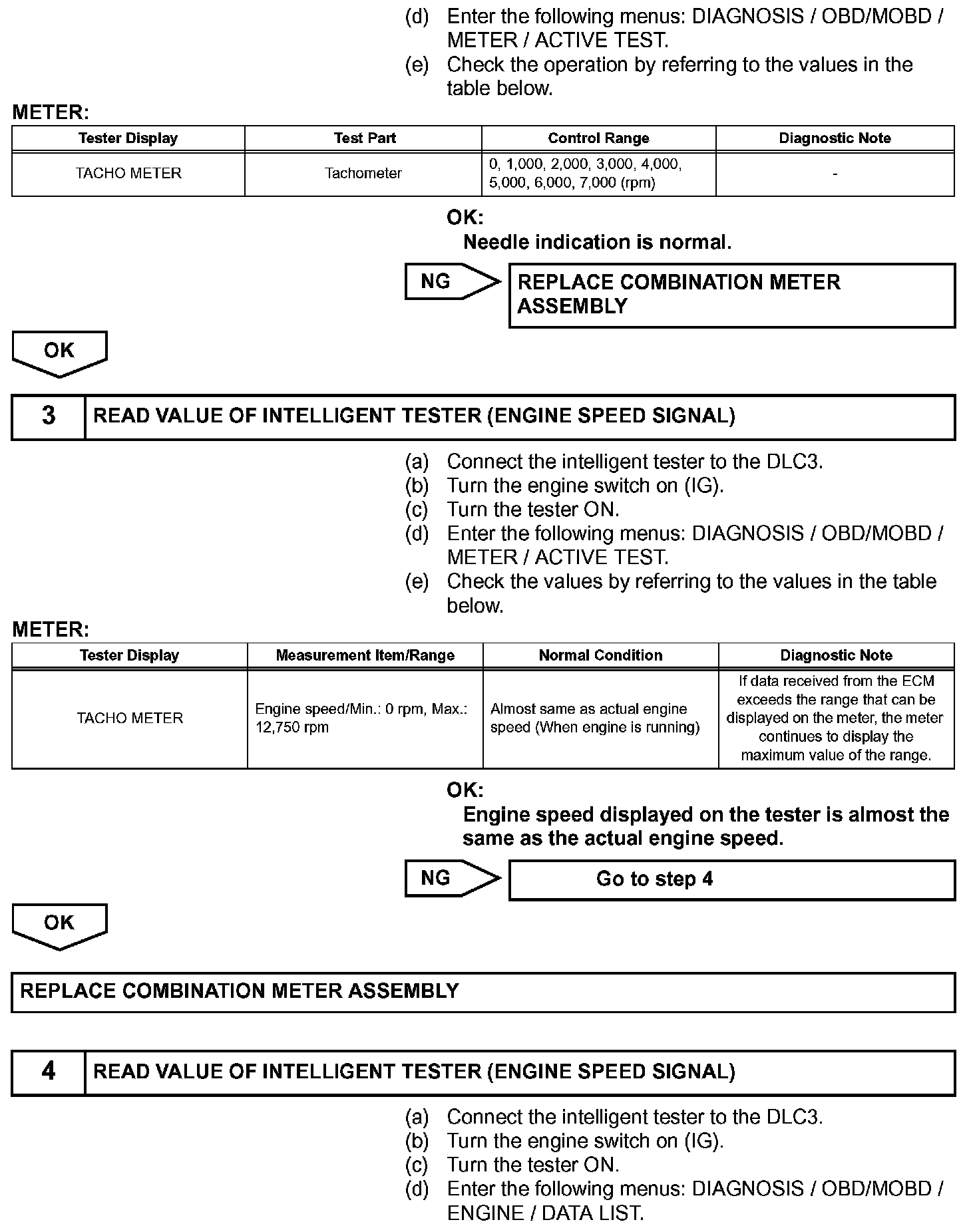

Step 2 (Continued)-4:

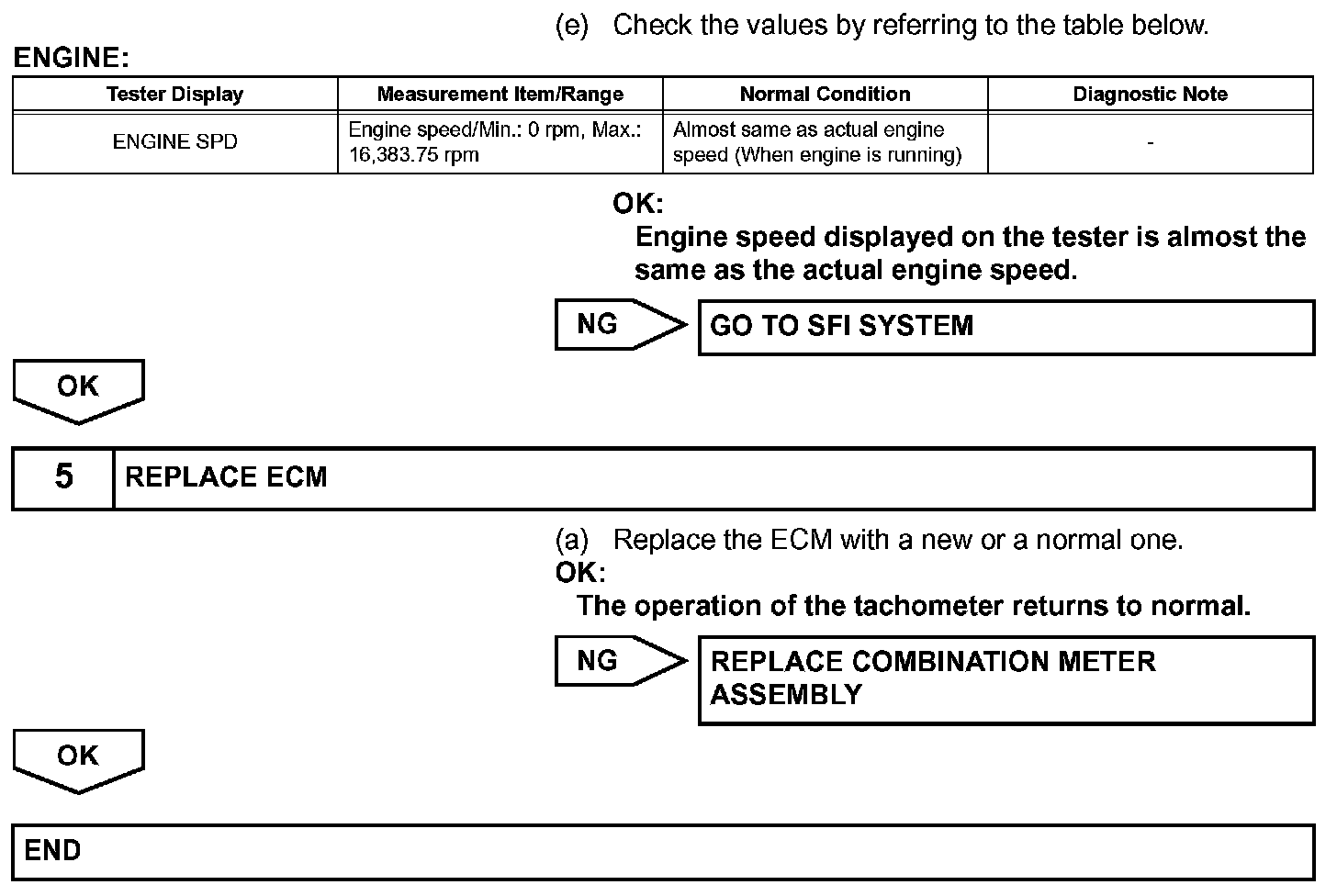

Step 4 (Continued)-5:

INSPECTION PROCEDURE
