Data List

DATA LIST

Using the intelligent tester to read the DATA LIST allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the DATA LIST information early in troubleshooting is one way to save diagnostic time.

a. Warm up the engine.
b. Turn the engine switch off.
c. Connect the intelligent tester to the DLC3.
d. Turn the engine switch on (IG).
e. Turn the tester on.
f. Enter the following menus: DIAGNOSIS / OBD/ MOBD / METER / DATA LIST

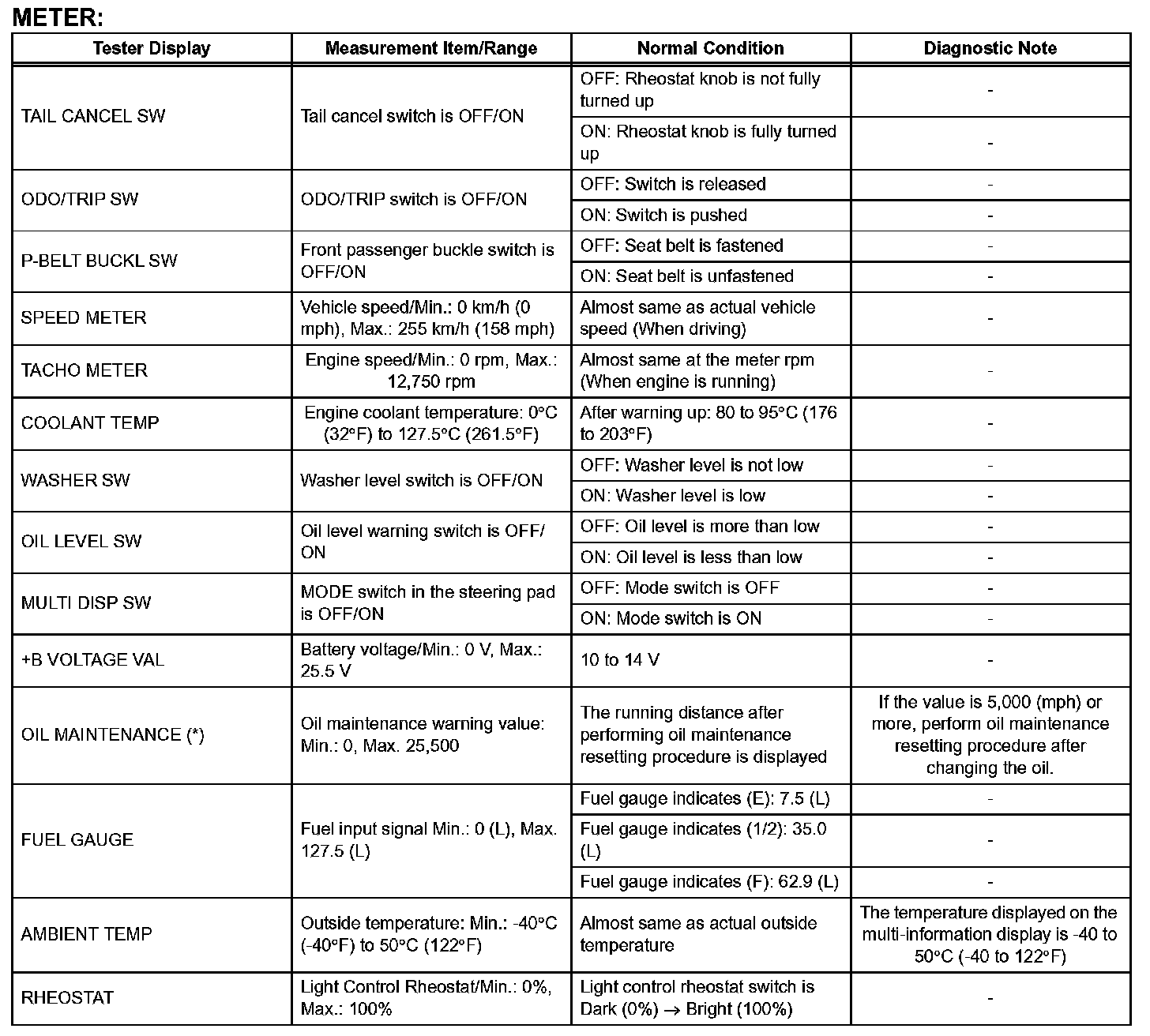

Part 1:

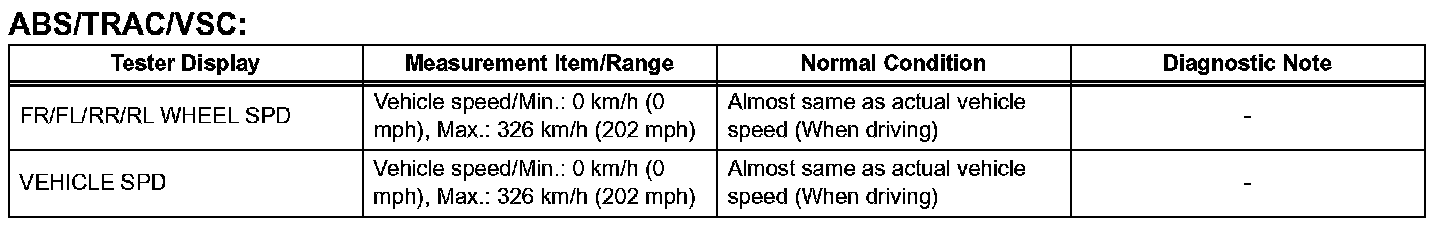

Part 2:

g. Check values by referring to the table.
