Pinout Values and Diagnostic Parameters

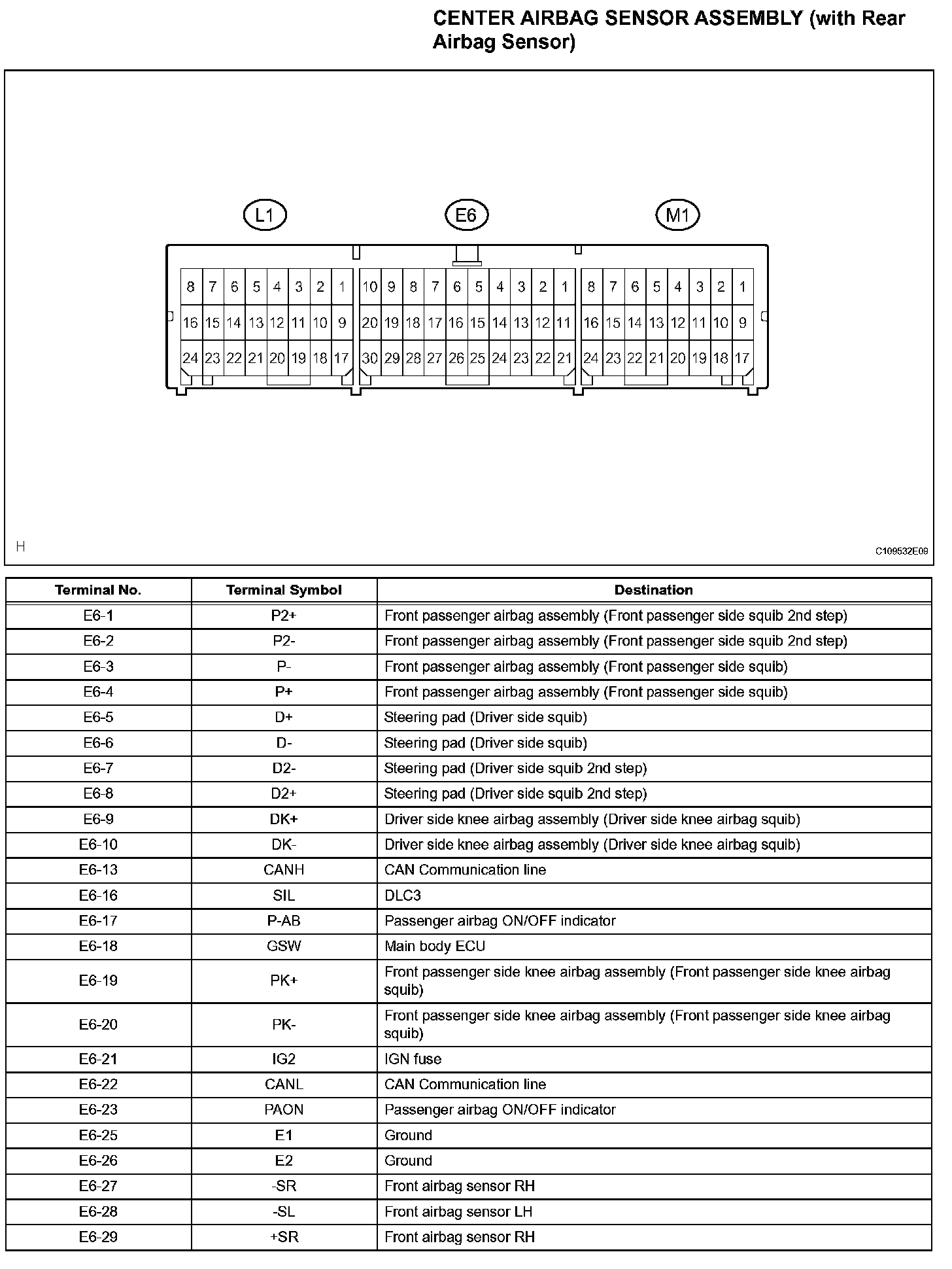

Terminals Of Control Module/Pinouts - Center Airbag Sensor Assembly (With Rear Airbag Sensor) (Part 1):

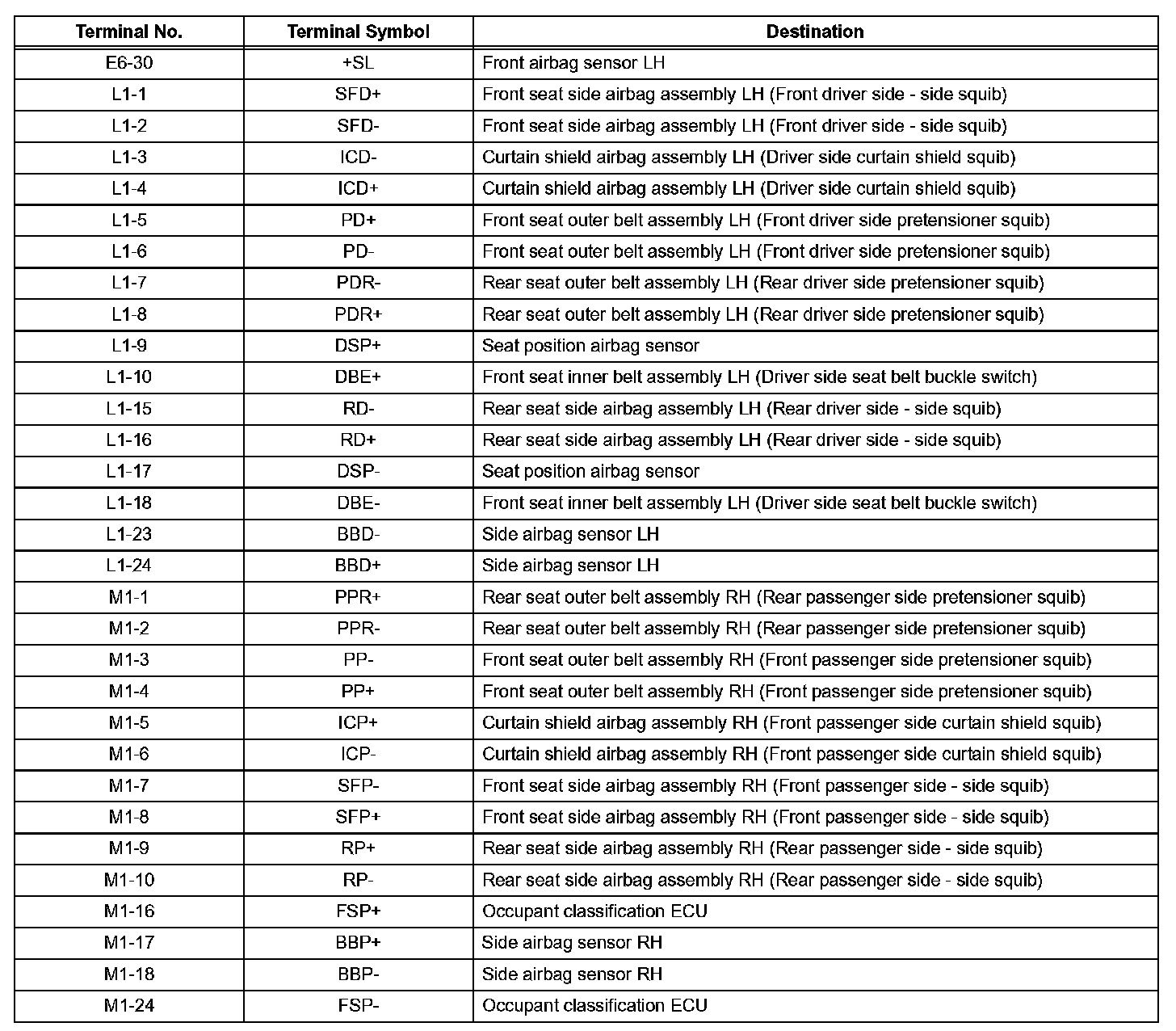

Terminals Of Control Module/Pinouts - Center Airbag Sensor Assembly (With Rear Airbag Sensor) (Part 2):

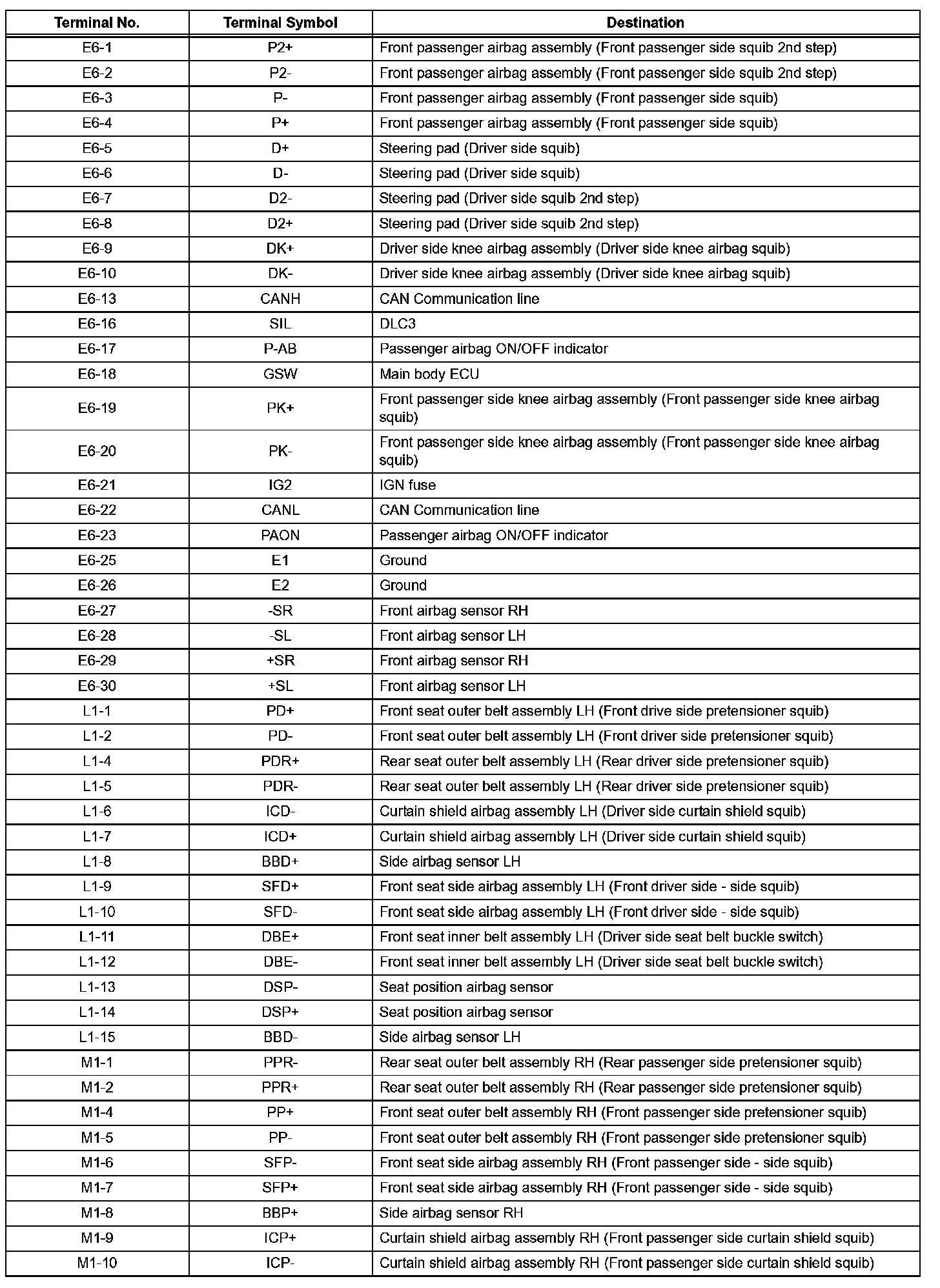

Terminals Of Control Module/Pinouts - Center Airbag Sensor Assembly (Without Rear Airbag Sensor) (Part 1):



Terminals Of Control Module/Pinouts - Center Airbag Sensor Assembly (Without Rear Airbag Sensor) (Part 2):

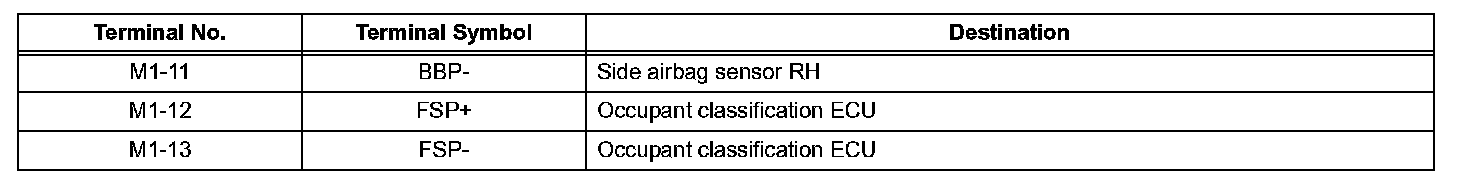

Terminals Of Control Module/Pinouts - Center Airbag Sensor Assembly (Without Rear Airbag Sensor) (Part 3):
