Scan Tool Testing and Procedures

DATA LIST

HINT: By accessing the DATA LIST displayed on the intelligent tester, you can perform such functions as reading the values of switches and sensors without removing any parts. Reading the DATA LIST as the first step in troubleshooting is one method to save diagnostic time.

1. DATA LIST FOR CENTER AIRBAG SENSOR ASSEMBLY




a. Connect the intelligent tester to the DLC3.
b. Turn the engine switch on (IG).
c. Turn the tester on.
d. Enter the following menus: DIAGNOSIS / OBD/ MOBD / SRS AIRBAG / DATA LIST.

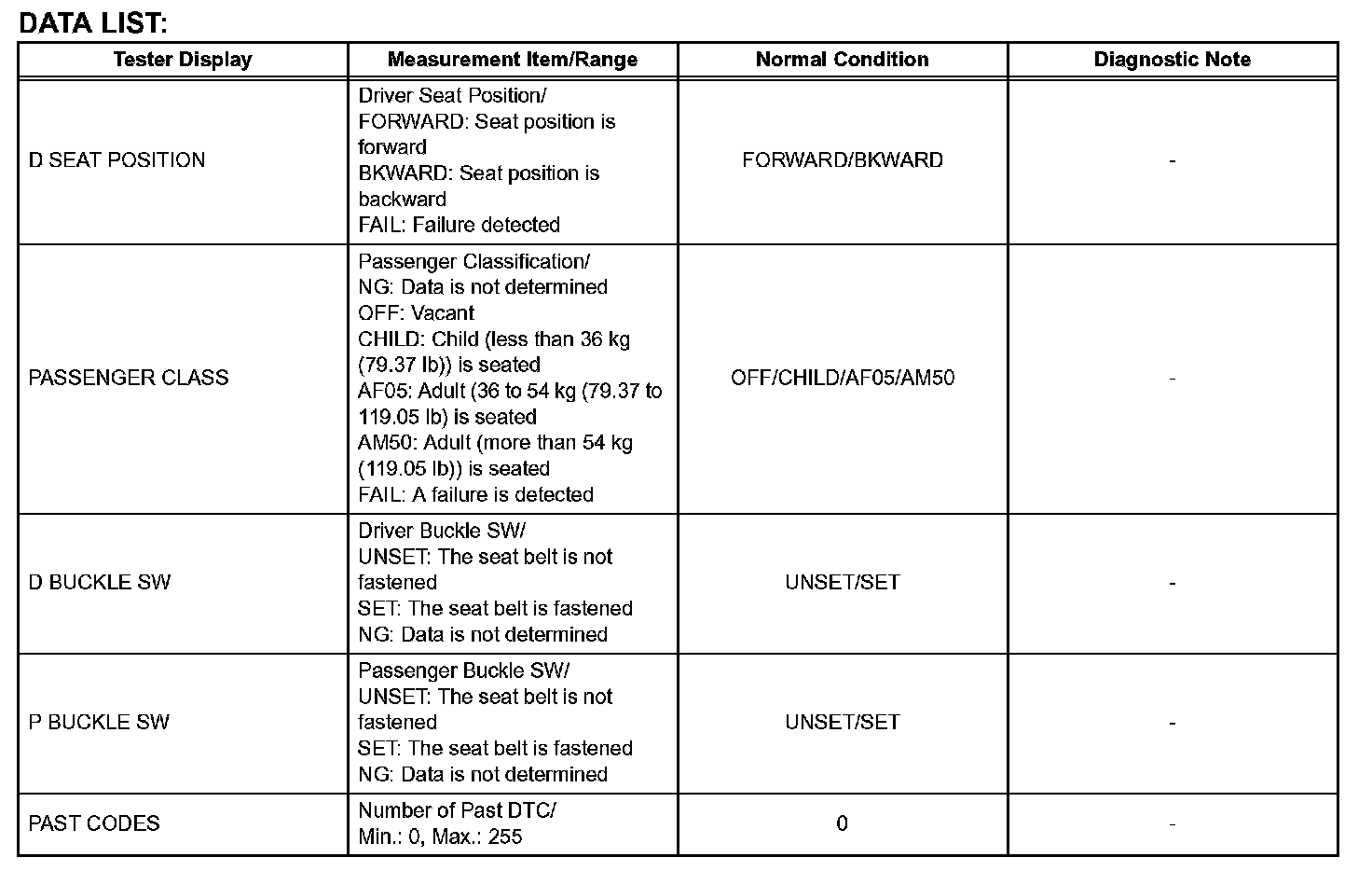

e. Check the values by referring to the table.
