Electrical Diagrams

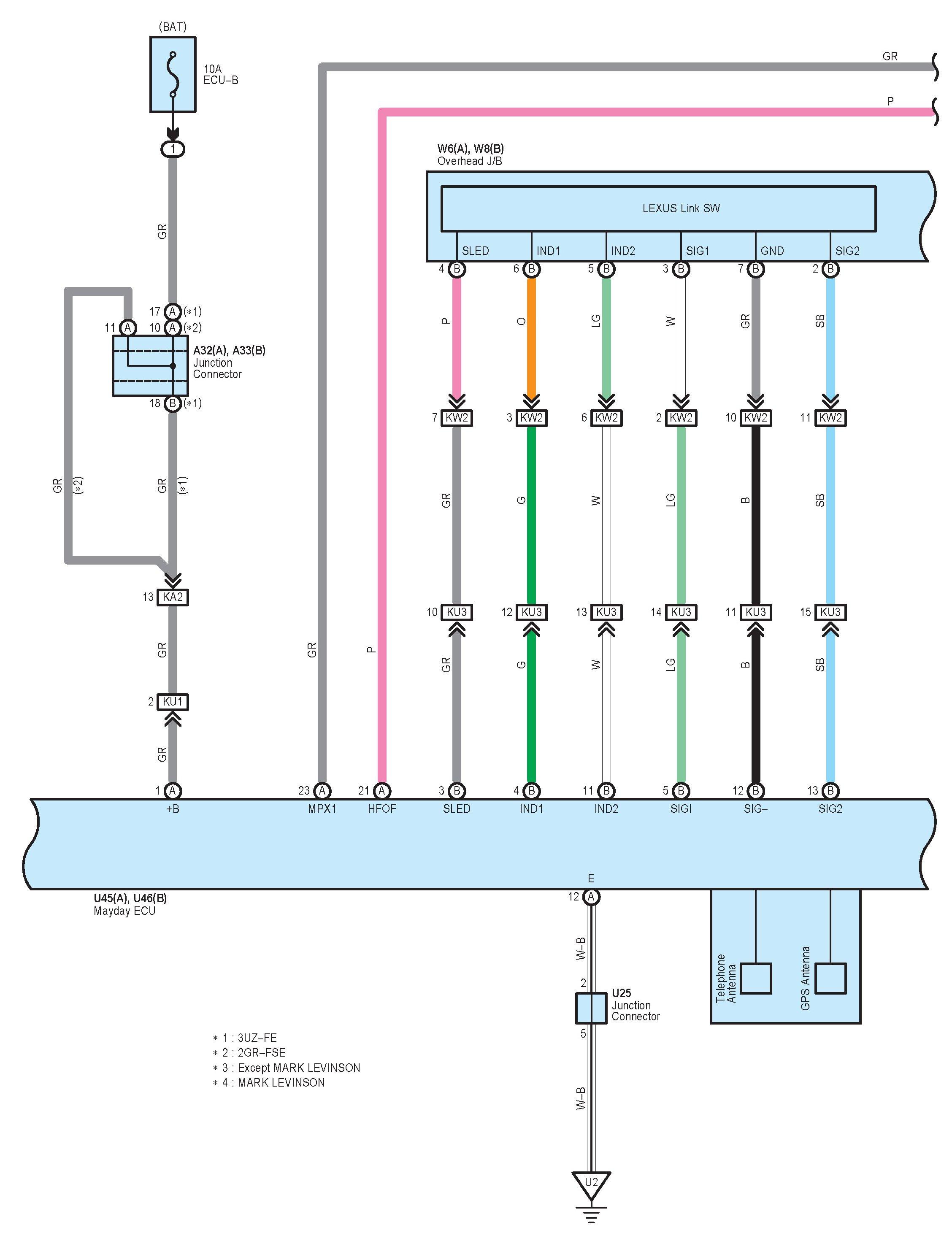

LEXUS Link System (Mayday System) Part 1:

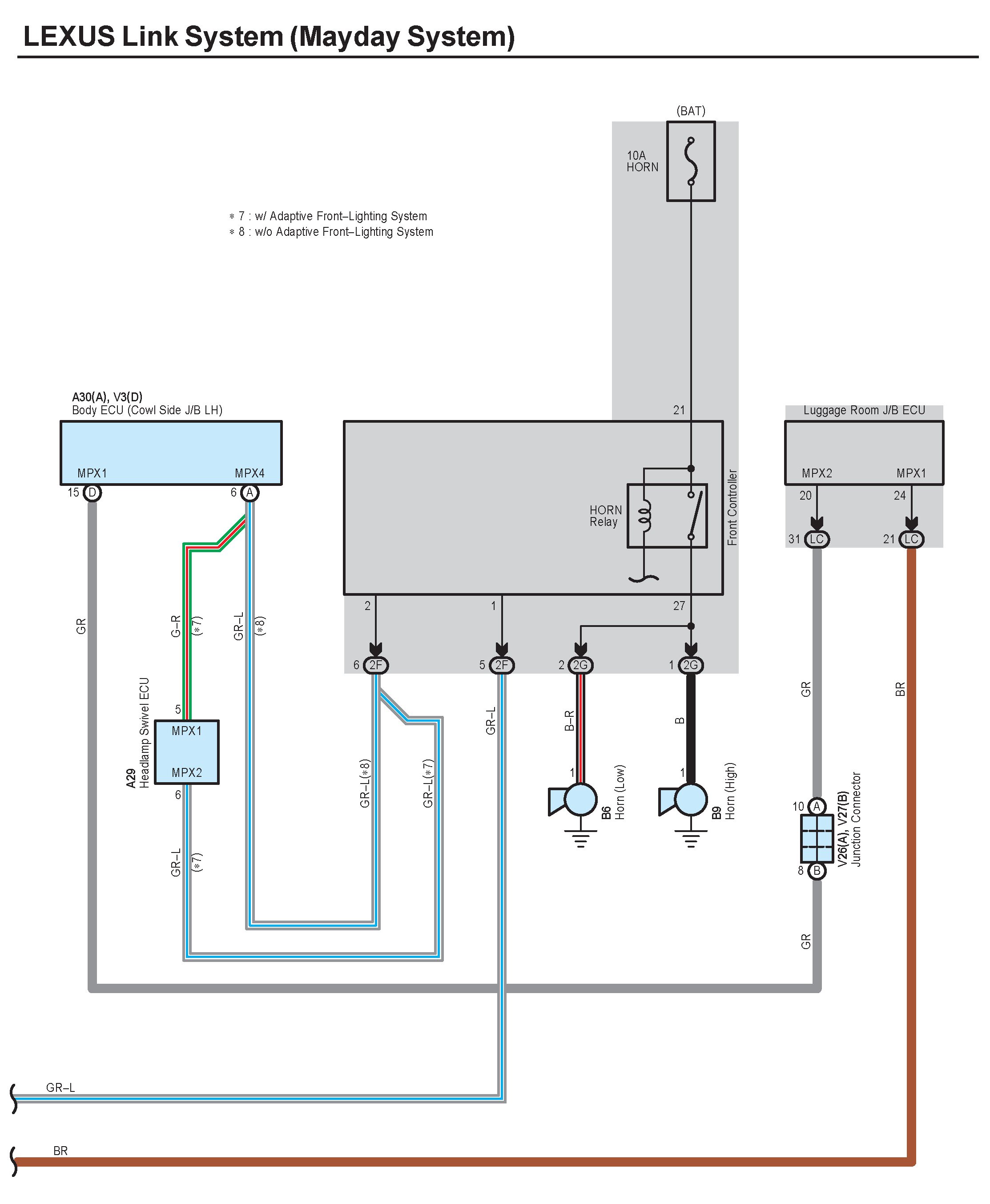

LEXUS Link System (Mayday System) Part 2:

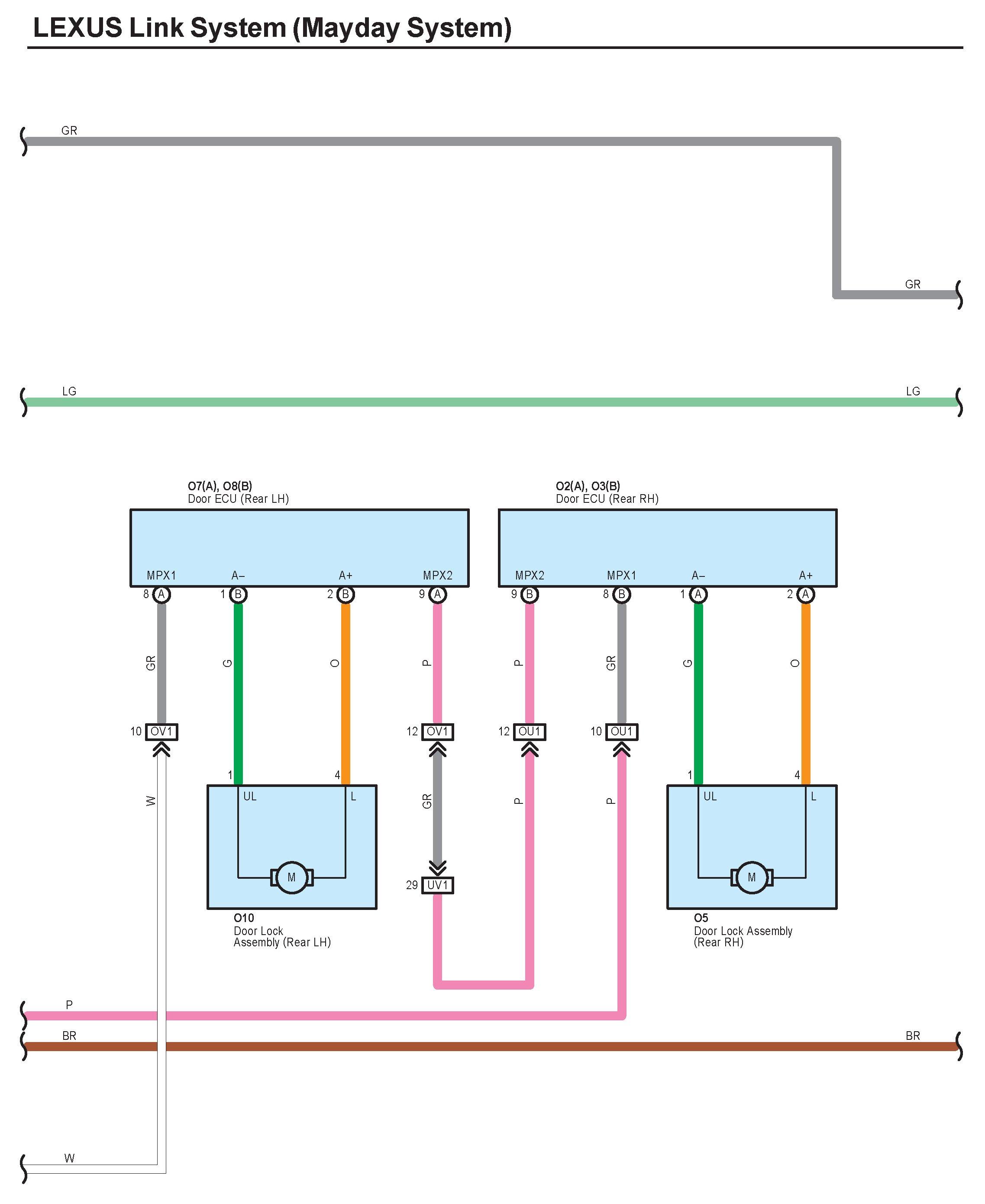

LEXUS Link System (Mayday System) Part 3:

LEXUS Link System (Mayday System) Part 4:

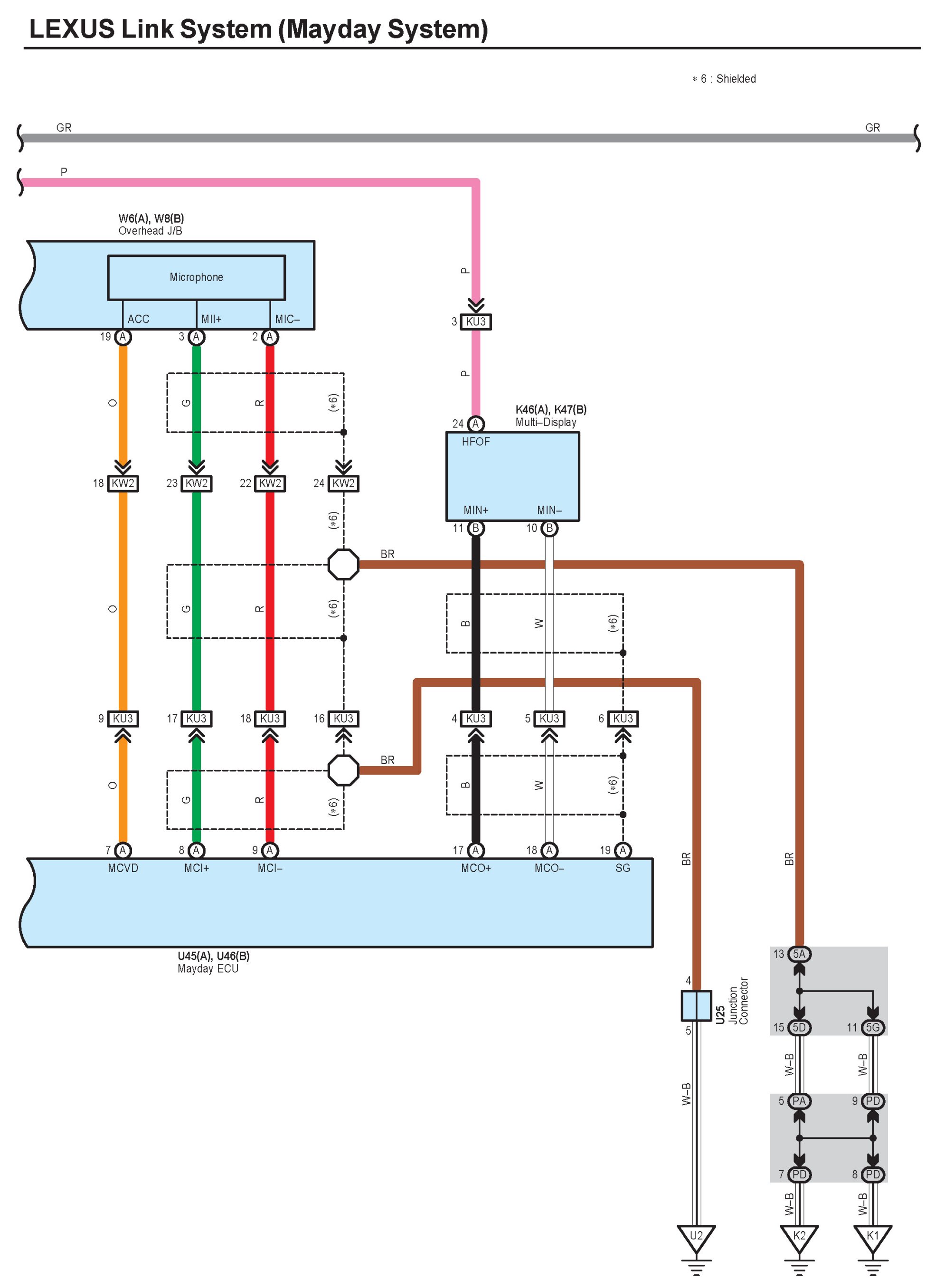

LEXUS Link System (Mayday System) Part 5:

LEXUS Link System (Mayday System) Part 6:

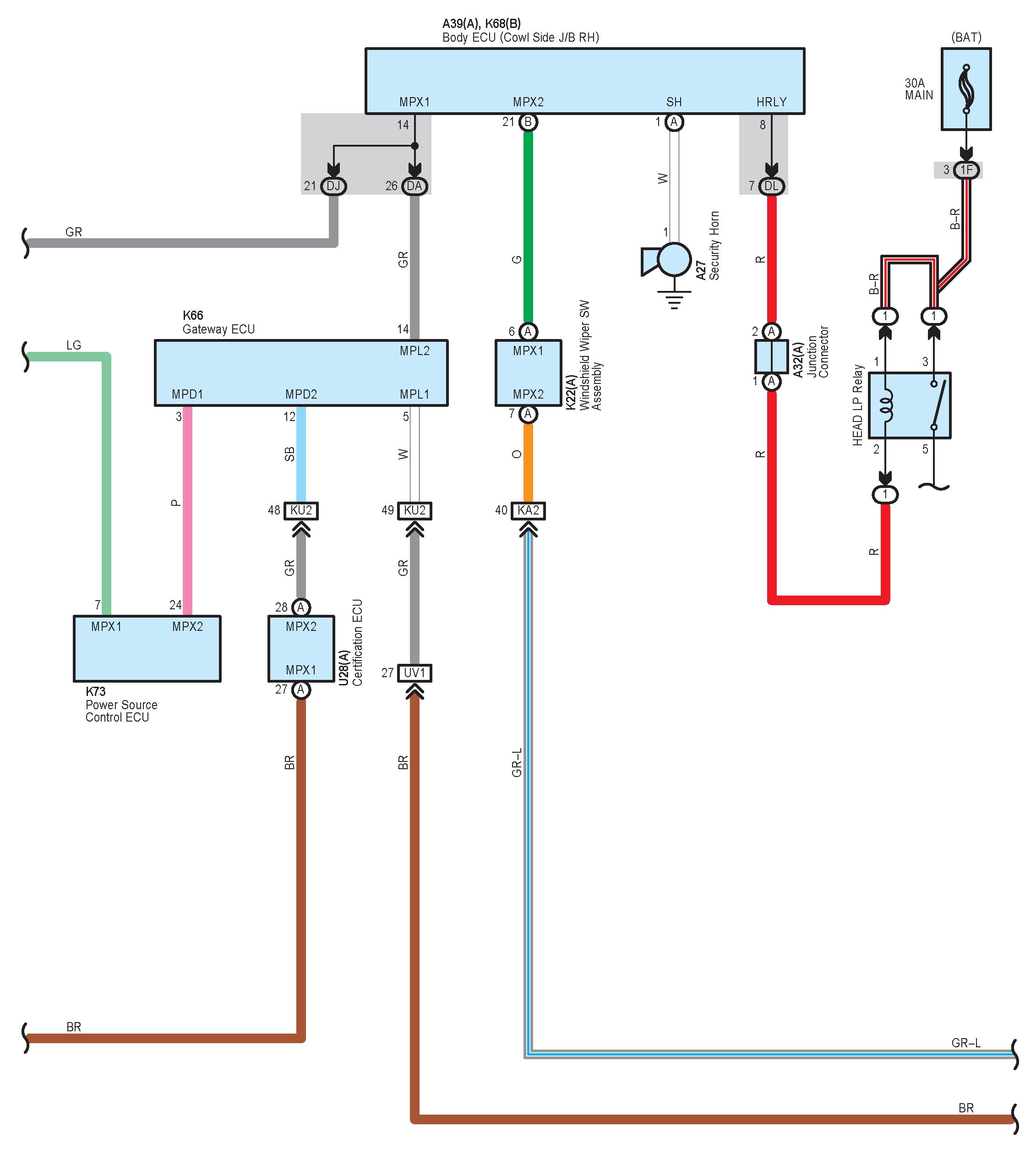

LEXUS Link System (Mayday System) Part 7:

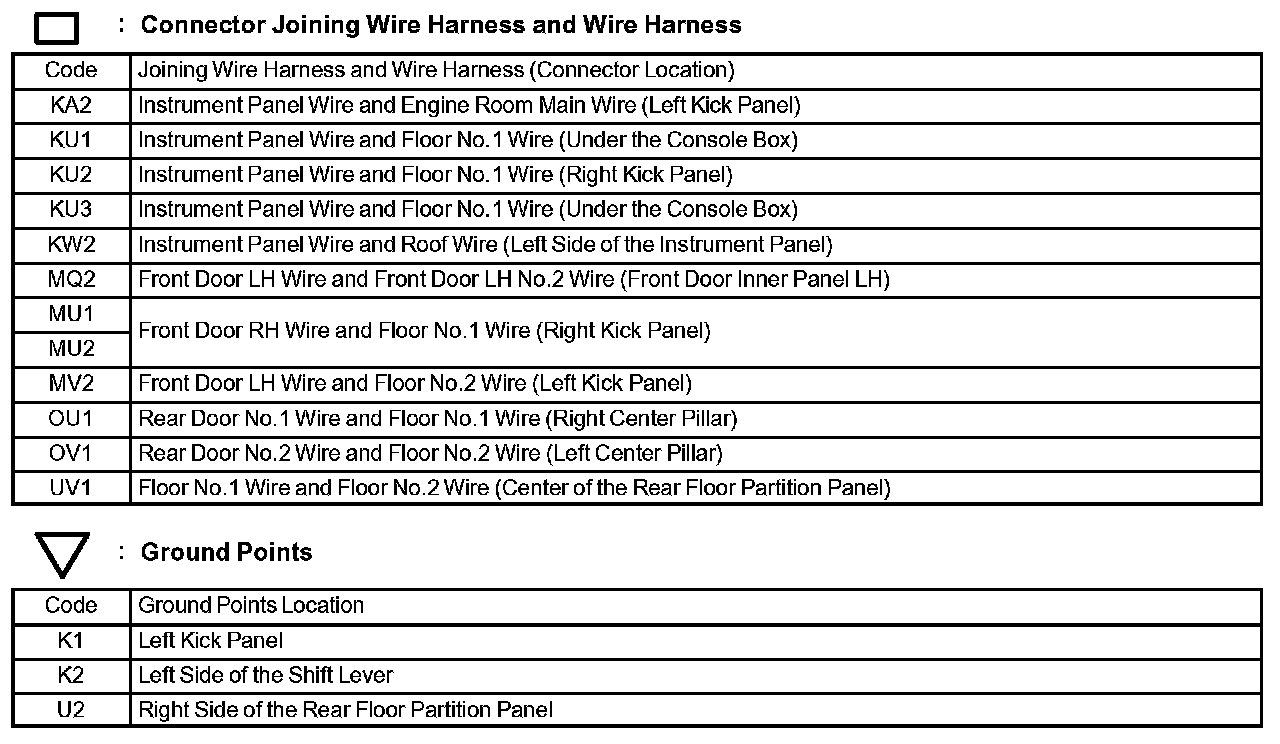

Diagram Legend Part 1:

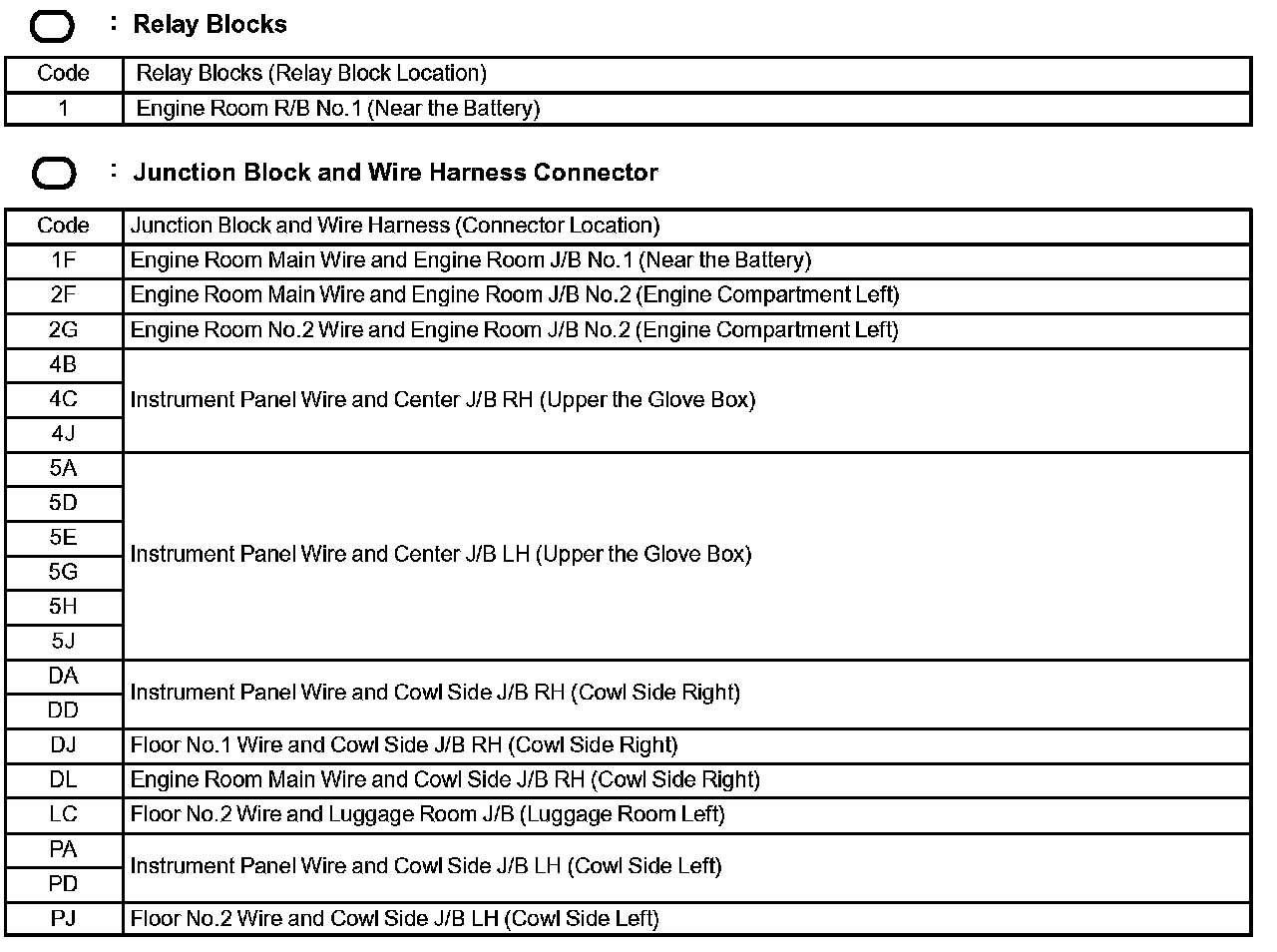

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
