All Doors LOCK / UNLOCK Functions Do Not Operate Via Door Control Switch
All Doors LOCK / UNLOCK Functions do not Operate Via Door Control SwitchDESCRIPTION
The multiplex network body ECU receives switch signals from the door control switch and activates the door lock motor on each door according to the signals.

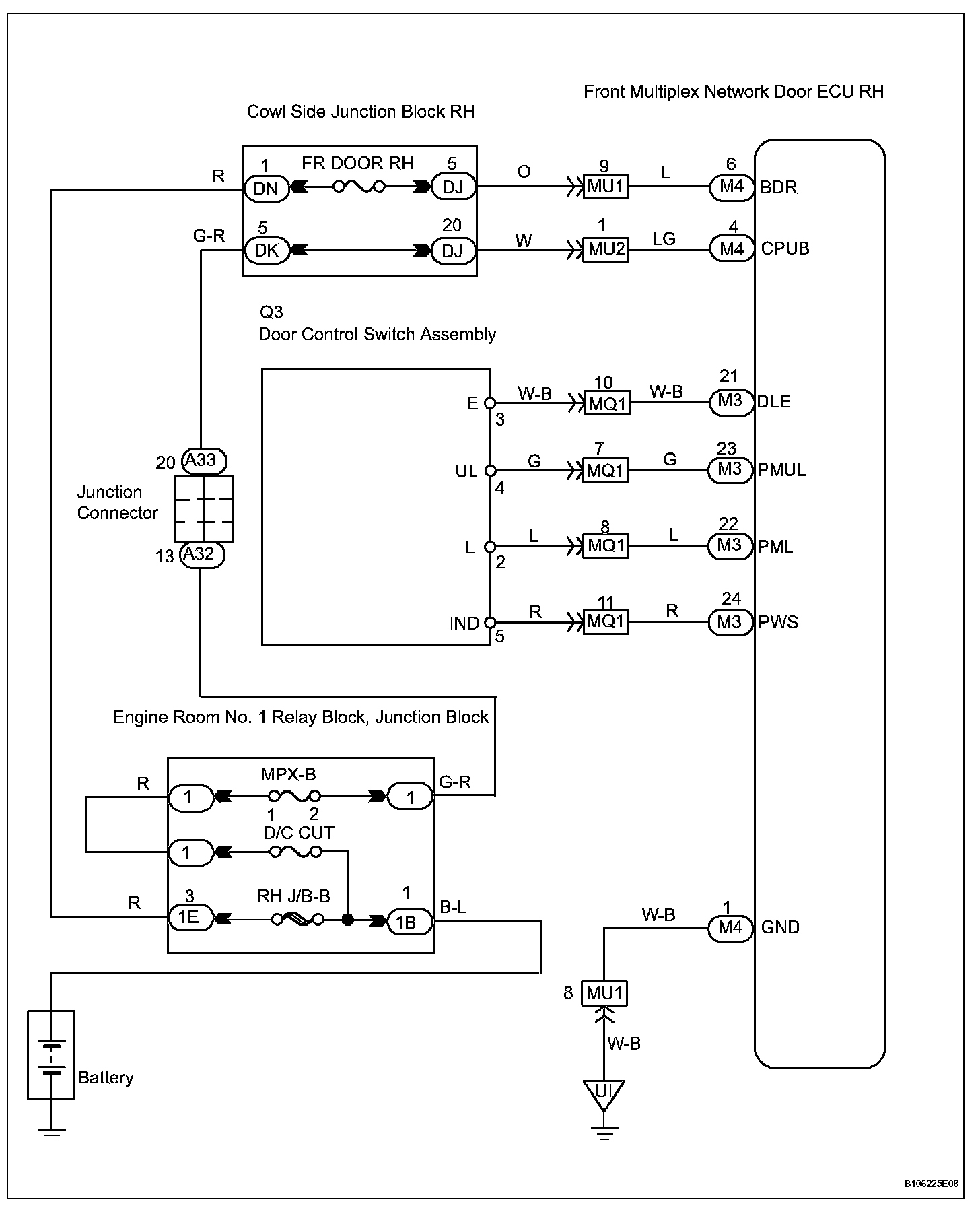

Wiring Diagram:

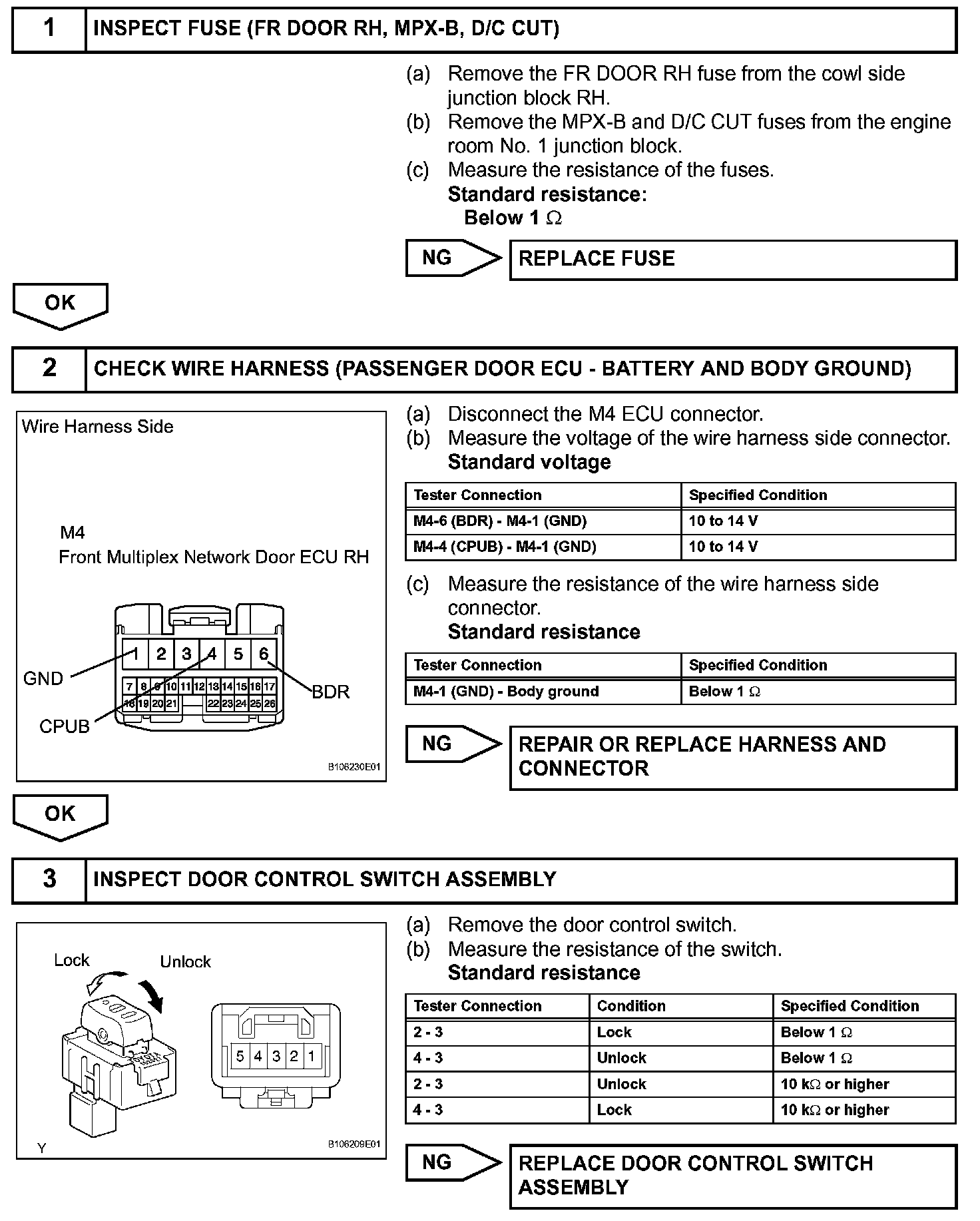

Step 1-3:

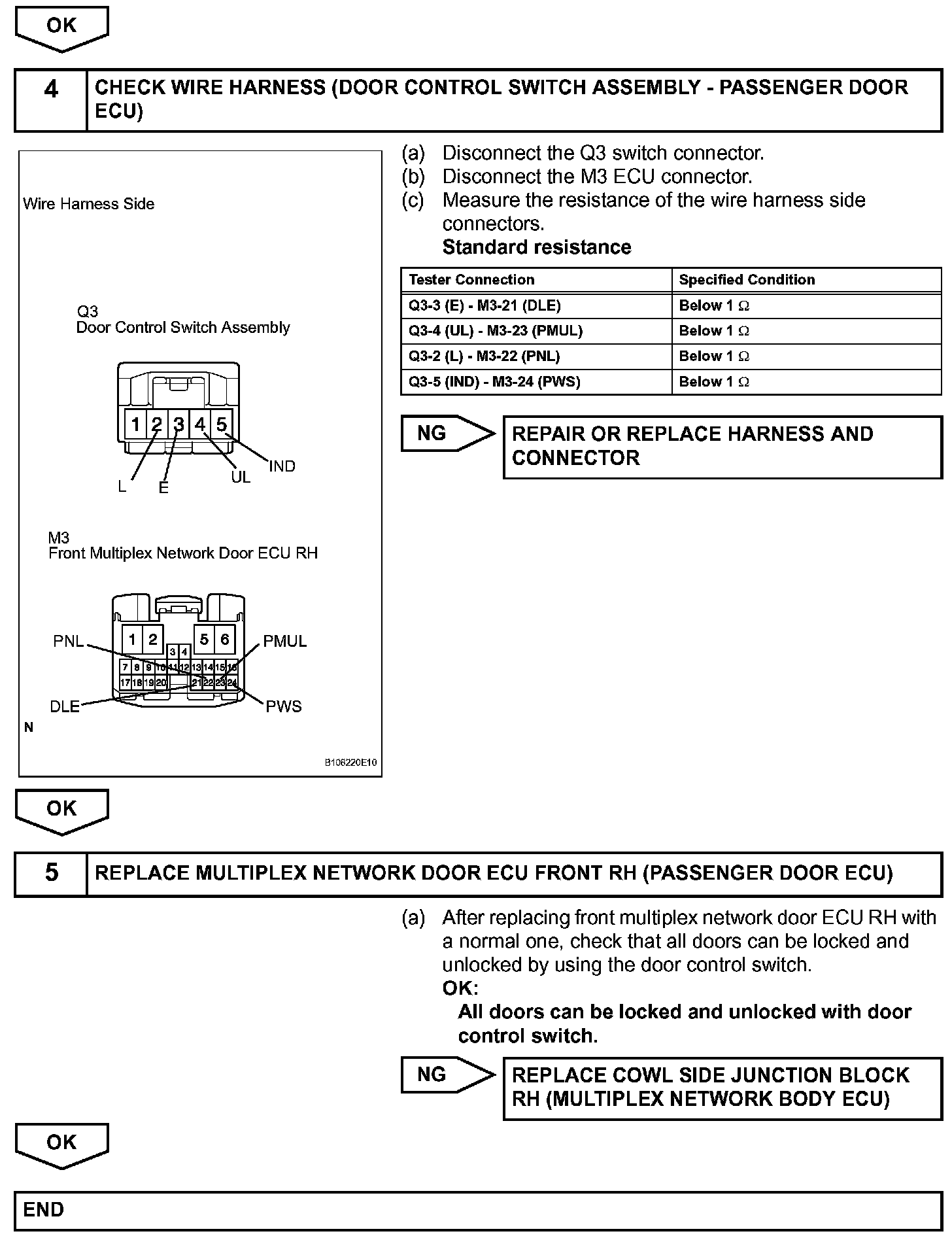

Step 3 (Continued)-5:
INSPECTION PROCEDURE
