License Plate Lamp

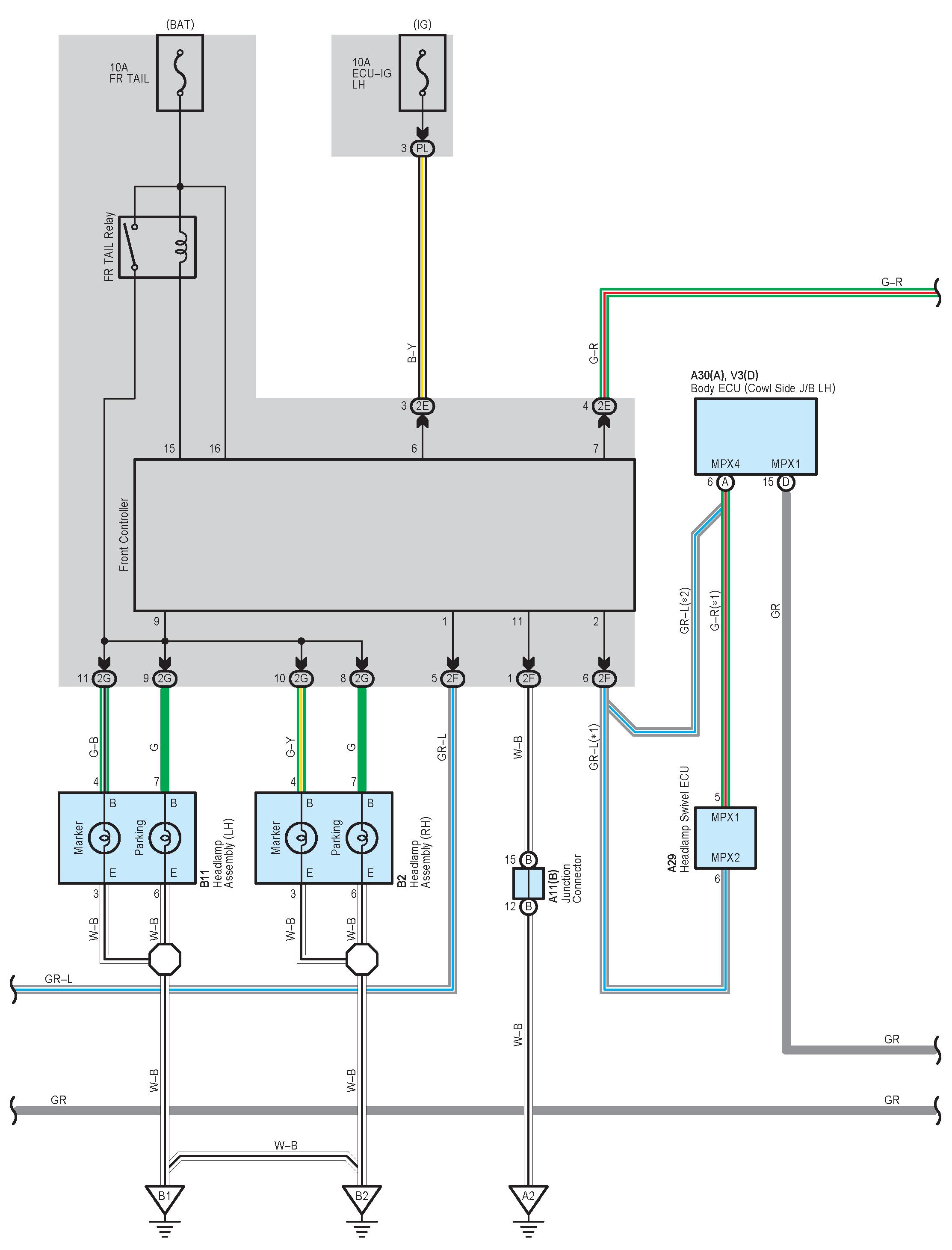

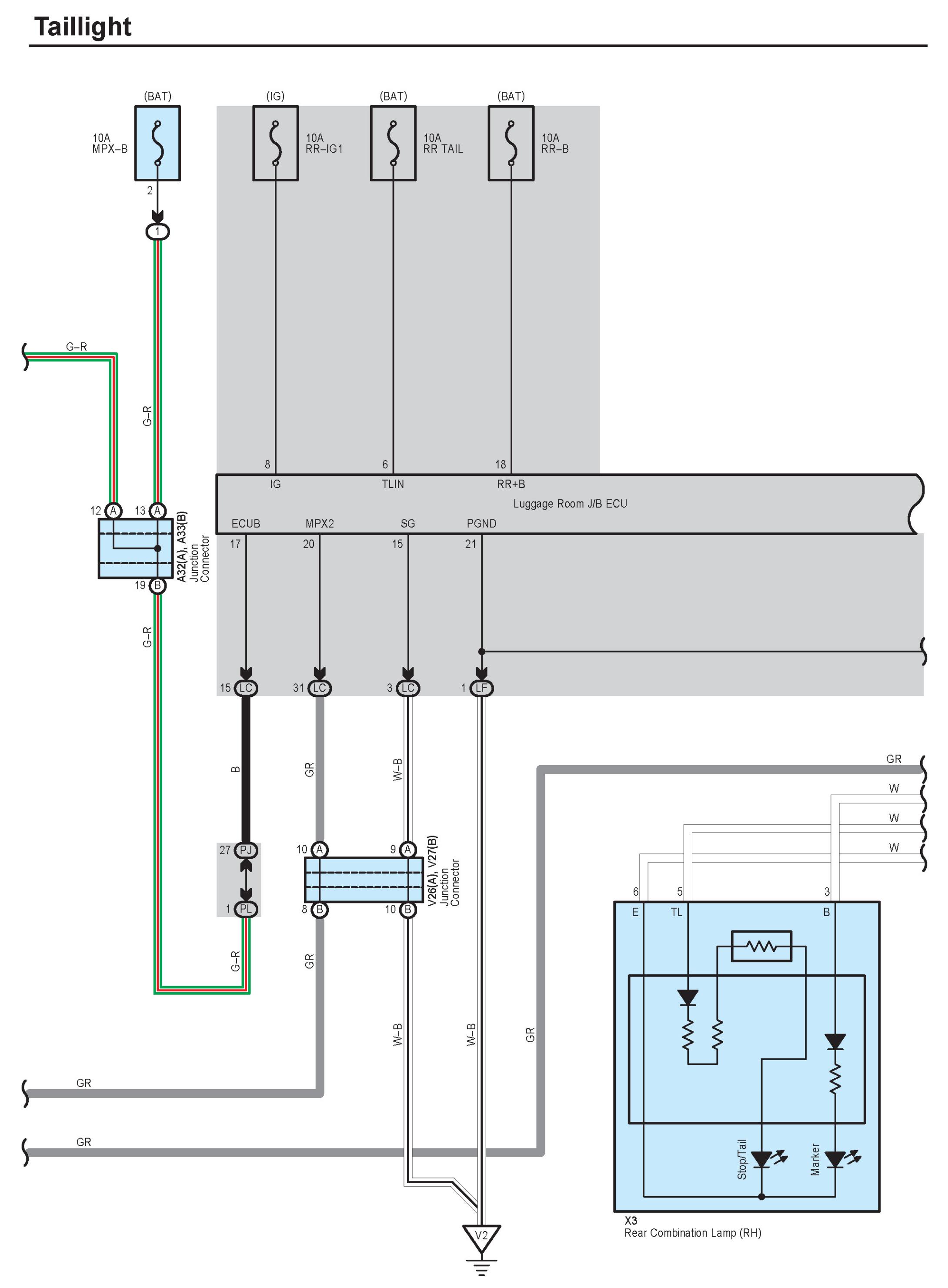

Taillight Part 1:

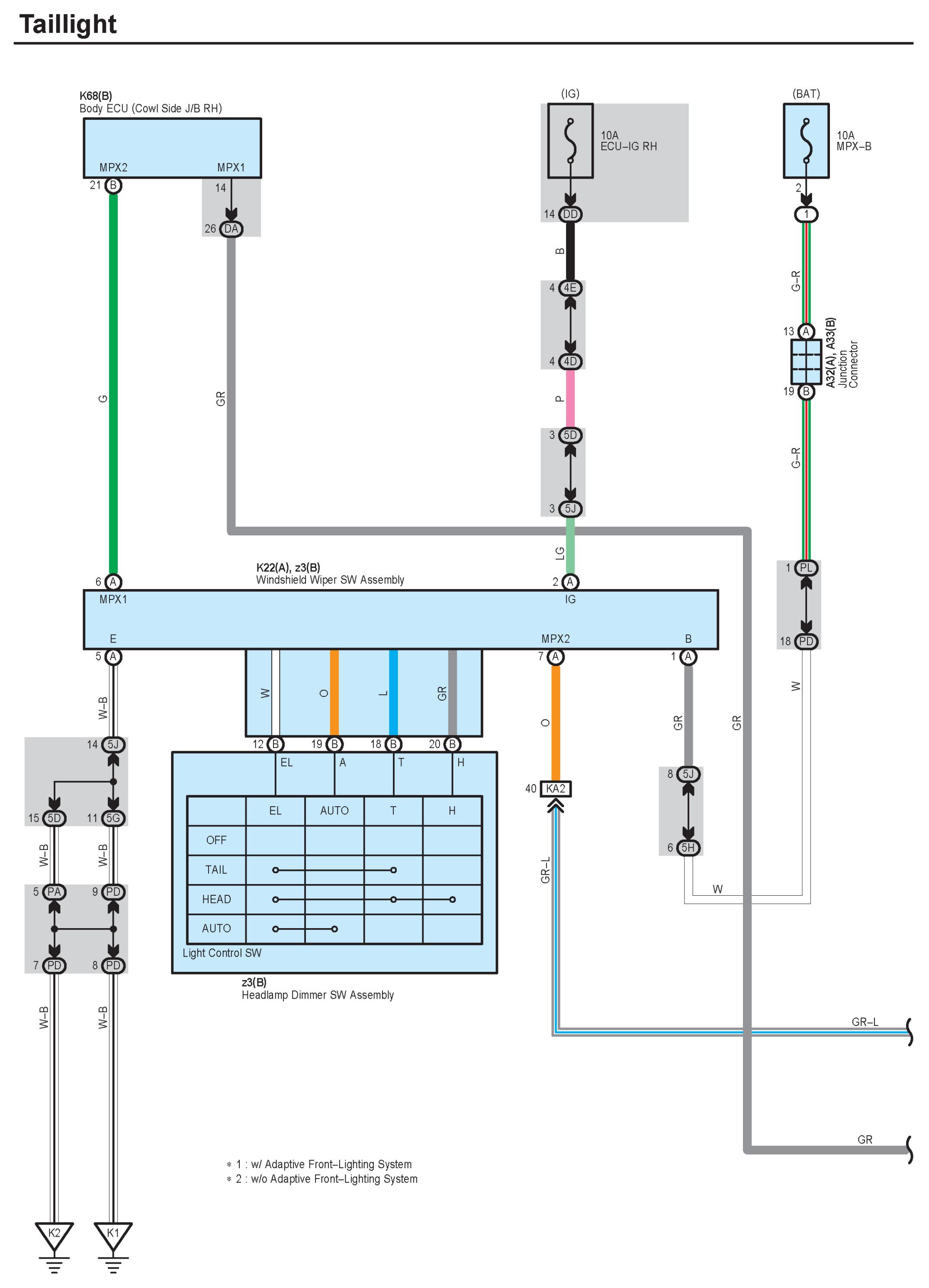

Taillight Part 2:

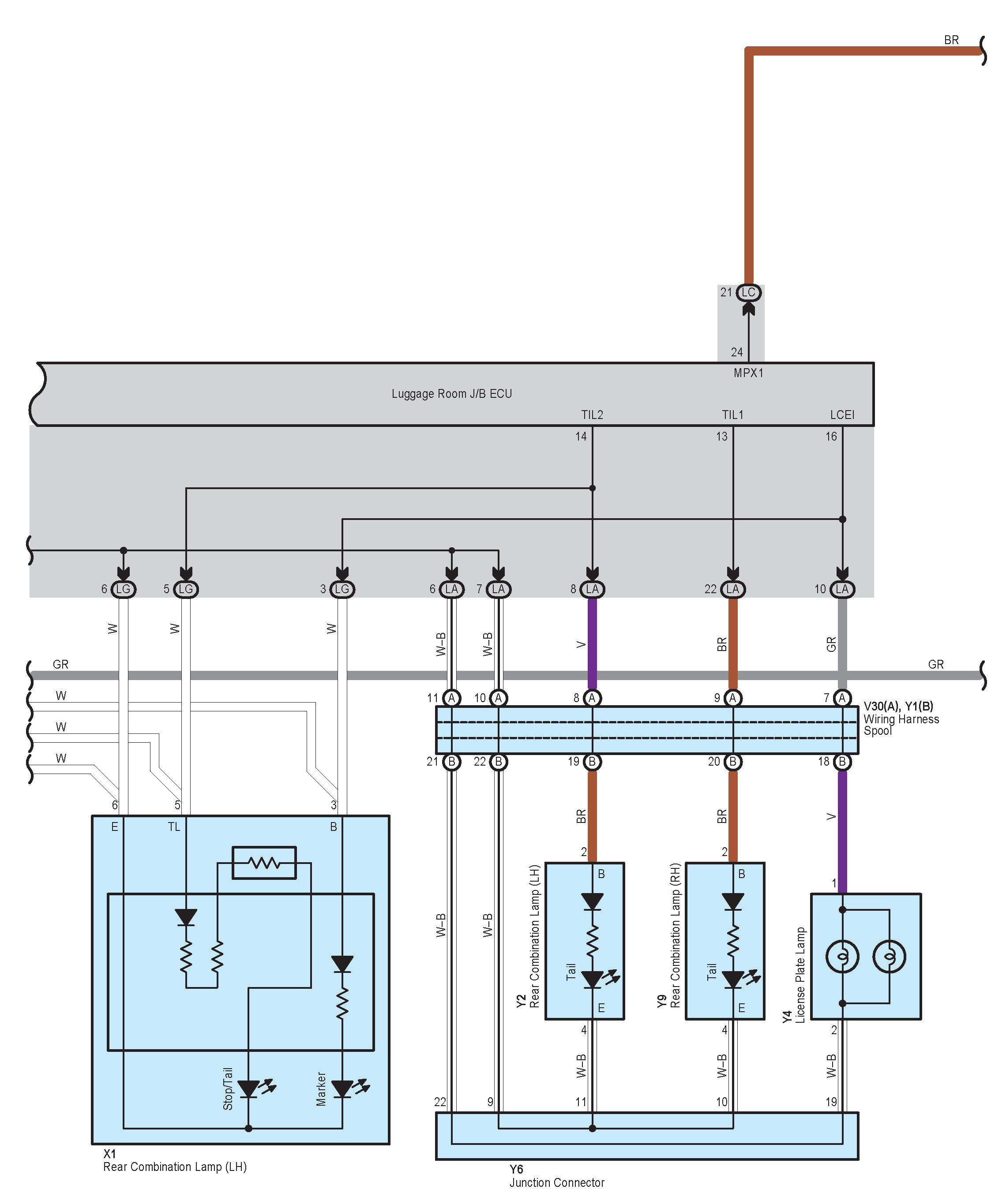

Taillight Part 3:

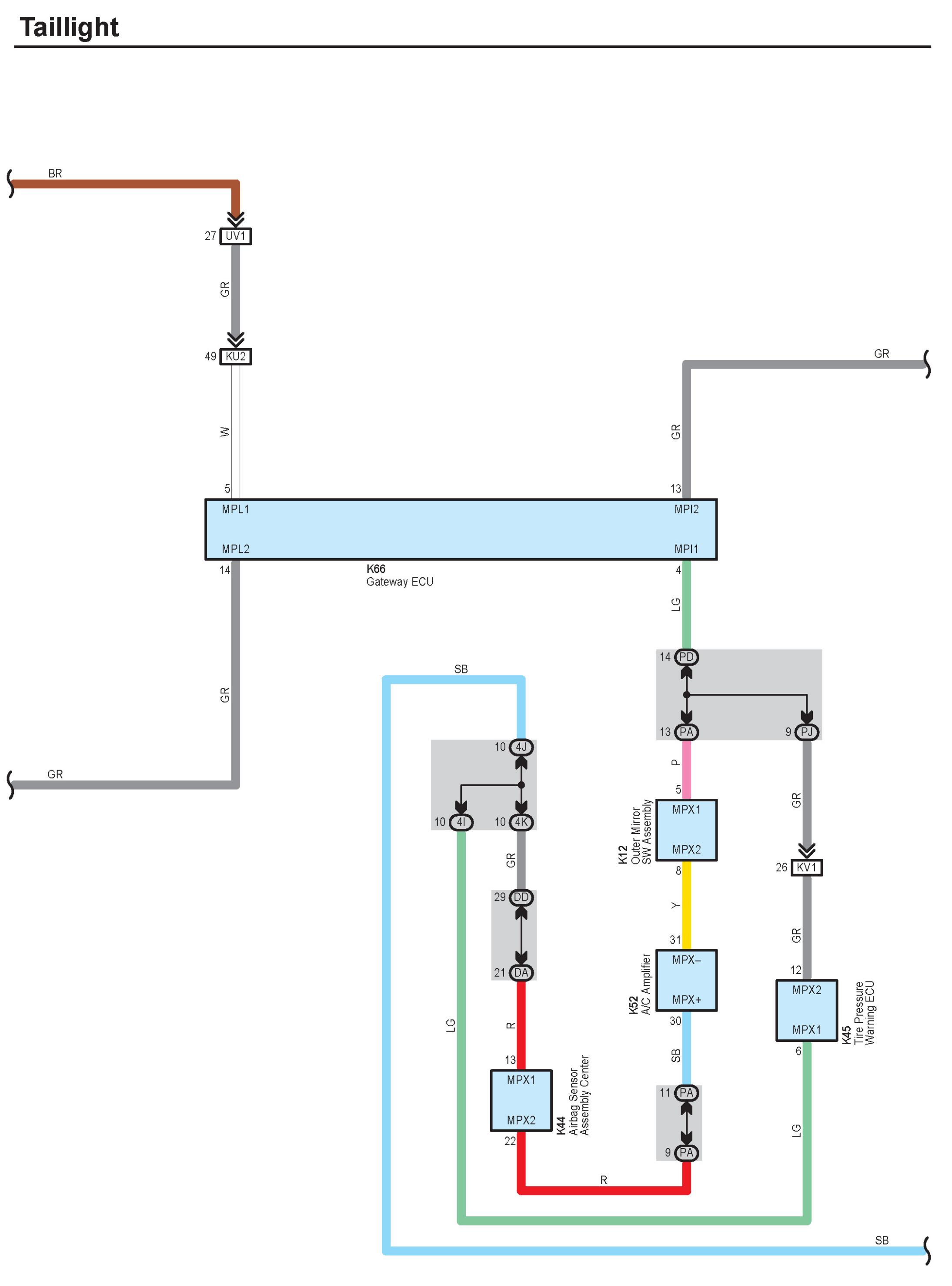

Taillight Part 4:

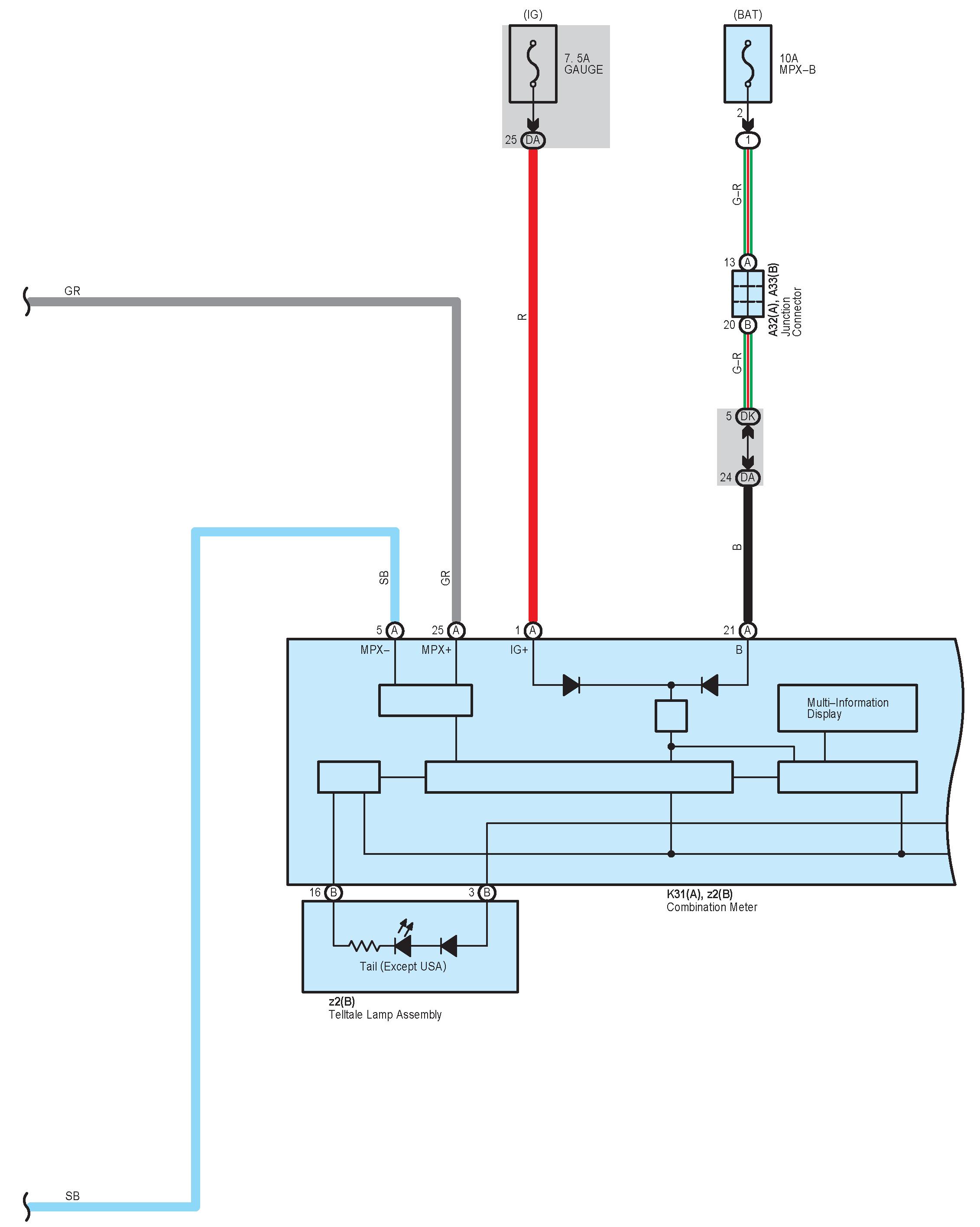

Taillight Part 5:

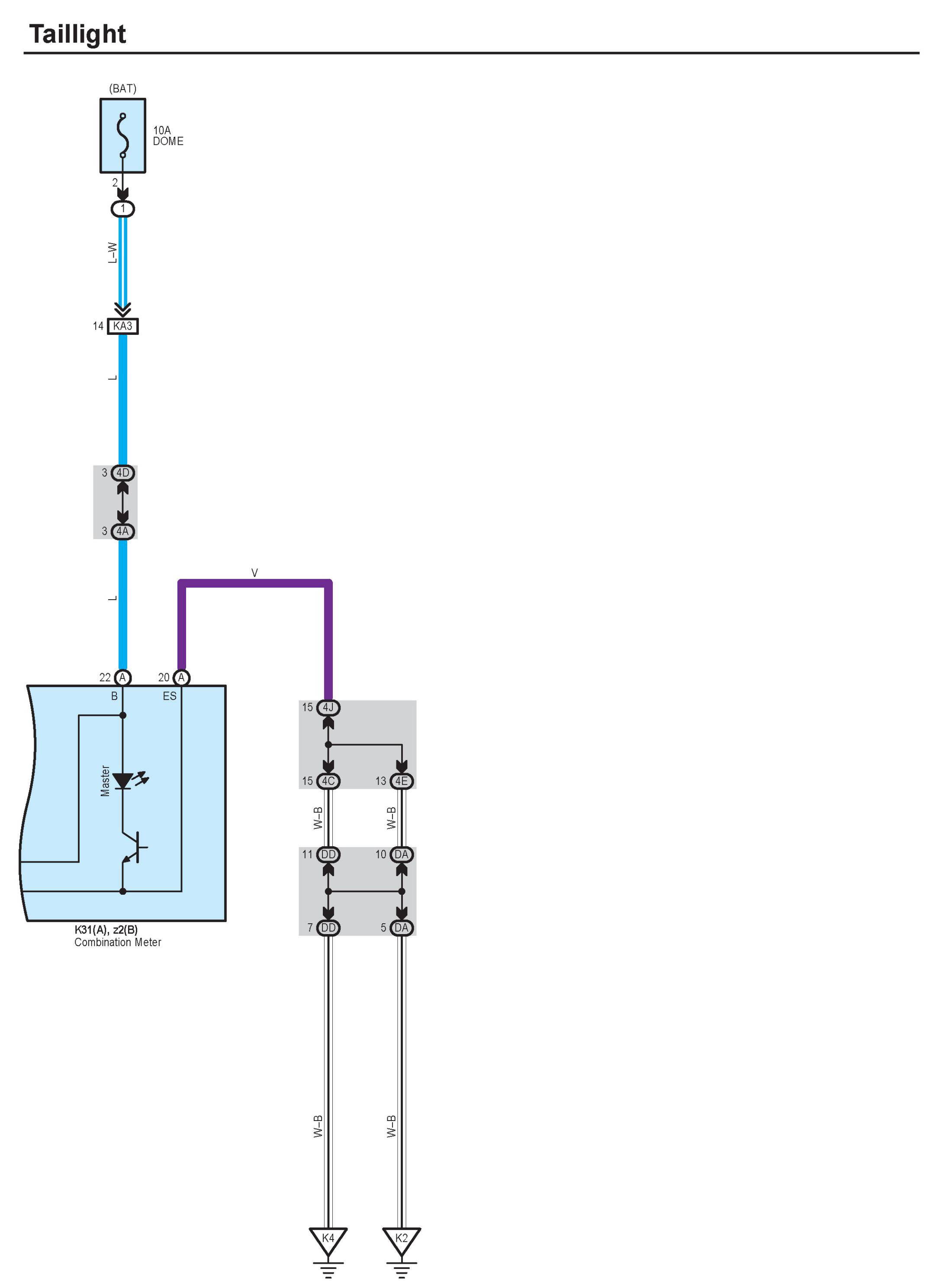

Taillight Part 6:

Taillight Part 7:

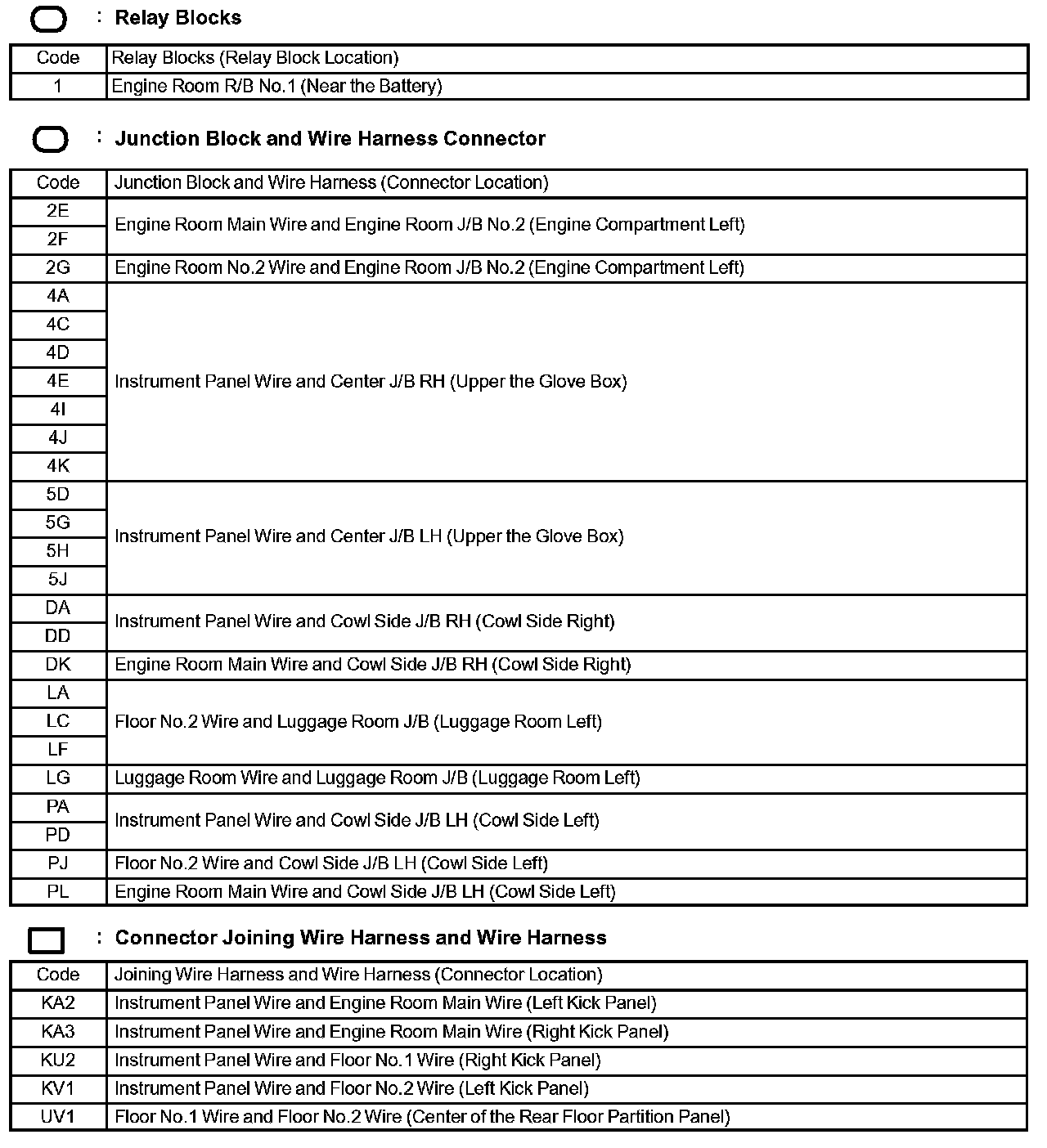

Diagram Legend Part 1:

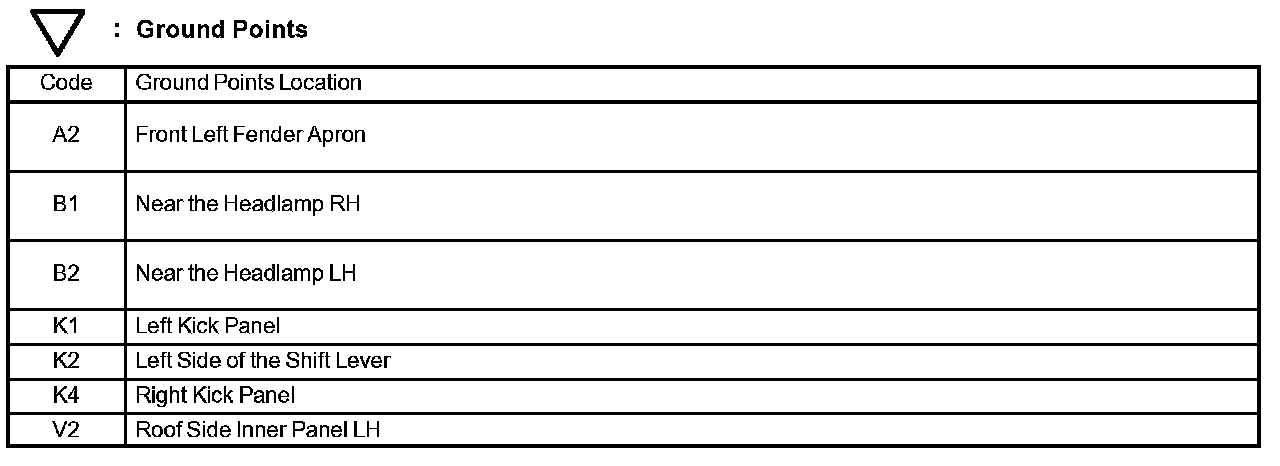

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
