VGRS System

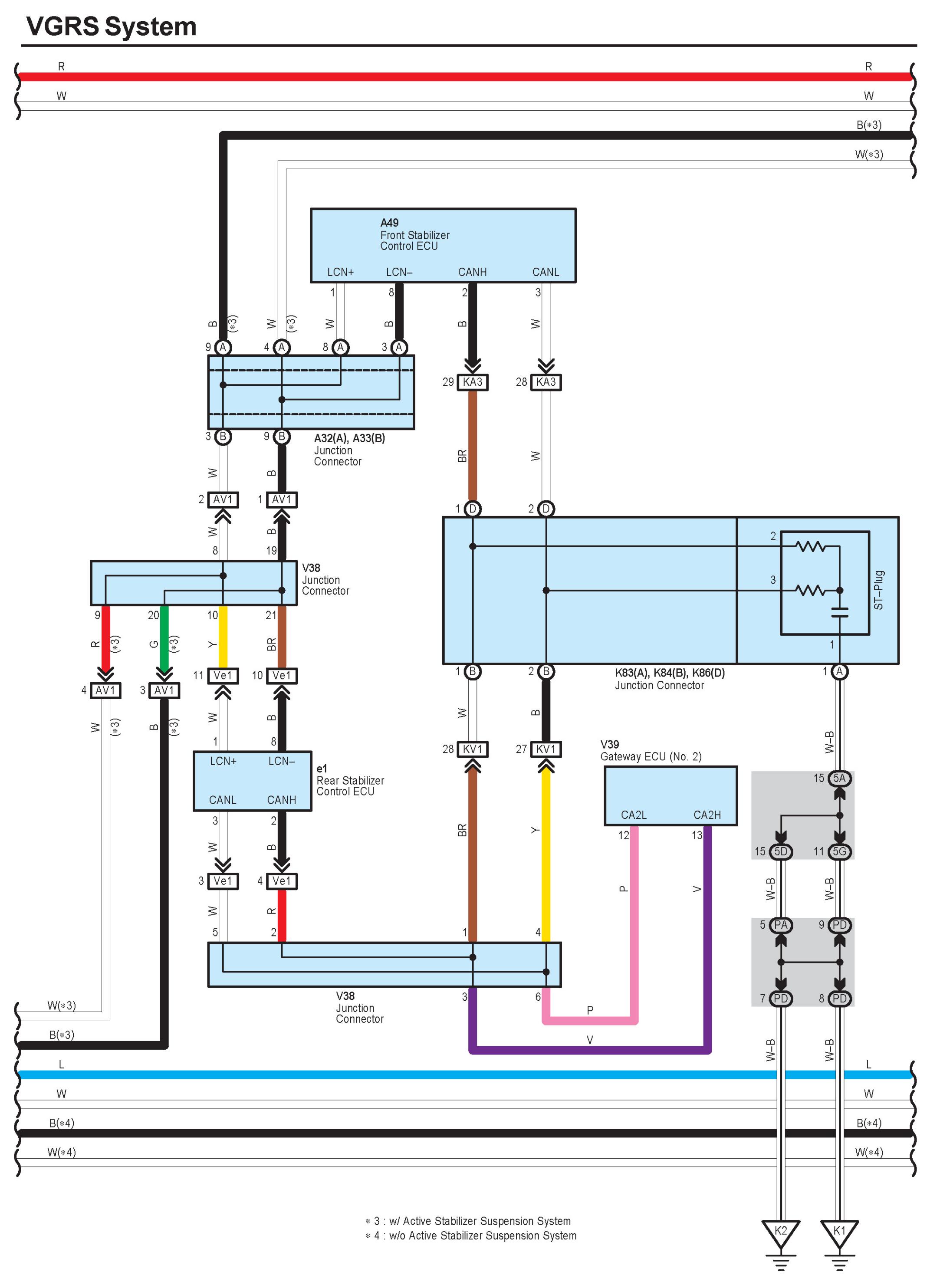

VGRS System Part 1:

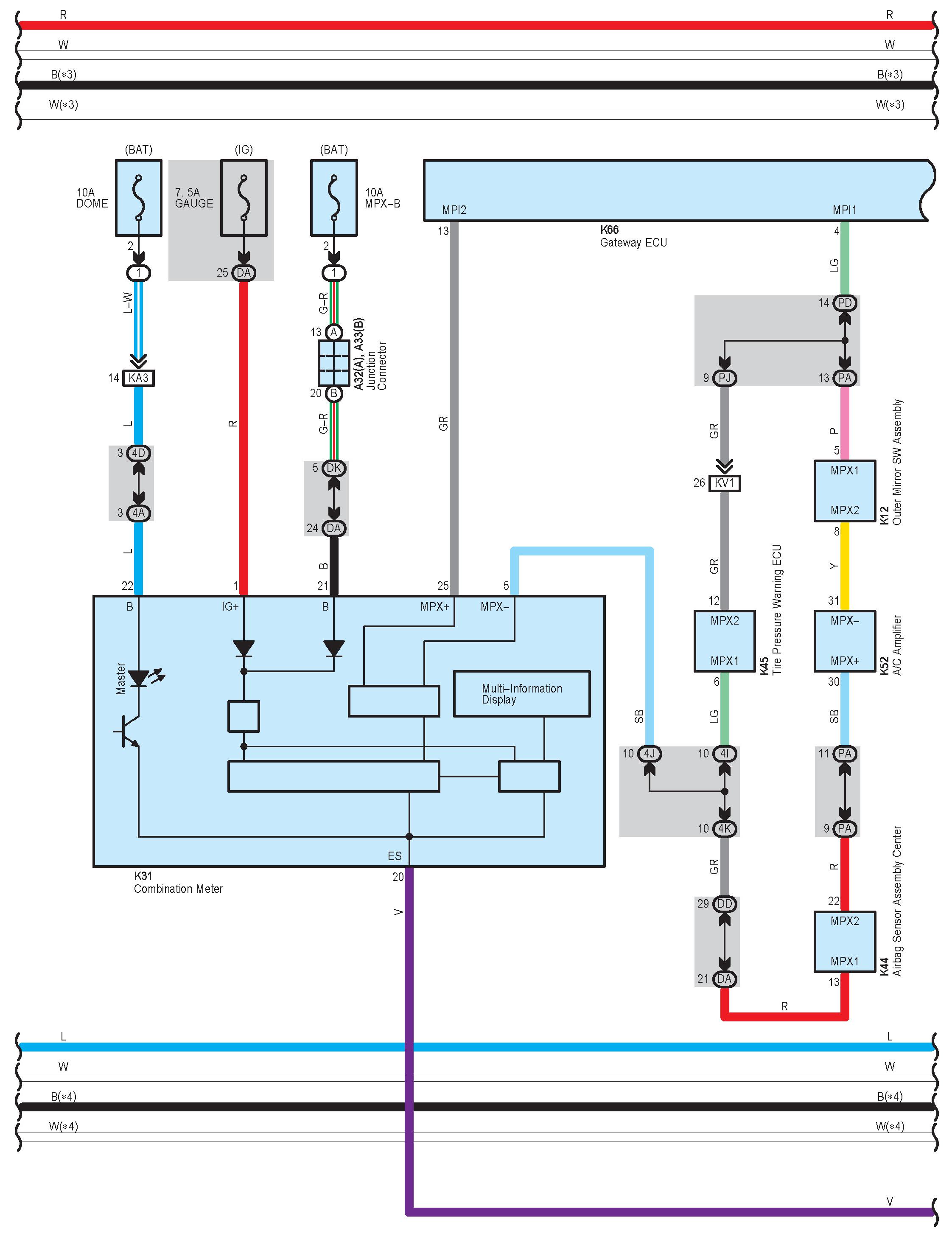

VGRS System Part 2:

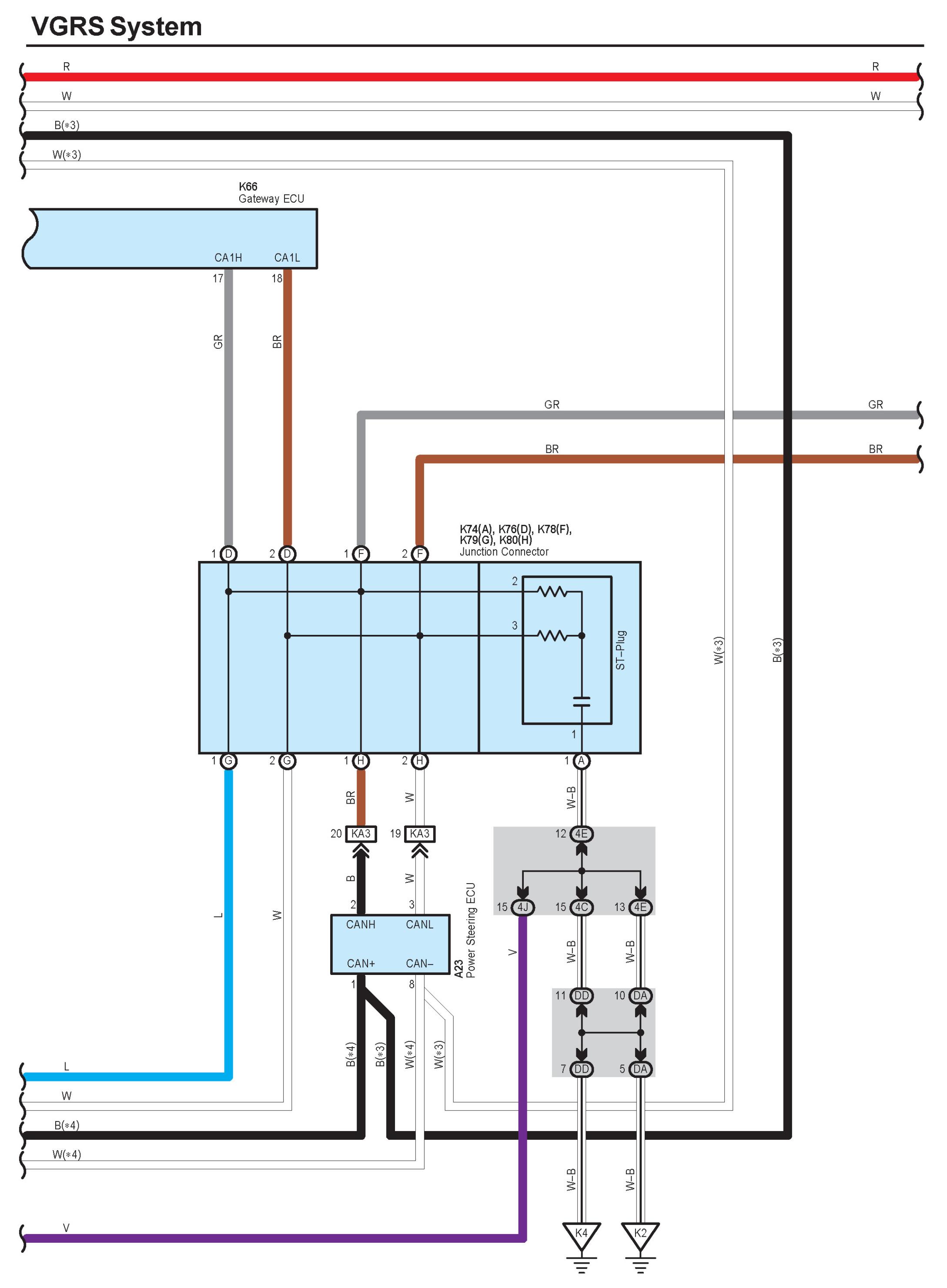

VGRS System Part 3:

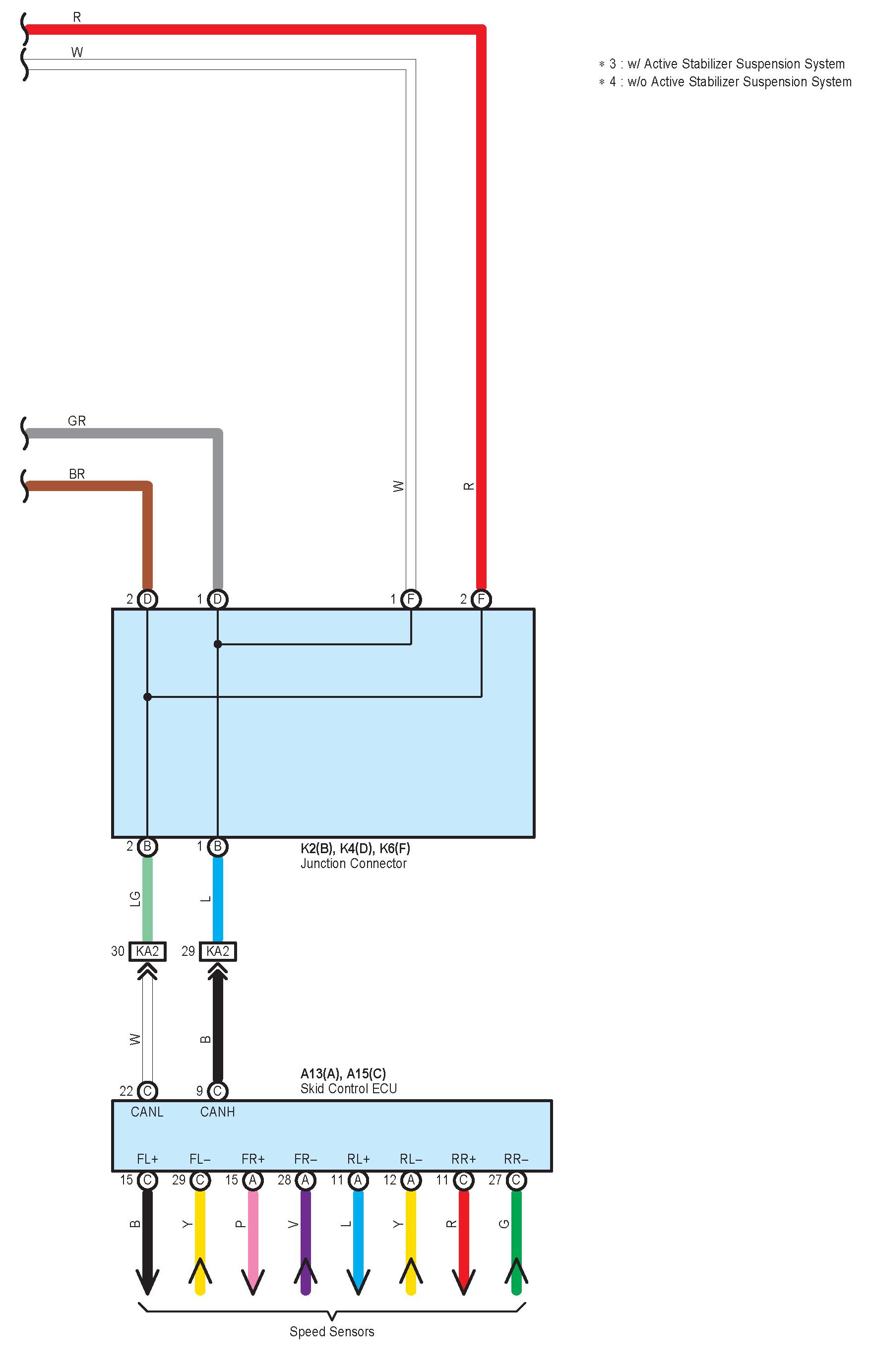

VGRS System Part 4:

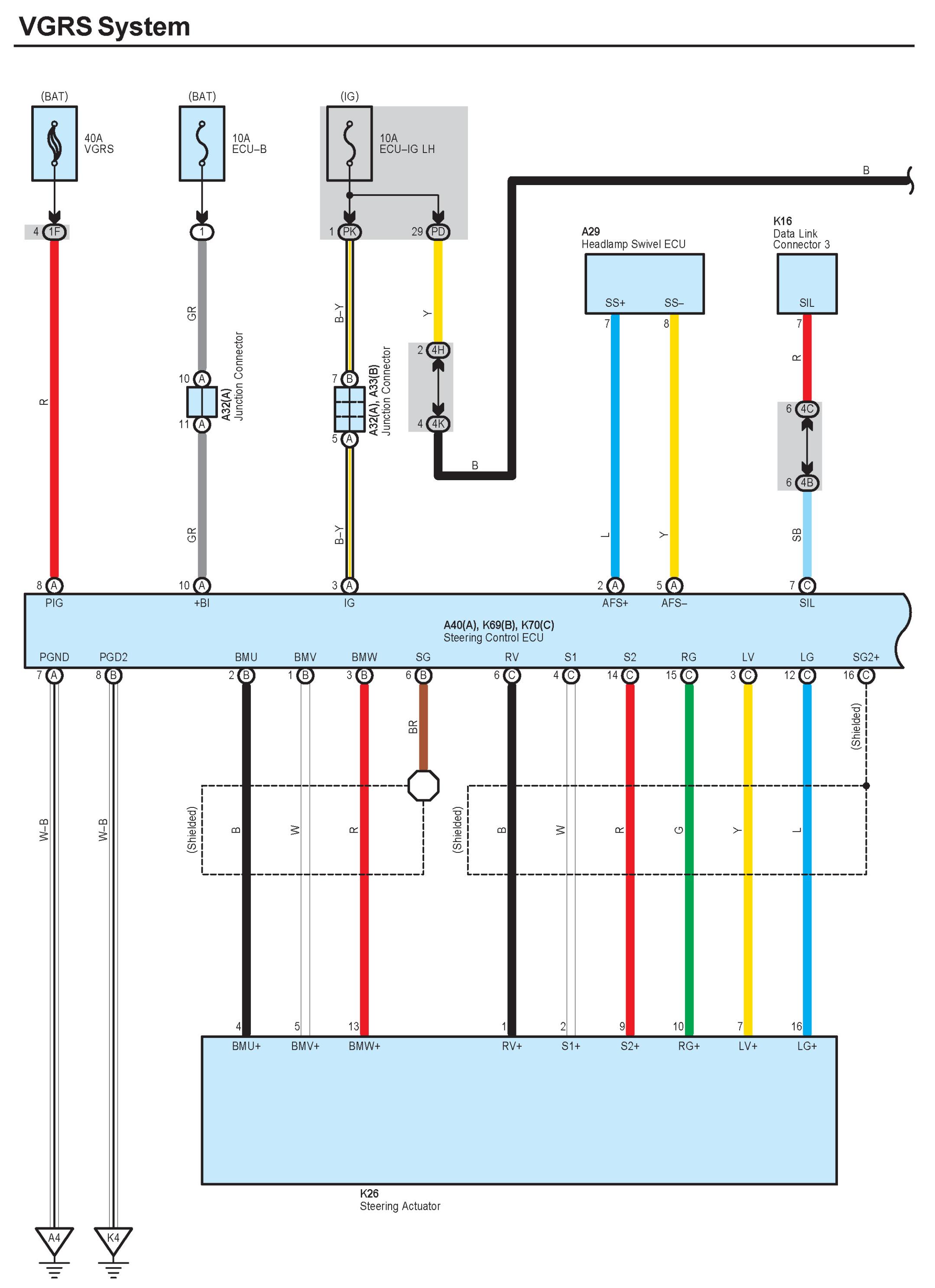

VGRS System Part 5:

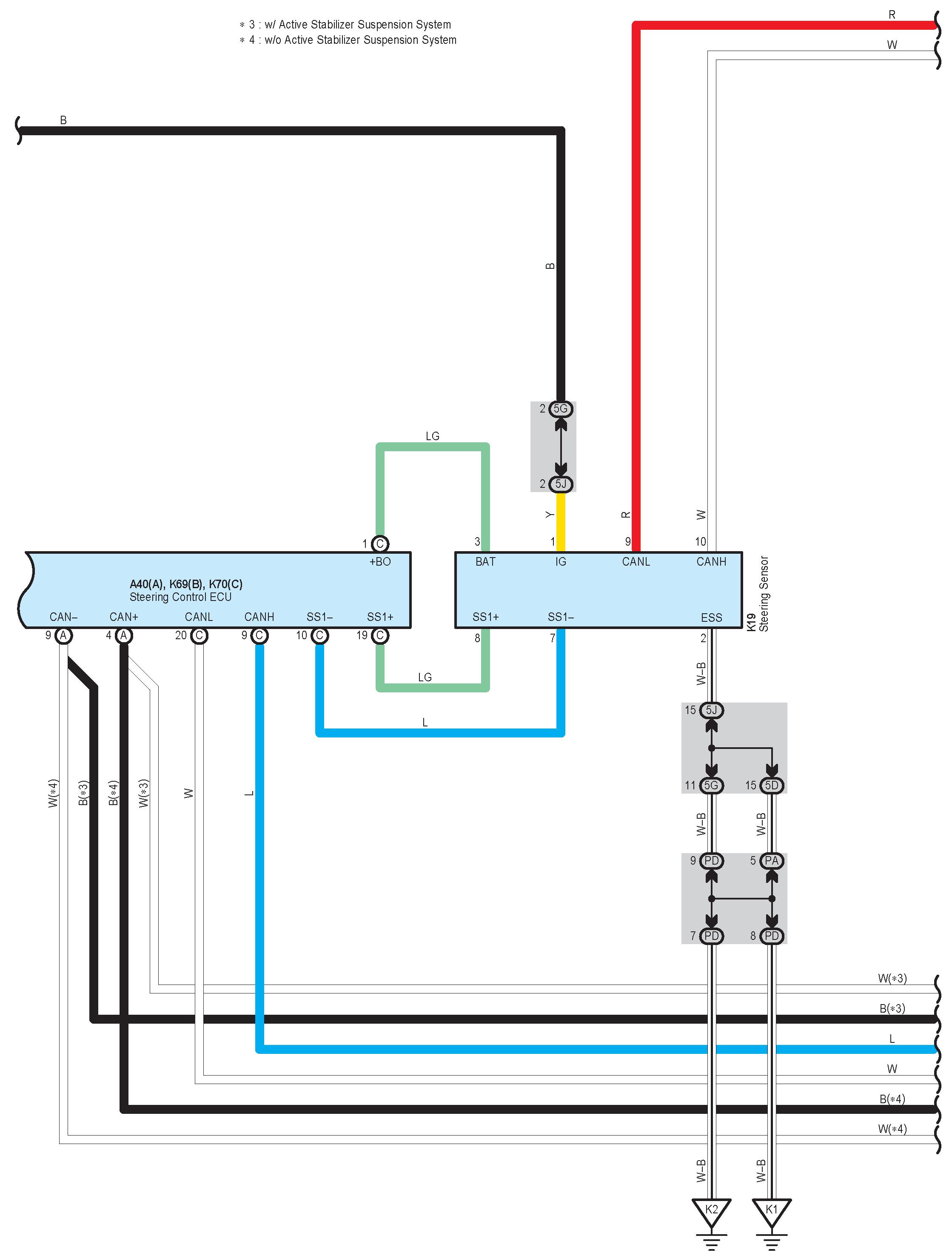

VGRS System Part 6:

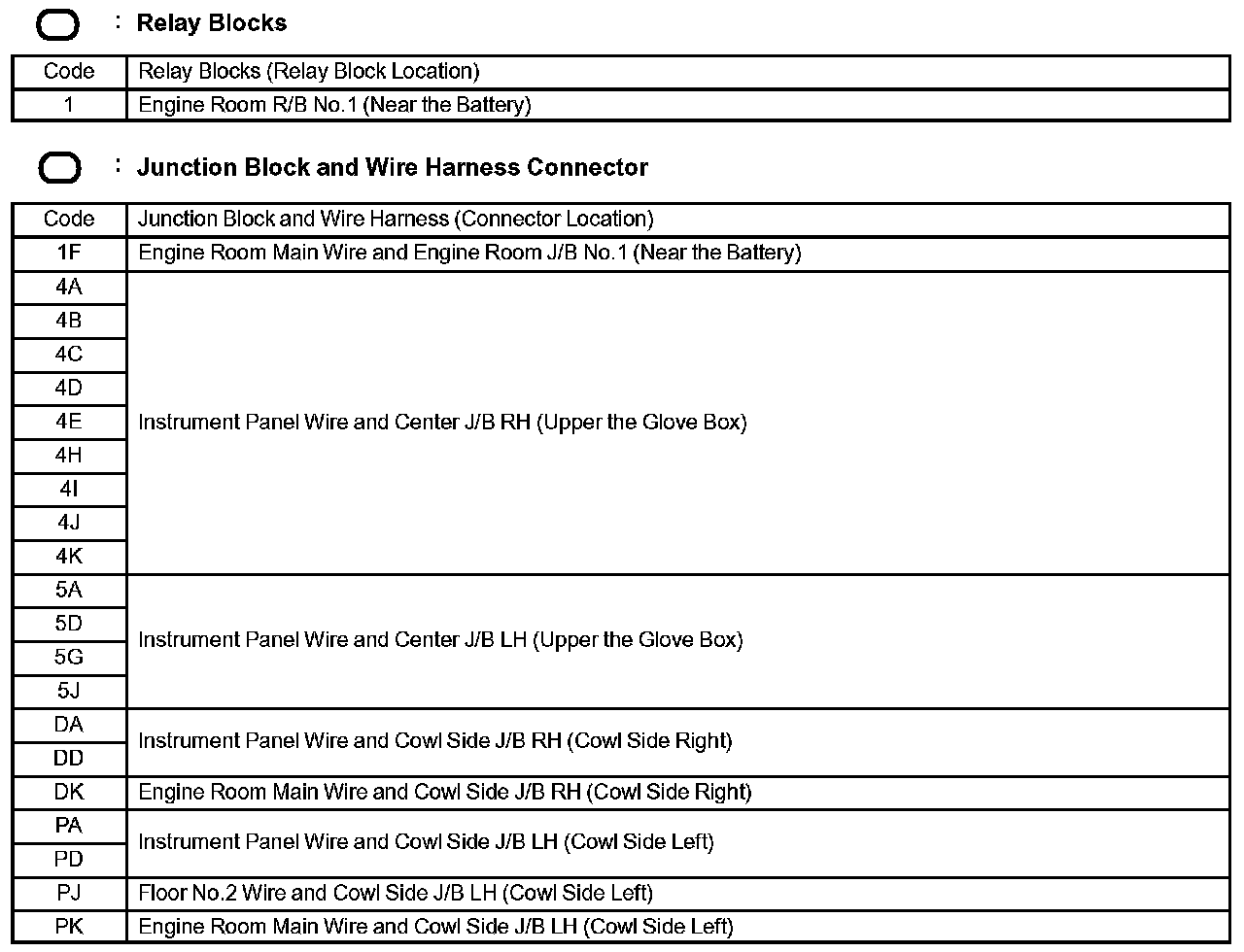

Diagram Legend Part 1:

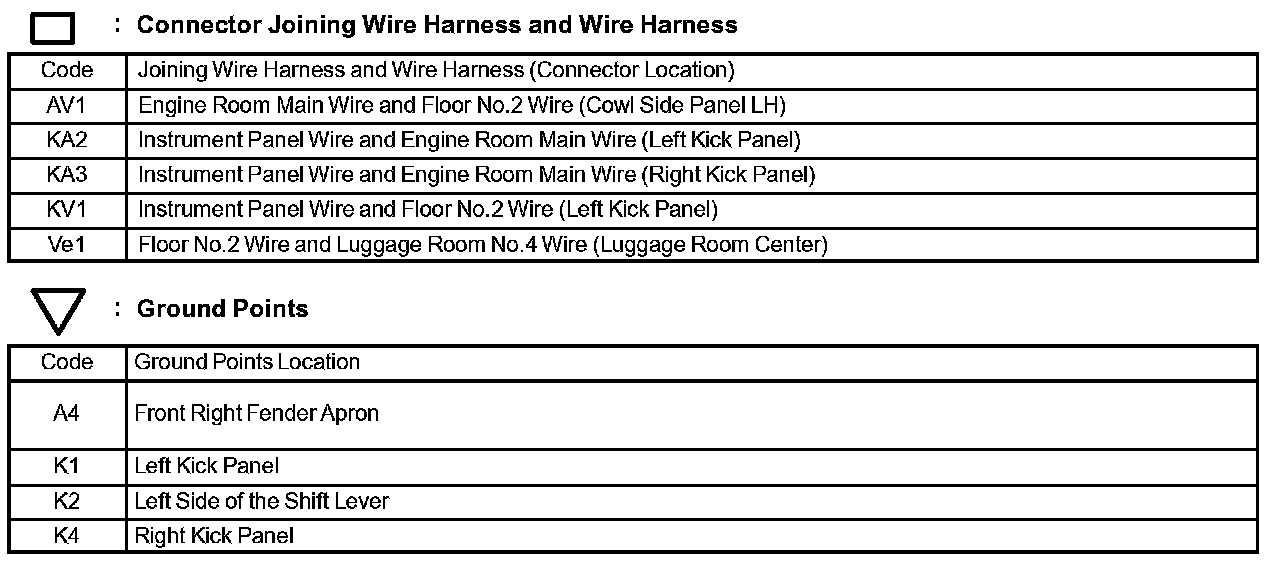

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
