Headlamp: Service Precautions

HEADLIGHT INSPECTION MAINTENANCE

a. When the headlight dimmer switch assembly is set to HEAD, do not touch the discharge headlight's high-voltage socket area.

NOTE: When performing inspection maintenance, the discharge headlight's precautions must be followed.

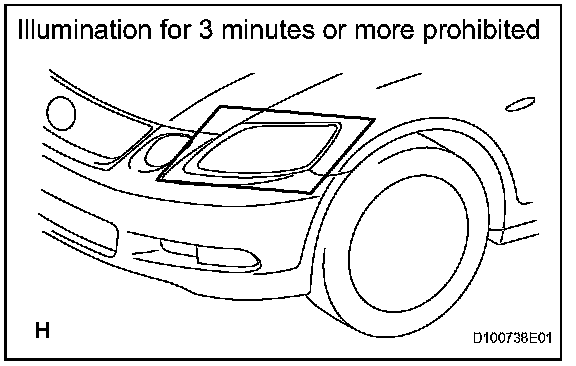

b. When the headlights are illuminated, do not cover the headlights for 3 minutes or more.

NOTE: As the headlight's outer lens is made of resin, the resulting heat created when covering the headlight for an extended period of time may deform the headlight.
