Auto Up Operation Does Not Fully Close Power Window (Jam Protection Function Is Activated)

Auto Up Operation Does Not Fully Close Power Window (Jam Protection Function Is Activated)

DESCRIPTION
This symptom may occur to the all door windows.
If the door glass or the power window regulator motor does not operate smoothly, the jam protection function may be triggered automatically, resulting in the AUTO UP function being unable to fully close the window.

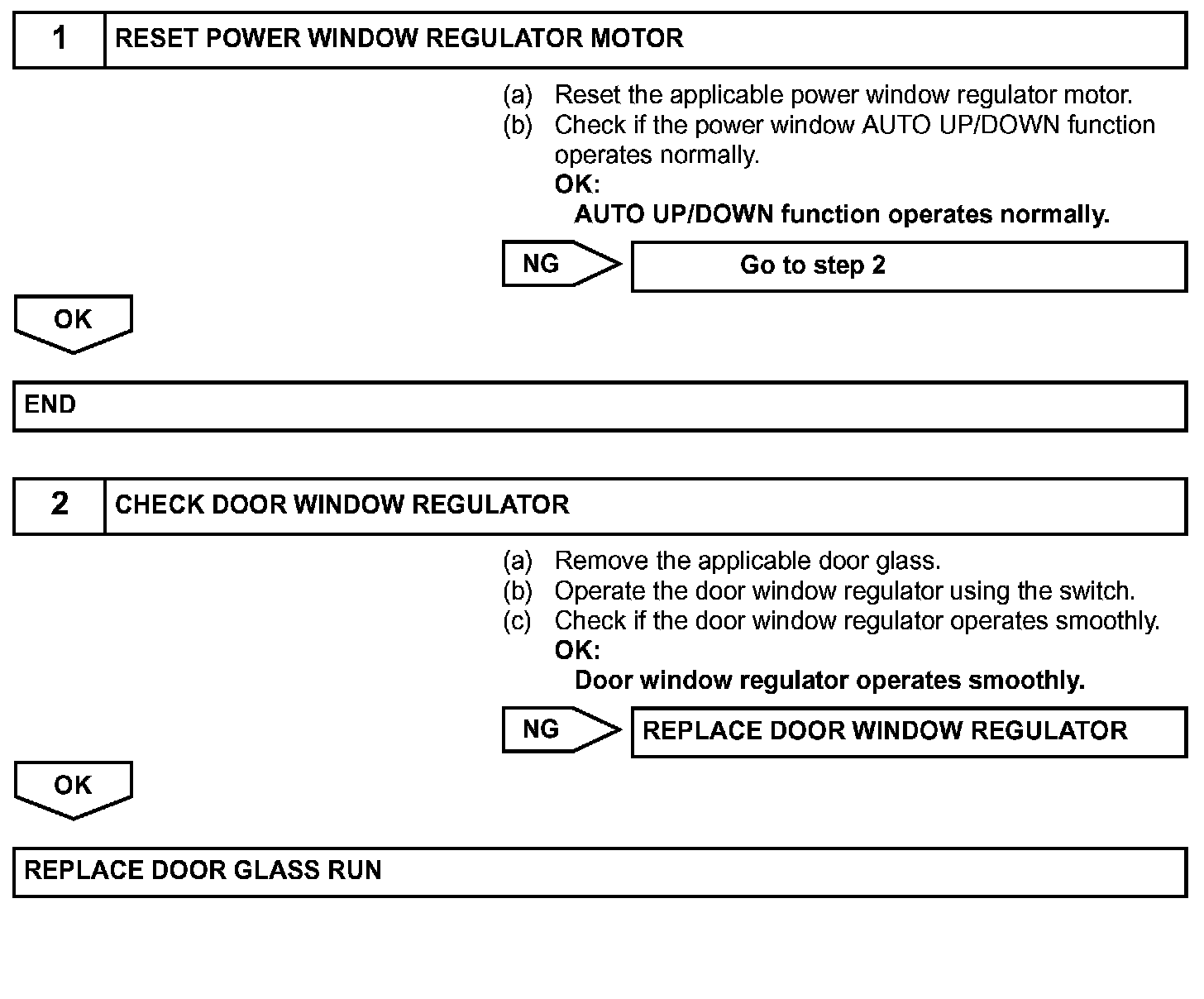

INSPECTION PROCEDURE

Step 1 - 2:
