P0453
DTC P0450 Evaporative Emission Control System Pressure Sensor / SwitchDTC P0451 Evaporative Emission Control System Pressure Sensor Range / Performance
DTC P0452 Evaporative Emission Control System Pressure Sensor / Switch Low Input
DTC P0453 Evaporative Emission Control System Pressure Sensor / Switch High Input
Malfunction Detection Condition (Part 1):
Malfunction Detection Condition (Part 2):
DTC SUMMARY
HINT: The canister pressure sensor is built into the canister pump module.
DESCRIPTION

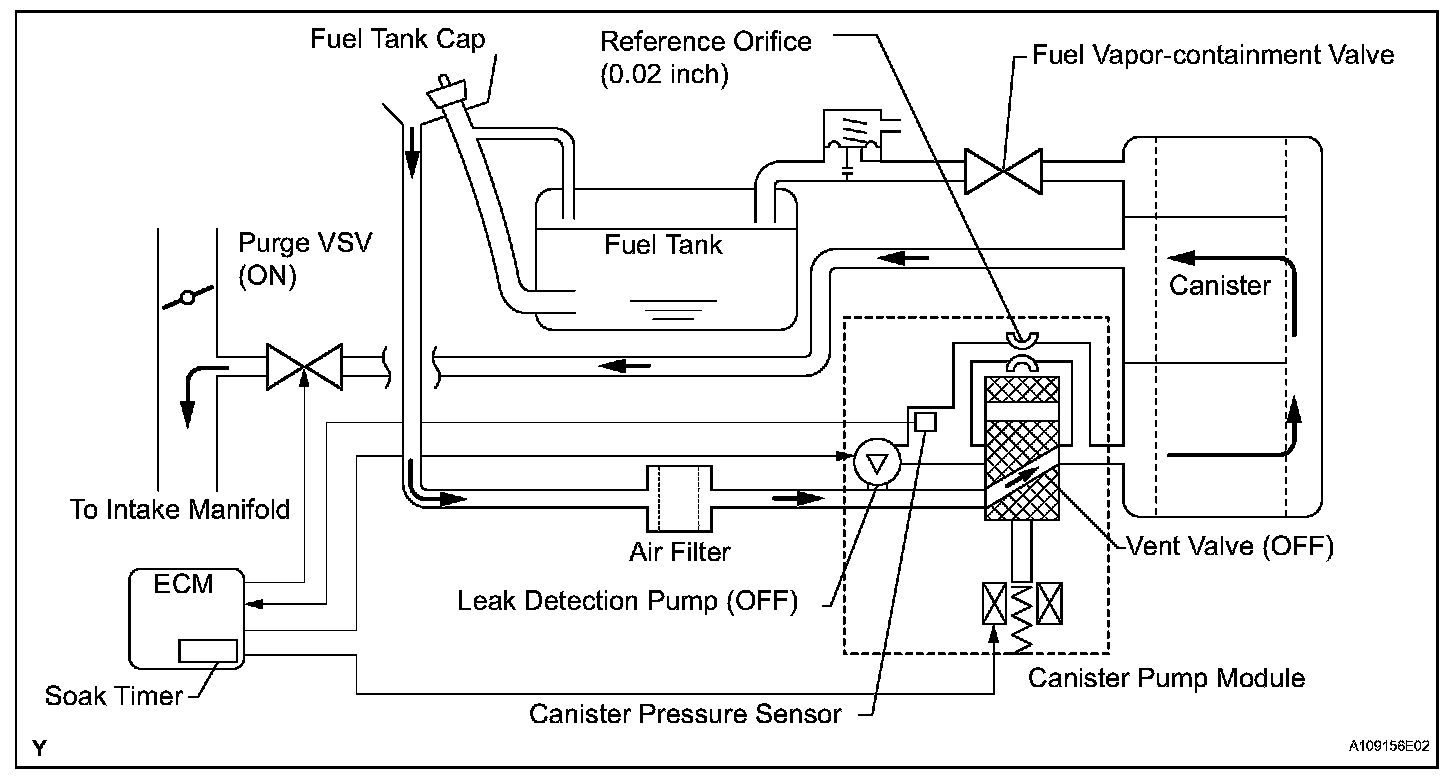

While the engine is running, if a predetermined condition (closed loop, etc.) is met, the purge VSV is opened by the ECM and stored fuel vapors in the canister are purged to the intake manifold. The ECM will change the duty cycle ratio of the purge VSV to control purge flow volume.
Purge flow volume is also determined by the intake manifold pressure. Atmospheric pressure is allowed into the canister through the vent valve to ensure that purge flow is maintained when negative pressure (vacuum) is applied to the canister.
The ECM monitors the condition of both the key-off monitor and purge flow monitor to ensure proper operation of the EVAP system.
Key-off monitor
This monitoring system checks for canister pump module malfunctions and leaks from the EVAP and closed tank systems. Be sure to leave the vehicle for at least 5 hours to sufficiently cool the fuel and stabilize fuel tank pressure. This makes EVAP system monitoring more accurate.
HINT: If the engine coolant temperature is 35 °C (95 °F) or more, 5 hours after the power switch has been turned OFF, the ECM will begin performing a monitor check after another 2 hours. If the engine coolant temperature is still 35 °C (95 °F) or more, 7 hours after the power switch has been turned OFF, the ECM will begin performing a monitor check after another 2.5 hours.
There are two methods for monitoring the EVAP system.
1. If the fuel tank pressure is higher or lower than the atmospheric pressure, the system determines that there are no leaks in the closed tank system and the system will check for leaks from the piping and canister between the purge VSV and canister pump module. (Method A)
2. If the fuel tank pressure is almost the same as the atmospheric pressure, vacuum pressure will enter the fuel tank and the system will check for leaks from the fuel tank after checking for leaks from the canister. (Method B)
Purge flow monitor
If EVAP system pressure change is less than 7.5 mmHg (1 kPa) when the engine is running and the purge VSV is turned ON (closed), the ECM determines that the purge flow is insufficient.
MONITOR DESCRIPTION
Monitor Strategy:
Typical Enabling Conditions (Part 1):
Typical Enabling Conditions (Part 2):

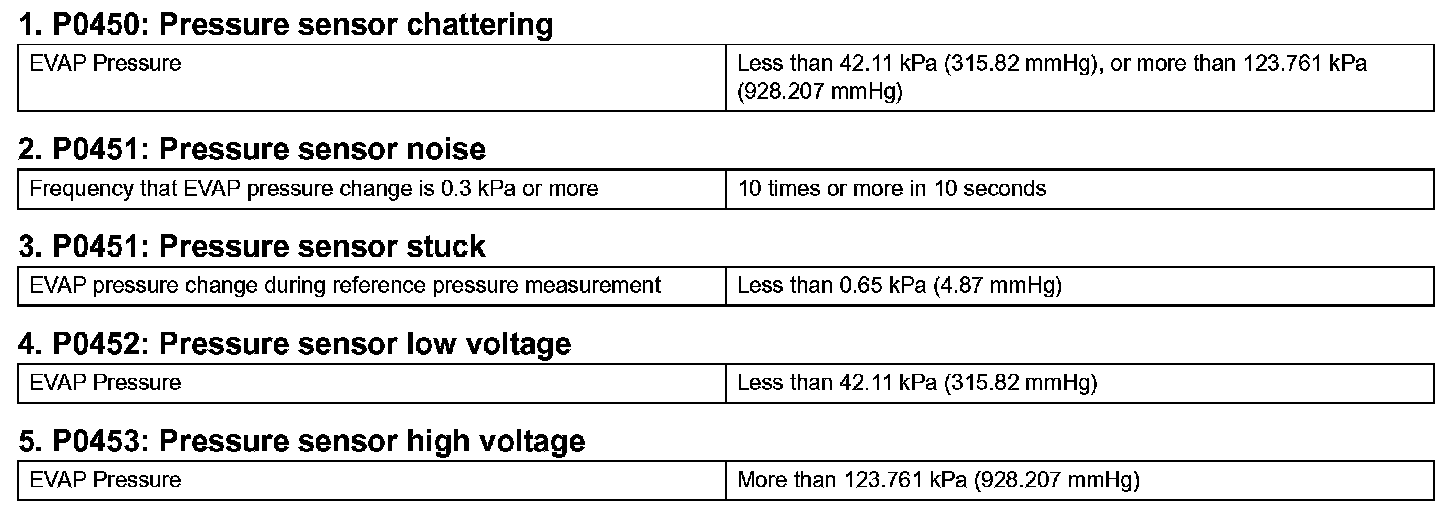

Typical Malfunction Thresholds:
1. DTC P0450: Canister pressure sensor abnormal voltage fluctuation
If the canister pressure sensor voltage output [pressure] rapidly fluctuates between less than 0.45 V [42.1 kPa-a (315.9 mmHg-a)] and more than 4.9 V [123.8 kPa-a (928.4 mmHg-a)], the ECM interprets this as an open or short circuit malfunction in the canister pressure sensor or its circuit, and stops the EVAP (Evaporative Emission) system monitor. The ECM then illuminates the MIL and sets the DTC (1 trip detection logic).
2. DTC P0451: Canister pressure sensor abnormal voltage fluctuation or being constant
If the canister pressure sensor voltage output fluctuates rapidly for 10 seconds, the ECM stops the EVAP system monitor. The ECM interprets this as noise from the canister pressure sensor, and stops the EVAP system monitor. The ECM then illuminates the MIL and sets the DTC. Alternatively, if the sensor voltage output does not change for 10 seconds, the ECM interprets this as the sensor being fixed/flat, and stops the monitor. The ECM then illuminates the MIL and sets the DTC. (Both the malfunctions are detected by 2 trip detection logic).
3. DTC P0452: Canister pressure sensor voltage low
If the canister pressure sensor voltage output [pressure] is below 0.45 V [42.1 kPa-a (315.9 mmHg-a)], the ECM interprets this as an open or short circuit malfunction in the canister pressure sensor or its circuit, and stops the EVAP system monitor. The ECM then illuminates the MIL and sets the DTC (1 trip detection logic).
4. DTC P0453: Canister pressure sensor voltage high
If the canister pressure sensor voltage output [pressure] is 4.9 V [123.8 kPa-a (928.4 mmHg-a)] or more, the ECM interprets this as an open or short circuit malfunction in the canister pressure sensor or its circuit, and stops the EVAP system monitor. The ECM then illuminates the MIL and sets the DTC (1 trip detection logic).
Wiring Diagram:
Step 1:
Step 2:
Step 3:
Step 4-5:
Step 5(Continued)-8:
Step 8(Continued):
INSPECTION PROCEDURE
NOTE:
- When a vehicle is brought into the workshop, leave it as it is. Do not change the vehicle condition. For example, do not tighten the fuel tank cap.
- Do not disassemble the canister pump module.
- The intelligent tester is required to conduct the following diagnostic troubleshooting procedure.
