All Door Entry Lock and Unlock Functions Do Not Operate
All Door Entry Lock and Unlock Functions do not OperateDESCRIPTIONWhen the key cancel function is ON, all entry functions will stop operating. If the key cancel function is operated but all entry functions stop operating, one of the following is malfunctioning: 1) key cancel function, 2) certification ECU, or 3) wire harness.

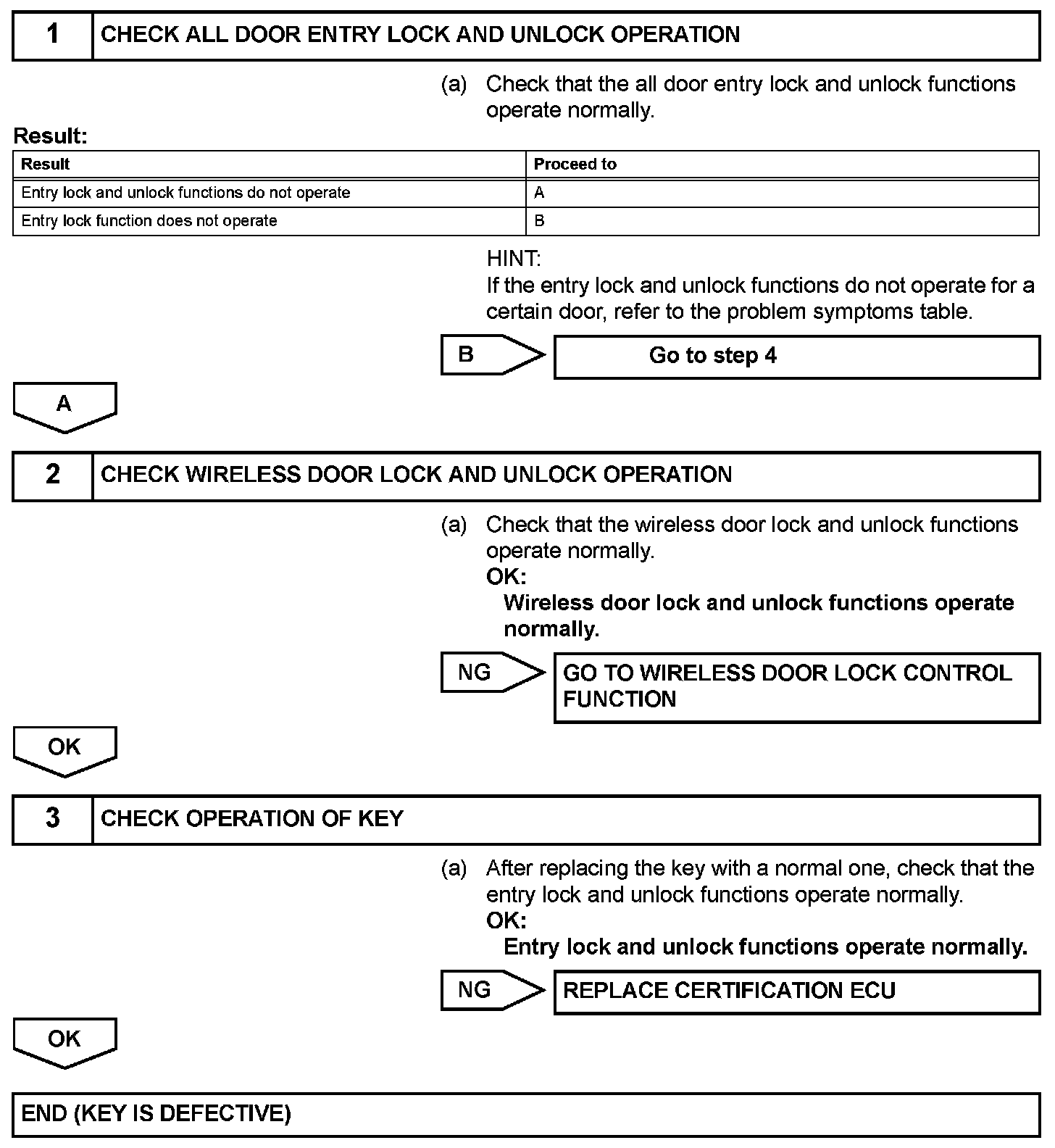

Step 1-3:

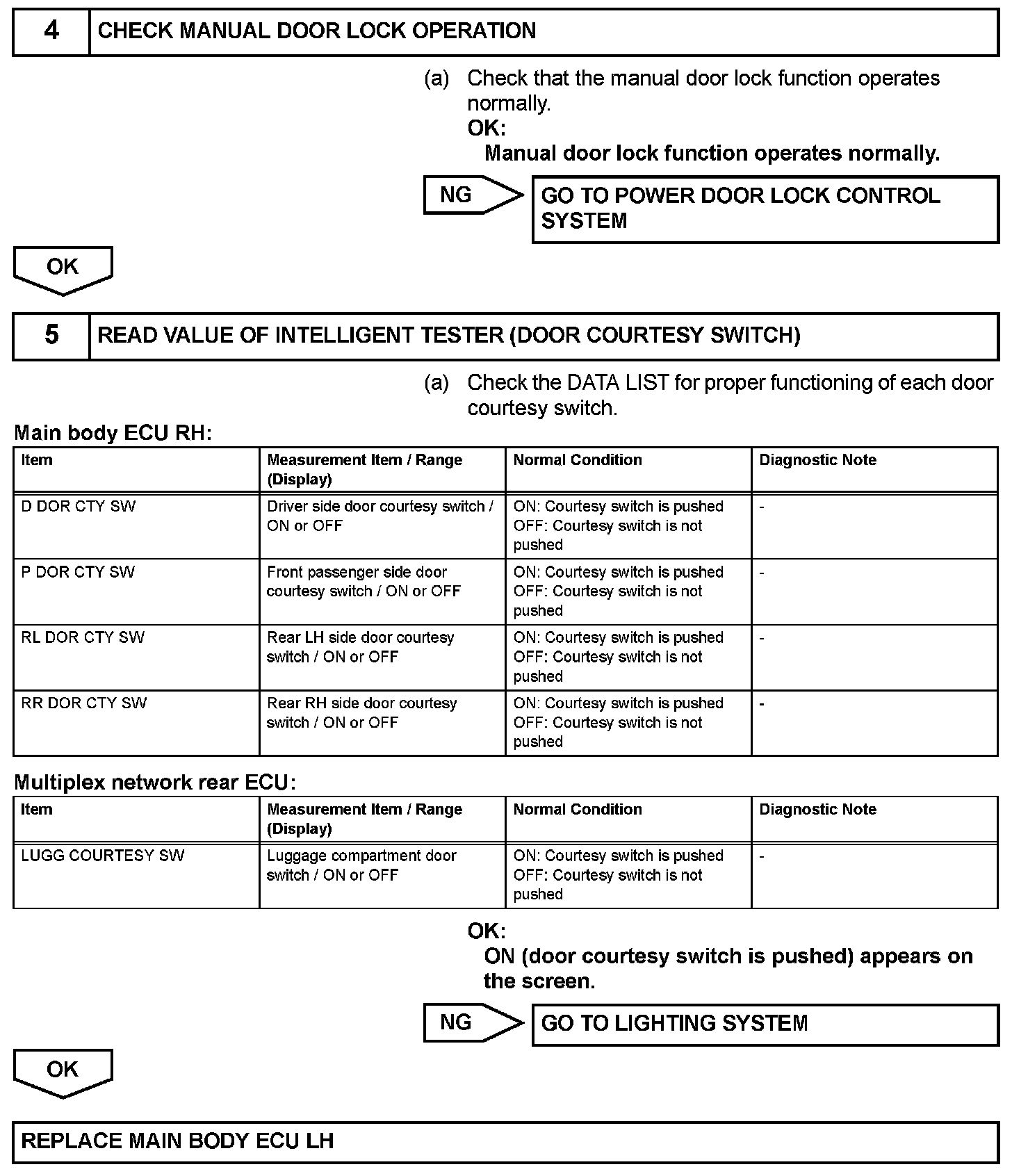

Step 4-5:
INSPECTION PROCEDURE
