Entry Functions Do Not Operate At All
Entry Functions do not Operate at AllDESCRIPTIONWhen the entry functions do not operate at all, it is possible that the certification ECU is malfunctioning or that the wire harness leading to the certification ECU is short-circuited.

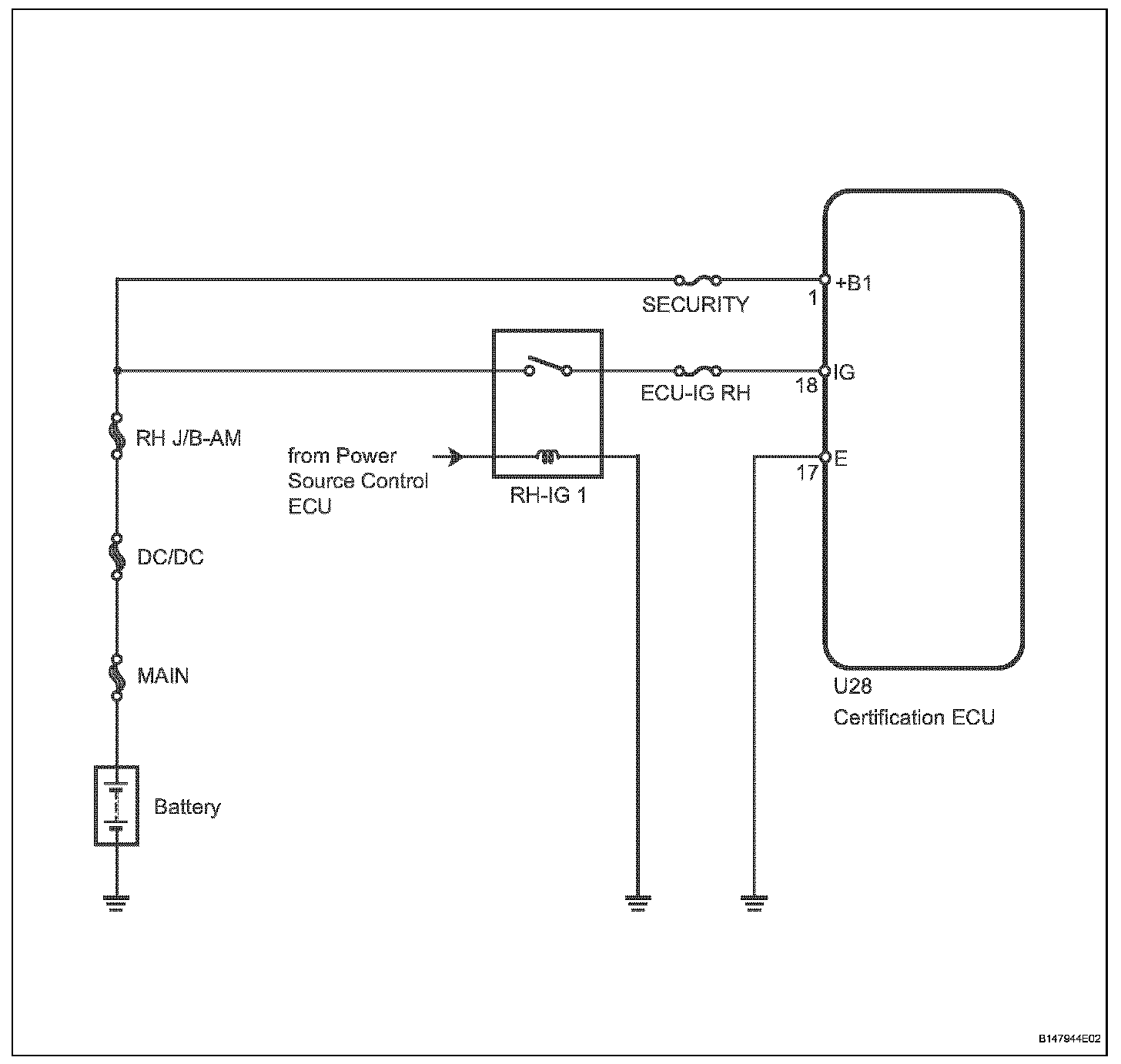

Wiring Diagram:

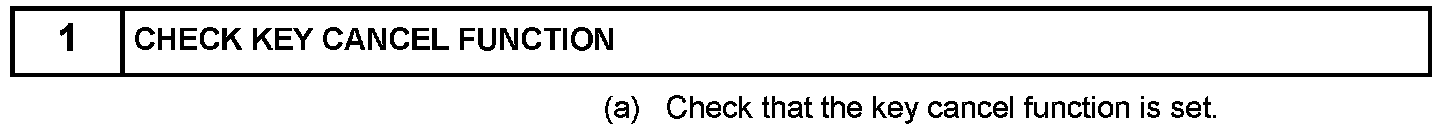

Step 1:

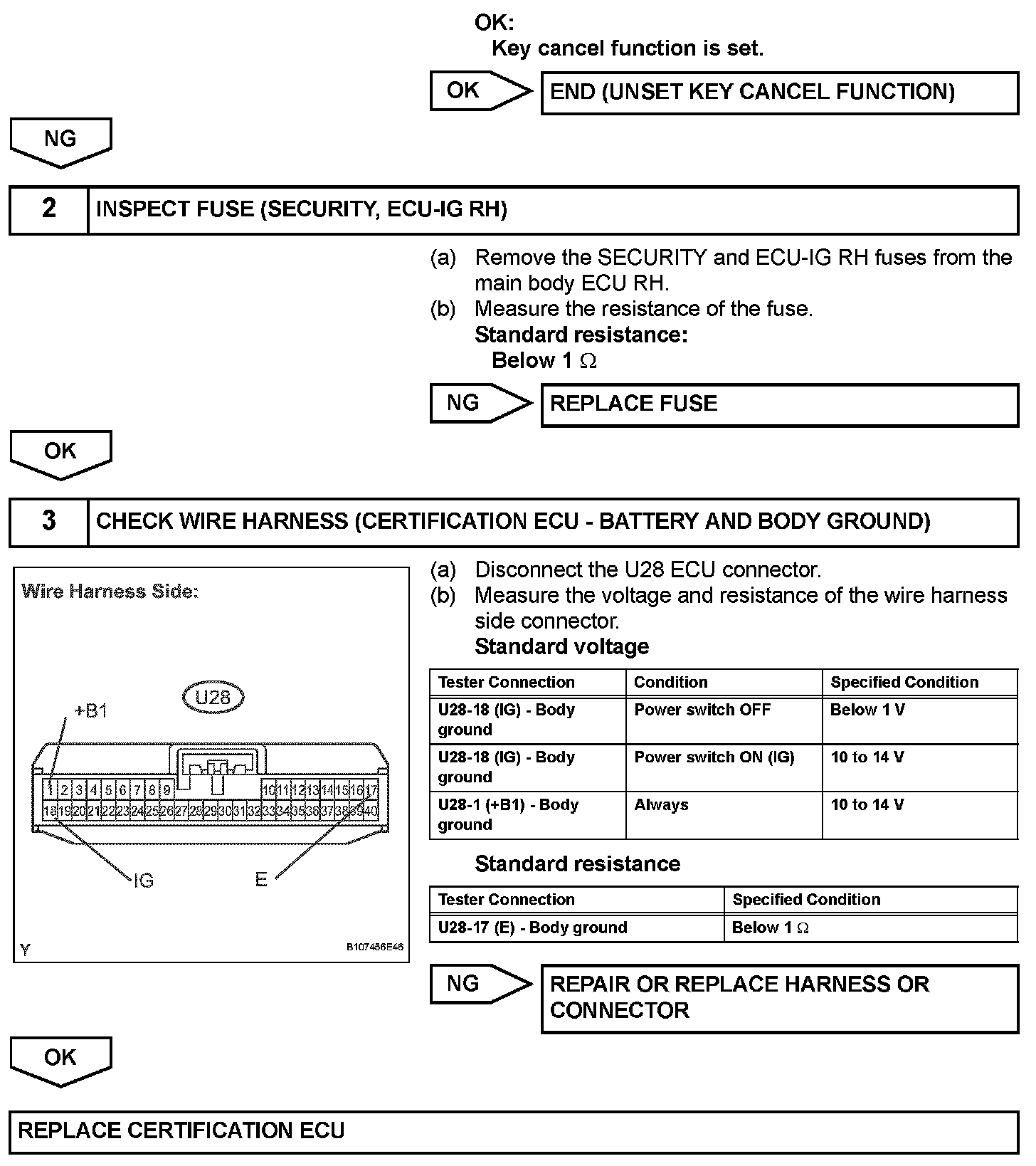

Step 1 (Continued)-3:
INSPECTION PROCEDURE
