Key Lock-In Prevention Function Does Not Work Properly
Key Lock-in Prevention Function does not Work ProperlyDESCRIPTIONWhen the door control transmitter is in the vehicle and the door courtesy light ON signal is output to the main body ECU RH, the doors cannot be locked.

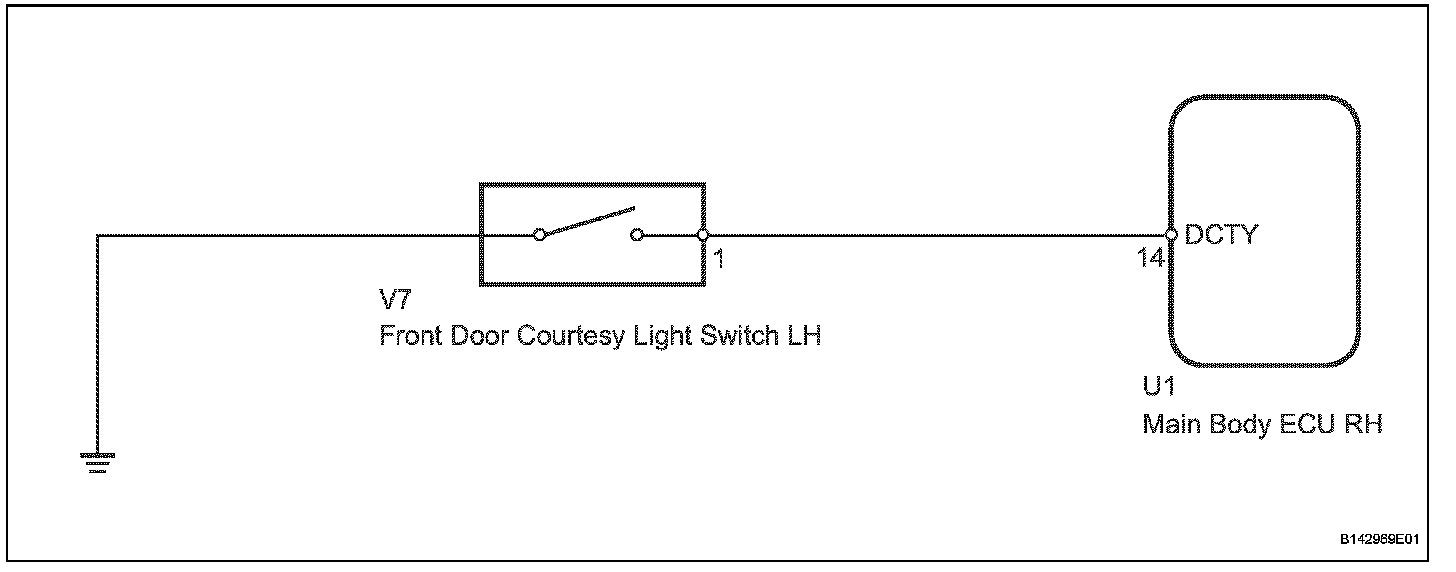

Wiring Diagram:

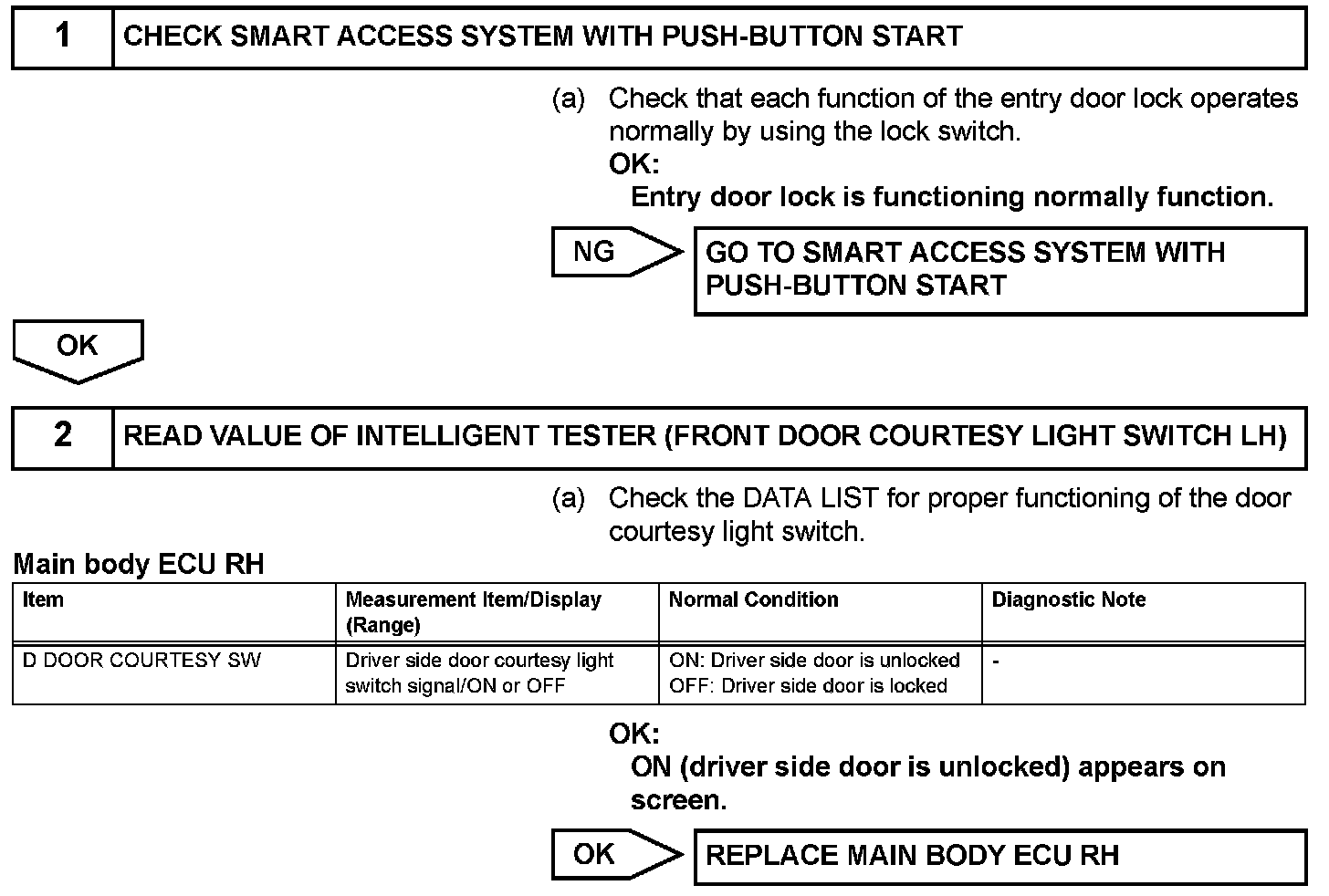

Step 1-2:

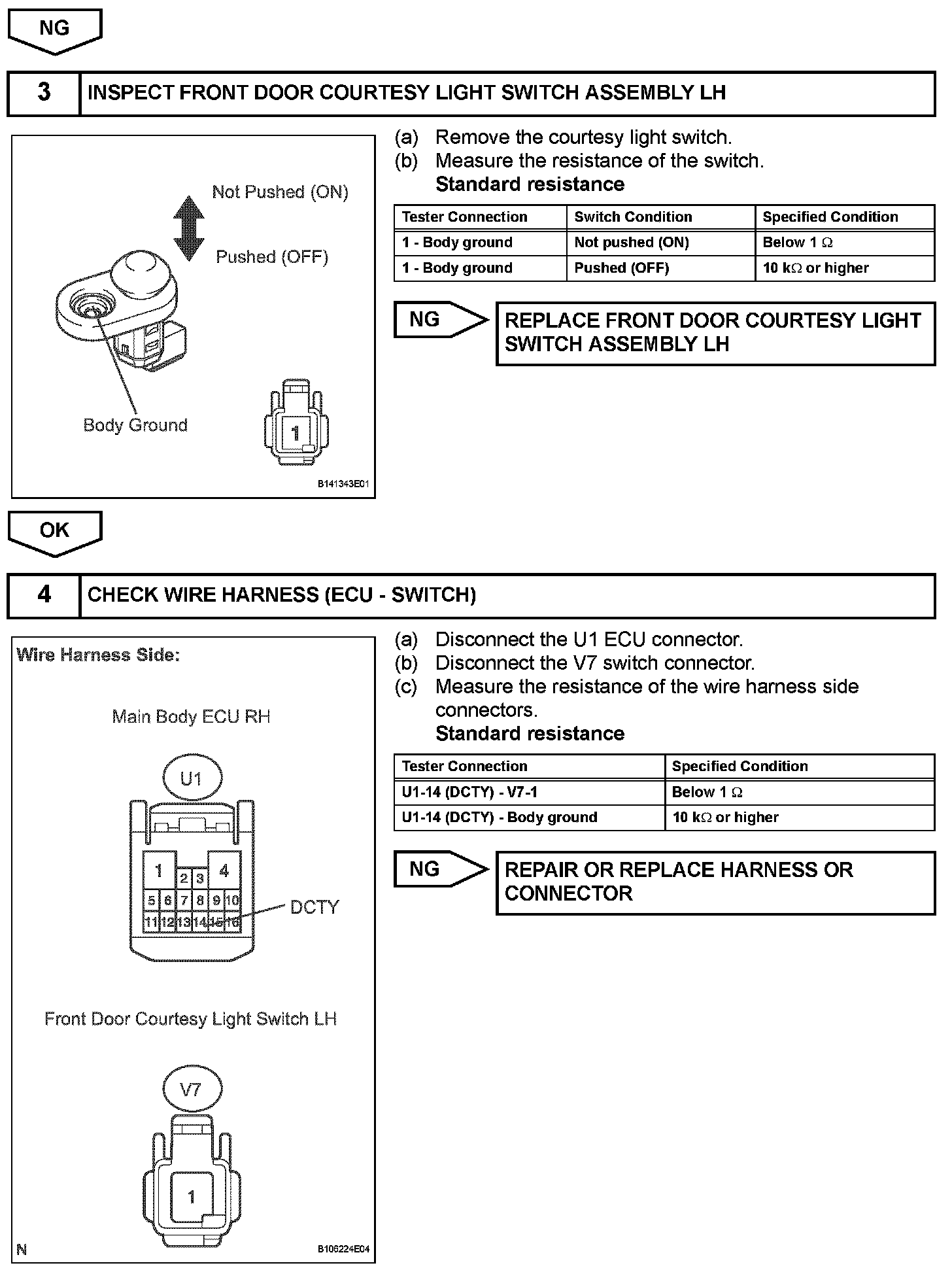

Step 2 (Continued)-4:

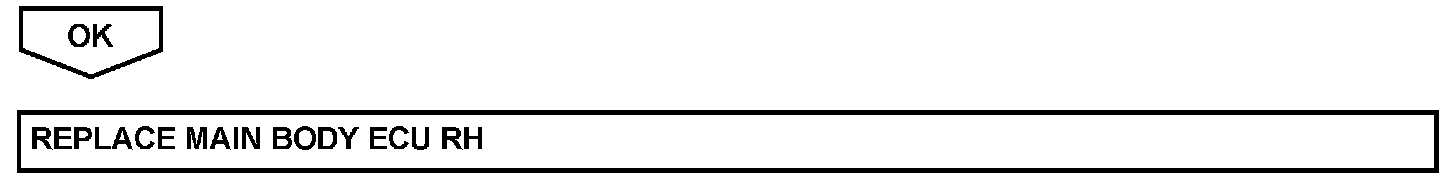

Step 4 (Continued):
INSPECTION PROCEDURE
