Fuse Block

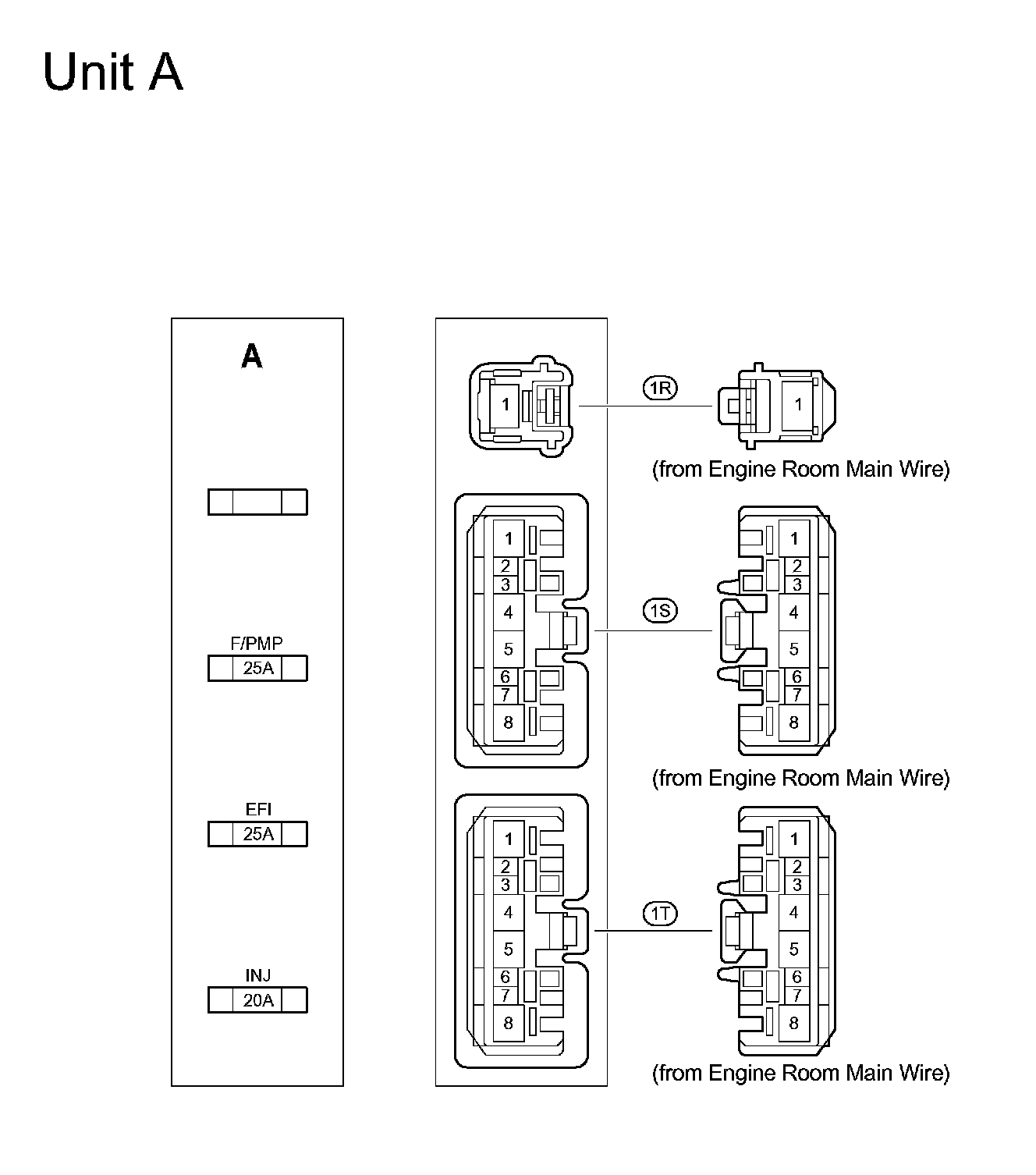

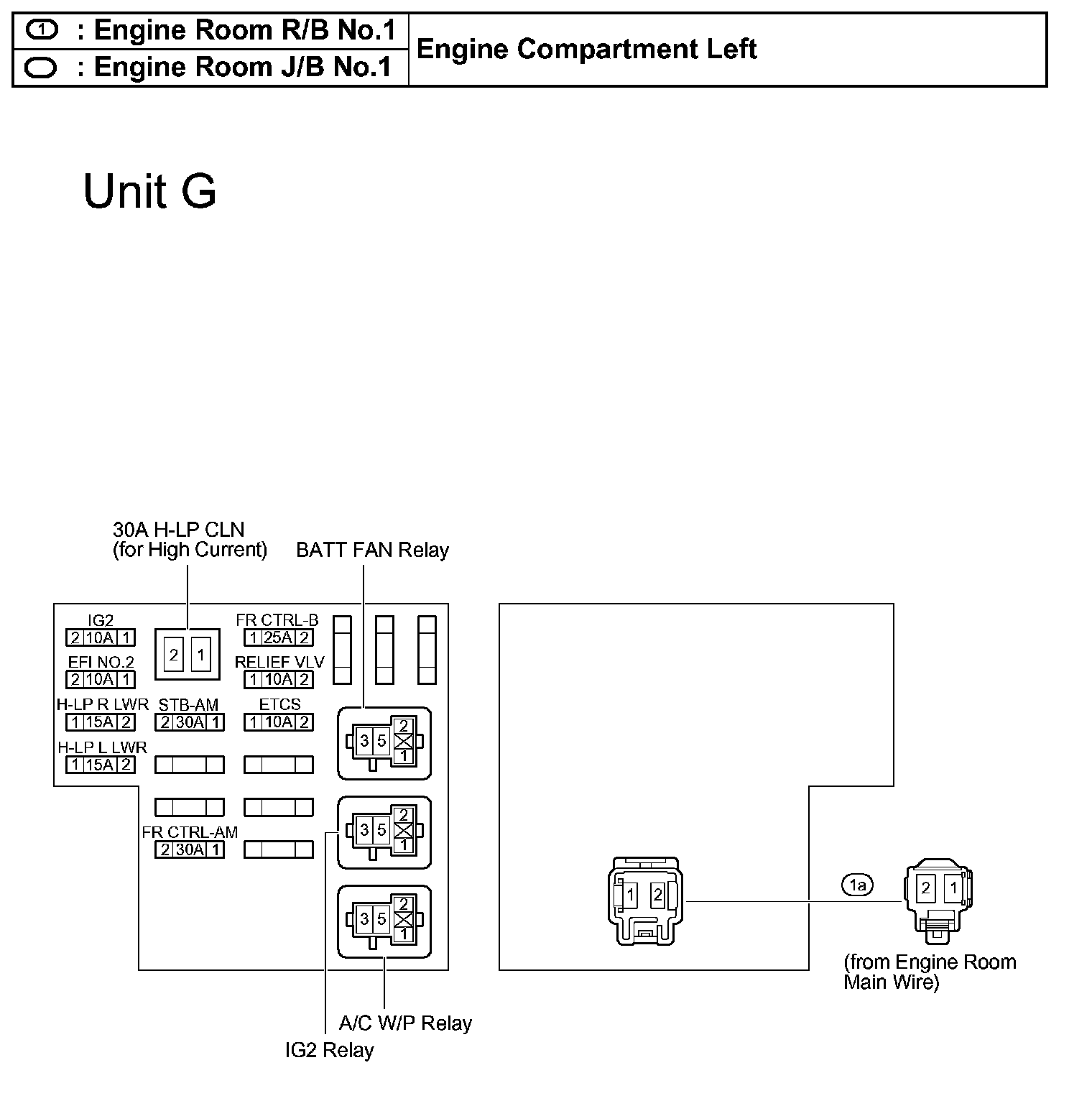

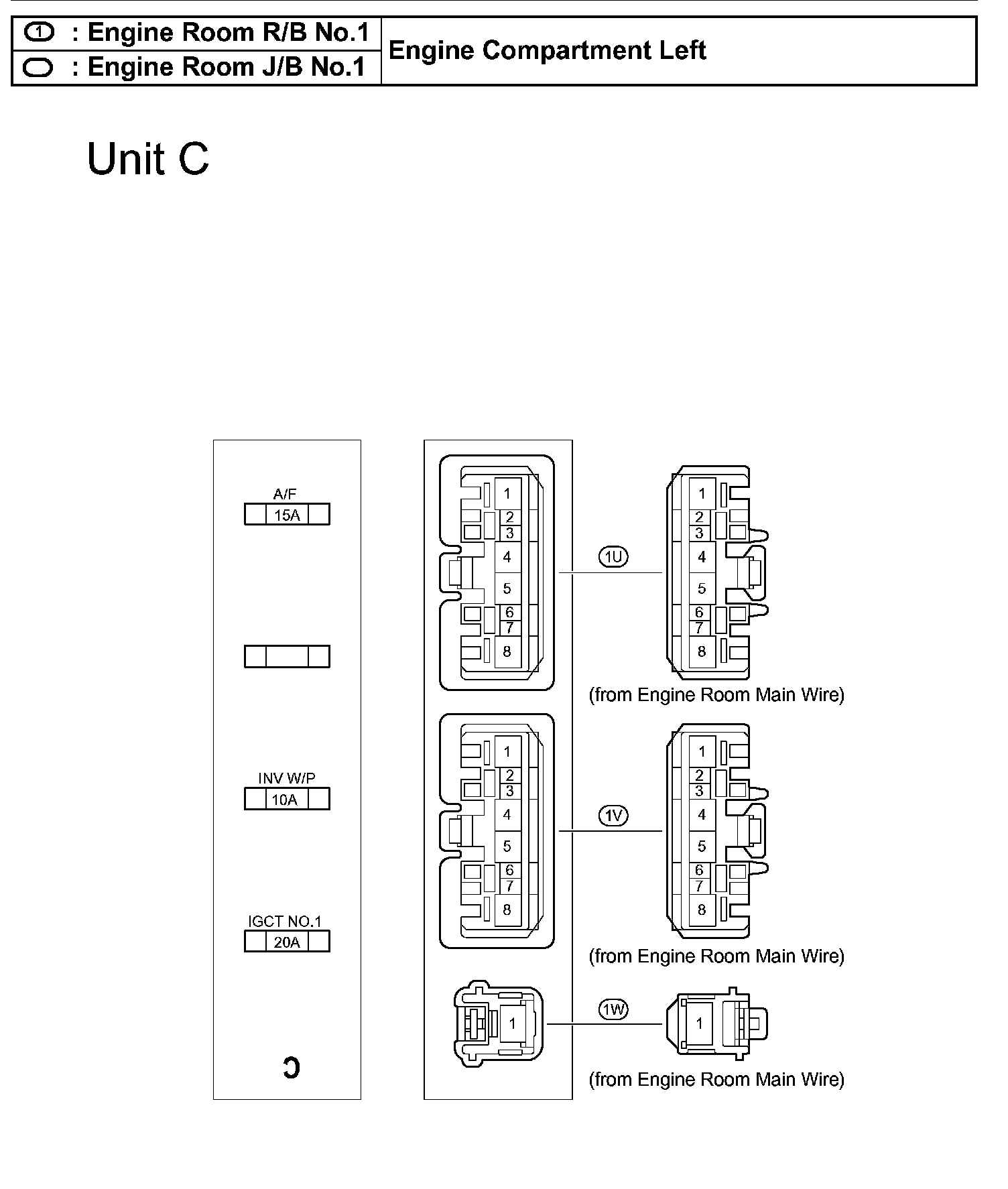

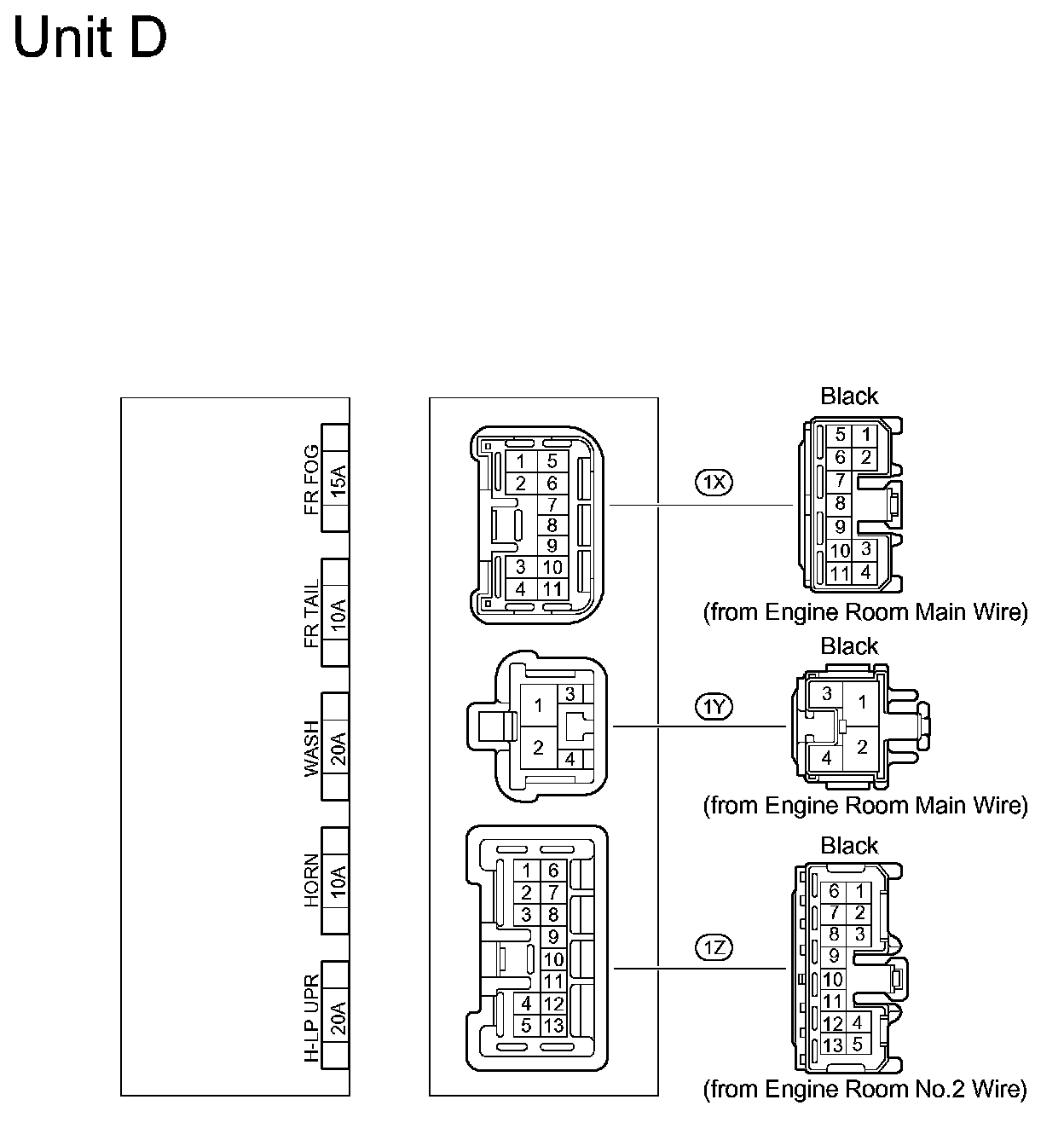

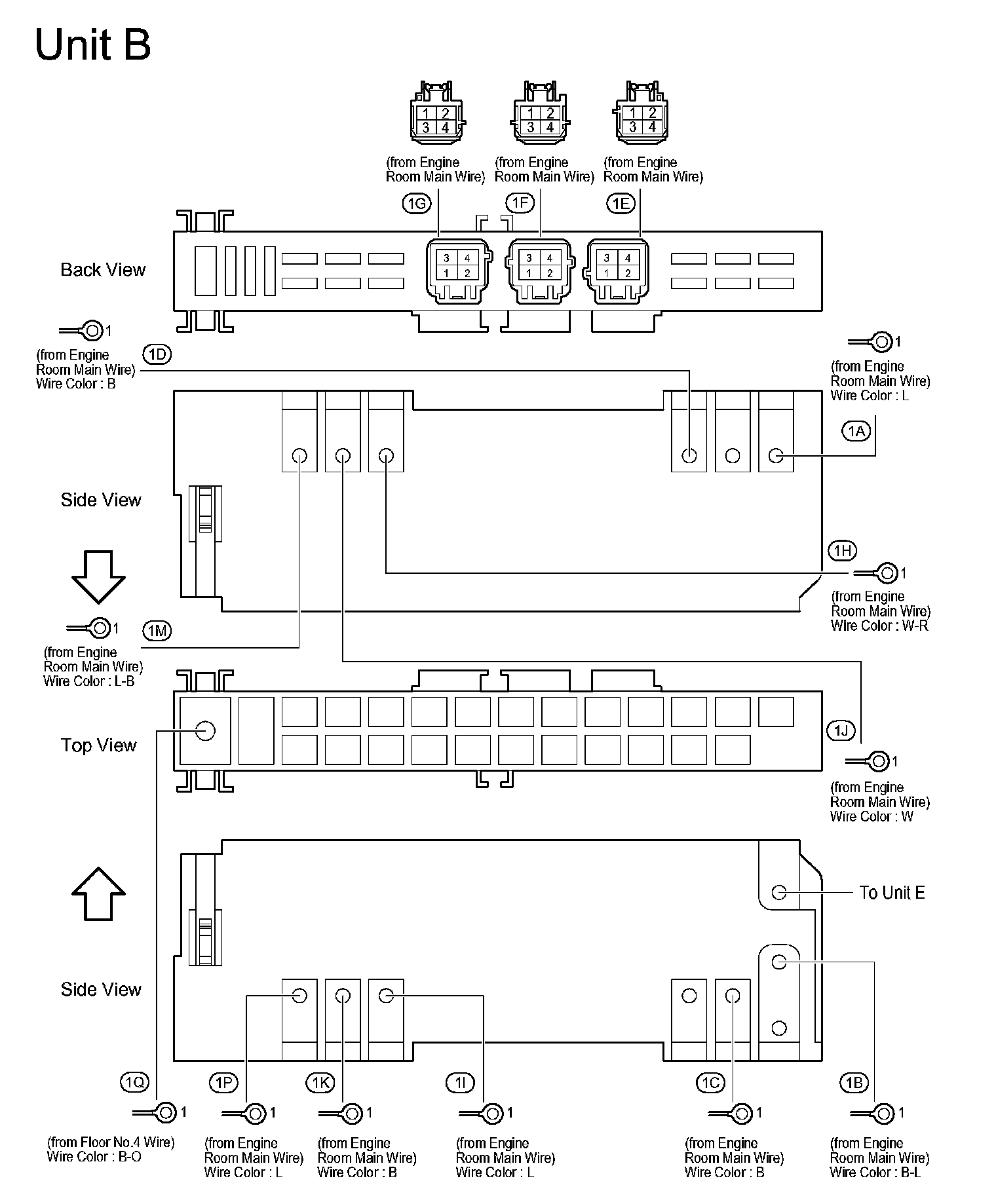

Engine Room R/B No. 1, J/B No.1 - Engine Compartment Left:

Engine Room R/B No. 1, J/B No.1 - Engine Compartment Left:

Engine Room R/B No. 1, J/B No.1 - Engine Compartment Left:

Engine Room R/B No. 1, J/B No.1 - Engine Compartment Left:

Engine Room R/B No. 1, J/B No.1 - Engine Compartment Left:

Engine Room R/B No.1, J/B No.1 - Engine Compartment Left:

Engine Room R/B No.1, J/B No.1 - Engine Compartment Left:

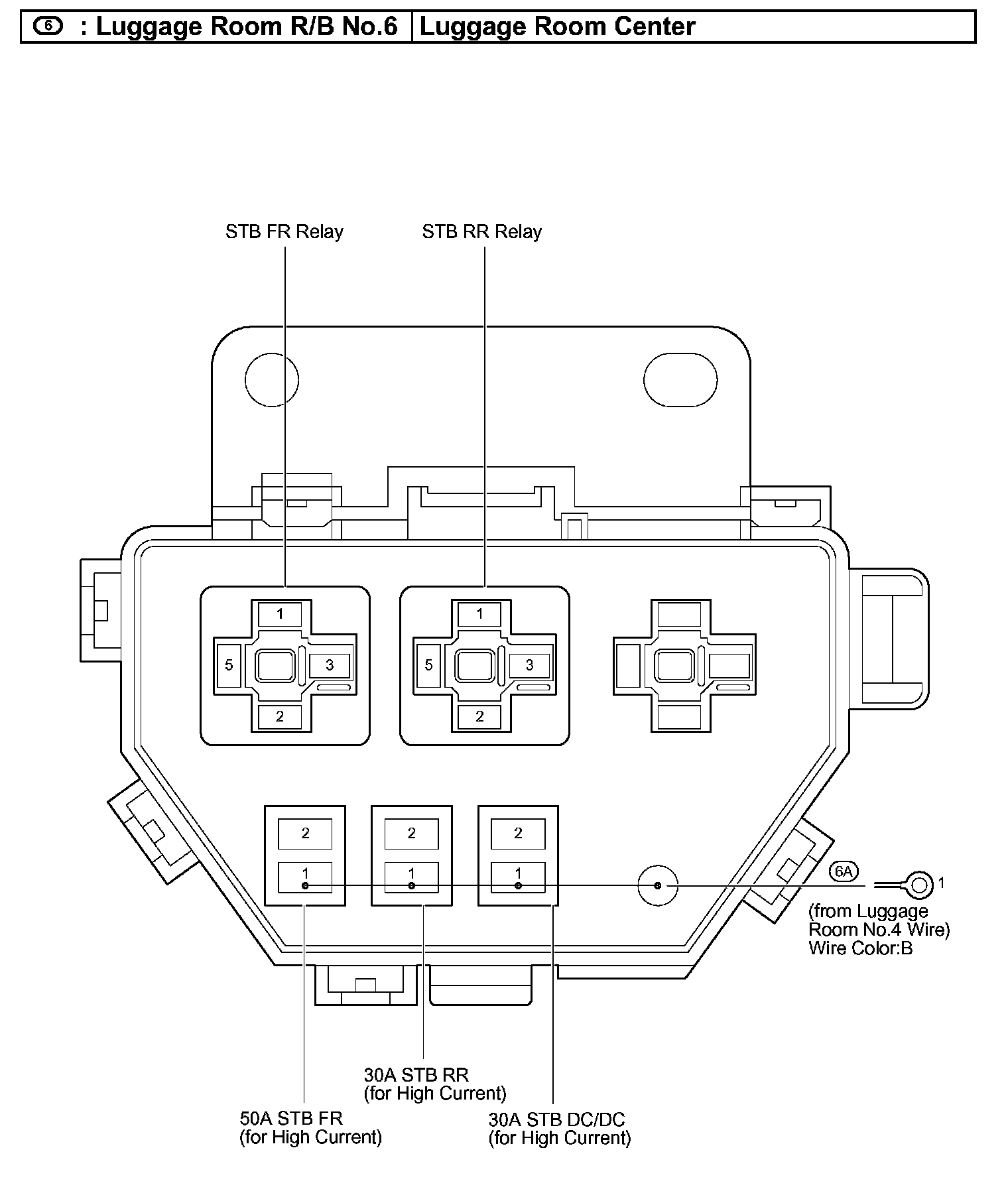

Luggage Roomr/B No. 6 - Lugage Room Center:

Fusible Link Block No.1 - Lugage Room Center:

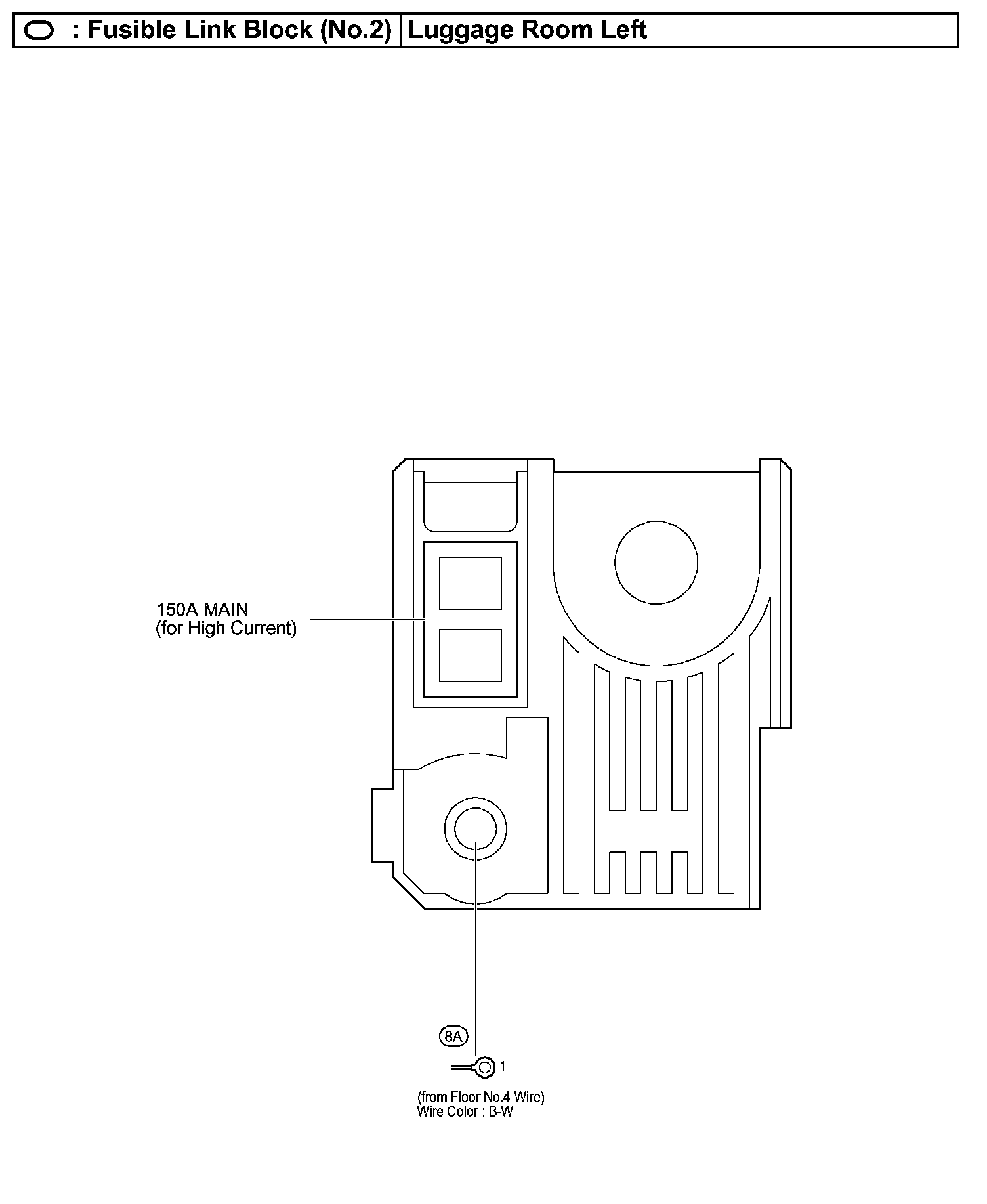

Fusible Link Block No.2 - Luggage Room Left:

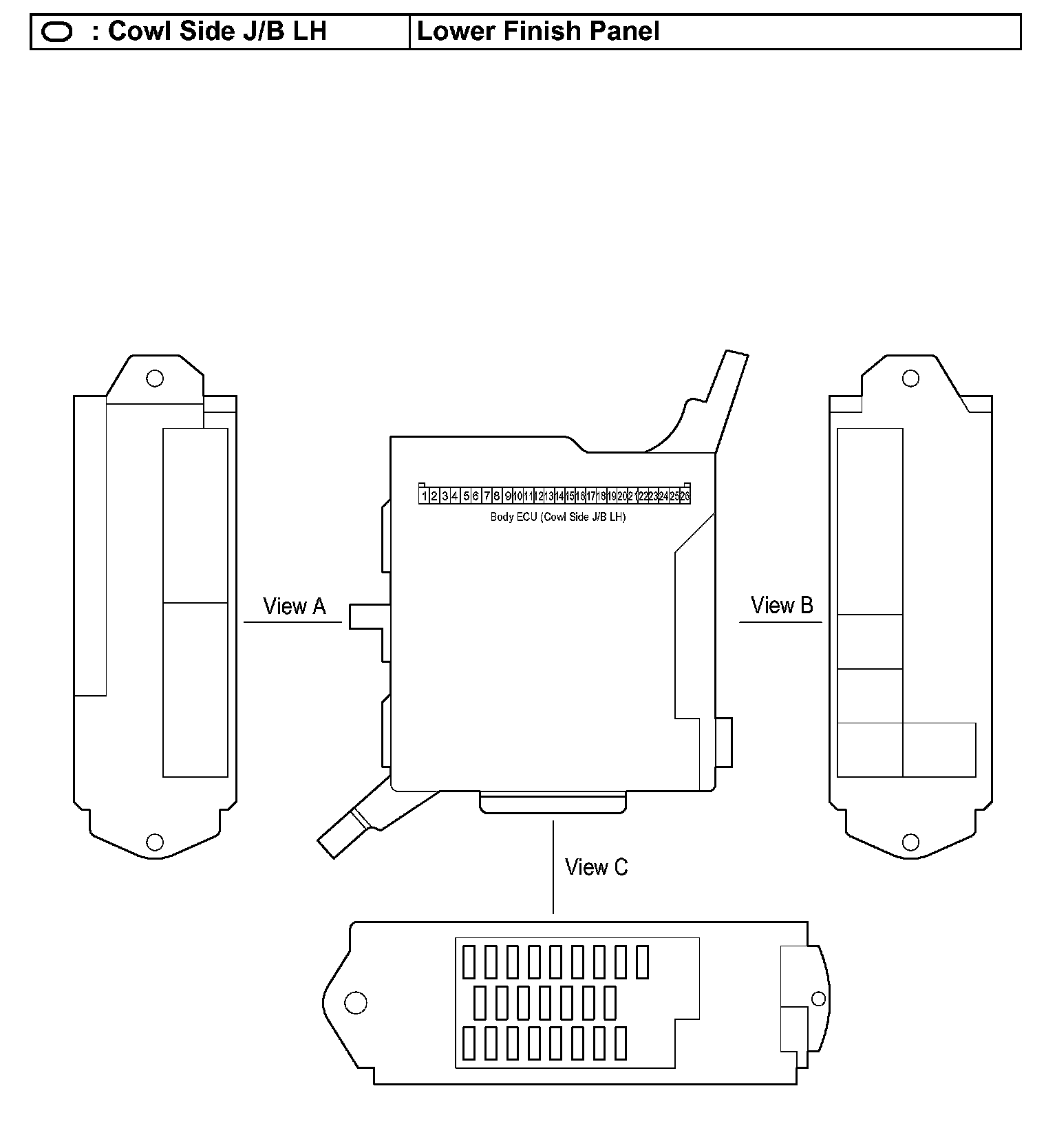

Cowl Side J/B Lh - Lower Finish Panel:

Cowl Side J/B Lh - Lower Finish Panel:

Coel Side J/B LH - Lower Finish Panel:

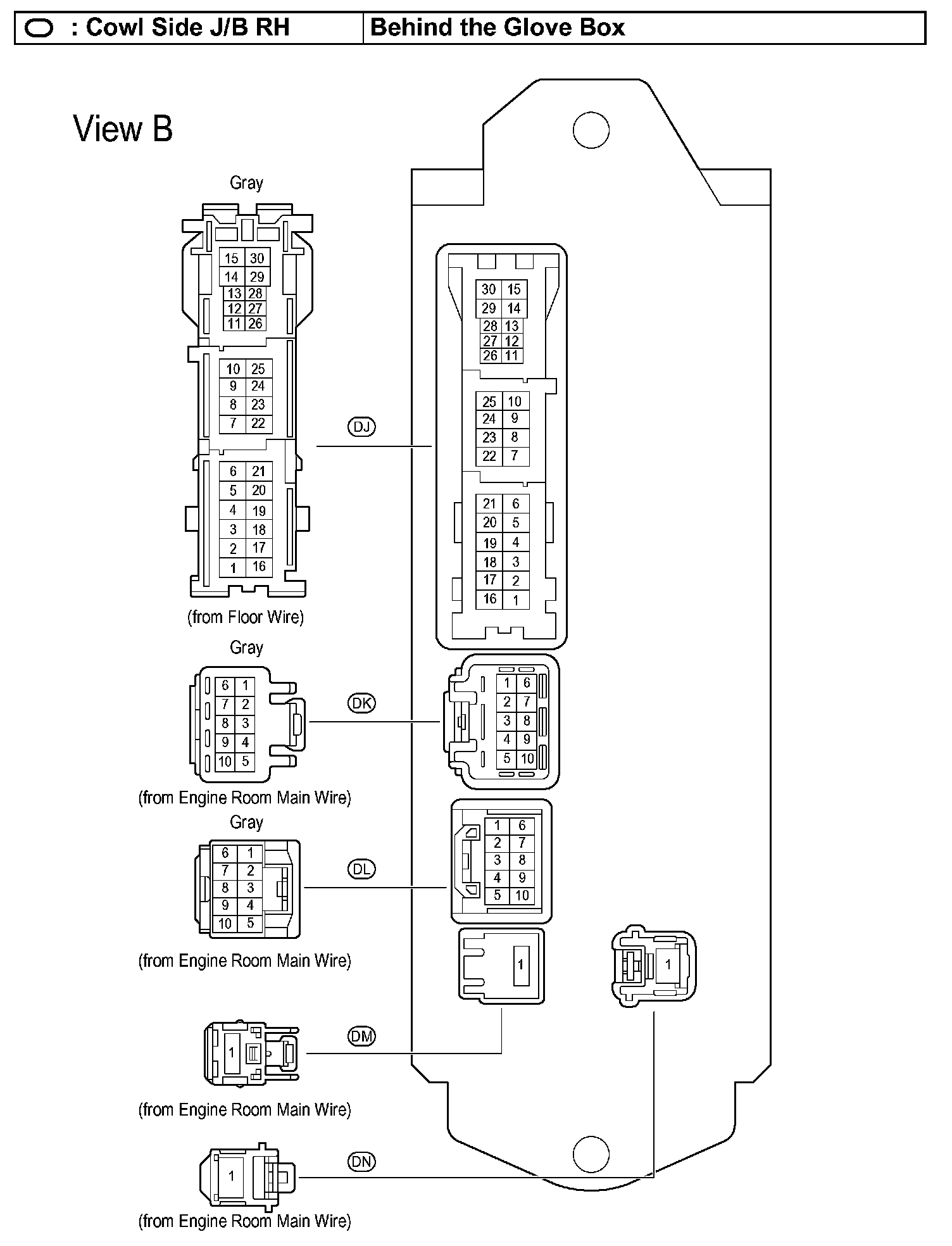

Cowl Side J/B RH - Behind The Glove Box:

Cowl Side J/B RH - Behind The Glove Box:

Cowl Side J/B RH - Behind The Box:

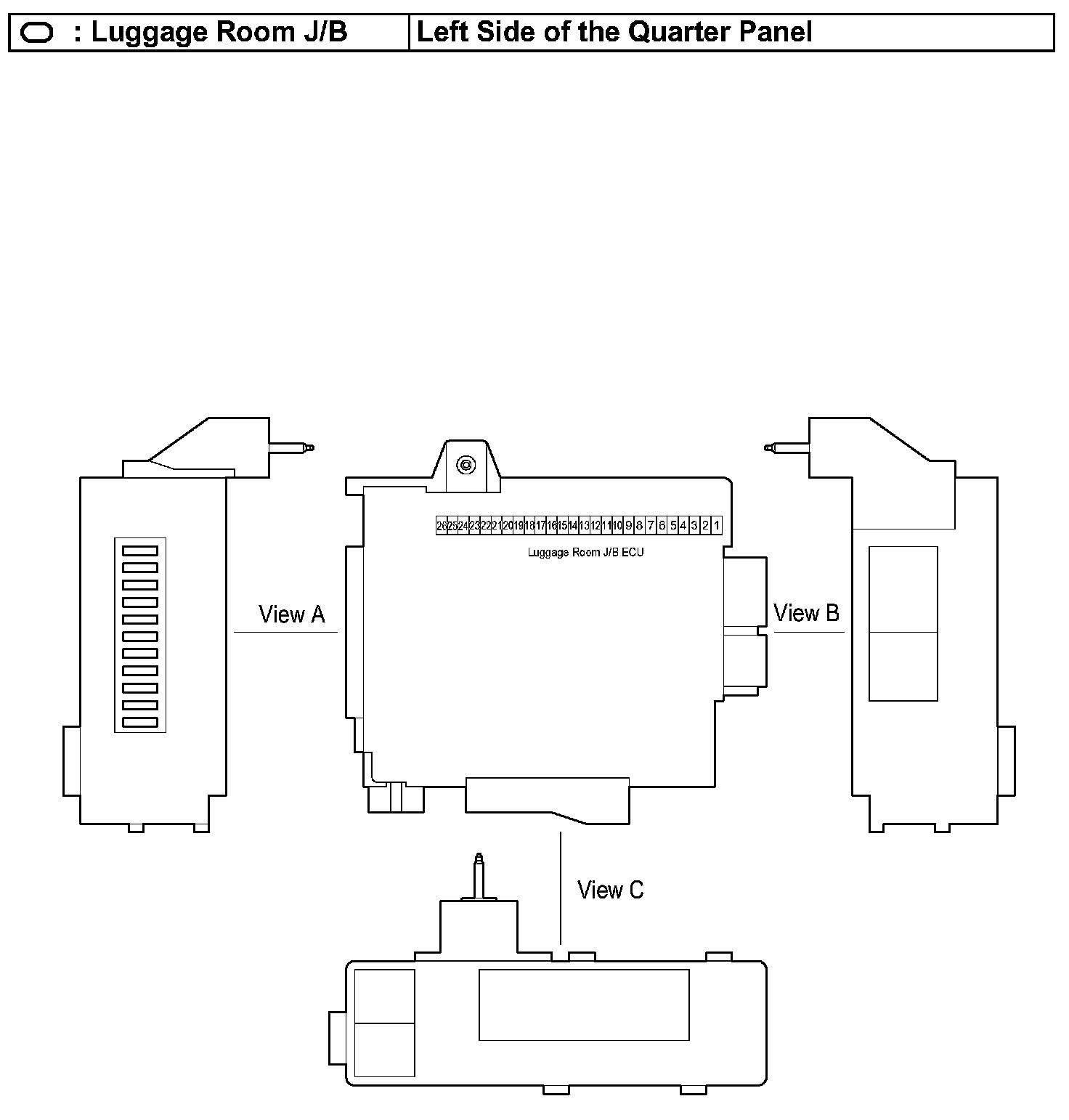

Luggage Room J/B - Left Side Of The Quarter Panel:

Luggage Room J/B - Left Side Of The Quarter Panel:

Luggage Room J/B - Left Side Of The Quarter Panel:

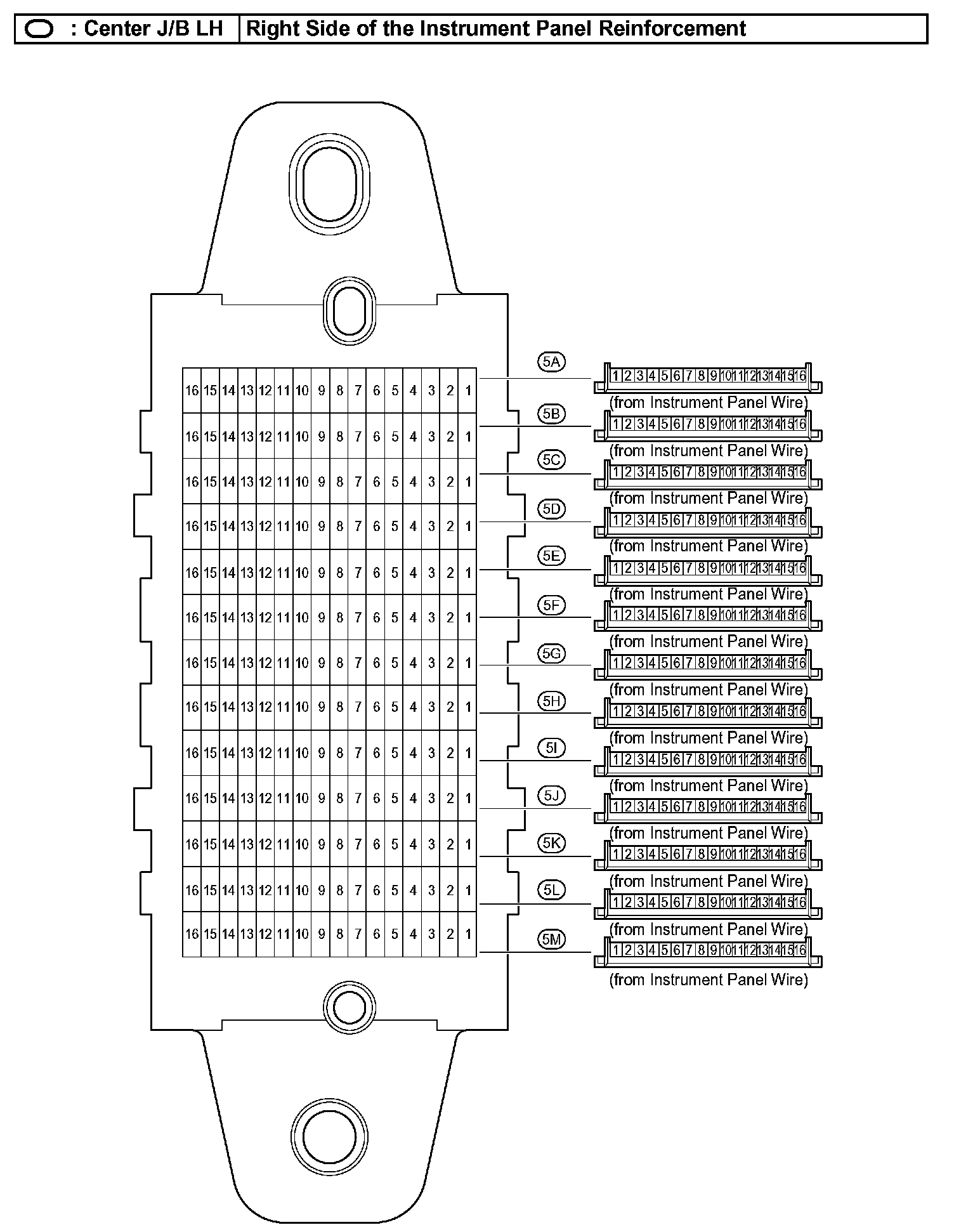

Center J/B LH - Right Side Of The Instrument Panel Reinforcement:

Center J/B RH - Right Side Of The Instrument Panel Reinforcement:

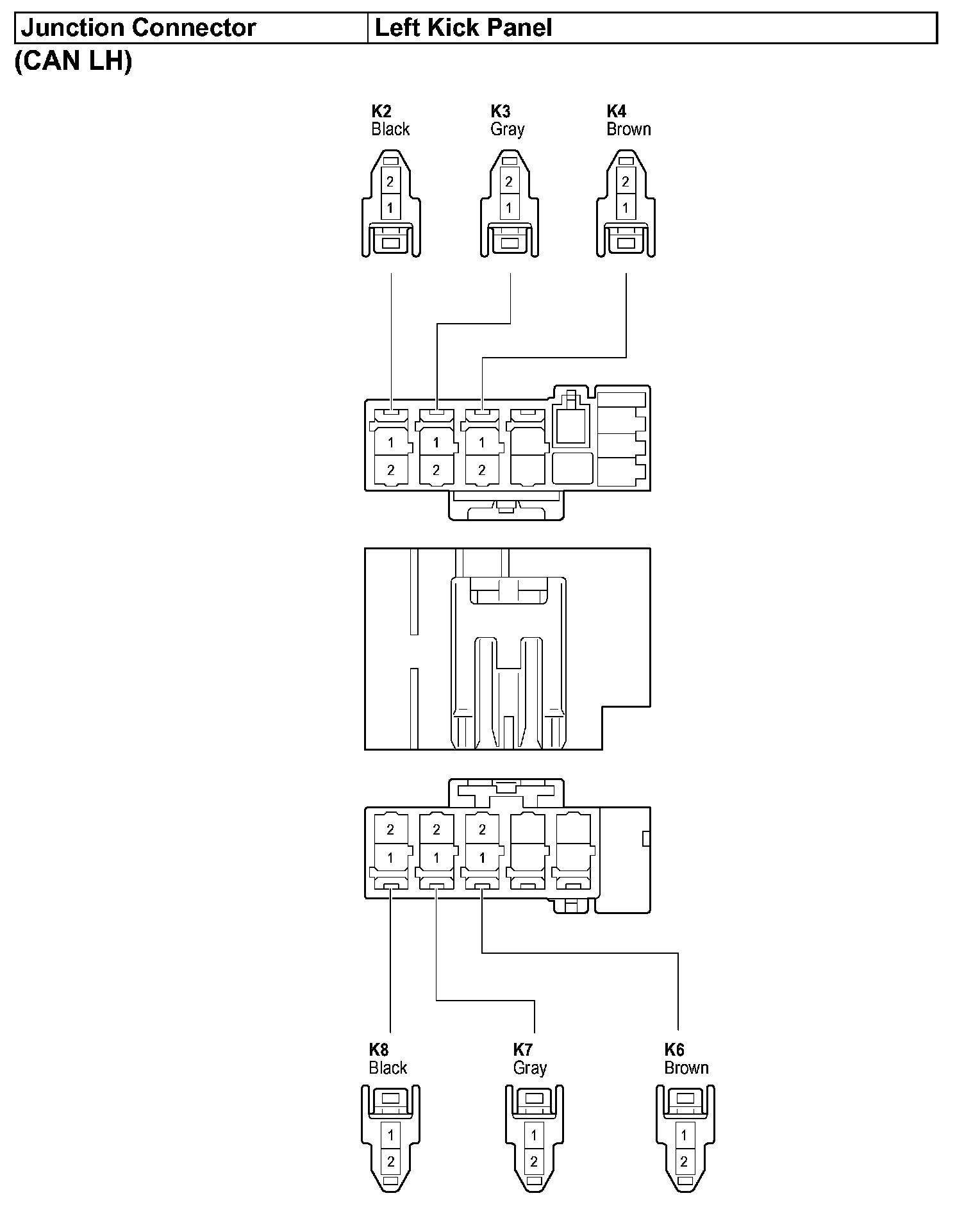

Junction Connector - Left Kick Panel:

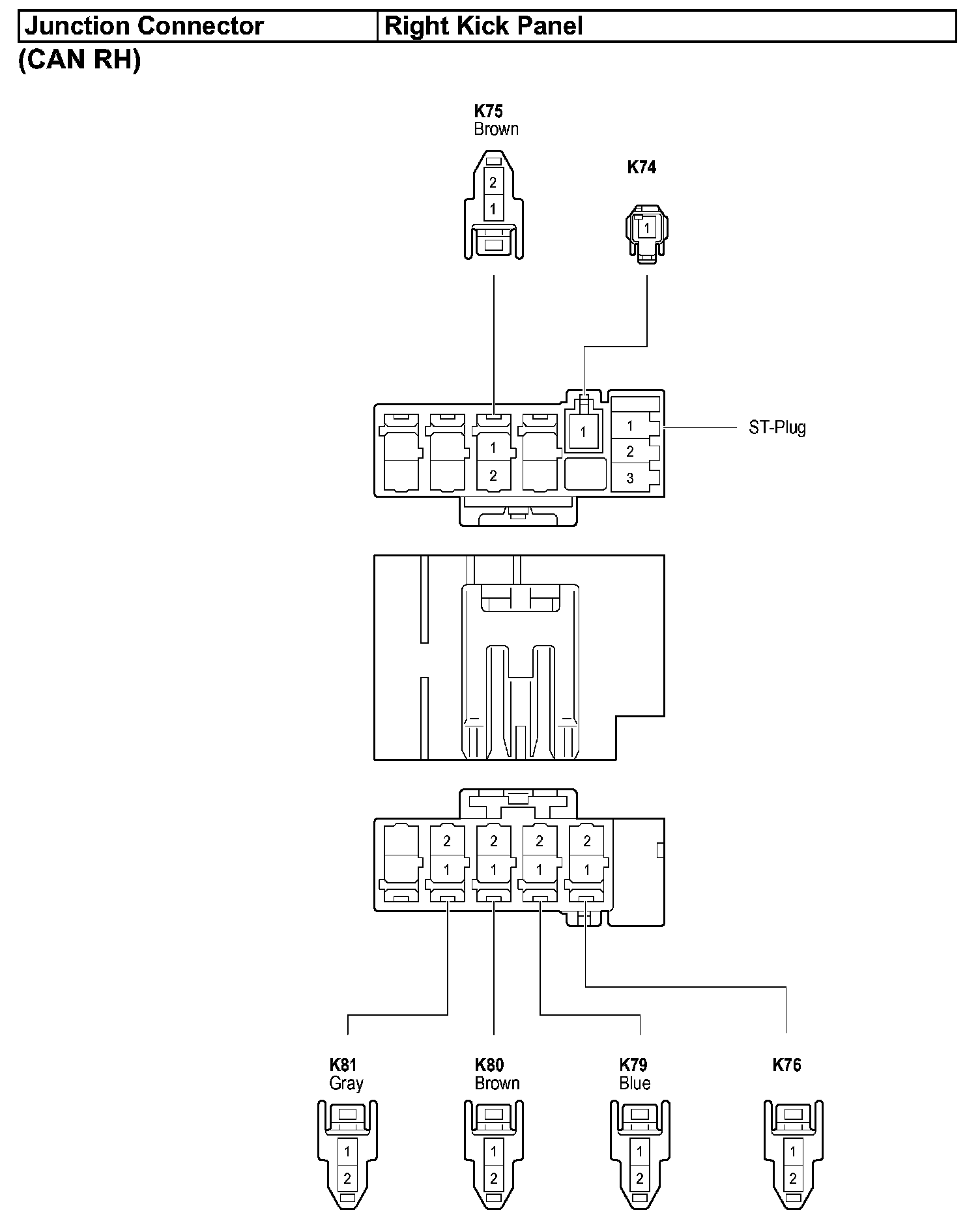

Junction Connector - Right Kick Panel:

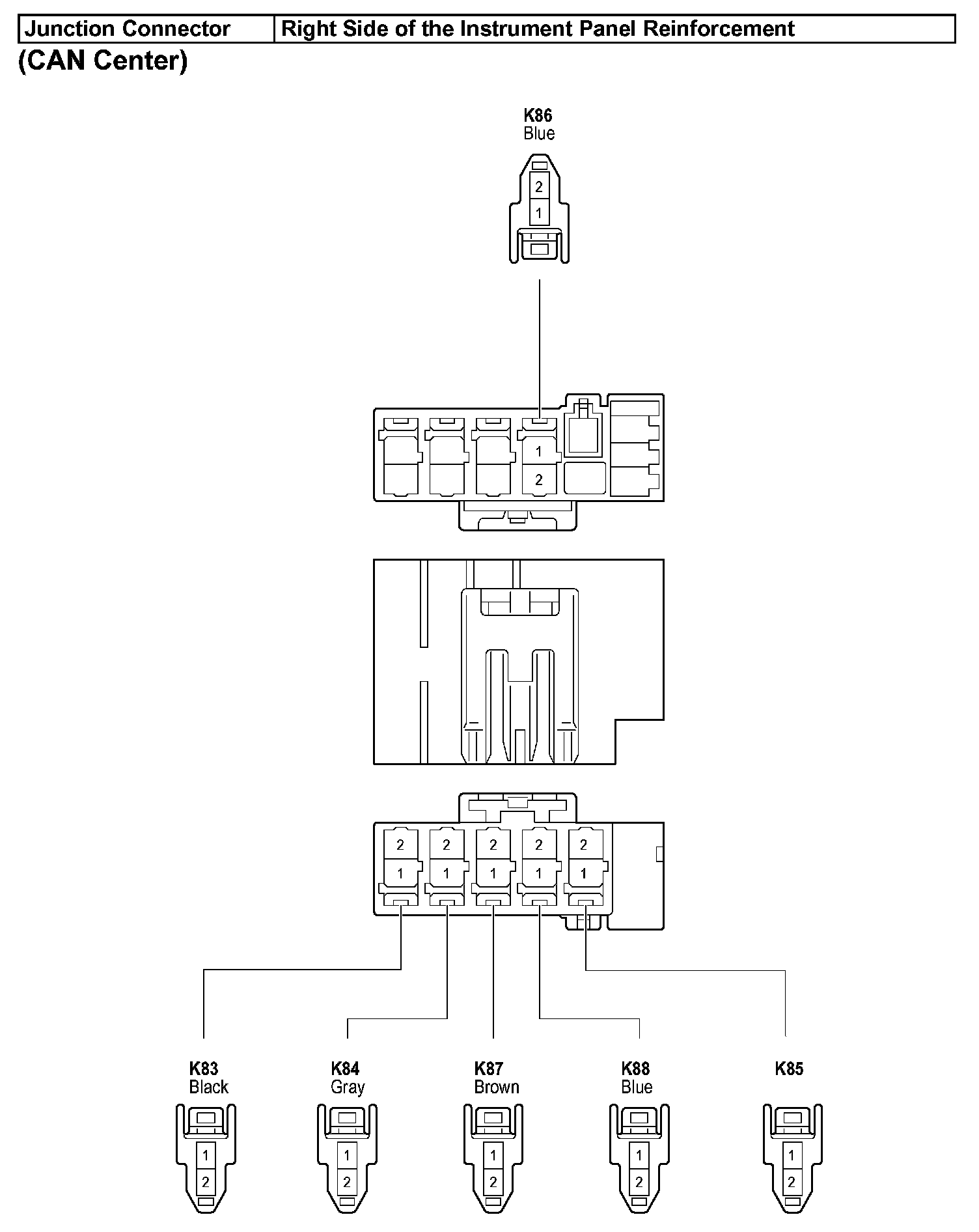

Junction Connector - Right Side Of The Instrument Panel Reinforcement:
