Information

INFORMATION

HINT: Similar to freeze frame data, the HV control ECU also records vehicle and driving condition information as INFORMATION (INF code) at the moment a DTC is stored.

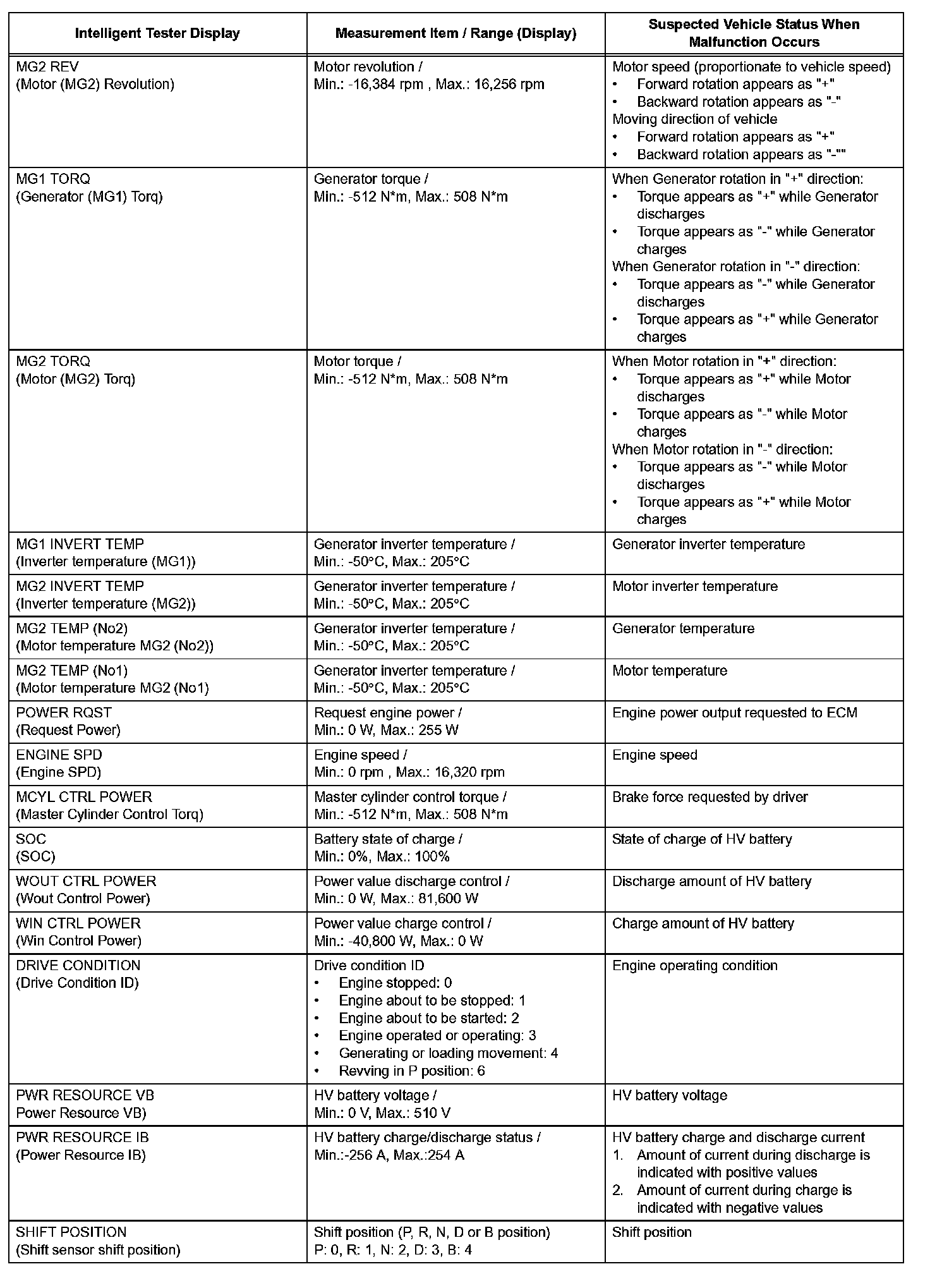

Part 1:

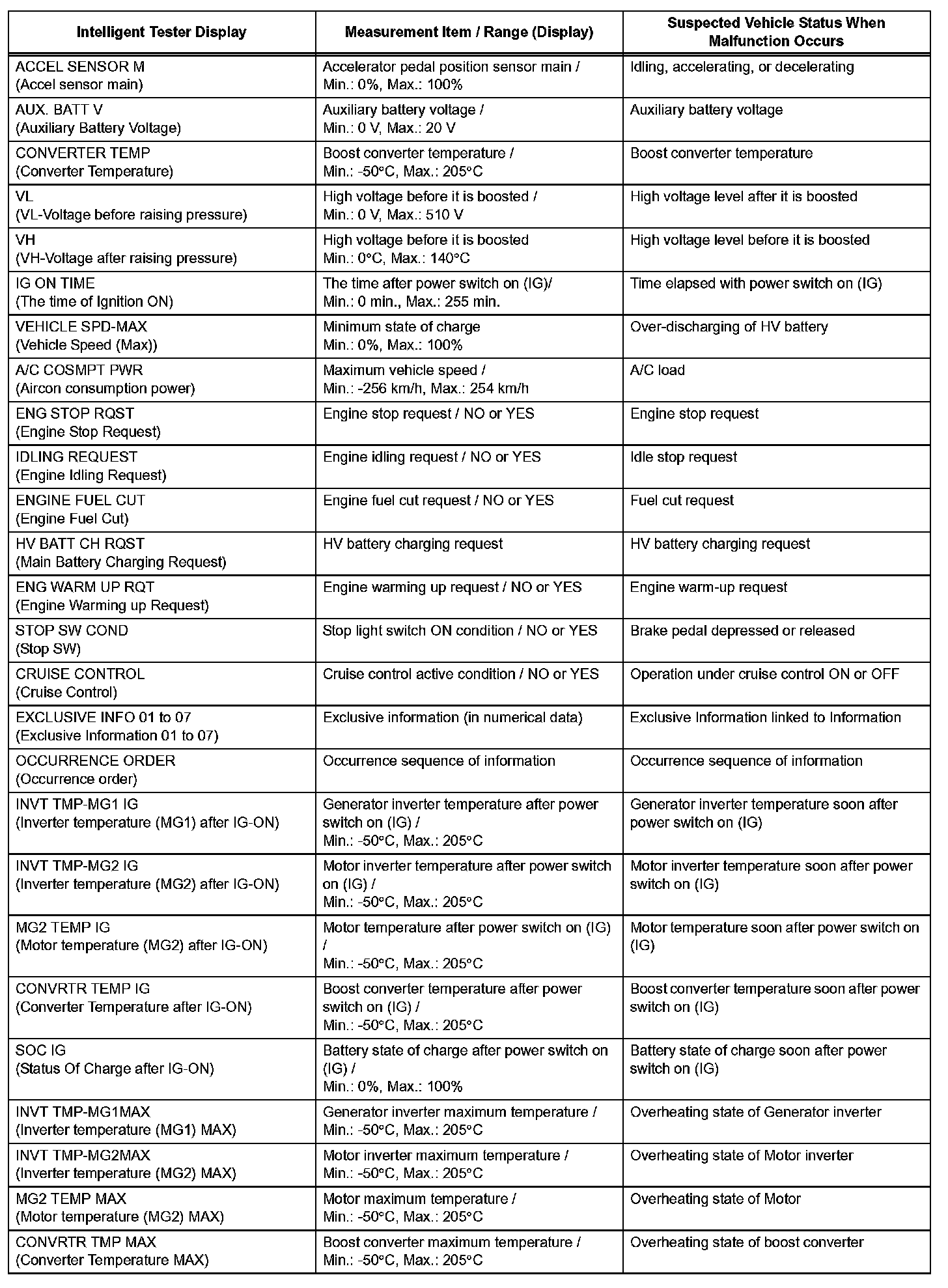

Part 2:




Part 3:




Part 4:




a. Select the information item which has an INF code from among INFORMATION 1 to 5.
b. Check the information for the DTC.
