Programming and Relearning

CUSTOMIZE PARAMETERS

HINT: The following items can be customized.






NOTE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a mote of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.

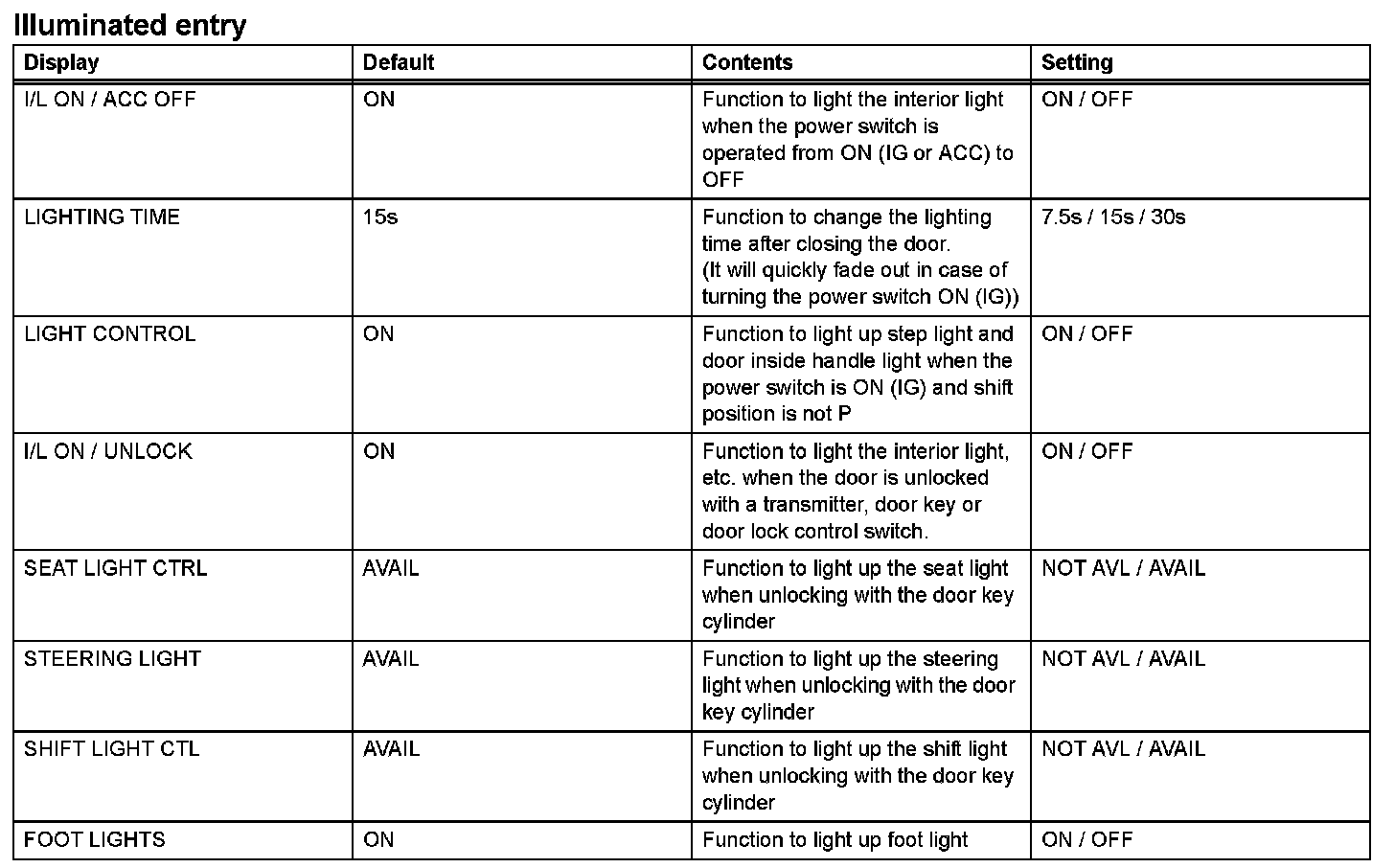

Part 1:

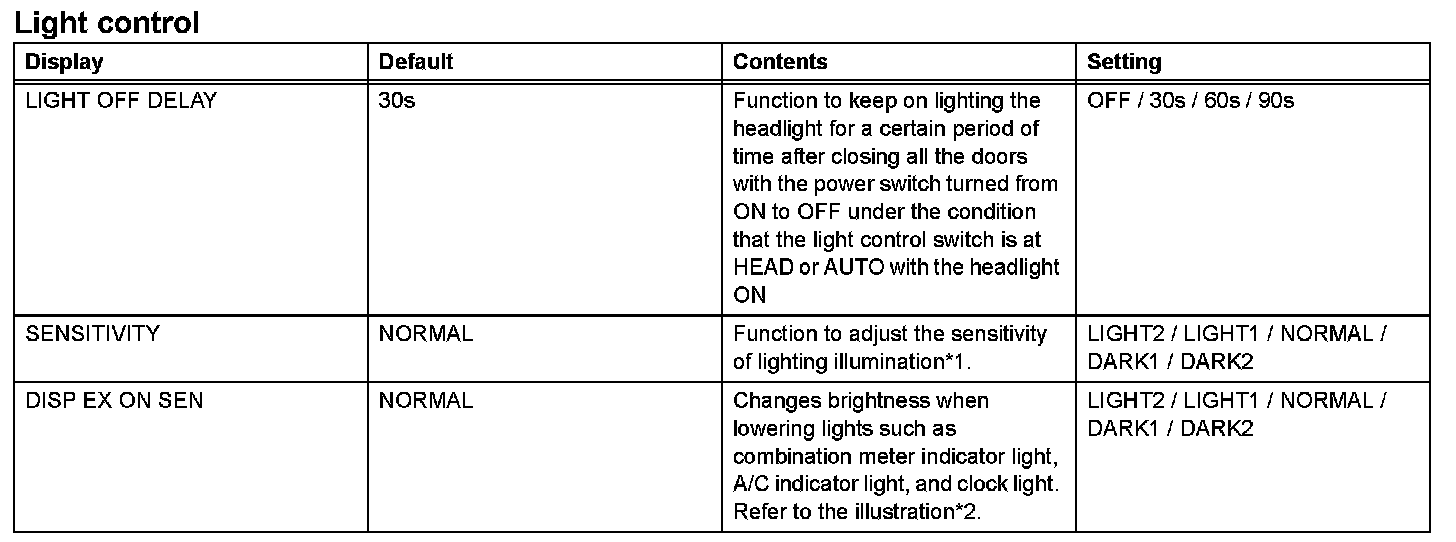

Part 2:






HINT: Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.

1. Door linked map light and personal light illumination control
Mode 1: When door is opened, map light of opened door illuminates, or personal light illuminates
Mode 2: When door is opened, all map lights and personal lights illuminate
Mode 3: Map lights and personal lights are not linked to doors

a. To change modes, press the map light assembly DOOR and ON switch simultaneously, and then turn the power switch from OFF to ON (IG). Each power switch OFF to ON (IG) operation will change the mode (Mode 1->Mode->2 Mode 3->Mode 1).

HINT: After changing modes, the map light responds by blinking as follows: Mode 1: once; Mode 2: twice; Mode 3: three times.
