System Specifications
CRANKSHAFT PULLEYTorque 250 N*m (2,549 kgf*cm, 184 ft.*lbf)
NO. 2 CHAIN TENSIONER
Install the chain tensioner with the bolt.
Torque 21 N*m (214 kgf*cm, 15 ft.*lbf)
NO. 3 CHAIN TENSIONER
Install the chain tensioner with the bolt.
Torque 21 N*m (214 kgf*cm, 15 ft.*lbf)
NO. 1 CHAIN TENSIONER

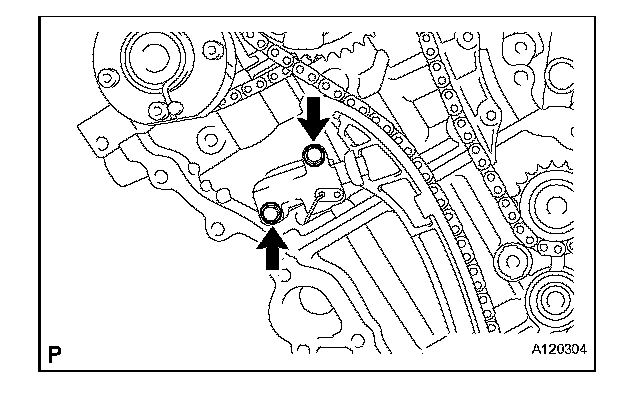

Install the chain tensioner with the 2 bolts.
Torque 10 N*m (102 kgf*cm, 7 ft.*lbf)
TIMING CHAIN COVER
Temporarily tighten the timing chain cover with the 25 bolts and 2 nuts.
Bolt length:
Make sure that there is no oil on the bolt threads.
Tighten the 3 bolts shown in the illustration.
Torque for bolt A 43 N*m (438 kgf*cm, 32 ft.*lbf)
Torque for bolts except A 21 N*m (214 kgf*cm, 15 ft.*lbf)
Tighten the 3 bolts shown in the illustration.
Torque 21 N*m (214 kgf*cm, 15 ft.*lbf)
Tighten the 7 bolts and 2 nuts as shown in the illustration.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

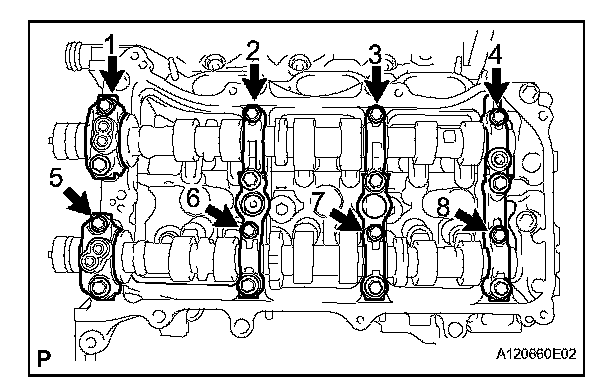

Tighten the bolts and nuts in the order of upper to lower as shown in the illustration.
Fully tighten the 12 bolts as shown in the illustration.
Torque 21 N*m (214 kgf*cm, 15 ft.*lbf)
Tighten the bolts in the order of lower to upper as shown in the illustration.
