Only Wireless Control Function Is Inoperative

Only Wireless Control Function is Inoperative

DESCRIPTION
The door control receiver receives a signal from the transmitter and sends this signal to the body ECU. Then, the body ECU sends a door LOCK/UNLOCK signal to each door lock motor to control it.

Wiring Diagram:

INSPECTION PROCEDURE

Step 1:

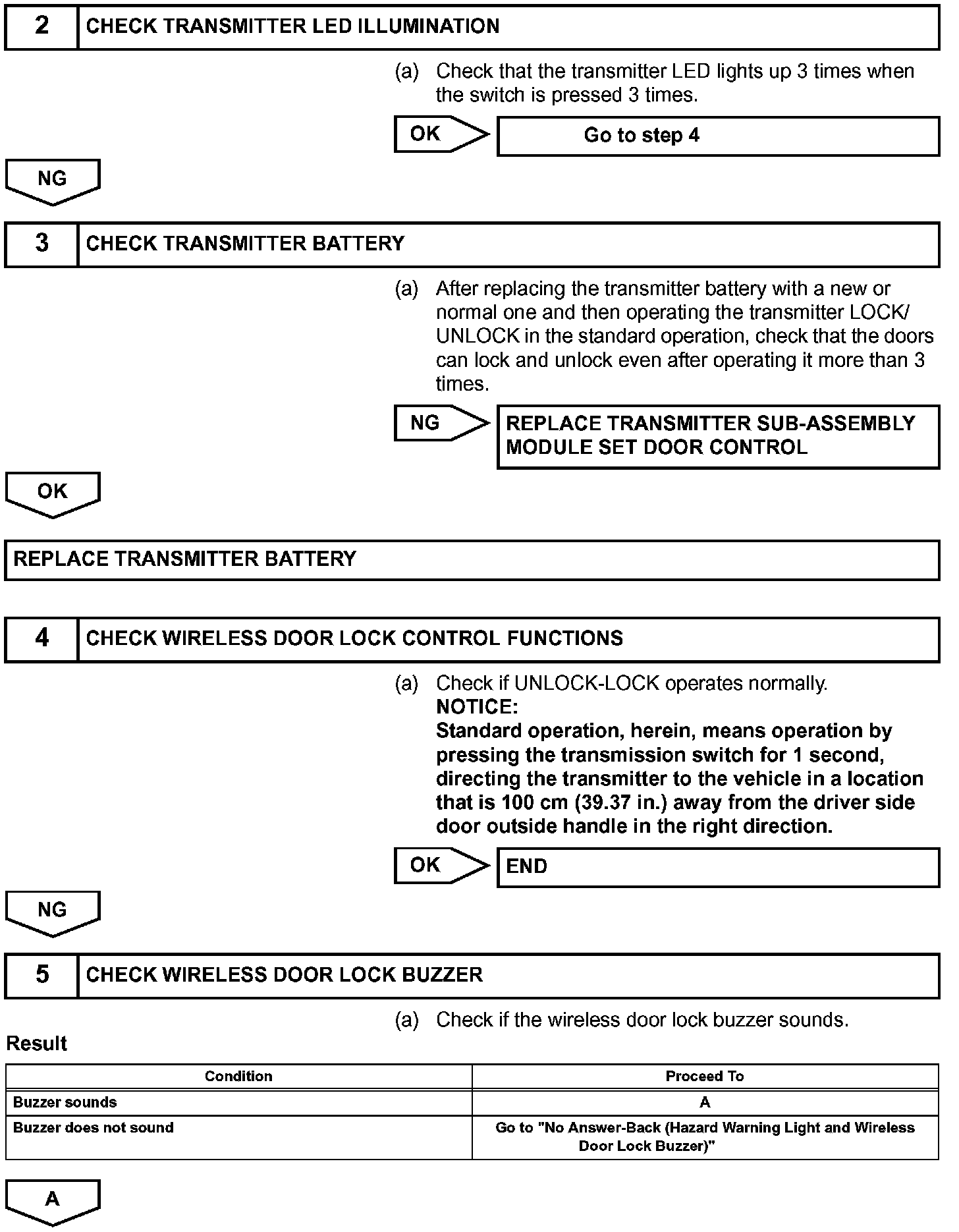

Step 2-5:

Only Wireless Control Function Is Inoperative

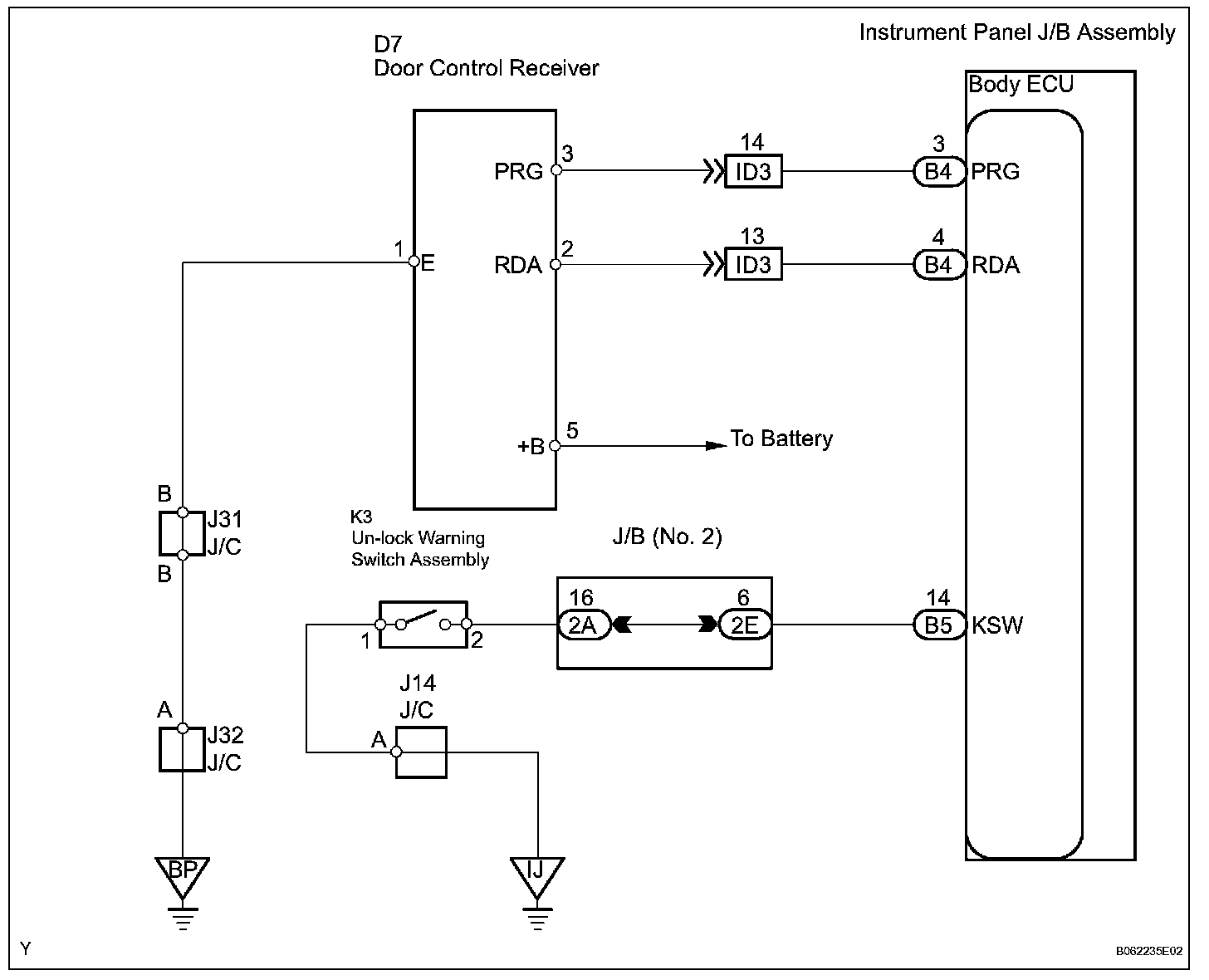

Wiring Diagram:

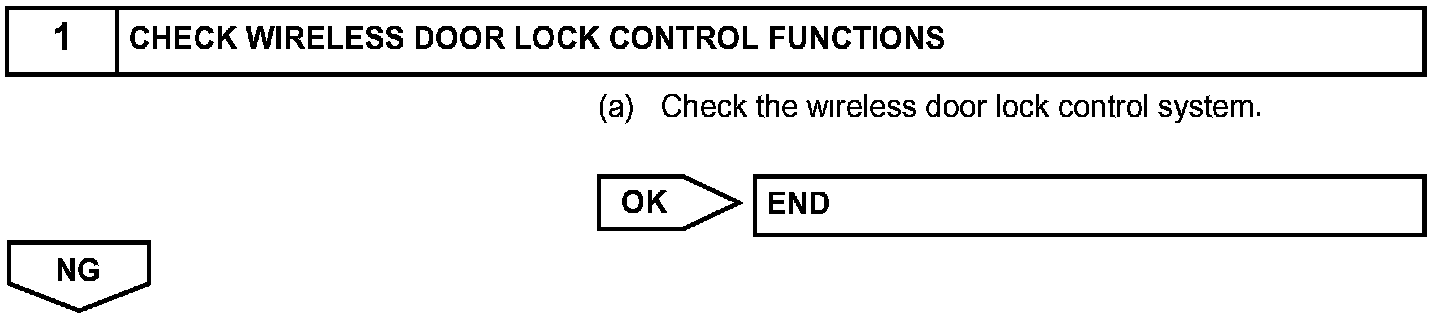

Step 1:

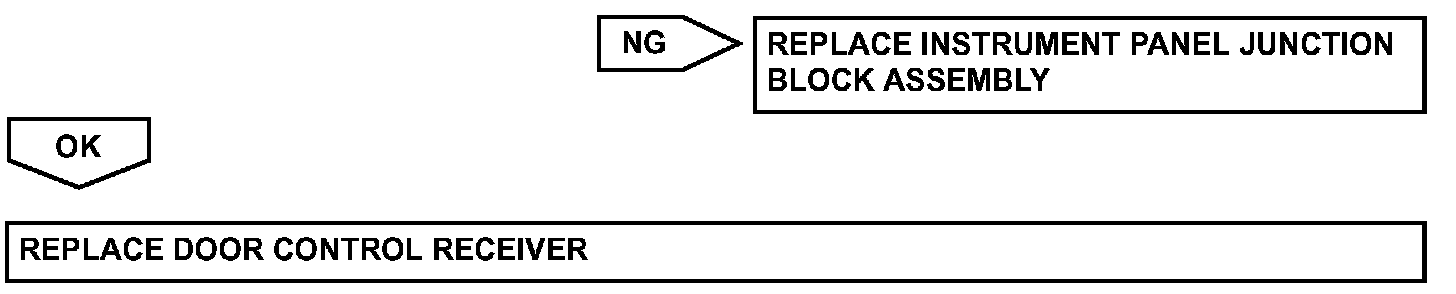

Step 2-5:

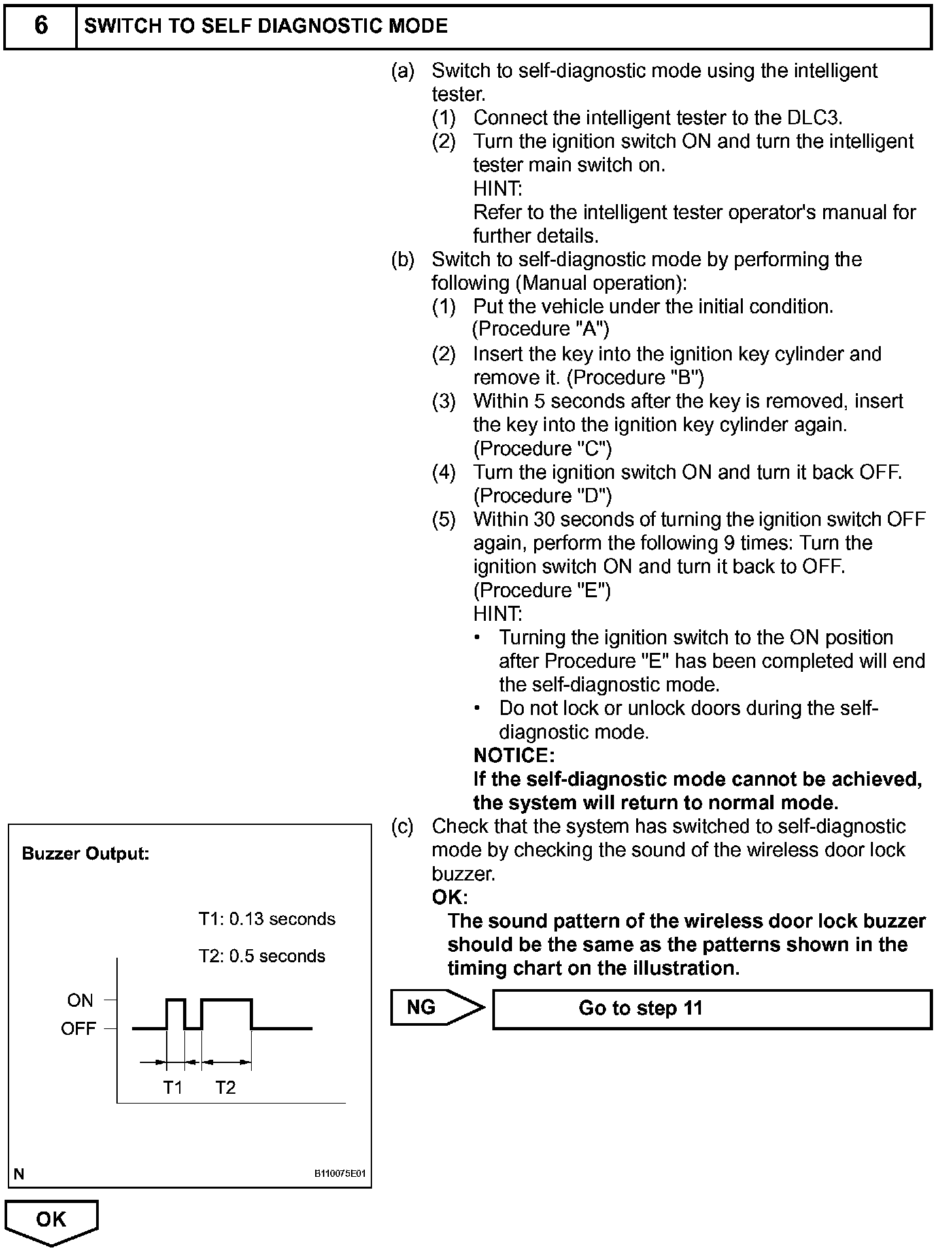

Step 6:

Step 7:

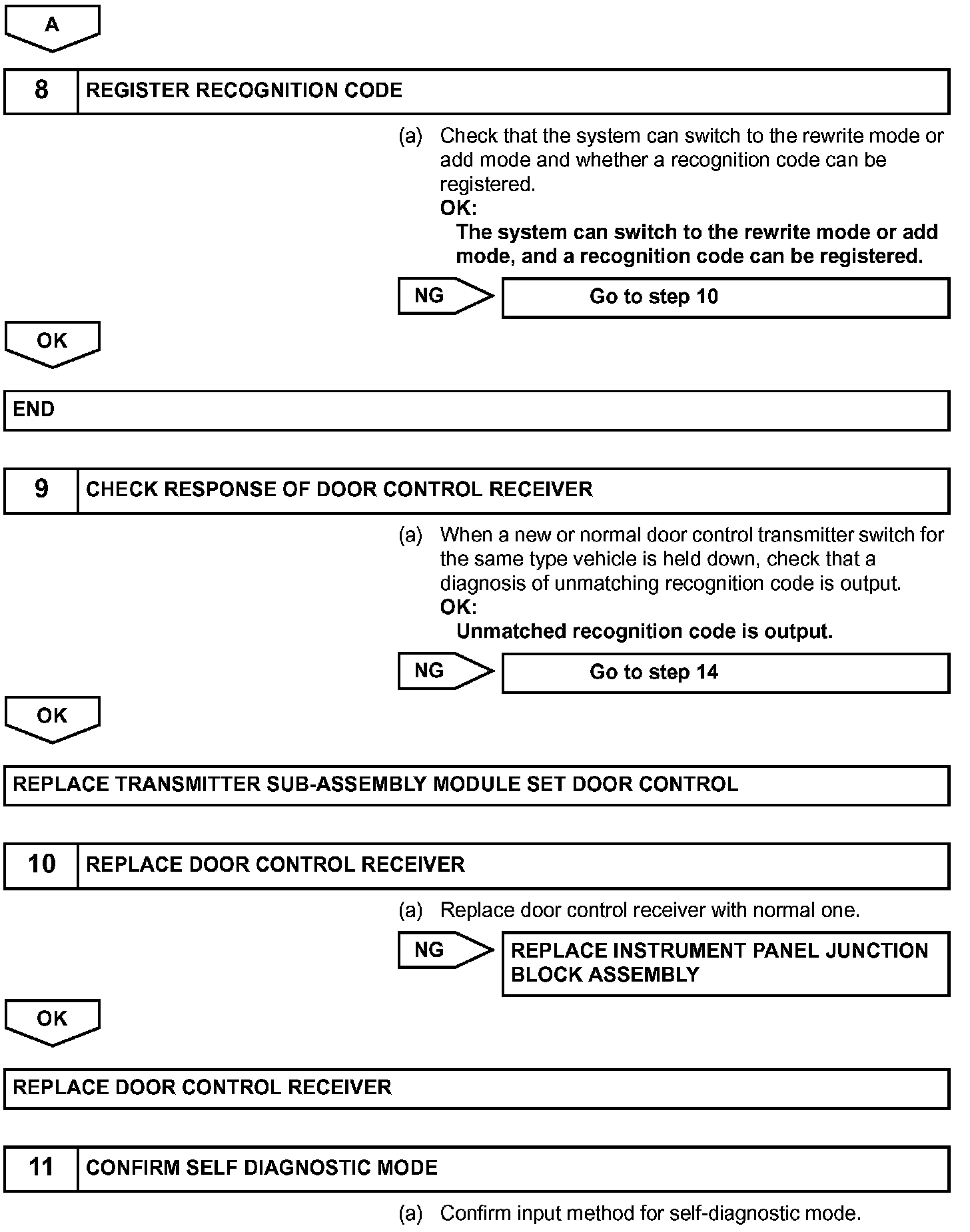

Step 7 (Continued)-11:

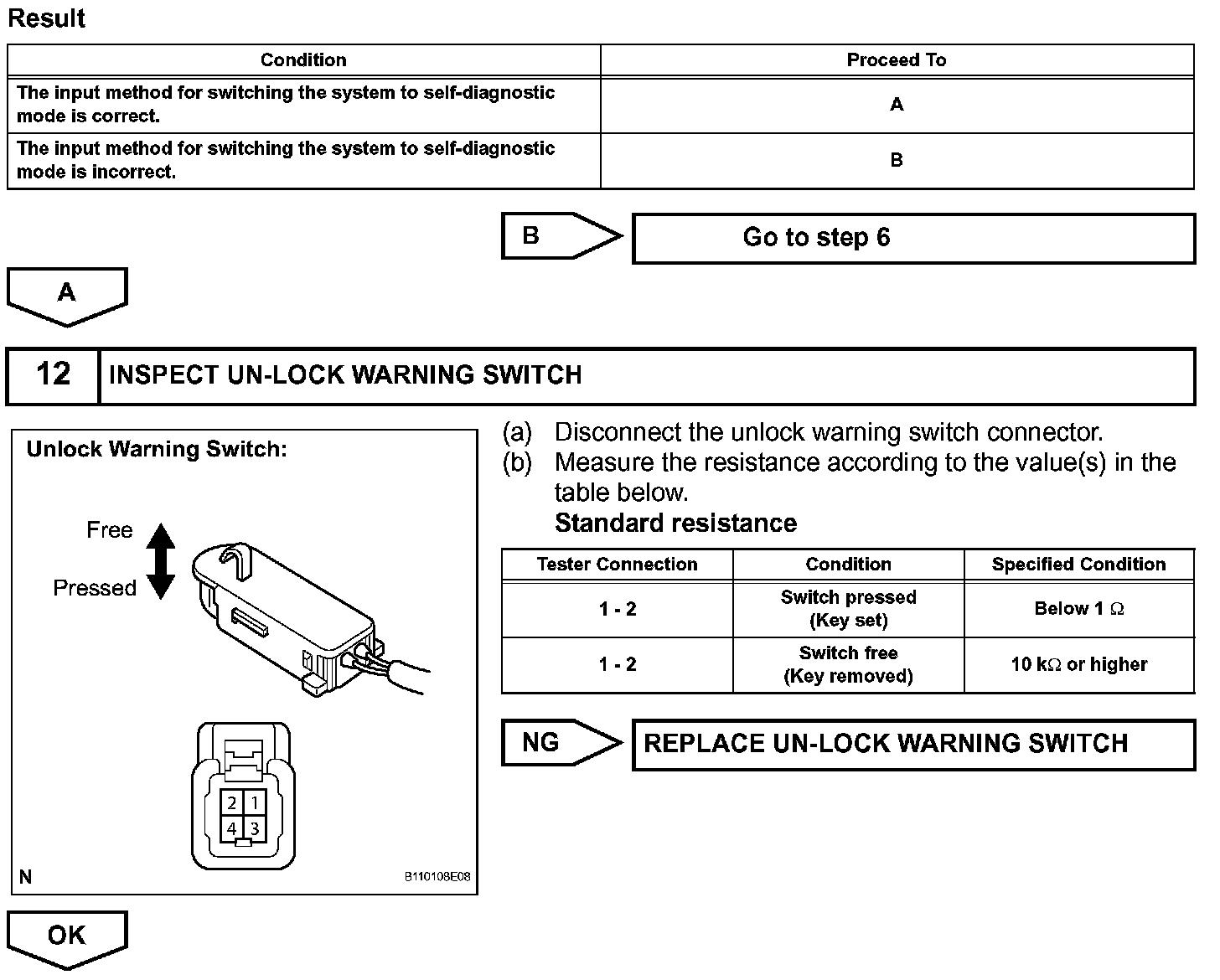

Step 11 (Continued)-12:

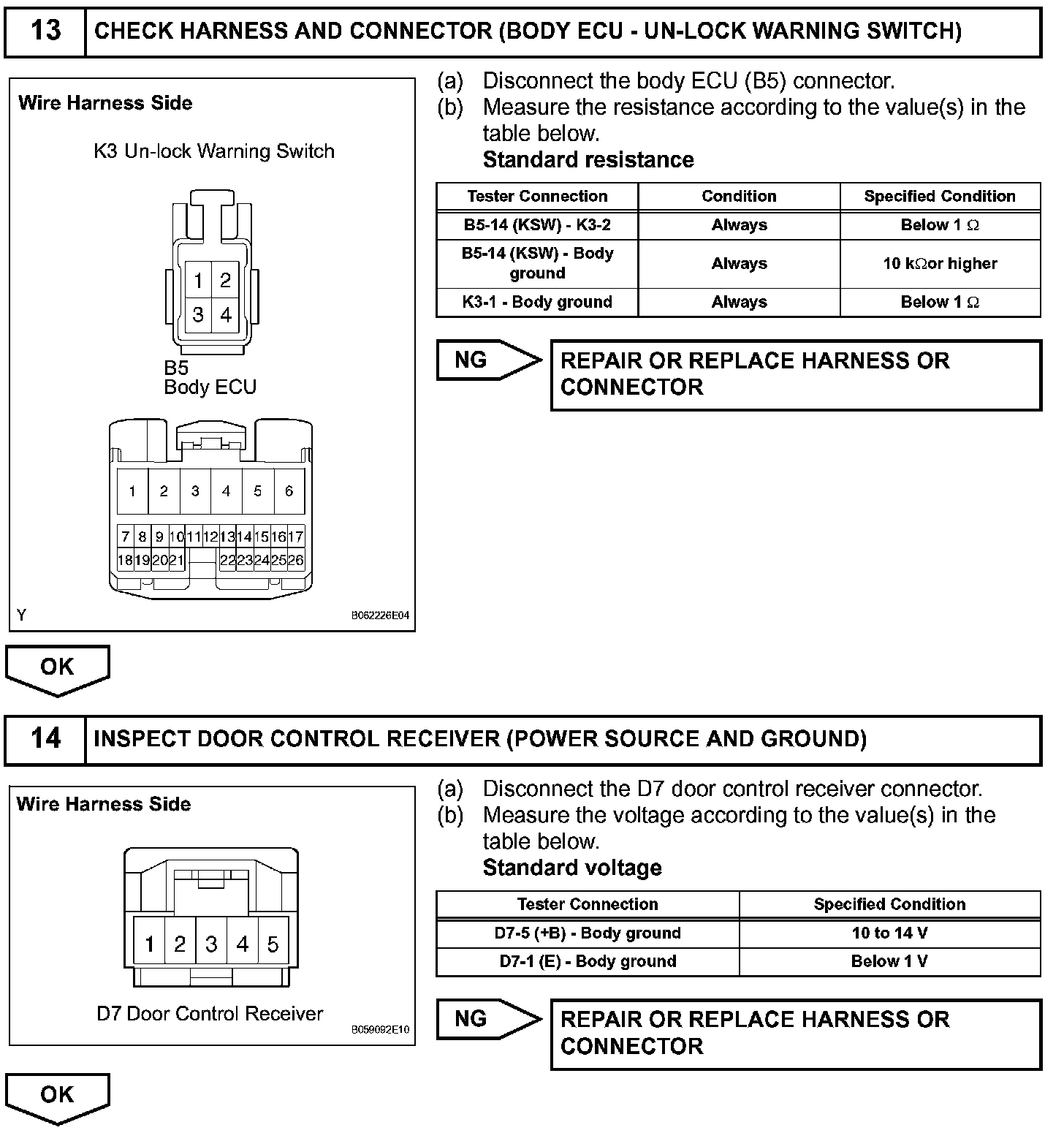

Step 13-14:

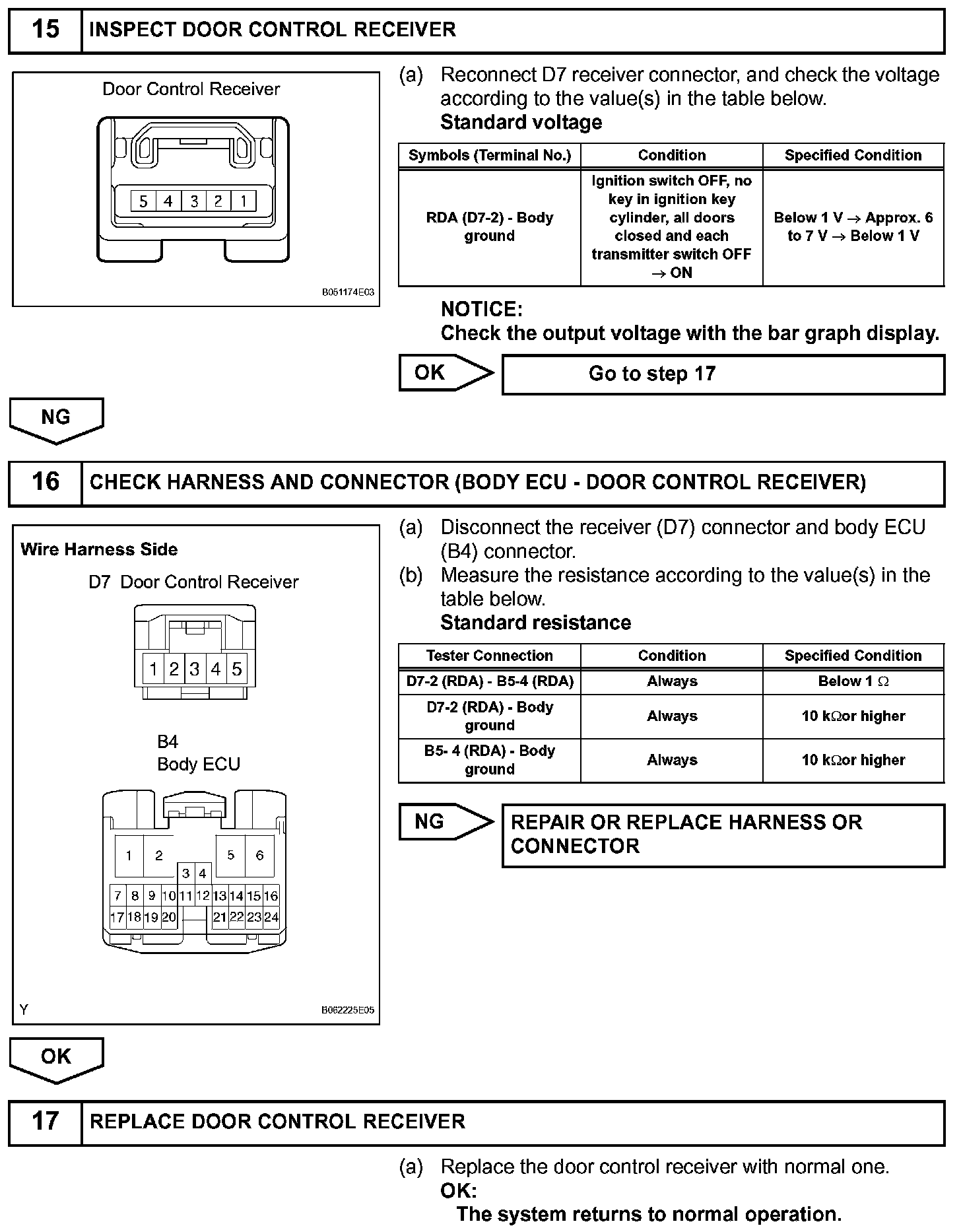

Step 15-17:

Step 17 (Continued):
