Cruise Main Indicator Light Circuit
Cruise Main Indicator Light CircuitDESCRIPTION
When the cruise control main switch is turned off, the cruise control does not operate.

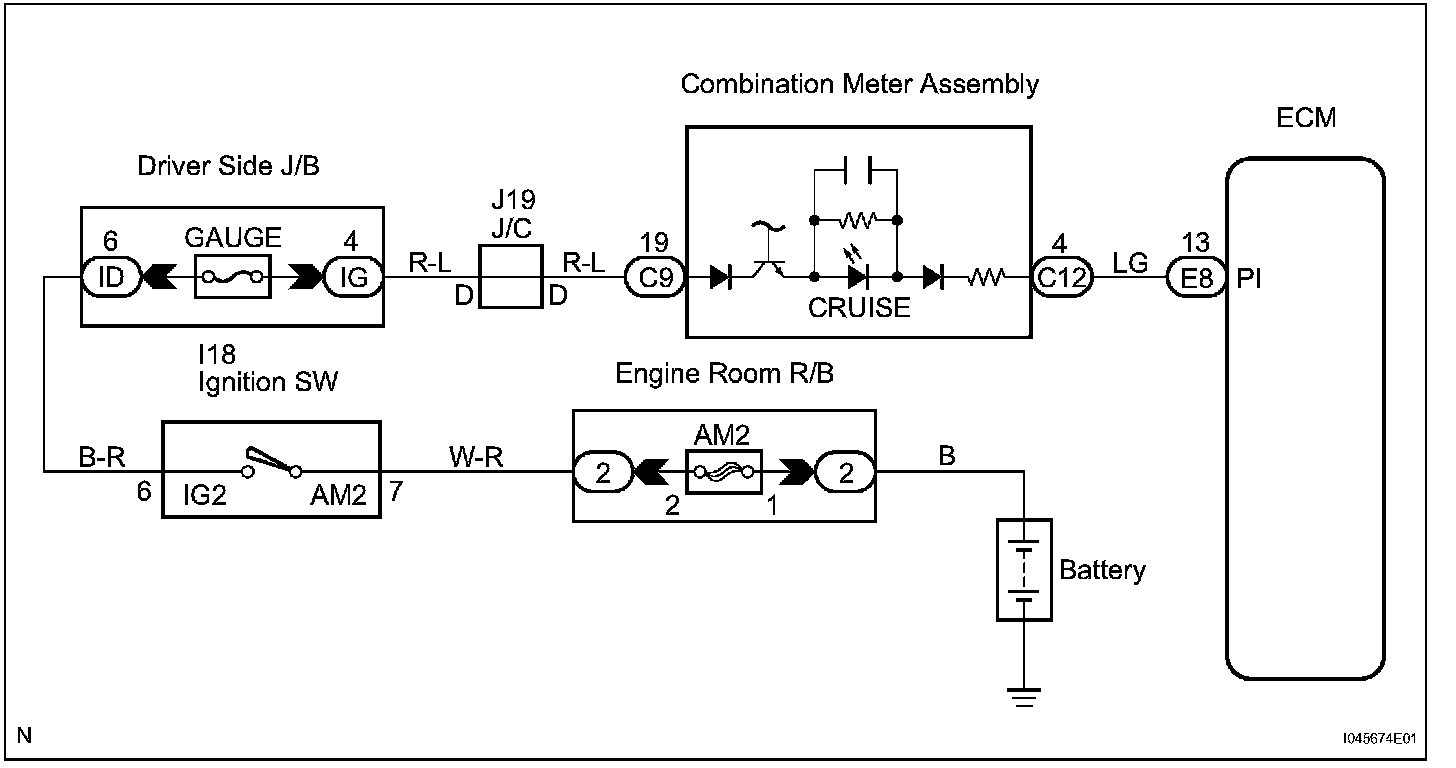

Wiring Diagram:
INSPECTION PROCEDURE

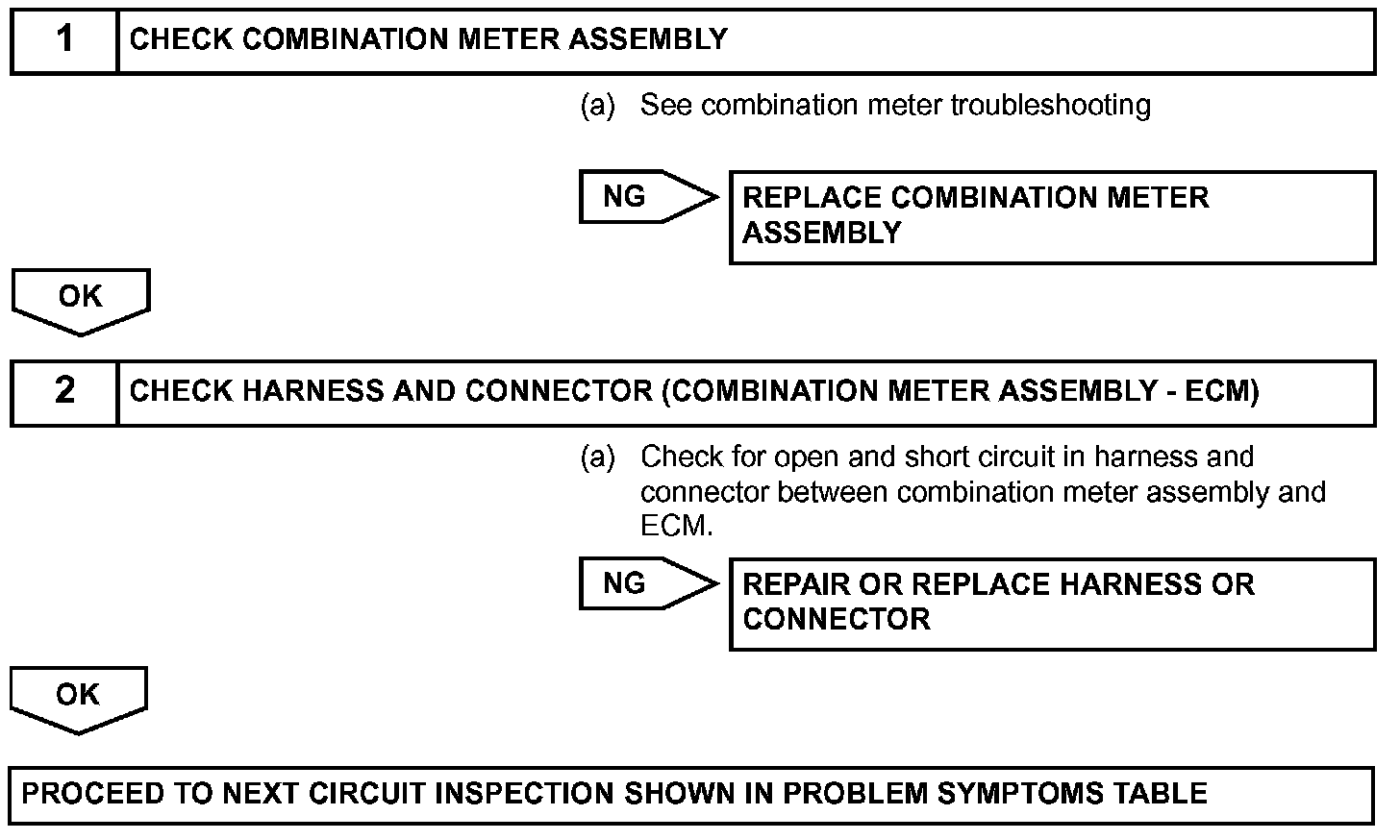

Step 1-2:
DESCRIPTION
When the cruise control main switch is turned off, the cruise control does not operate.
INSPECTION PROCEDURE
