TC And CG Terminal Circuit
TC and CG Terminal Circuit DESCRIPTION Connecting terminals TC and CG of the DLC3 causes the system to enter self-diagnostic mode. If a malfunction is present, DTCs will be output.
HINT: When a particular warning light remains blinking, a ground short in the wiring of terminal TC of the DLC3 or an internal ground short in the relevant ECU is suspected.

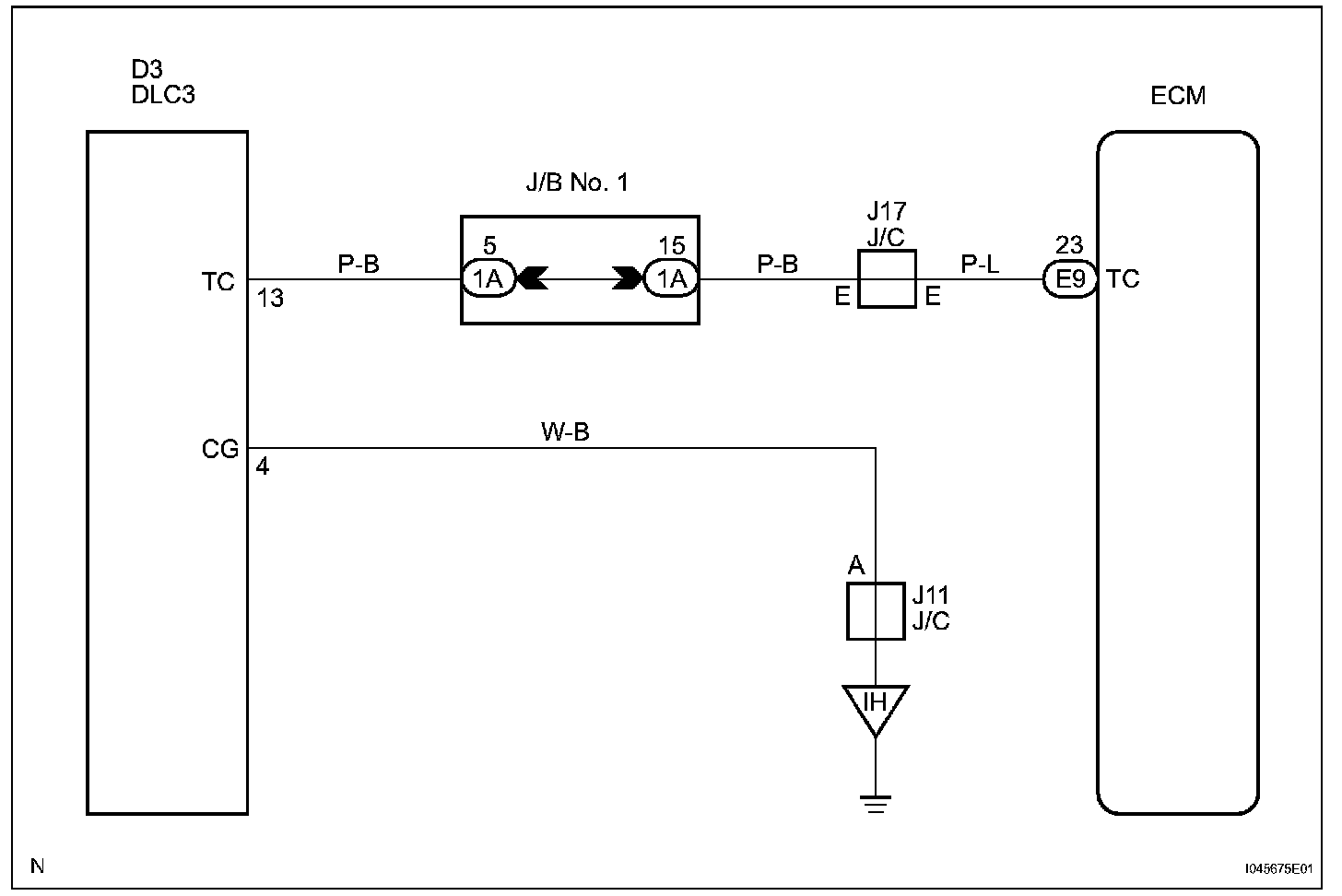

Wiring Diagram:

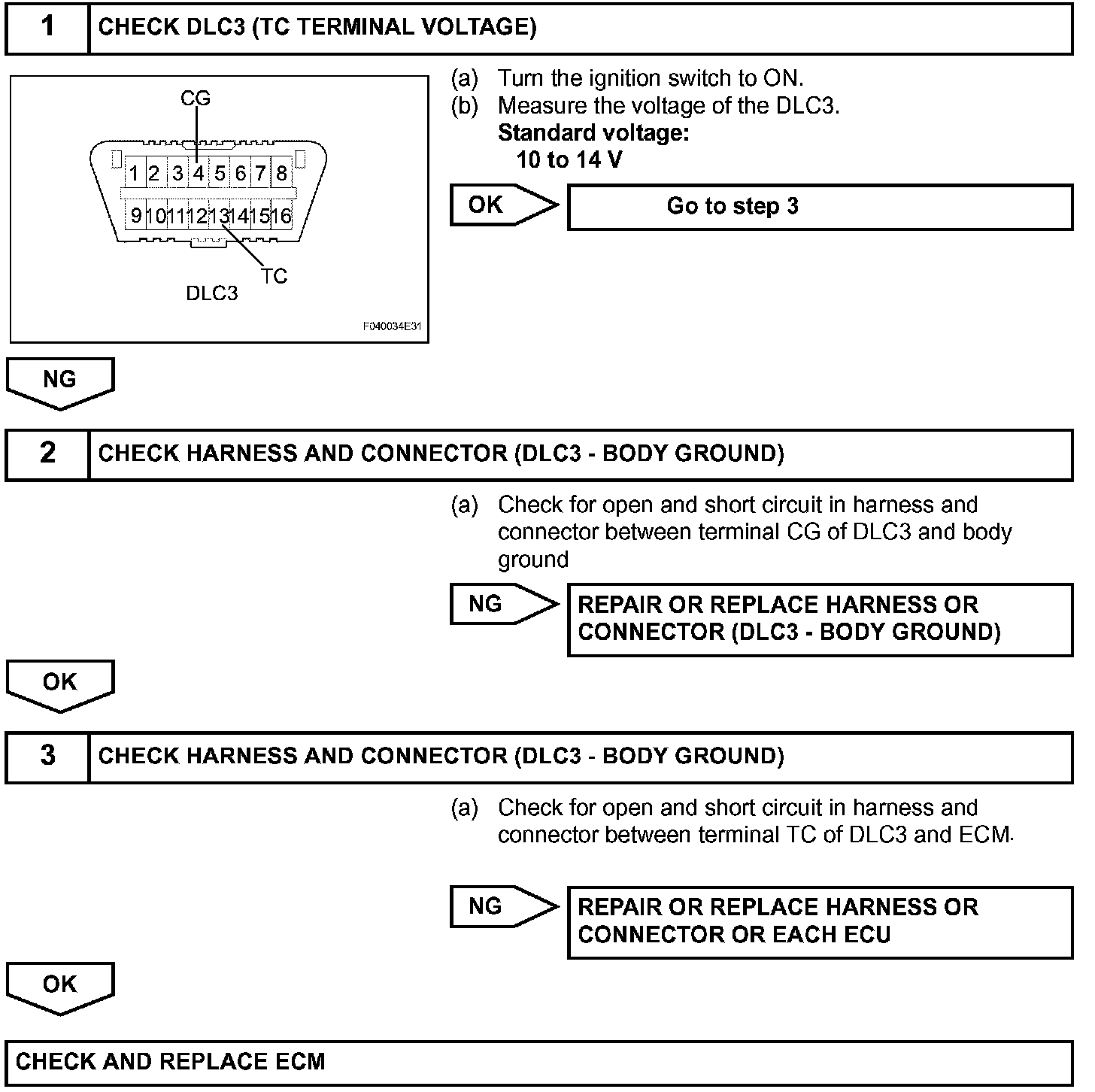

INSPECTION PROCEDUREStep 1-3:
