Cellular Phone
Cellular Phone

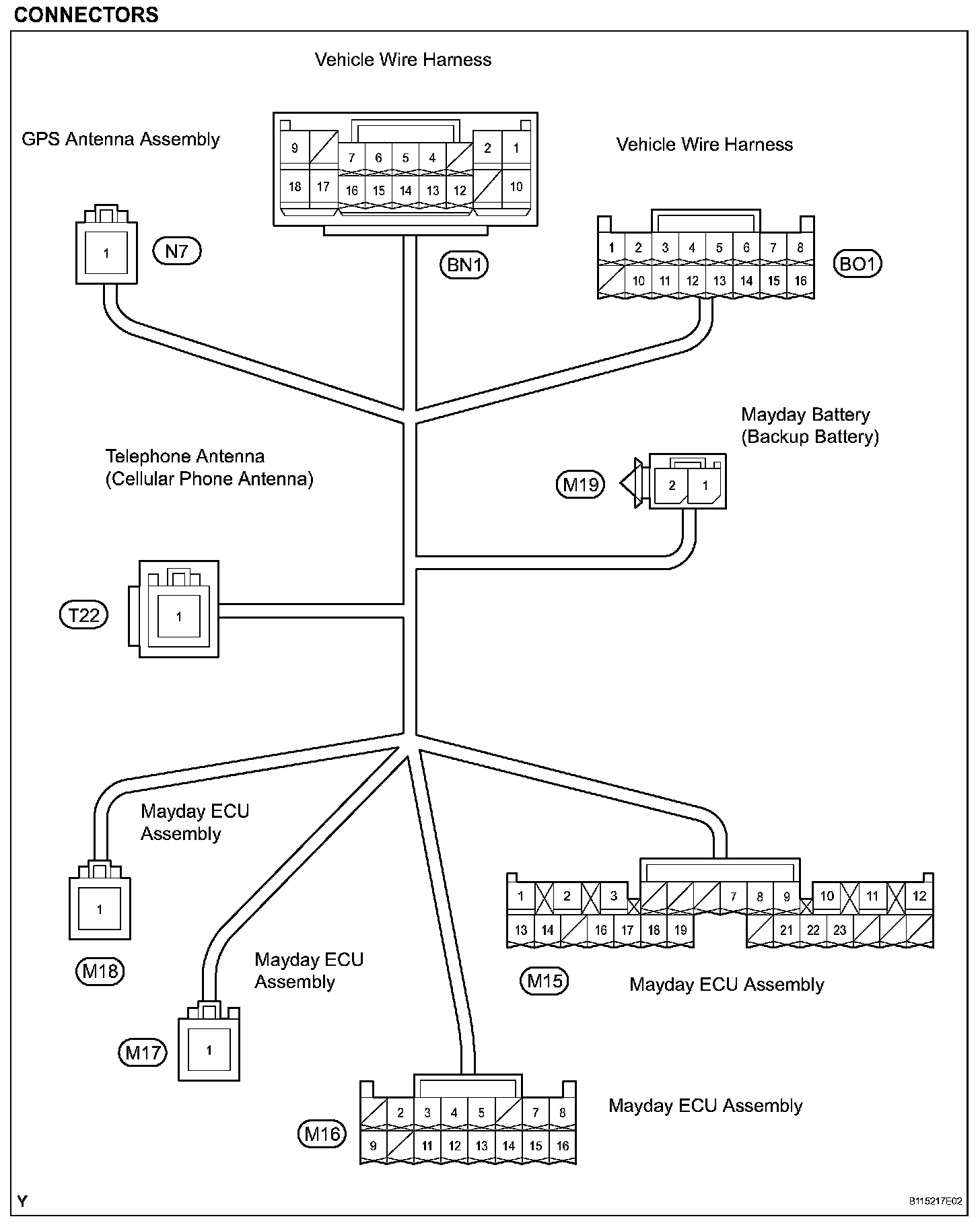

Terminals Of Control Module/Pinouts-Connector:

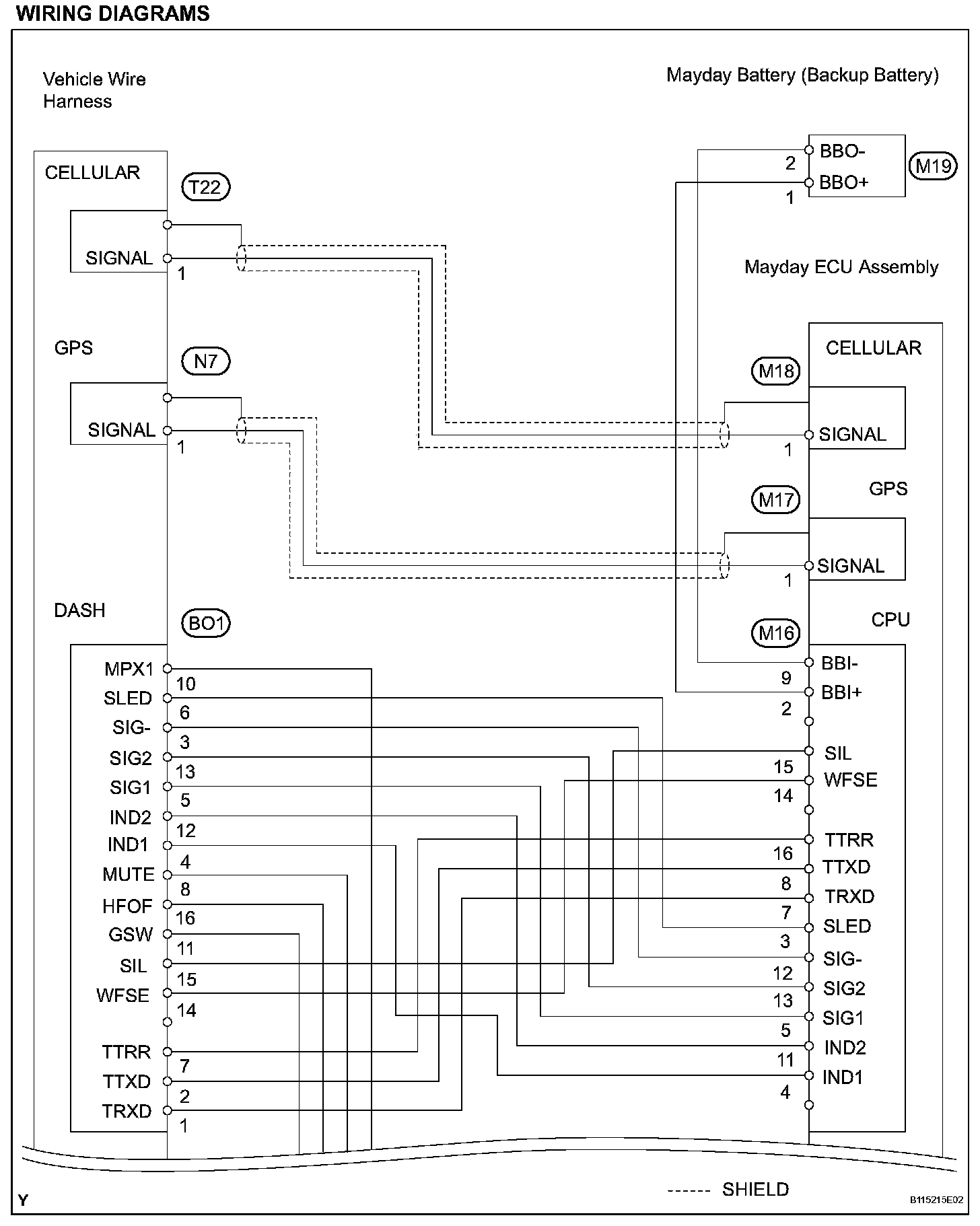

Terminals Of Control Module/Pinouts-Wiring Diagrams (Part 1):

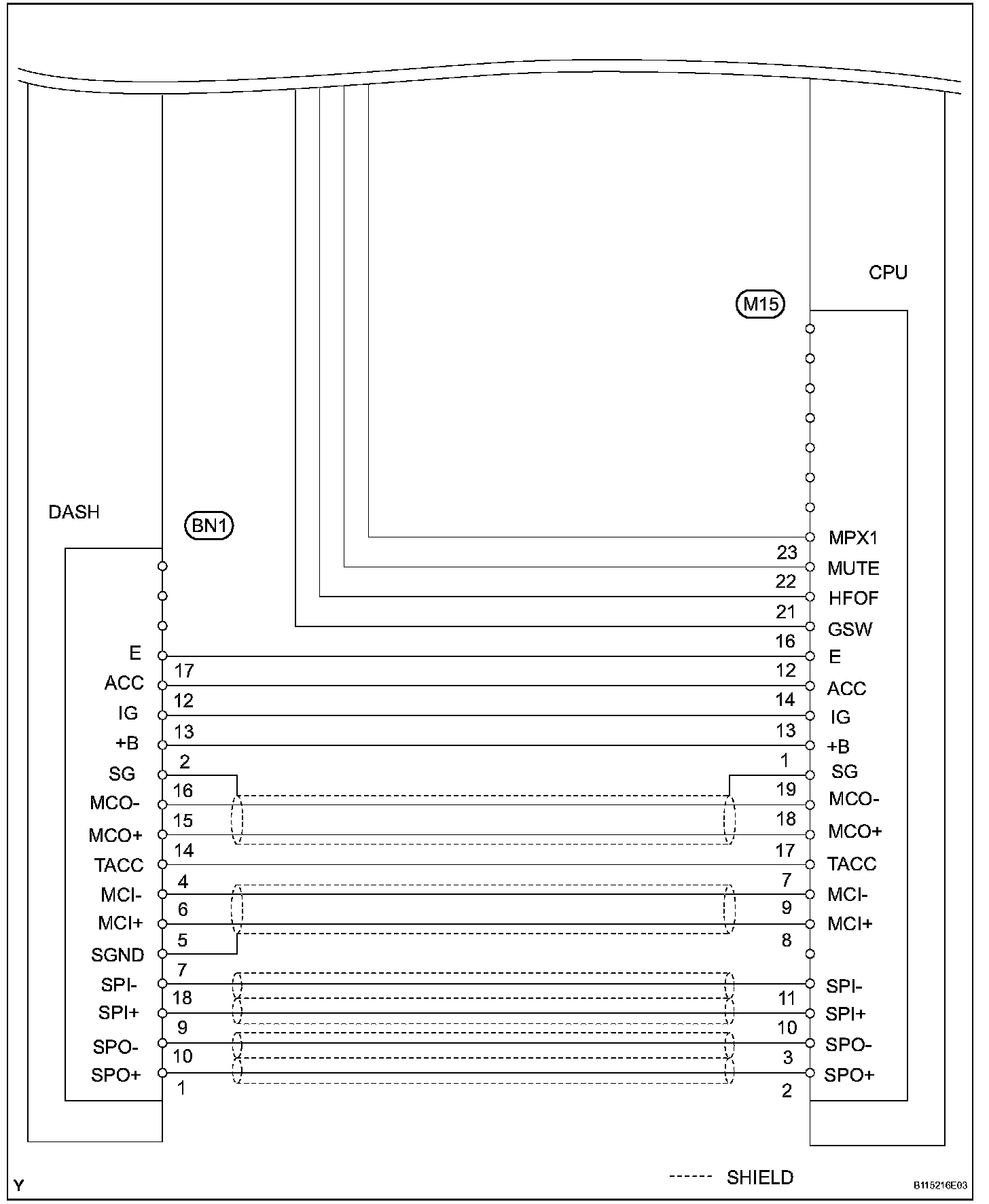

Terminals Of Control Module/Pinouts-Wiring Diagrams (Part 2):
