Power Distribution Relay: Testing and Inspection
INSPECTION 1.

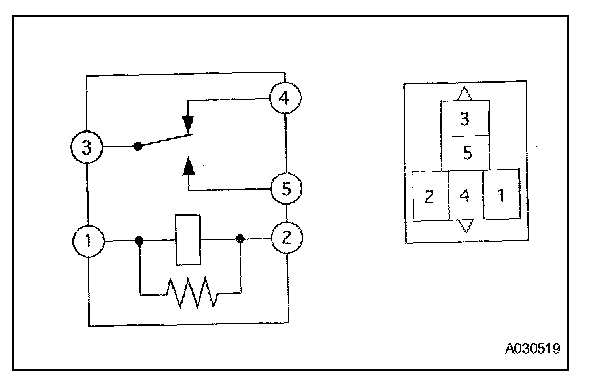

INSPECT ACC CUT RELAY
a.
Continuity inspection.
1.
Using an ohmmeter, check for continuity between each terminal.
2.
Using an ohmmeter, check for continuity between terminals 3 and 5 when voltage is applied across terminals 1 and 2.
Specified condition: Continuity
