CAN Bus Line
CAN Bus Line DESCRIPTION When any DTC of the CAN communication system is output, first measure the resistance between the terminals of the
DLC3 and the yaw rate sensor connector to specify the trouble area.

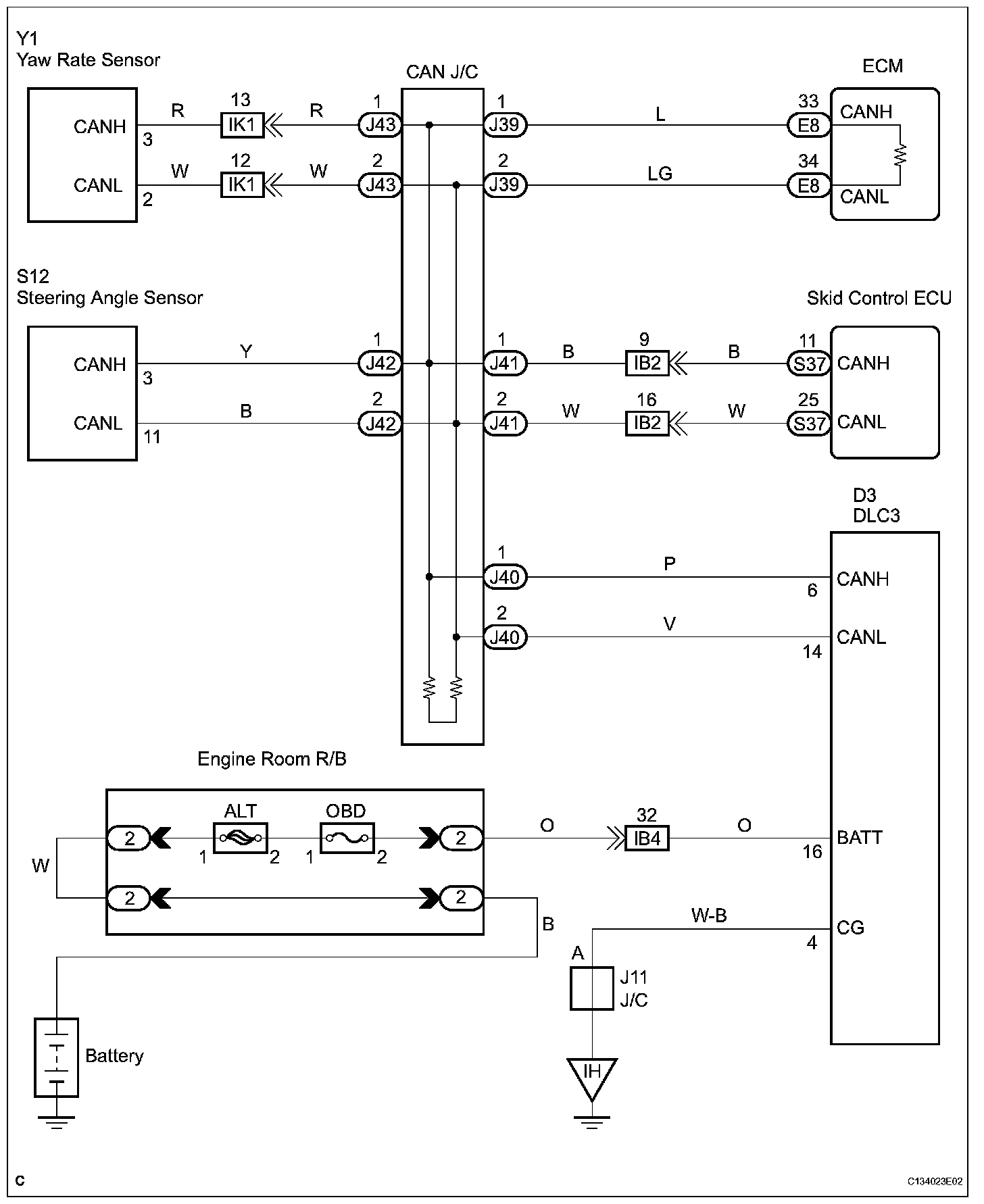

Wiring Diagram:

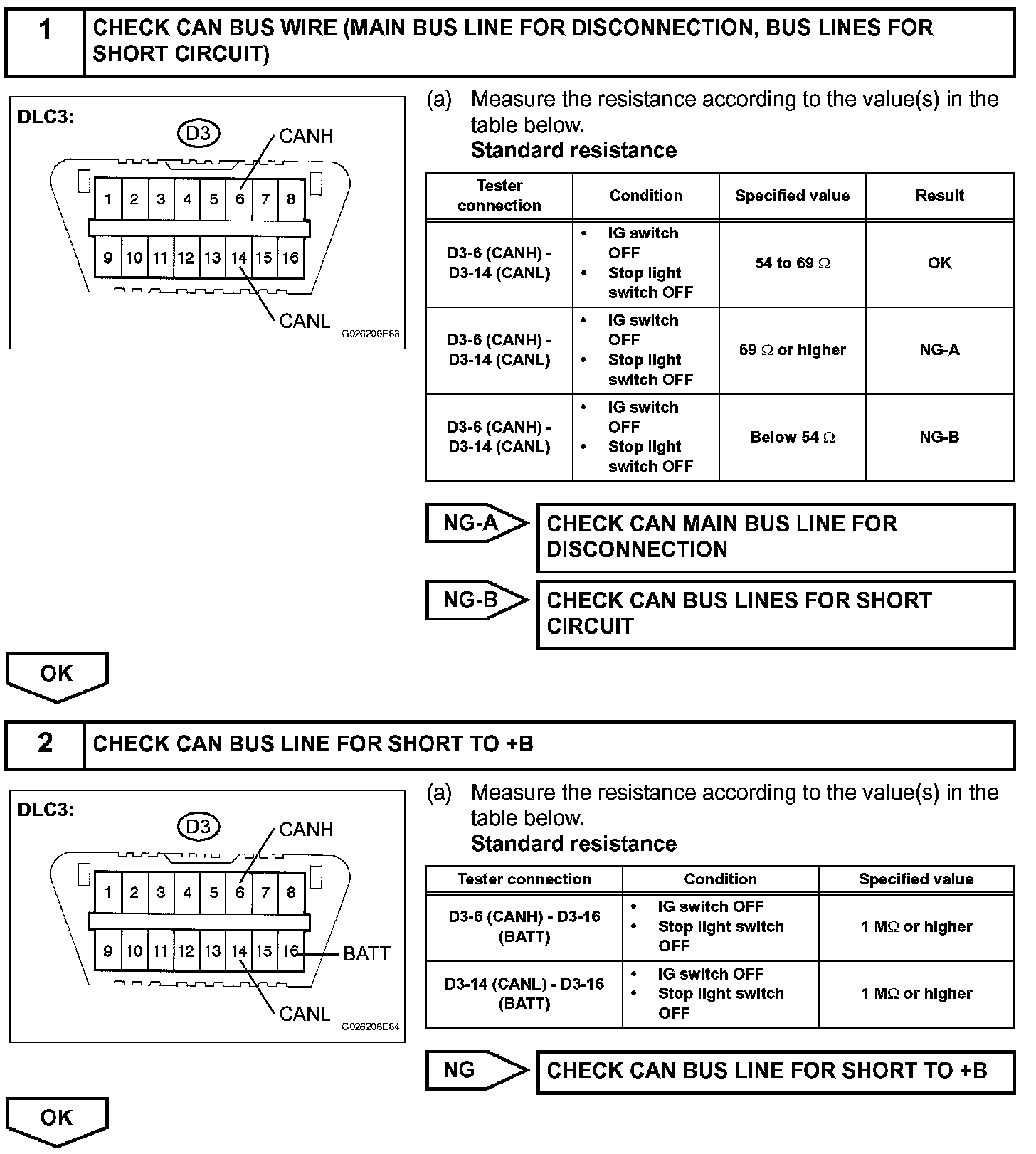

INSPECTION PROCEDUREStep 1-2:

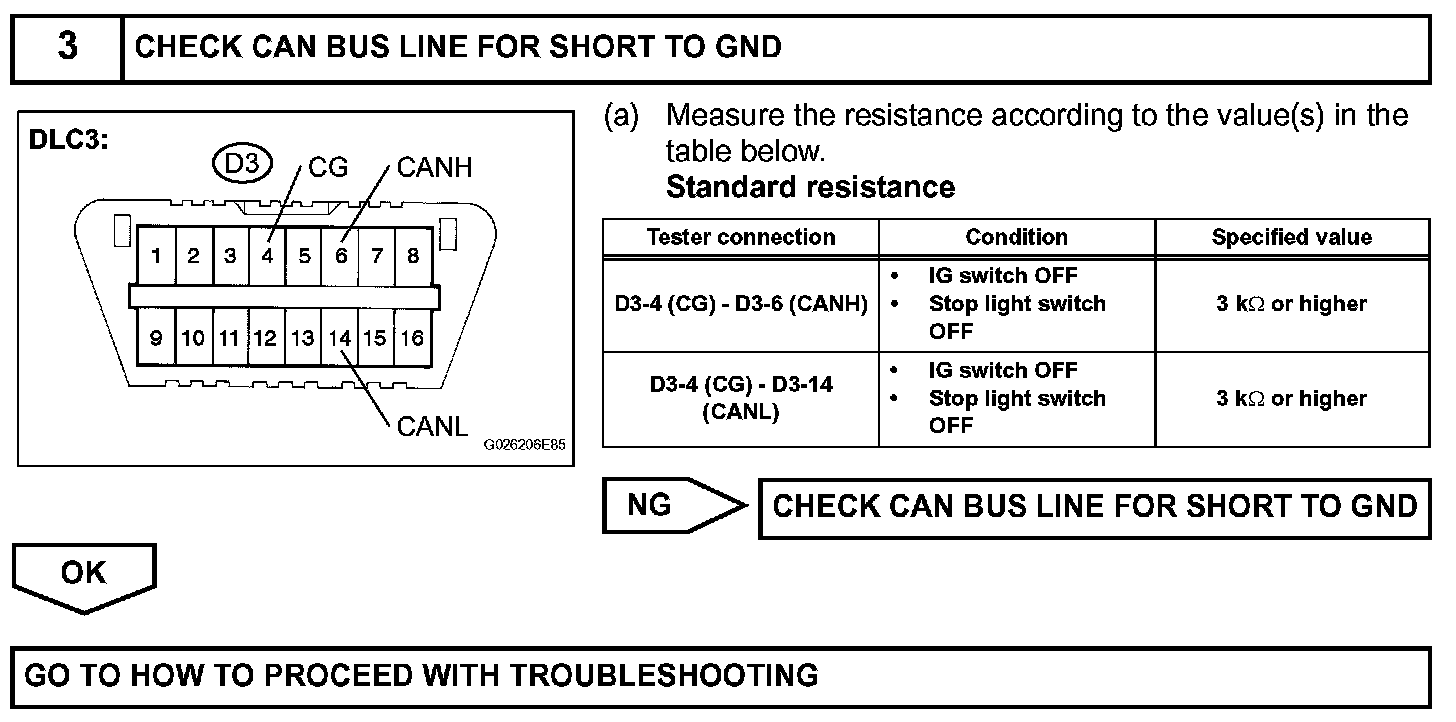

Step 3:
