CAN Main Bus Line For Disconnection

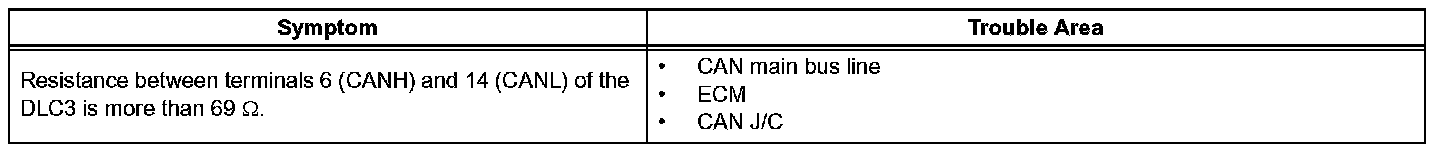

CAN Main Bus Line for Disconnection DESCRIPTION The CAN main bus line and
DLC3 sub bus line may have a disconnection when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is
more than 69 ohms.

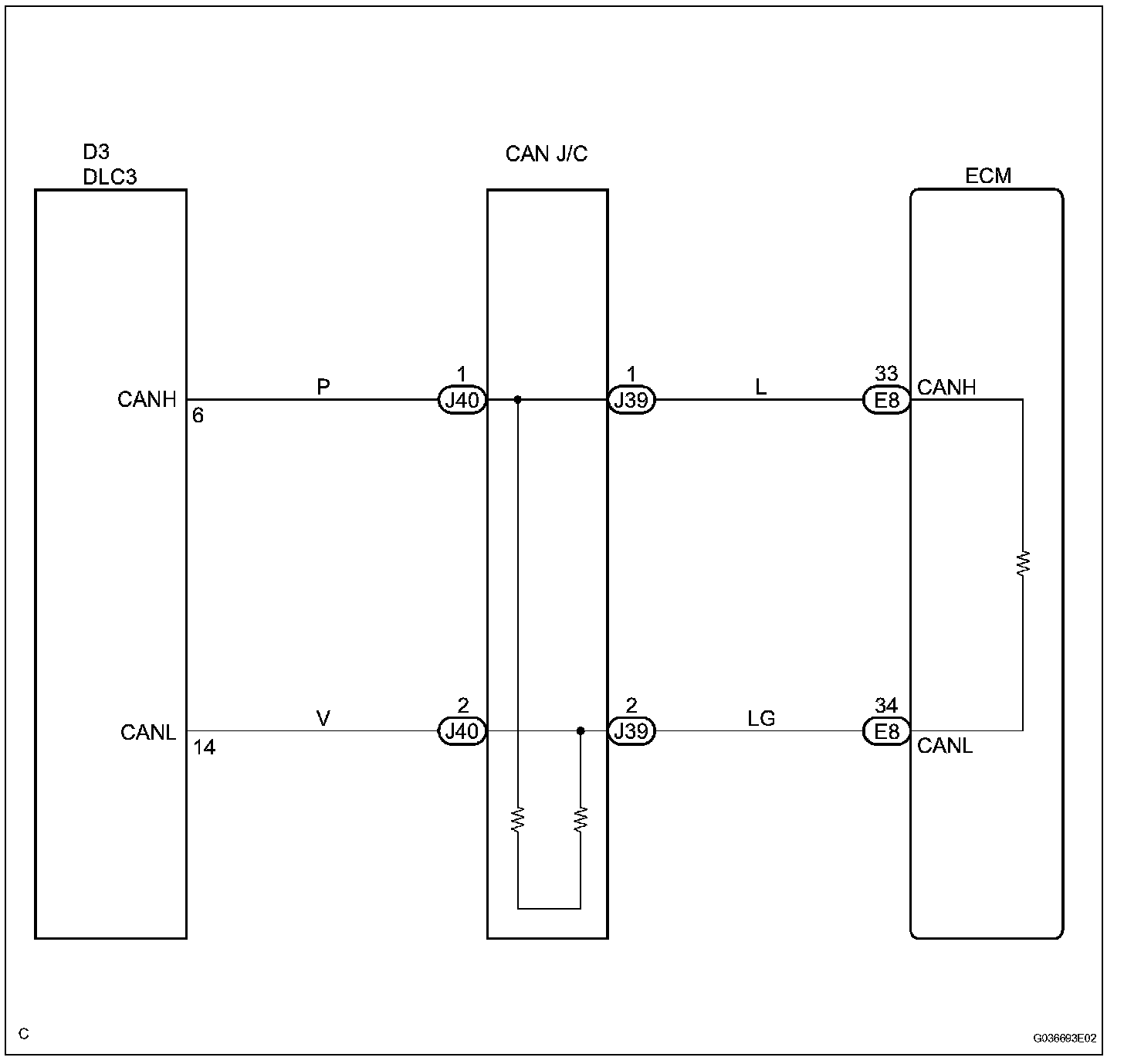

Wiring Diagram:

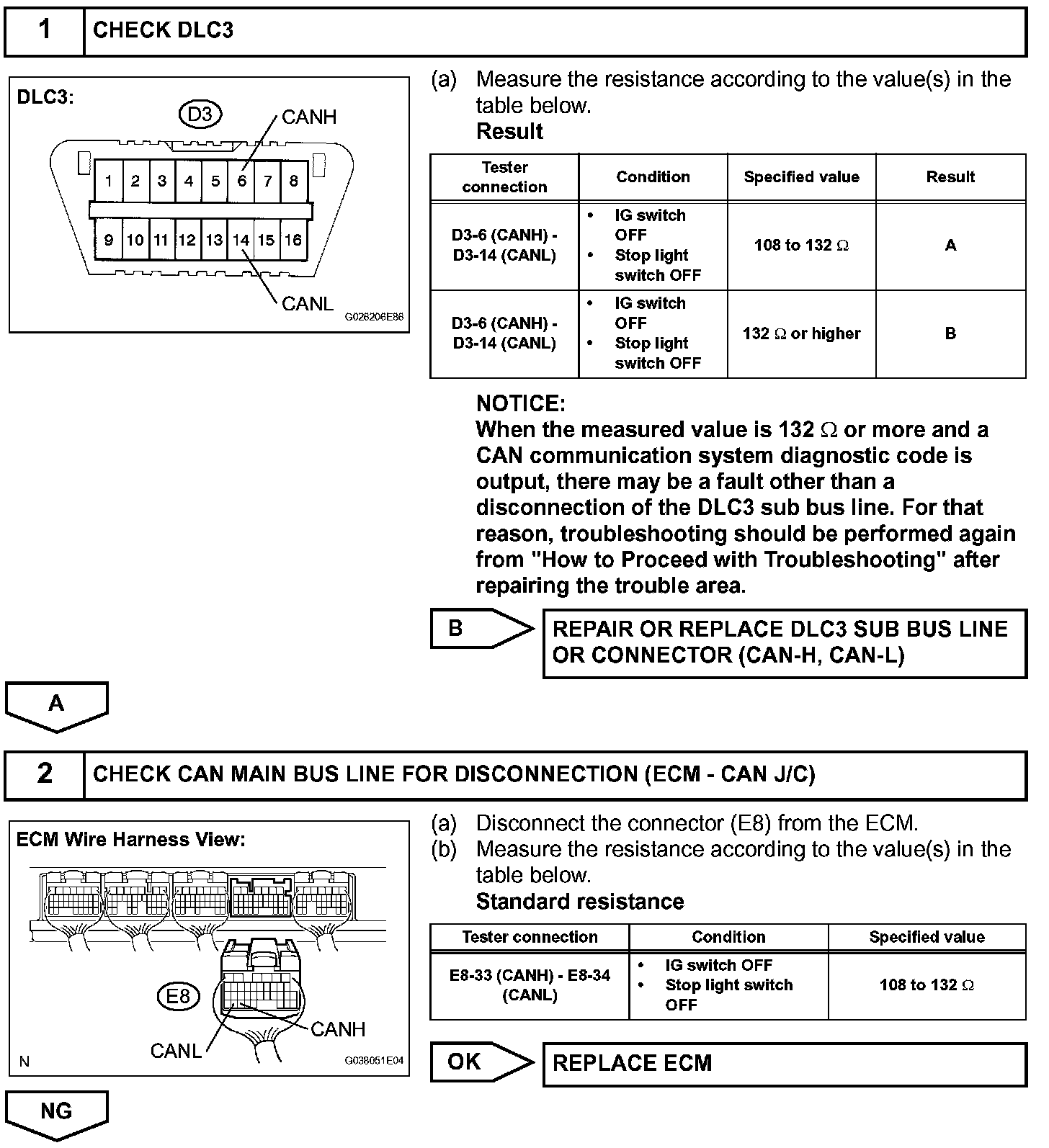

INSPECTION PROCEDUREStep 1-2:
Step 3:
