Pinout Values and Diagnostic Parameters

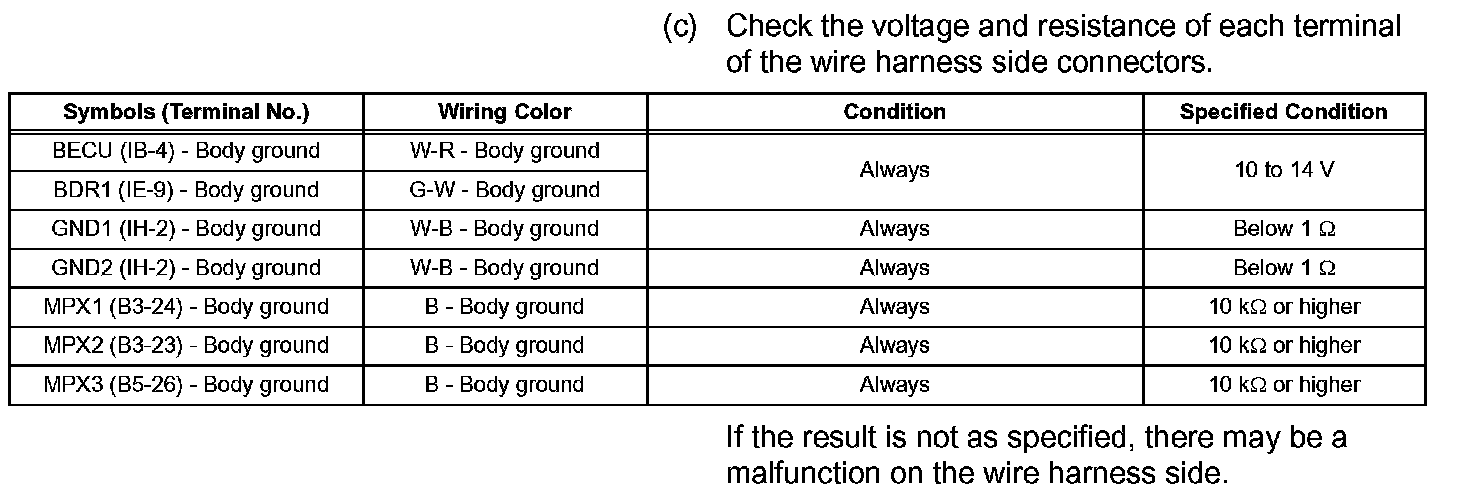

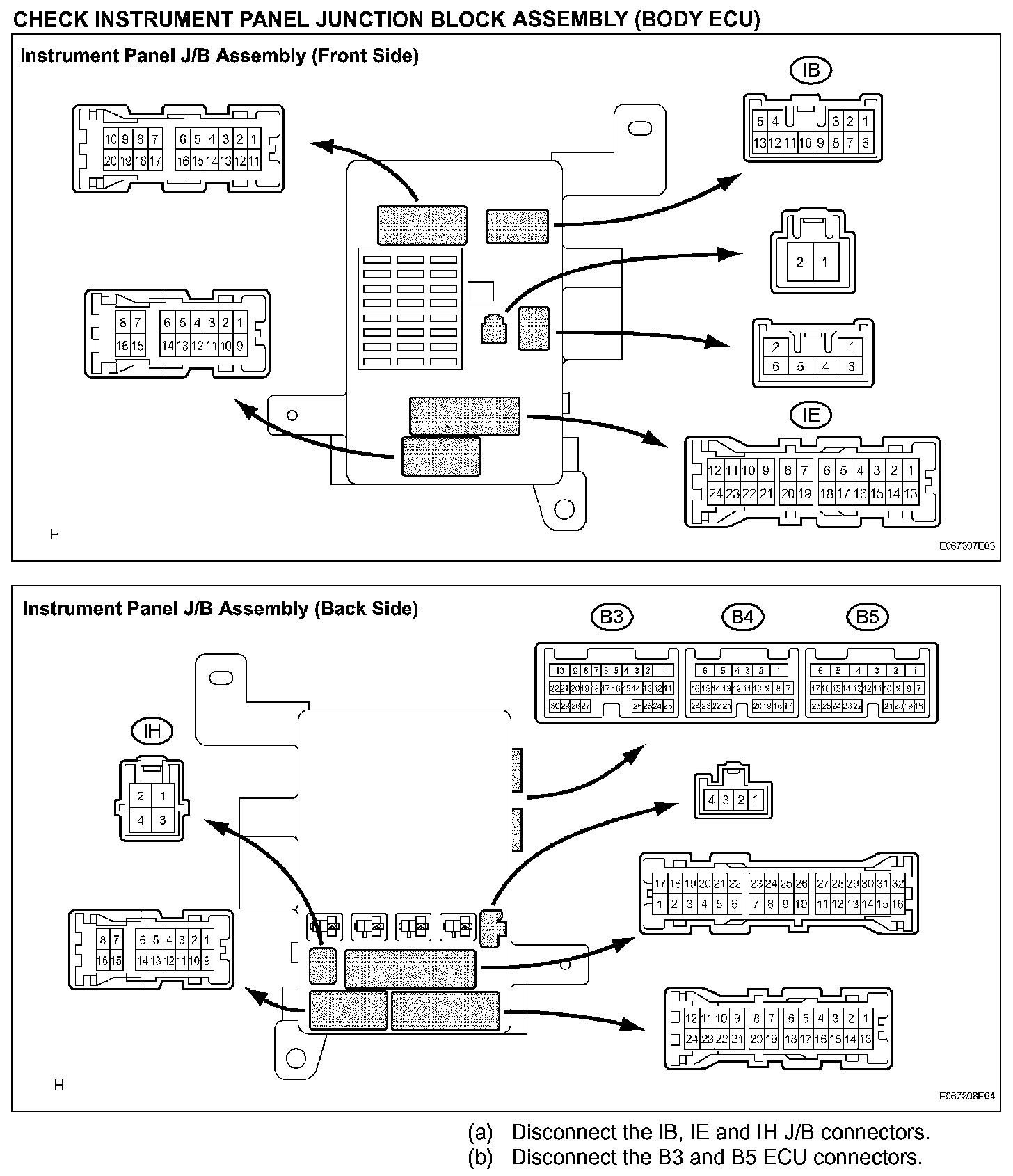

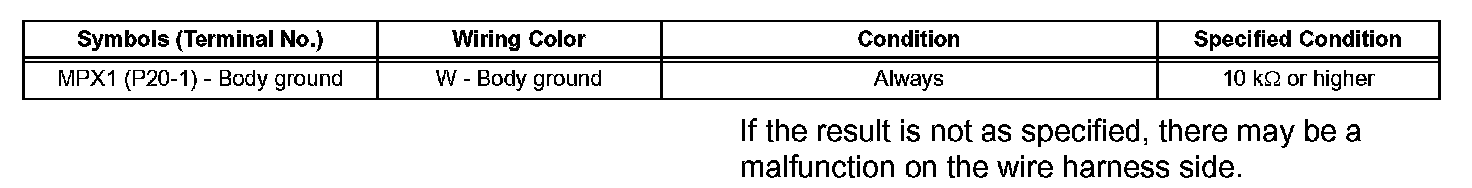

Terminals Of Control Module/Pinouts - Check Instrument Panel Junction Block Assembly (Body ECU) (Part 1):

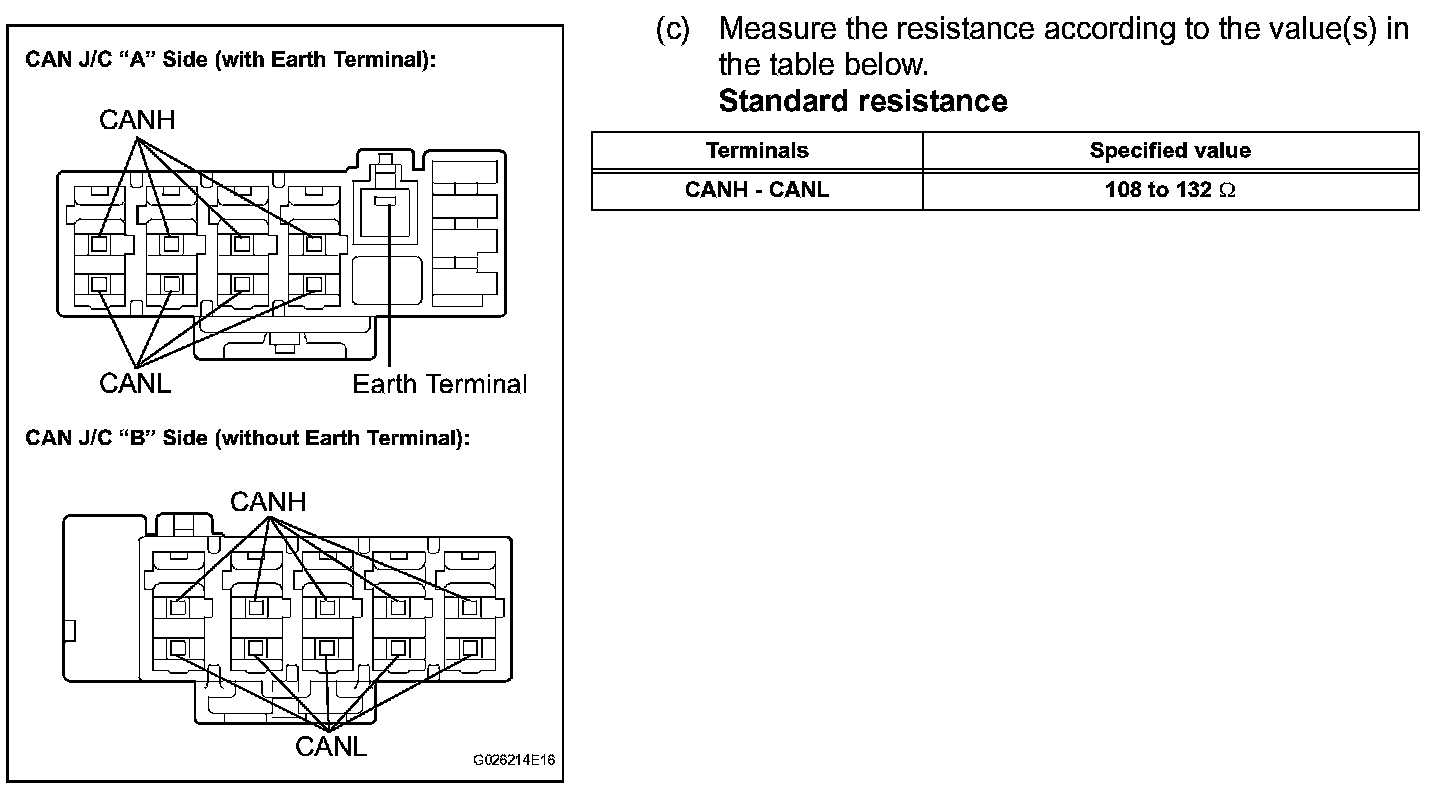

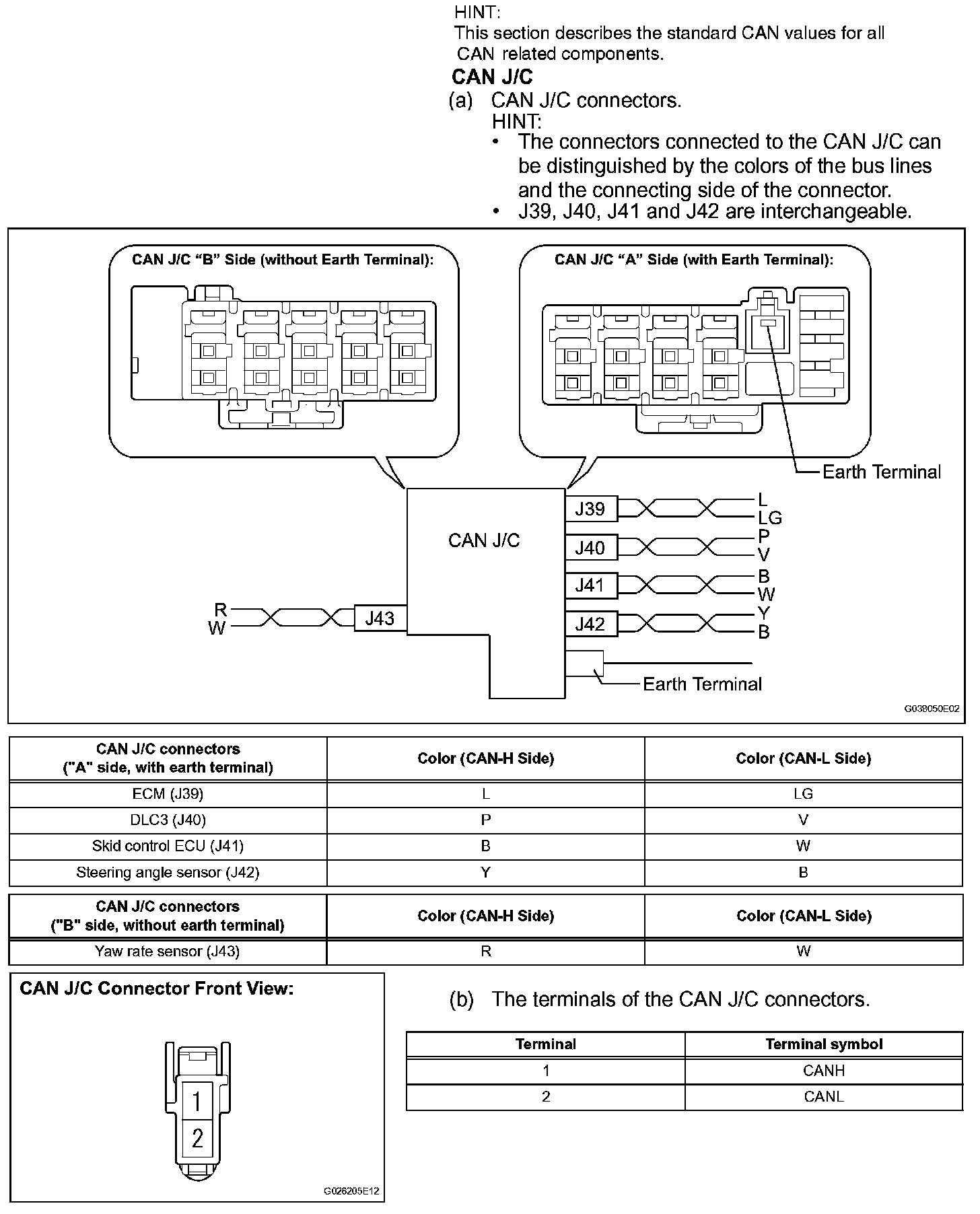

Terminals Of Control Module/Pinouts-CAN J/C (Part 1):

Terminals Of Control Module/Pinouts - Check Instrument Panel Junction Block Assembly (Body ECU) (Part 2):

Terminals Of Control Module/Pinouts-CAN J/C (Part 2):

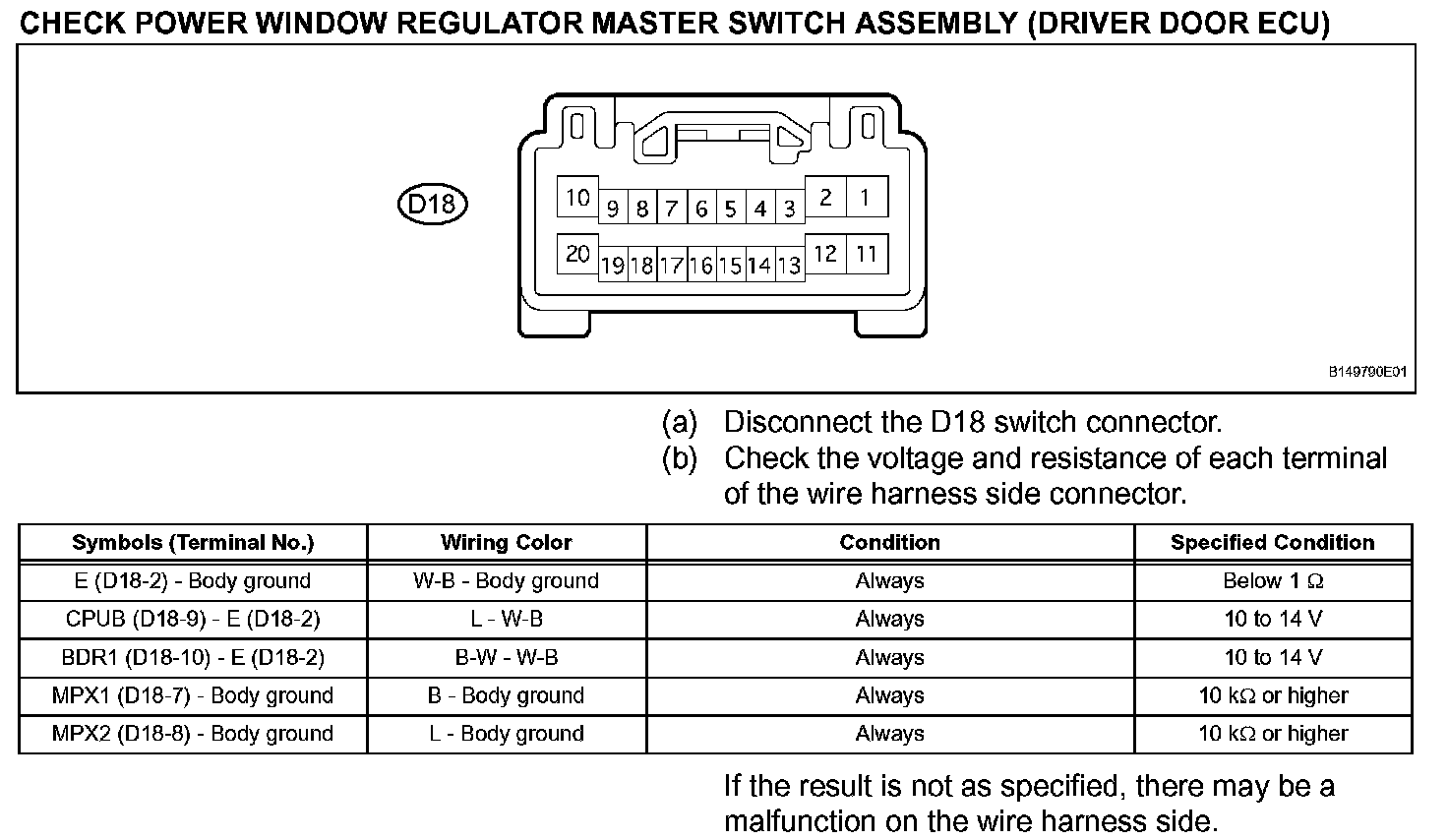

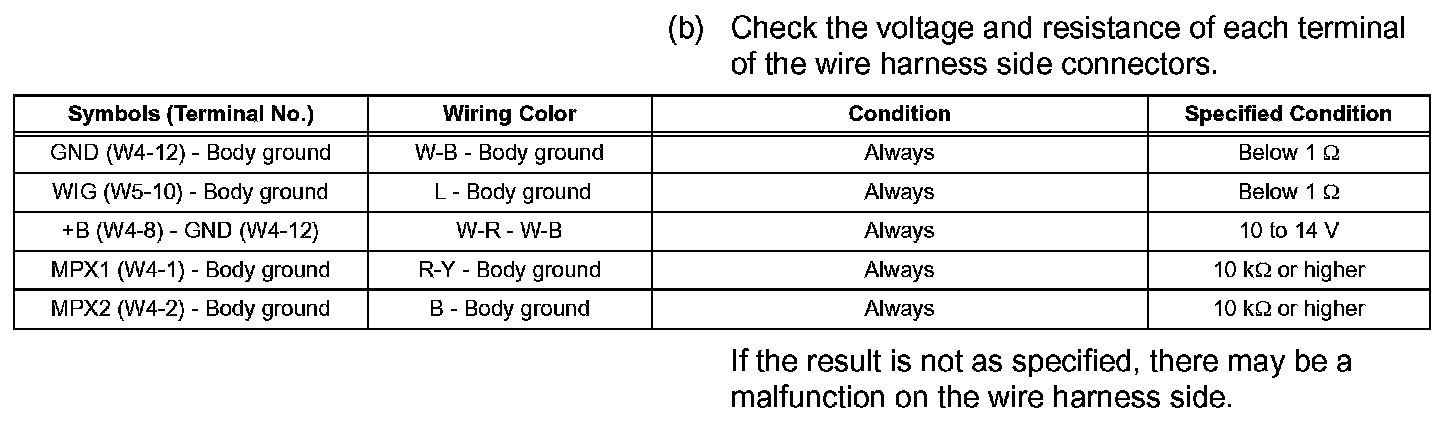

Terminals Of Control Module/Pinouts - Check Power Window Regulator Master Switch Assembly (Driver Door ECU):

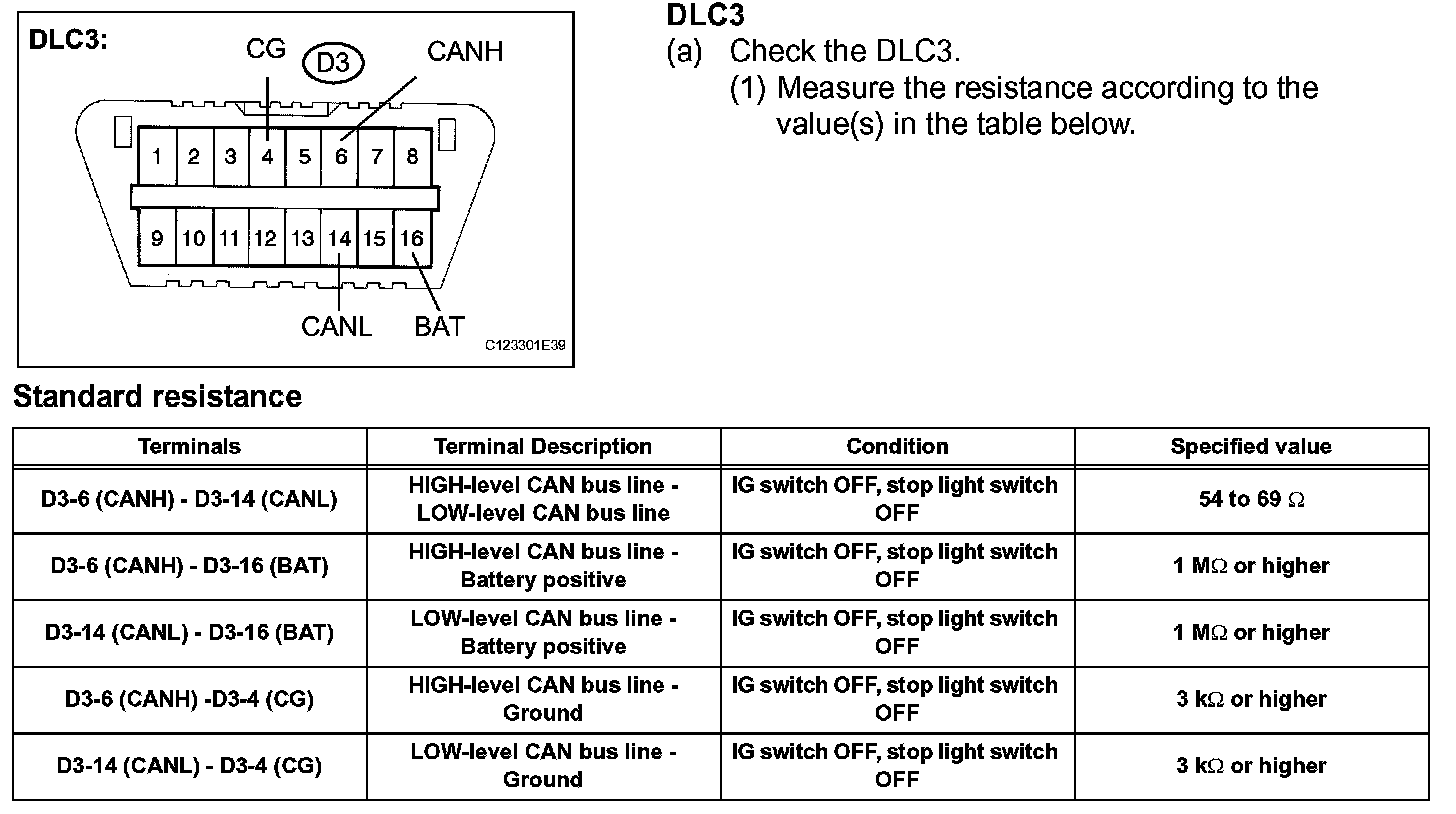

Terminals Of Control Module/Pinouts-DLC3:

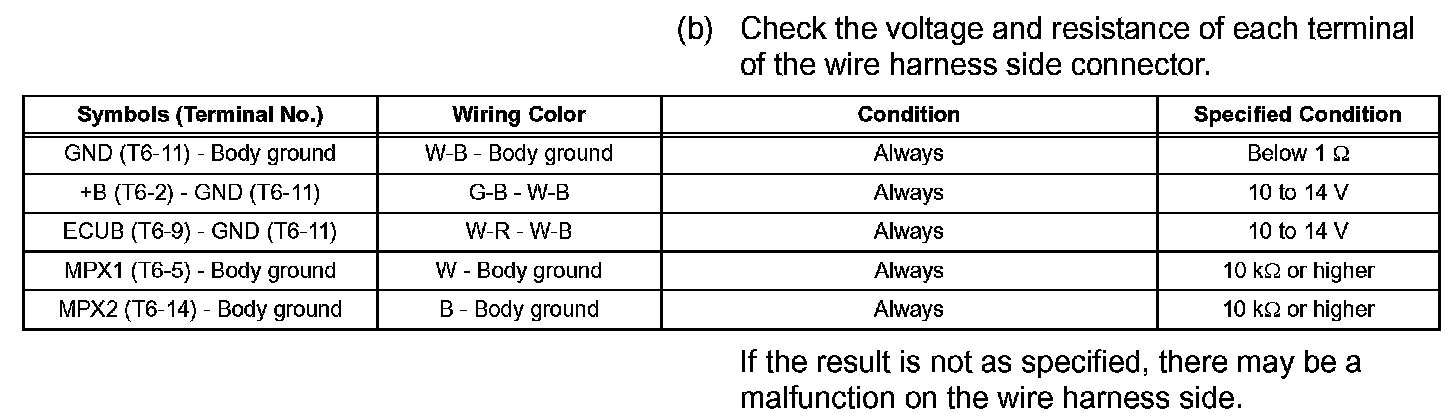

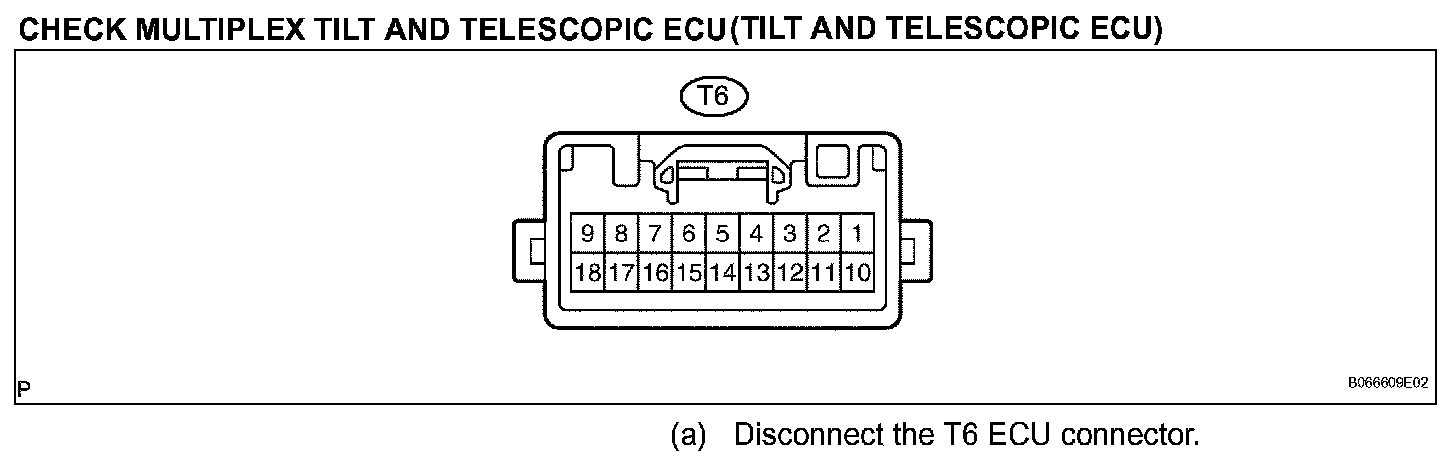

Terminals Of Control Module/Pinouts - Check Multiplex Tilt And Telesopic ECU (Tilt And Telescopic ECU) (Part 1):

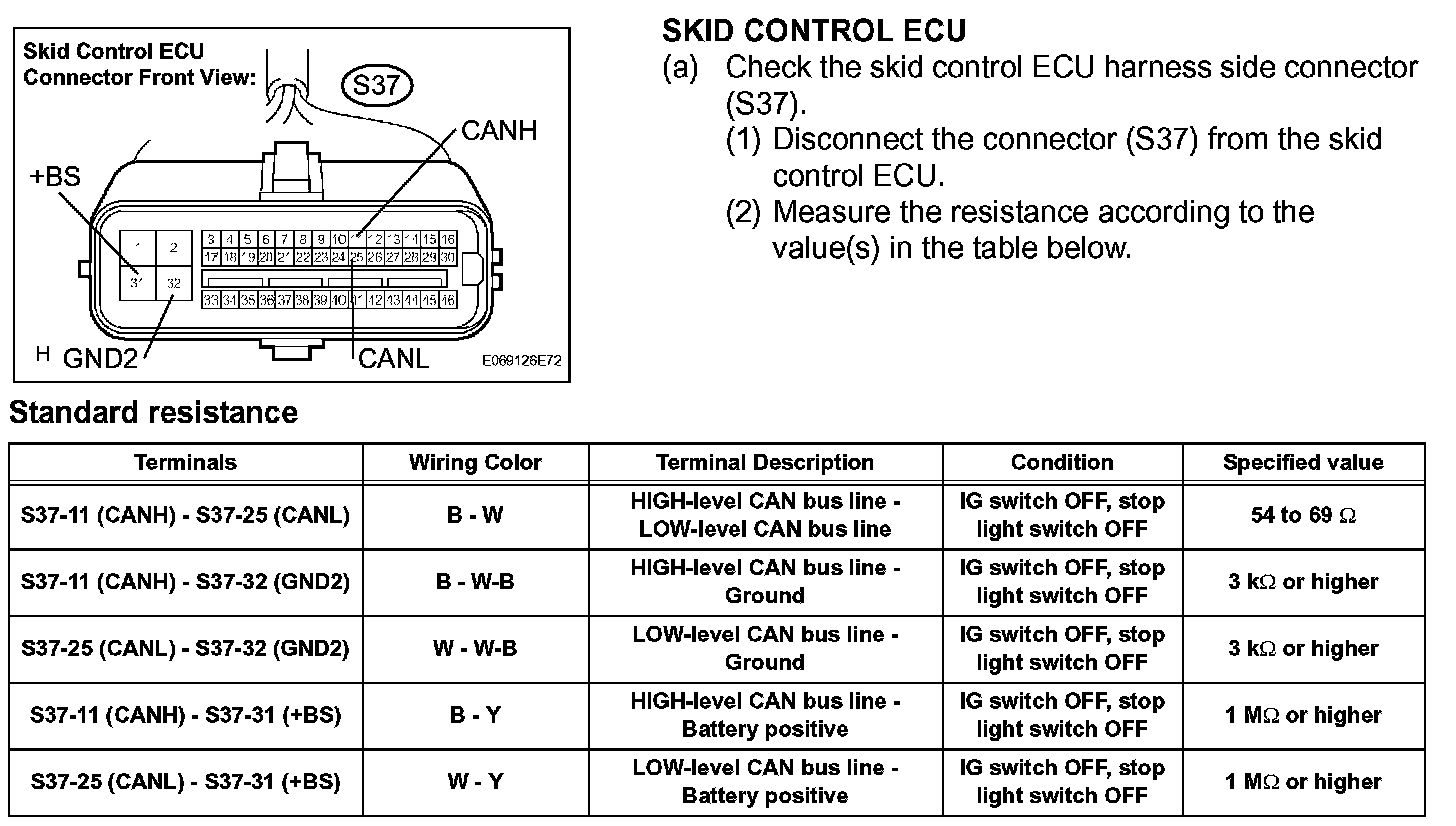

Terminals Of Control Module/Pinouts-Skid Control ECU:

Terminals Of Control Module/Pinouts - Check Multiplex Tilt And Telesopic ECU (Tilt And Telescopic ECU) (Part 2):

Terminals Of Control Module/Pinouts-Steering Sensor:

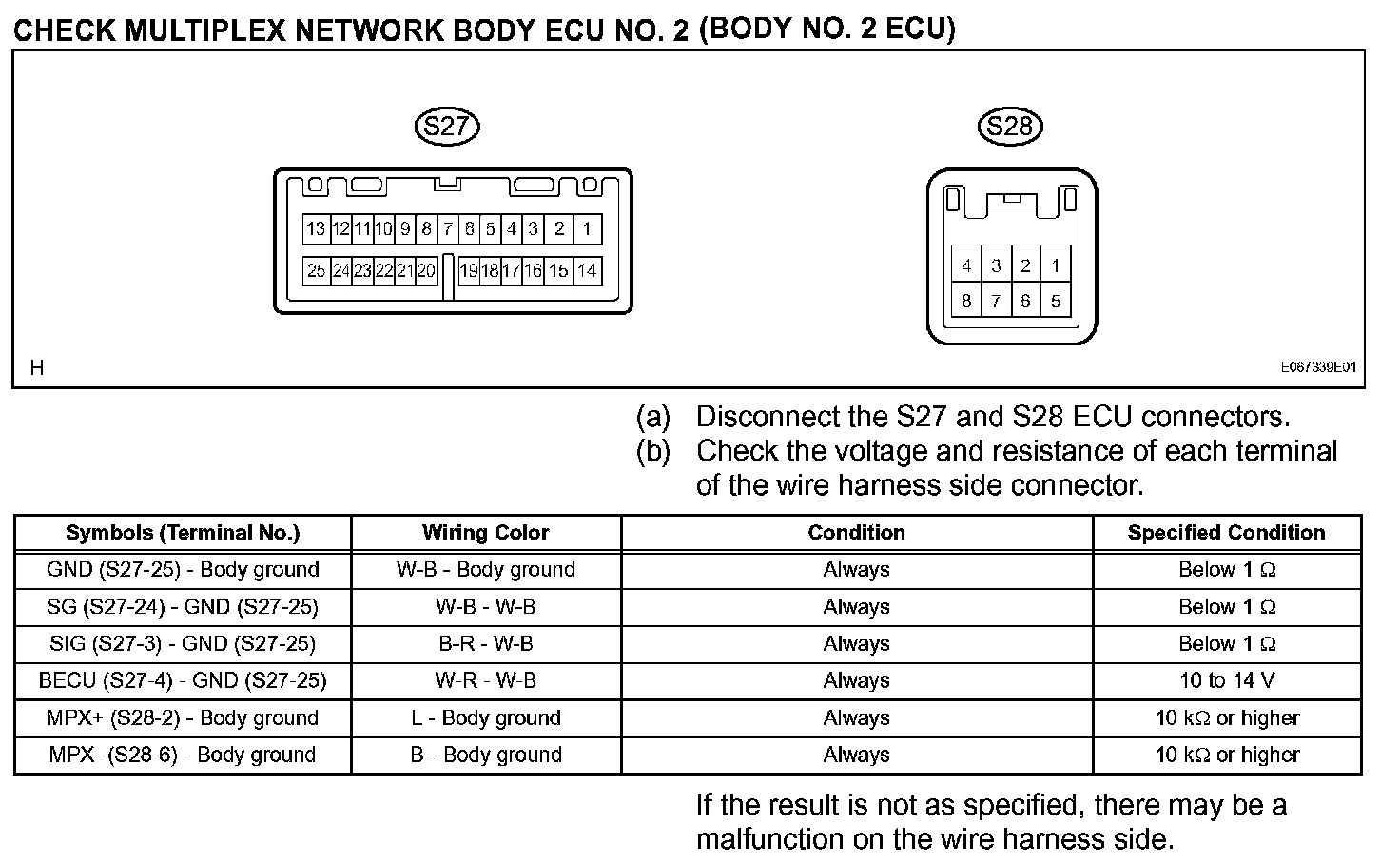

Terminals Of Control Module/Pinouts - Check Multiplex network Body ECU No.2 (Body No .2 ECU):

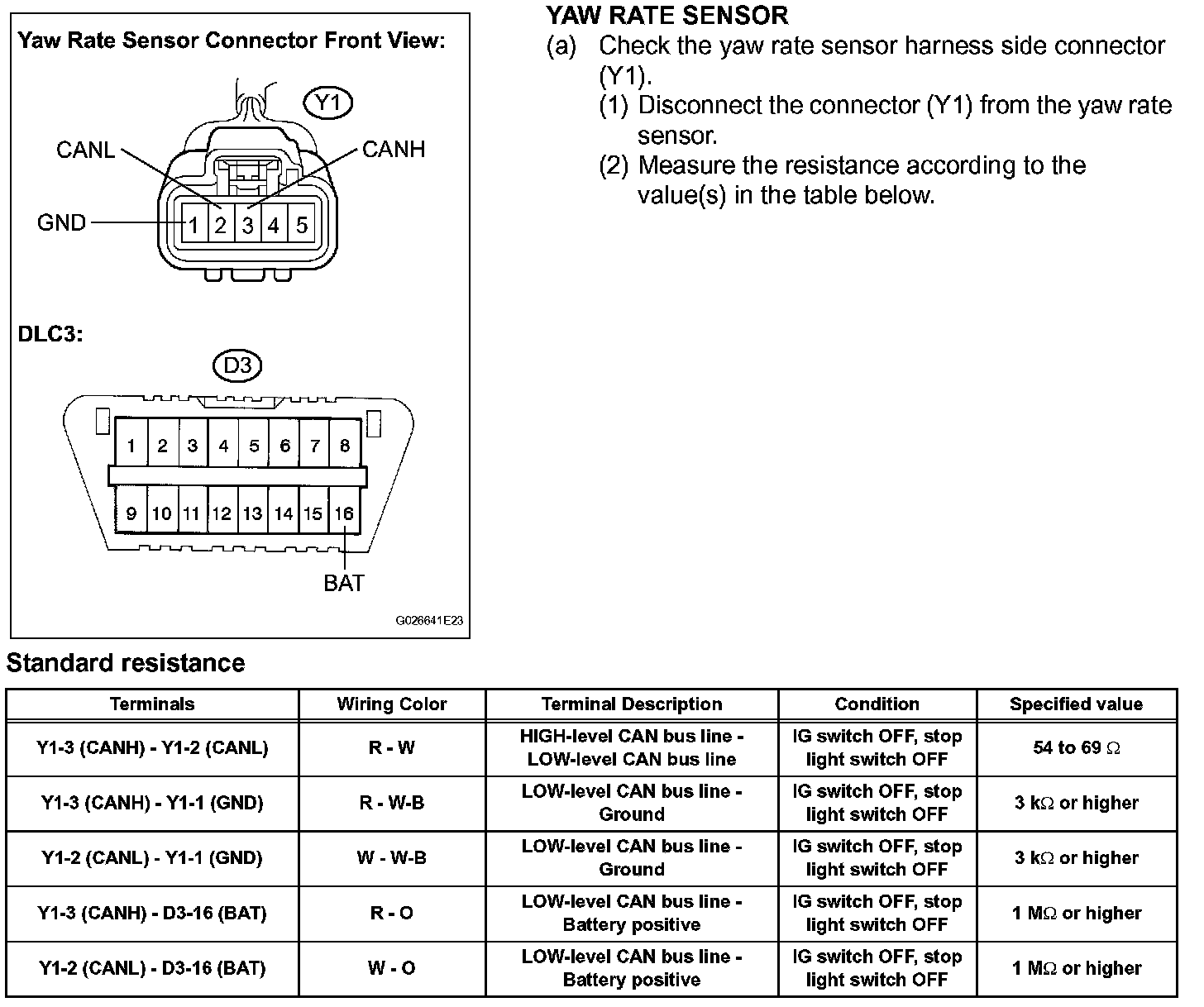

Terminals Of Control Module/Pinouts-YAW Rate Senor:

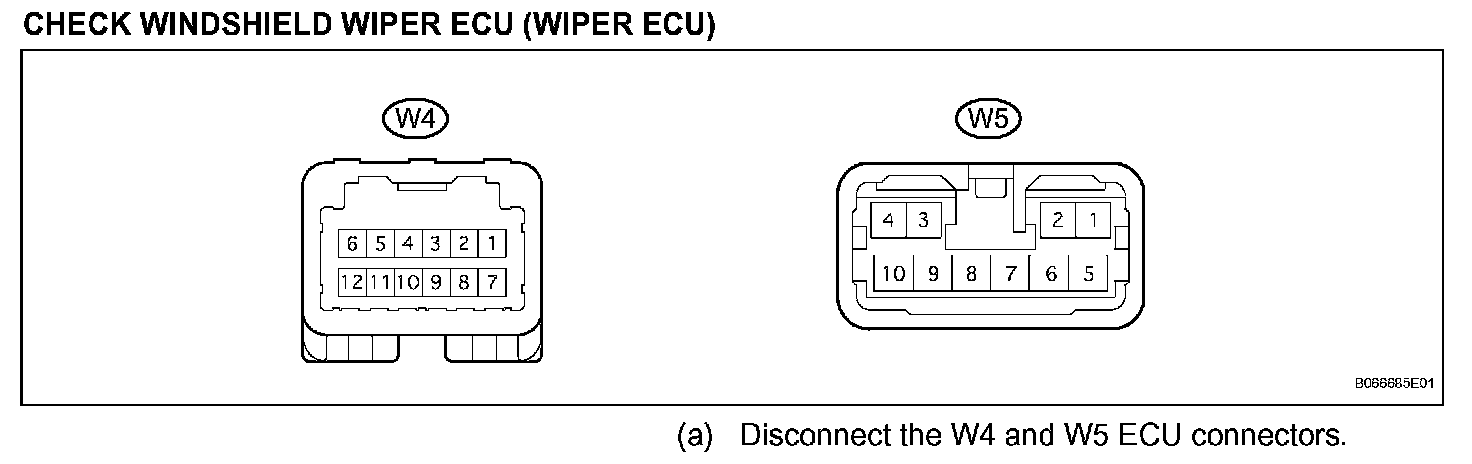

Terminals Of Control Module/Pinouts - Check Windshield Wiper ECU (Wiper ECU) (Part 1):

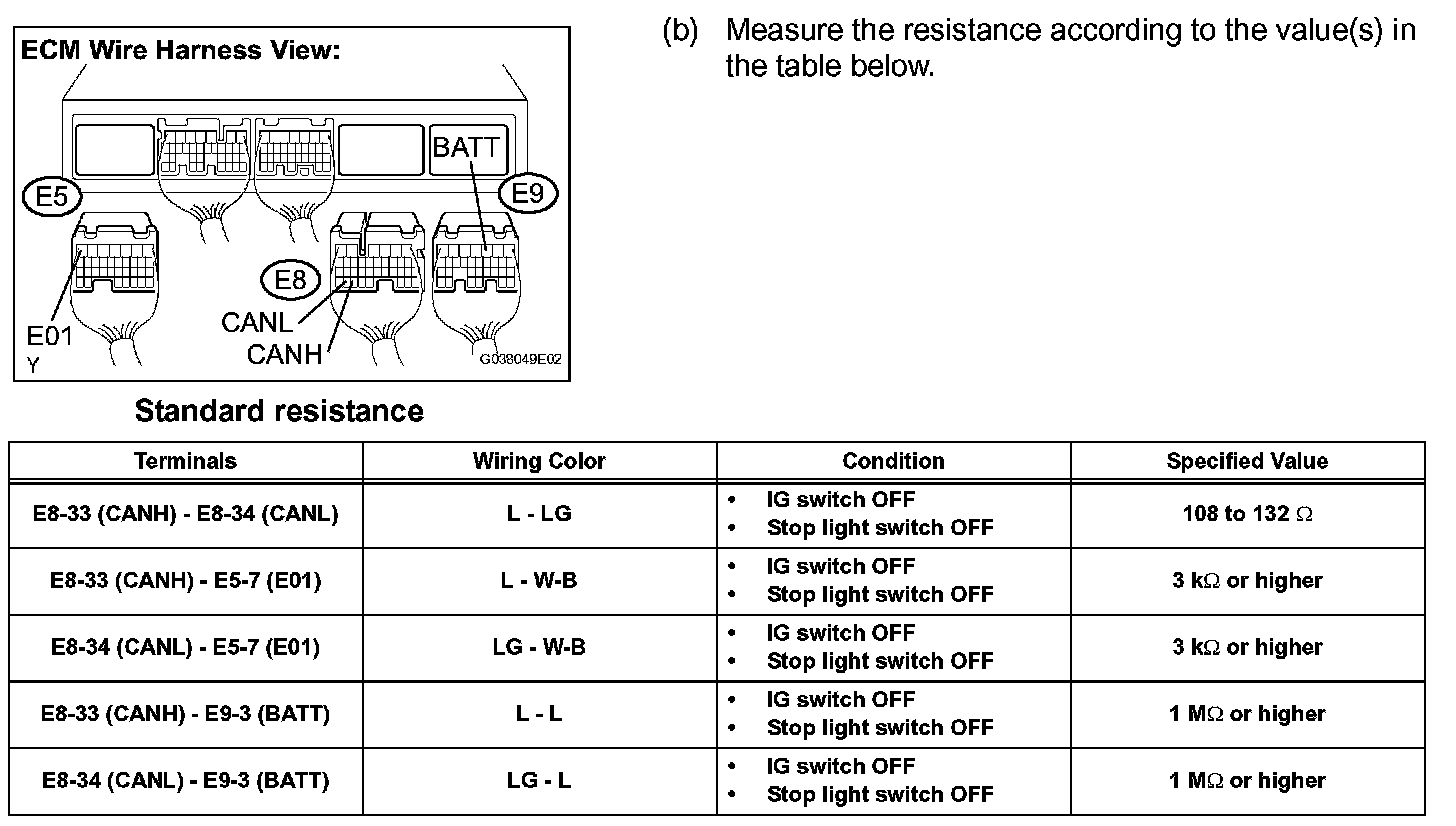

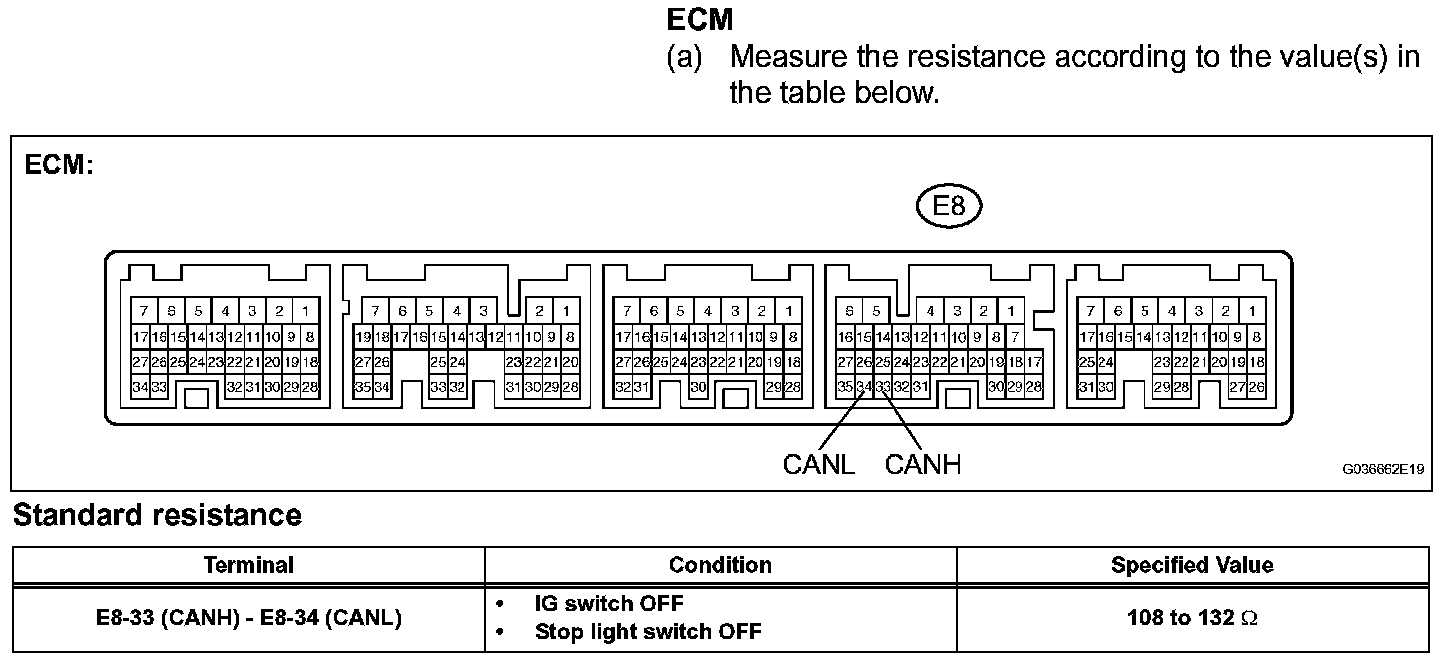

Terminals Of ECM/Pinouts-ECM (Part 1):

Terminals Of Control Module/Pinouts - Check Windshield Wiper ECU (Wiper ECU) (Part 2):

Terminals Of ECM/Pinouts-ECM (Part 2):

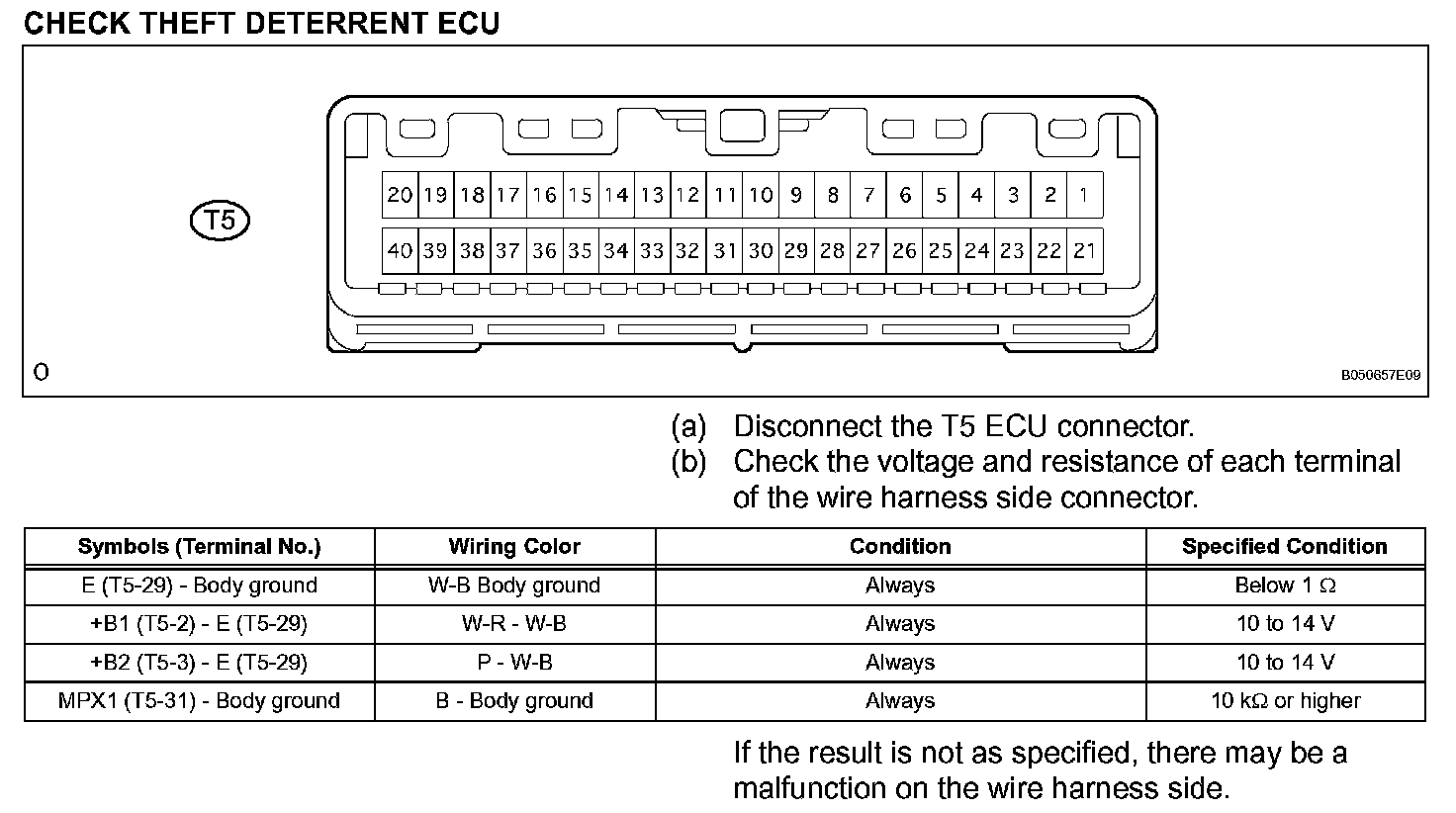

Terminals Of Control Module/Pinouts - Check Theft Deterrent ECU:

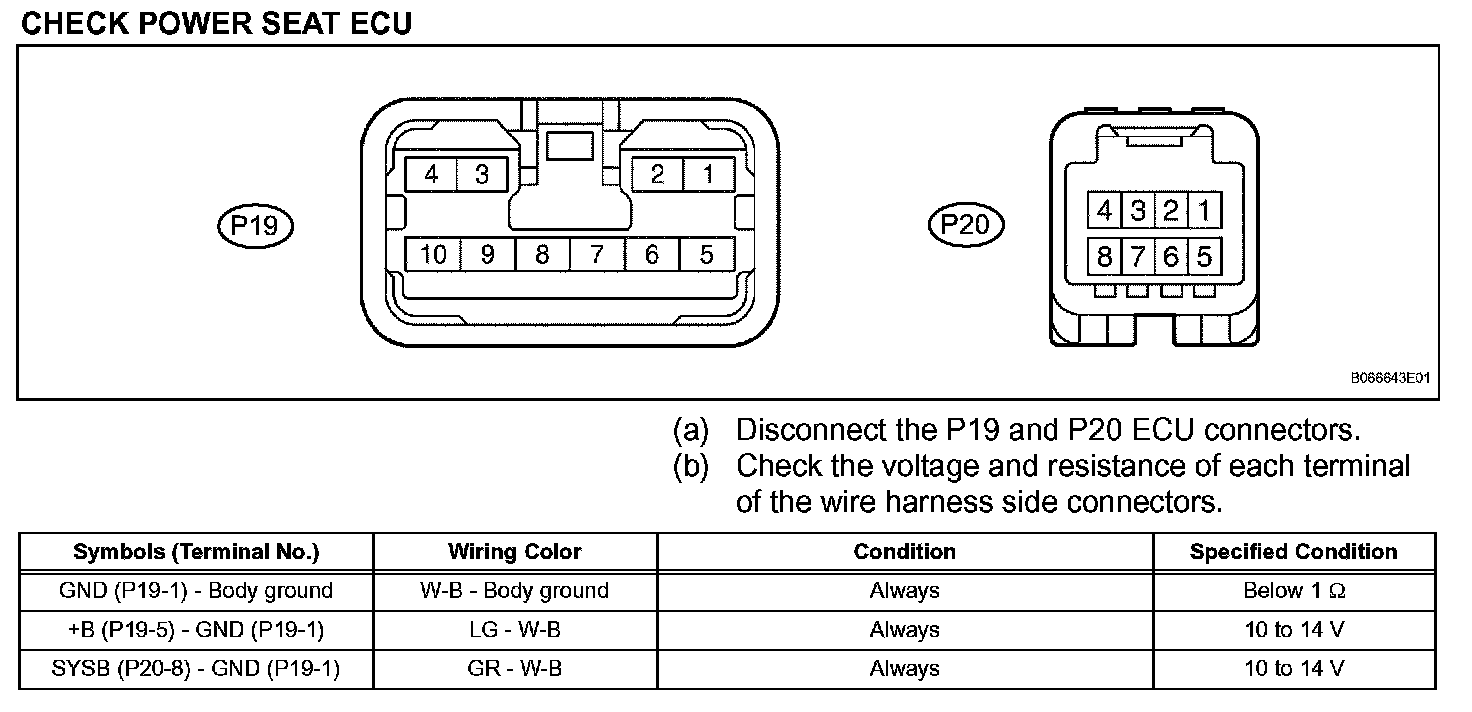

Terminals Of Control Module/Pinouts - Check Power Seat ECU (Part 1):

Terminals Of Control Module/Pinouts - Check Power Seat ECU (Part 2):

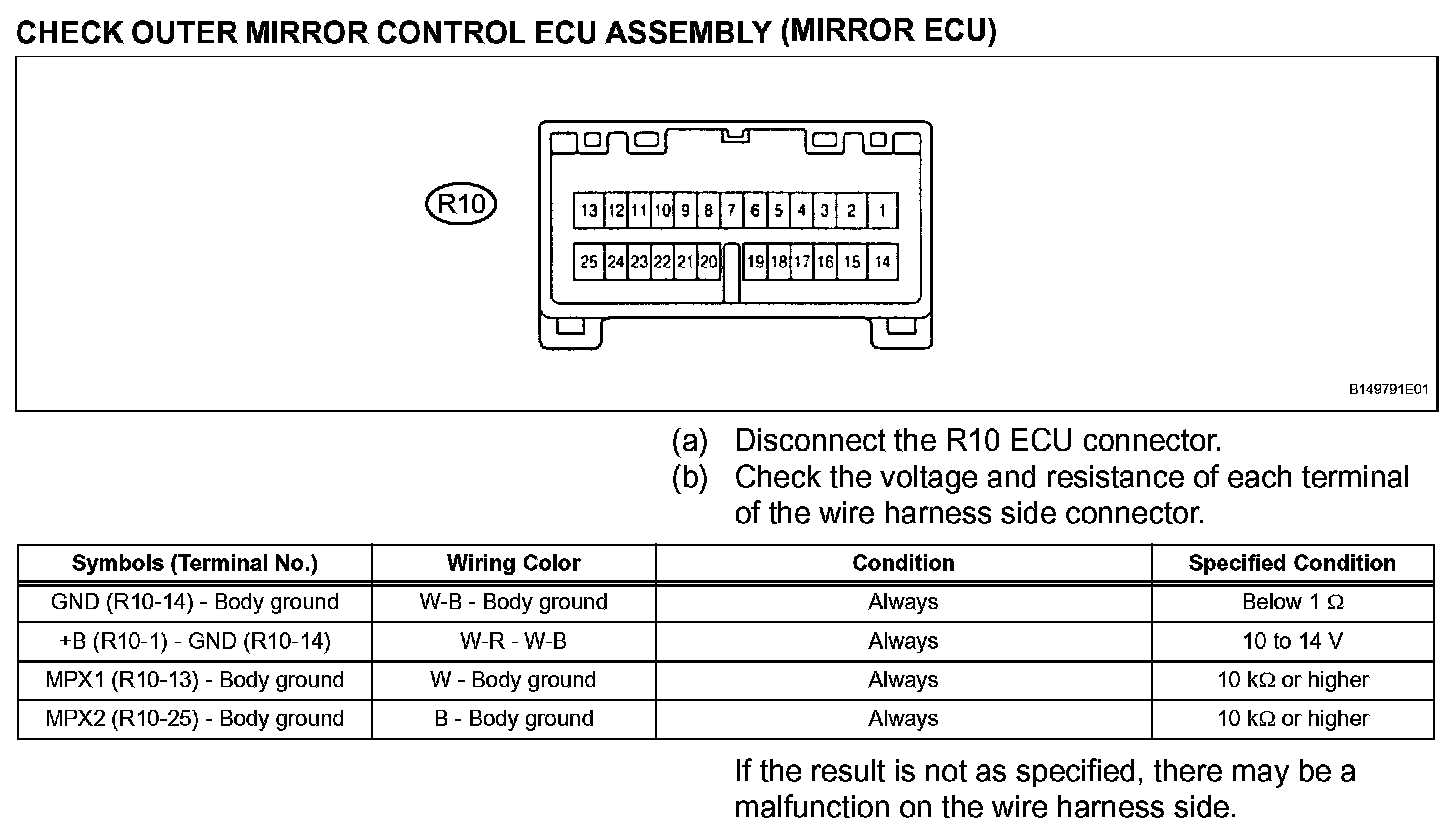

Terminals Of Control Module/Pinouts - Check Outer Mirror Control ECU Assembly (Mirror ECU):

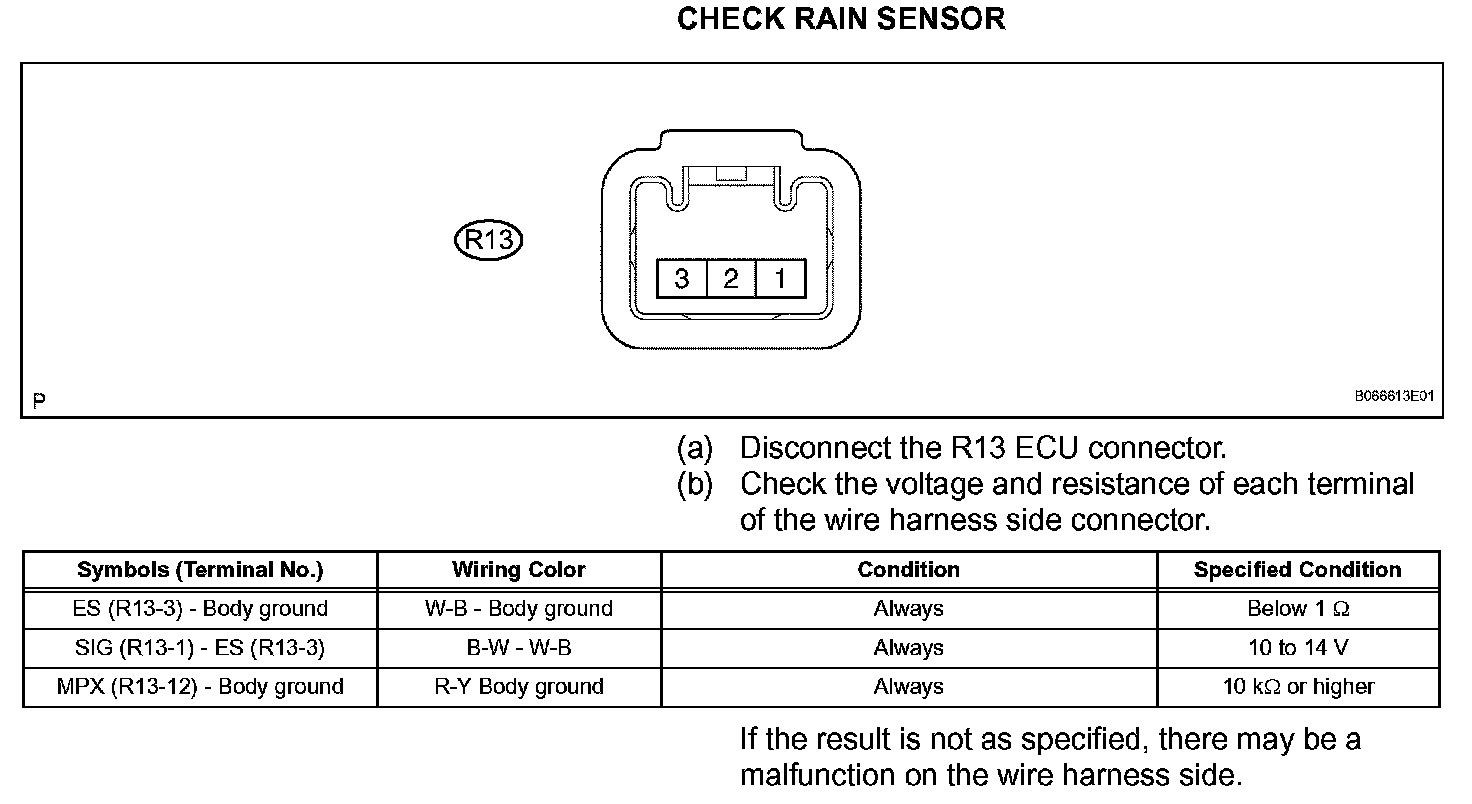

Terminals Of Control Module/Pinouts - Check Rain Sensor:

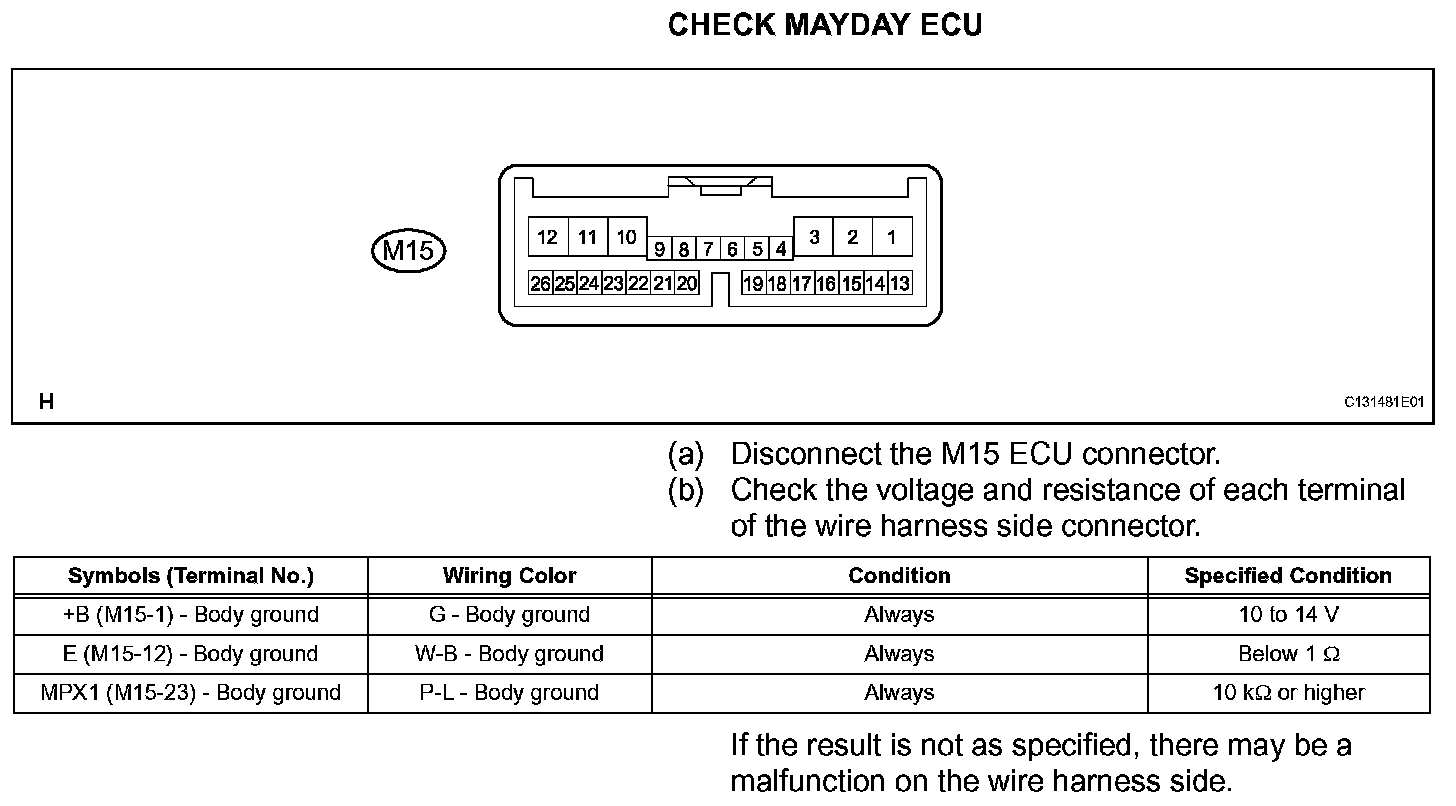

Terminals Of Control Module/Pinouts - Check MayDay ECU:
