Component Inspection

INSPECTION




1. INSPECT AIR SWITCHING VALVE

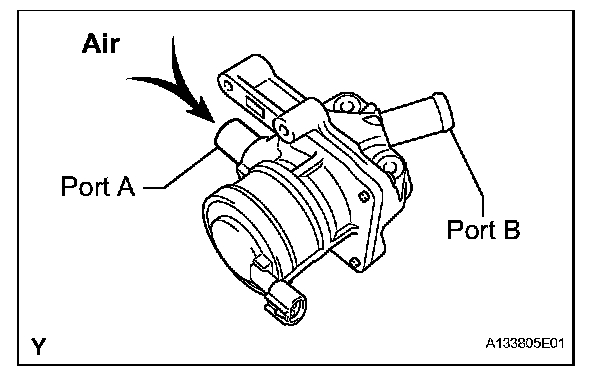

a. Blow air into port A and check that air is not discharged from port B.

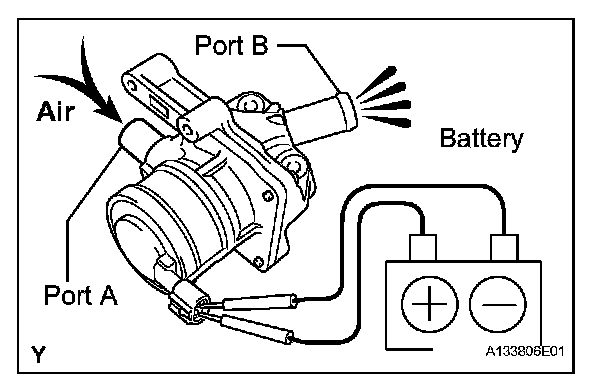

b. Apply positive battery between the terminals.
c. Blow air into port A and check that air is discharged from port B.

If operation is not as specified, replace the air switching valve.




2. INSPECT NO. 2 AIR SWITCHING VALVE

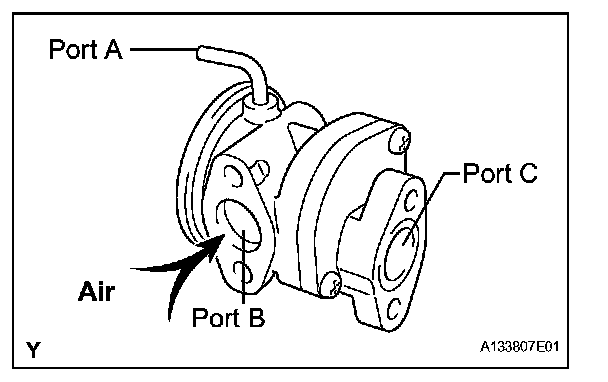

a. Blow air into port B and check that air is not discharged from port C.

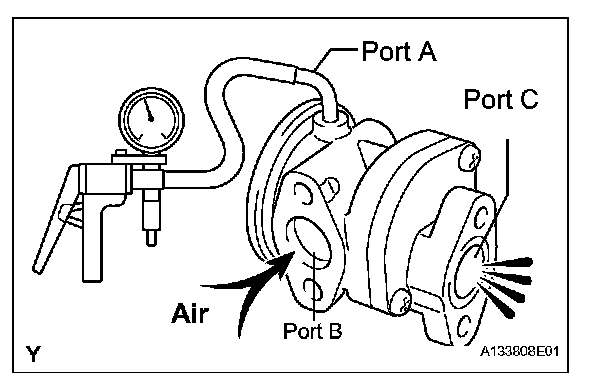

b. Apply vacuum (30 kPa (306 gf/sq.cm, 4.35 psi)) to port A, blow air into port B and check that air is discharged from port C.

If operation is not as specified, replace the No. 2 air switching valve.
