Oil Pan, Engine

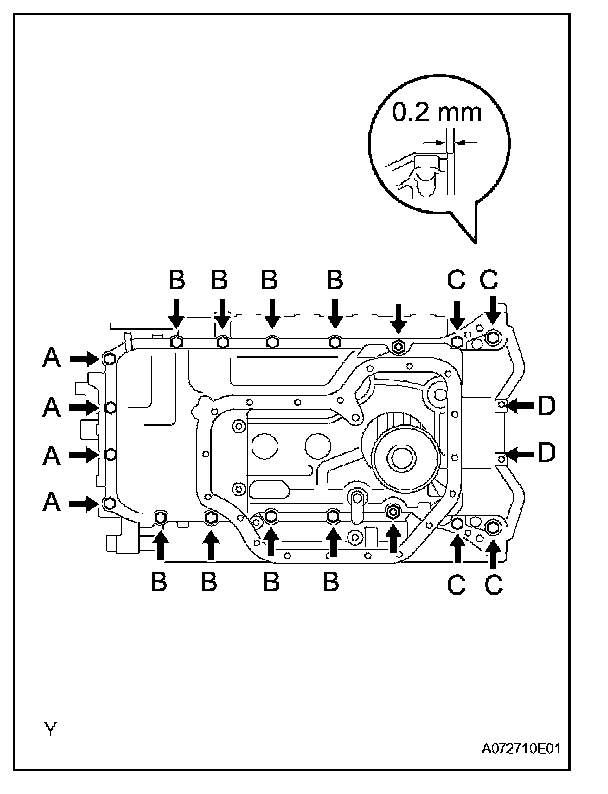

OIL PAN Uniformly tighten the bolts and nuts diagonally.
Torque: For bolts A and D
7.5 N*m (76 kgf*cm, 66 in.*lbf)
Torque: For bolts B, C and nut
28 N*m (286 kgf*cm, 21 ft.*lbf)
NO. 2 OIL PAN Install the No. 2 oil pan with the 17 bolts and 2 nuts. Uniformly tighten the bolts and nuts in several steps.
Torque
7.5 N*m (76 kgf*cm, 66 in.*lbf)
