Flex Plate

DRIVE PLATE & RING GEAR SUBASSEMBLY

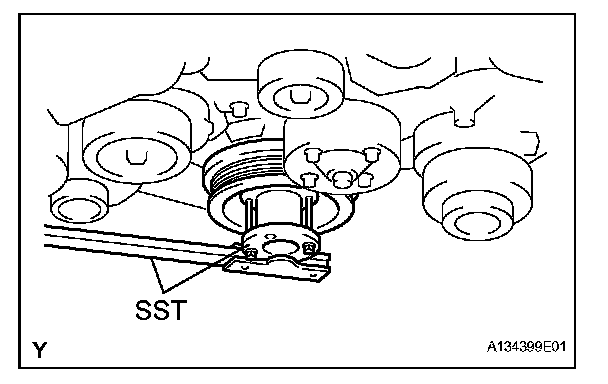

(a) Using SST, hold the crankshaft.
SST 09213-70011, 09330-00021

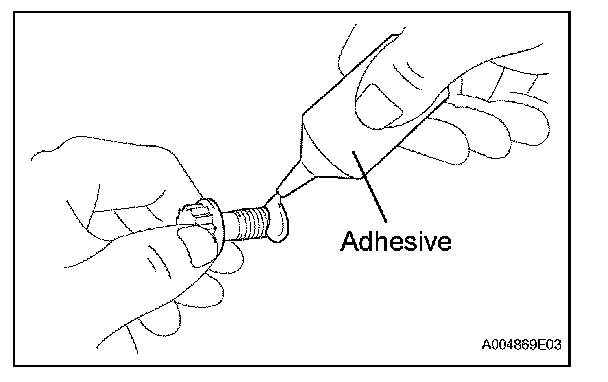

(b) Apply adhesive to 2 or 3 threads of the mounting bolt end.
Adhesive: Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent





(c) Install the front spacer, drive plate and rear spacer on the crankshaft.
(d) Install and uniformly tighten the 8 mounting bolts in several steps, in the order shown in the illustration.
Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)
If any one of the mounting bolts does not meet the torque specification, replace the mounting bolt.

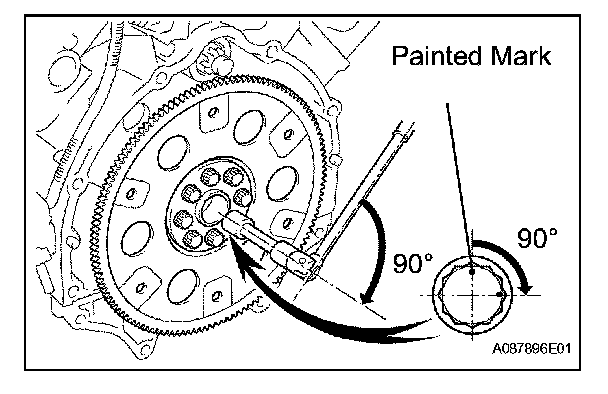

(e) Mark the mounting bolt with paint (Procedure "A").
(f) Retighten the mounting bolts by 90° in the order shown.
(g) Check that the painted mark is now at a 90° angle to the mark placed in procedure "A".
