Ignition Switch: Testing and Inspection

INSPECTION

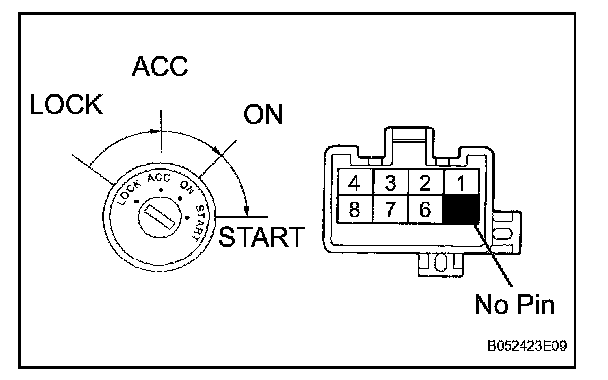

INSPECT IGNITION OR STARTER SWITCH ASSEMBLY

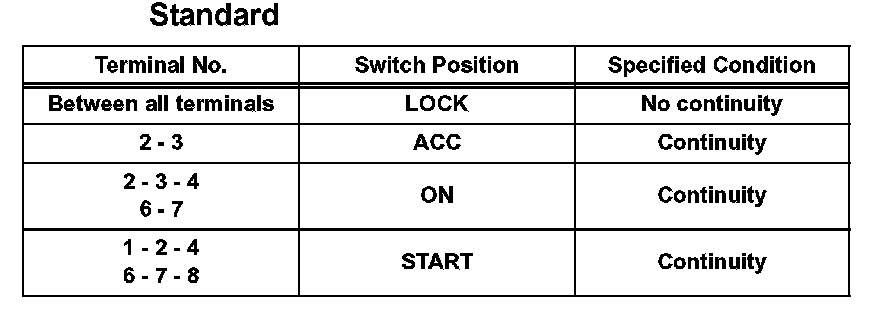

Inspect the switch continuity.

If the result is not as specified, replace the switch assembly.
