Starter Relay: Testing and Inspection
INSPECTION 1.
INSPECT

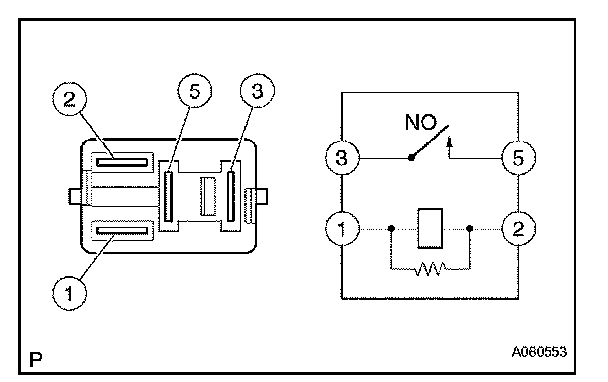

STARTER RELAY ASSEMBLY
a.
Continuity inspection.
1.
Using an ohmmeter, check that there is continuity between each terminal.
b.
Using an ohmmeter, check that there is continuity between terminals 3 and 5 when voltage is applied across terminals 1 and 2.
Specified condition: Continuity
