Data List
DATA LISTHINT: According to the DATA LIST displayed by the intelligent tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one of the methods to shorten the labor time.
a.
Connect the intelligent tester to the DLC3.
b.
Turn the ignition switch to ON.
c.

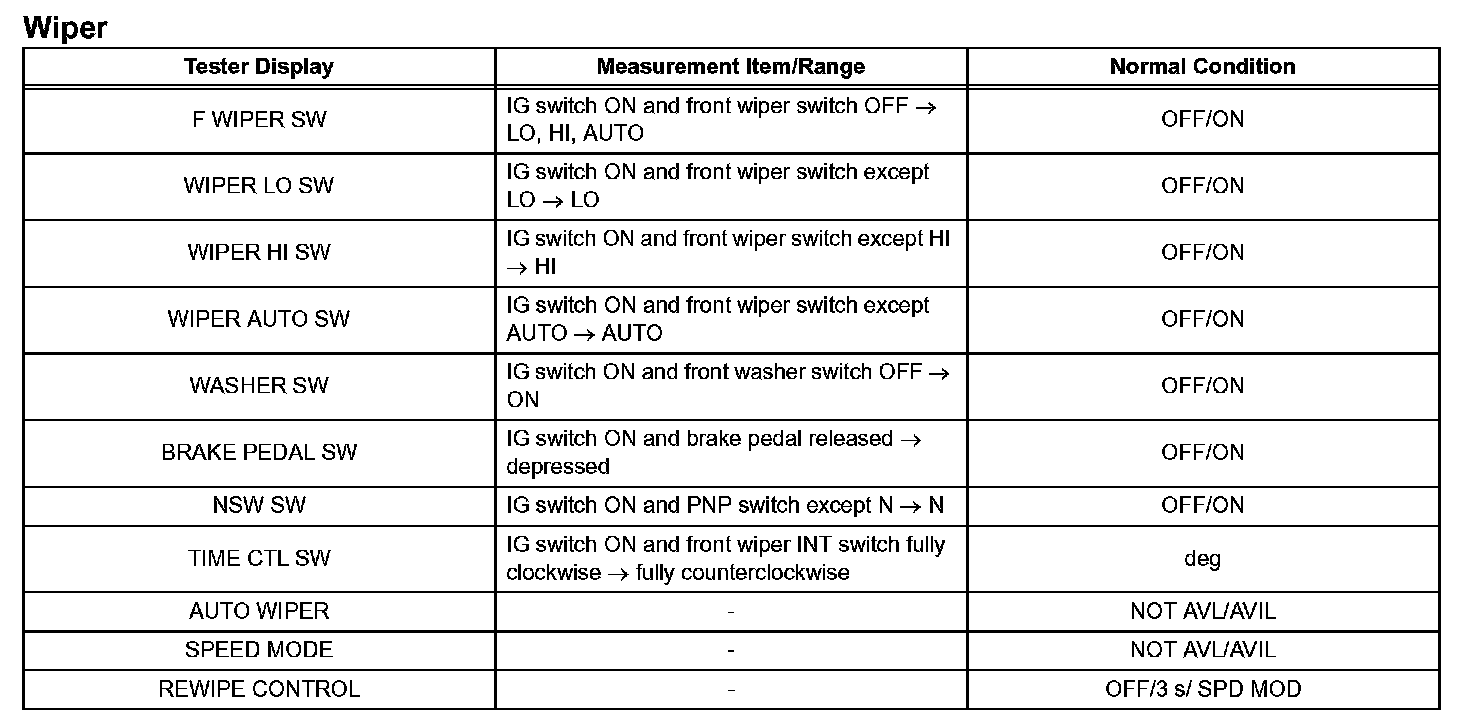

According to the display on tester, read the "DATA LIST".
