Dynamic Radar Cruise Control

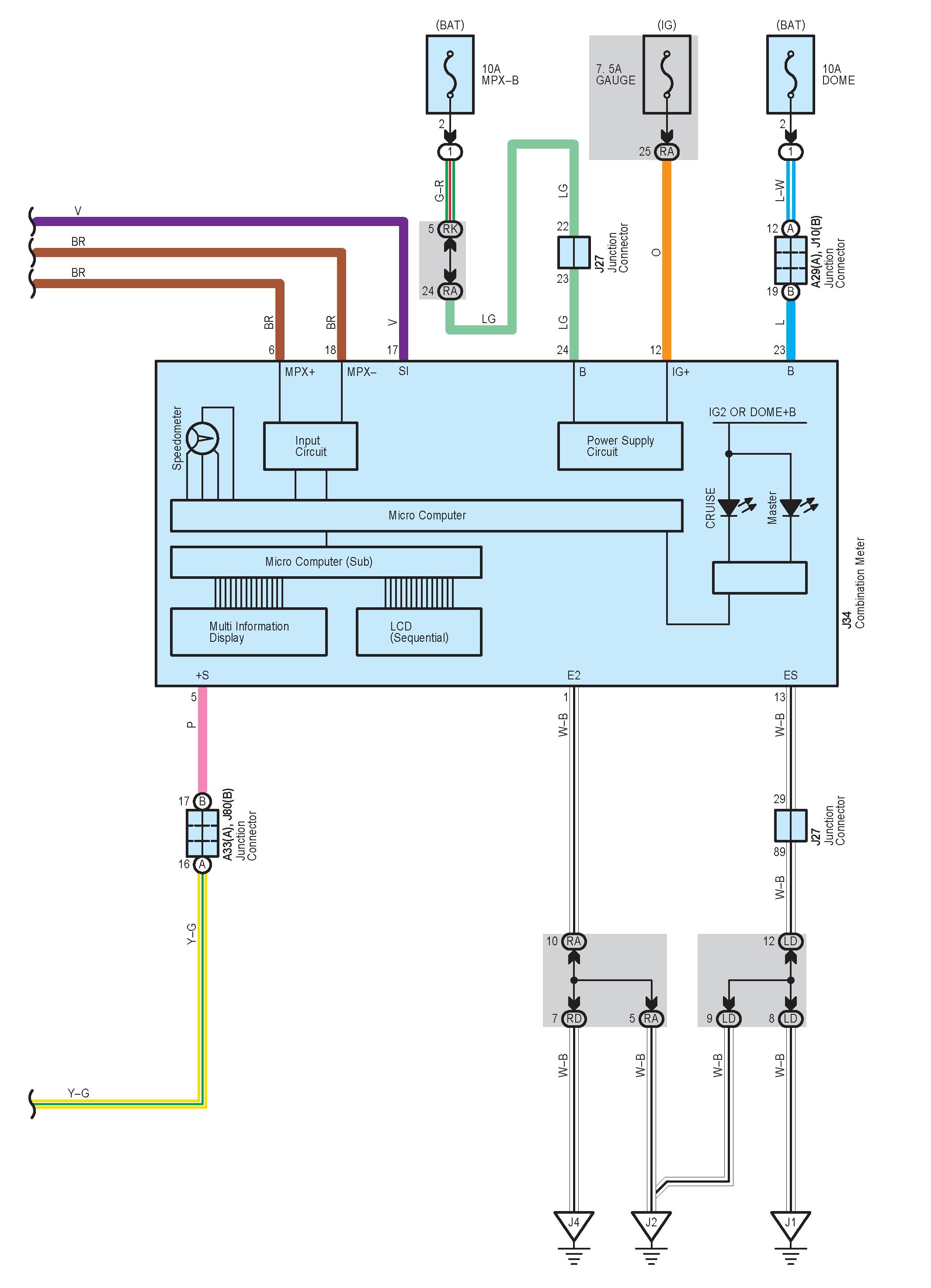

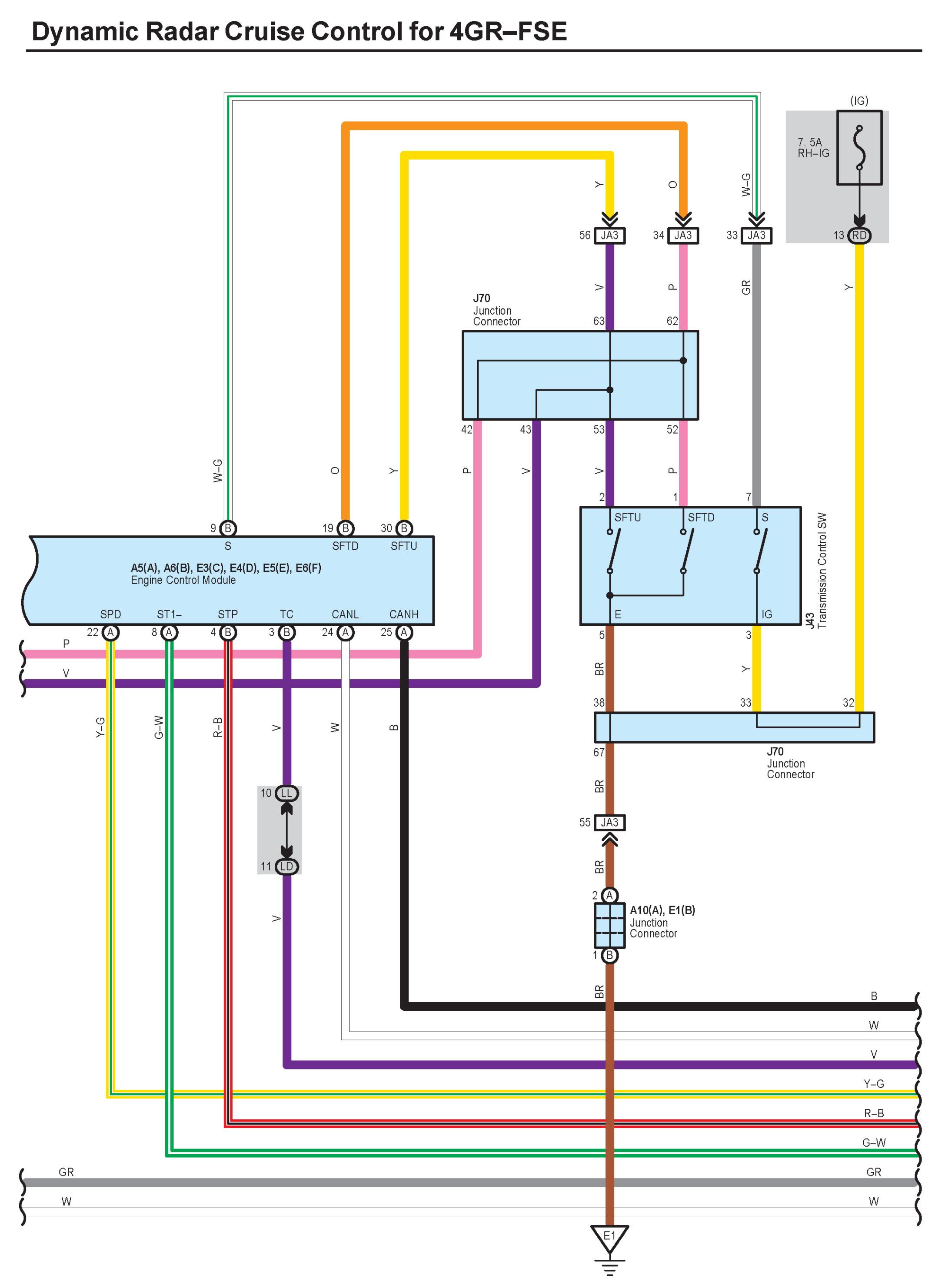

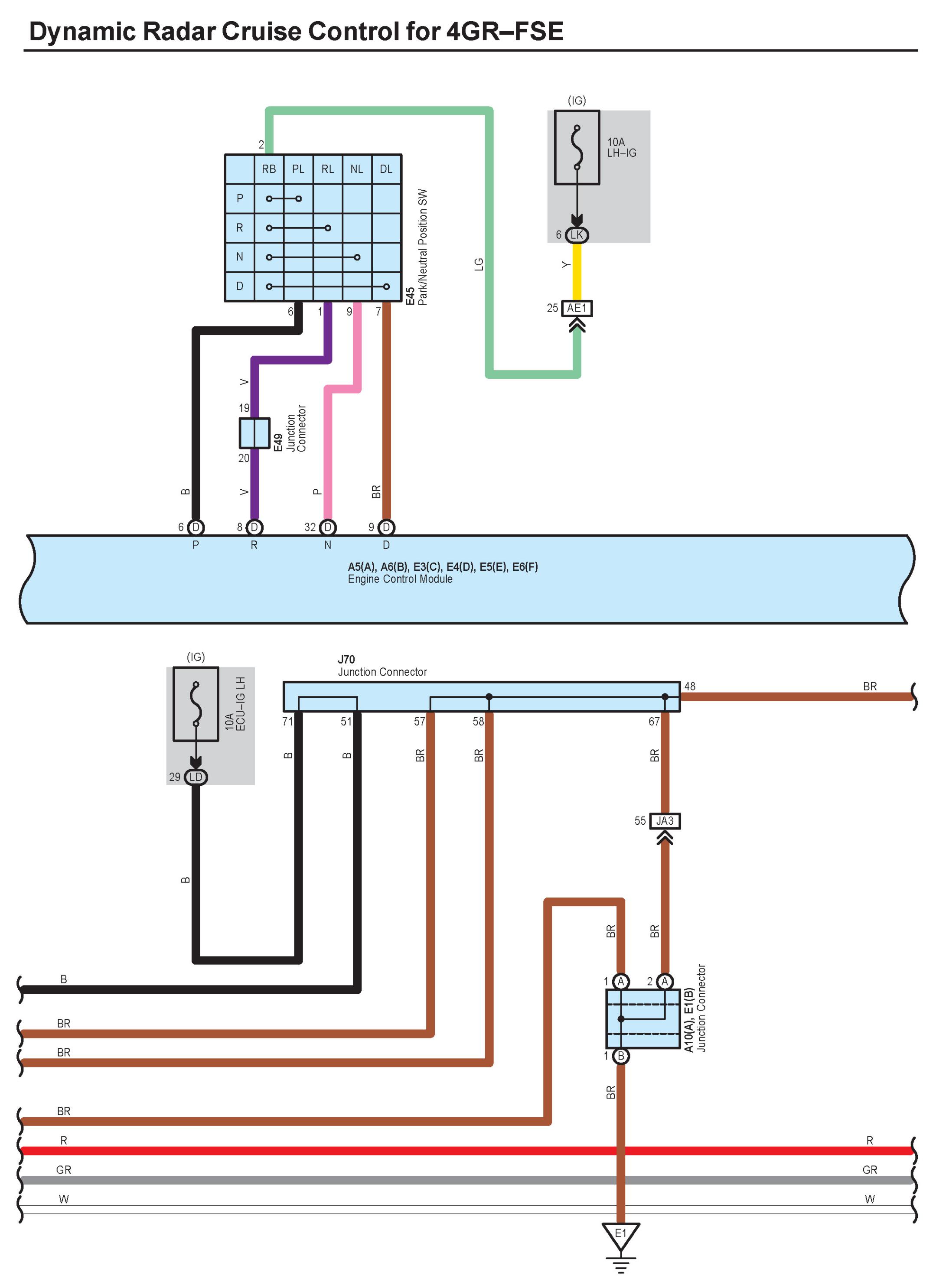

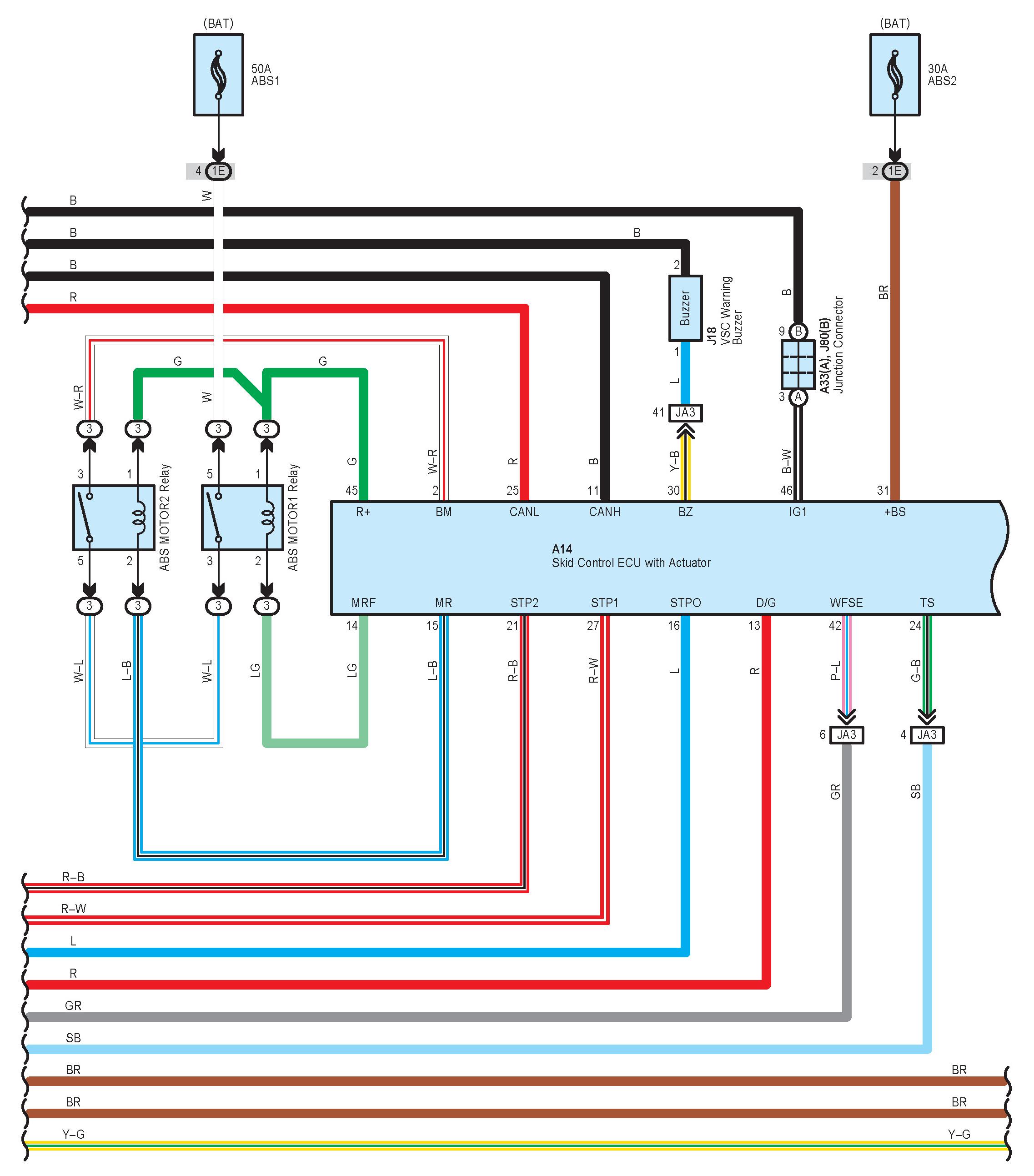

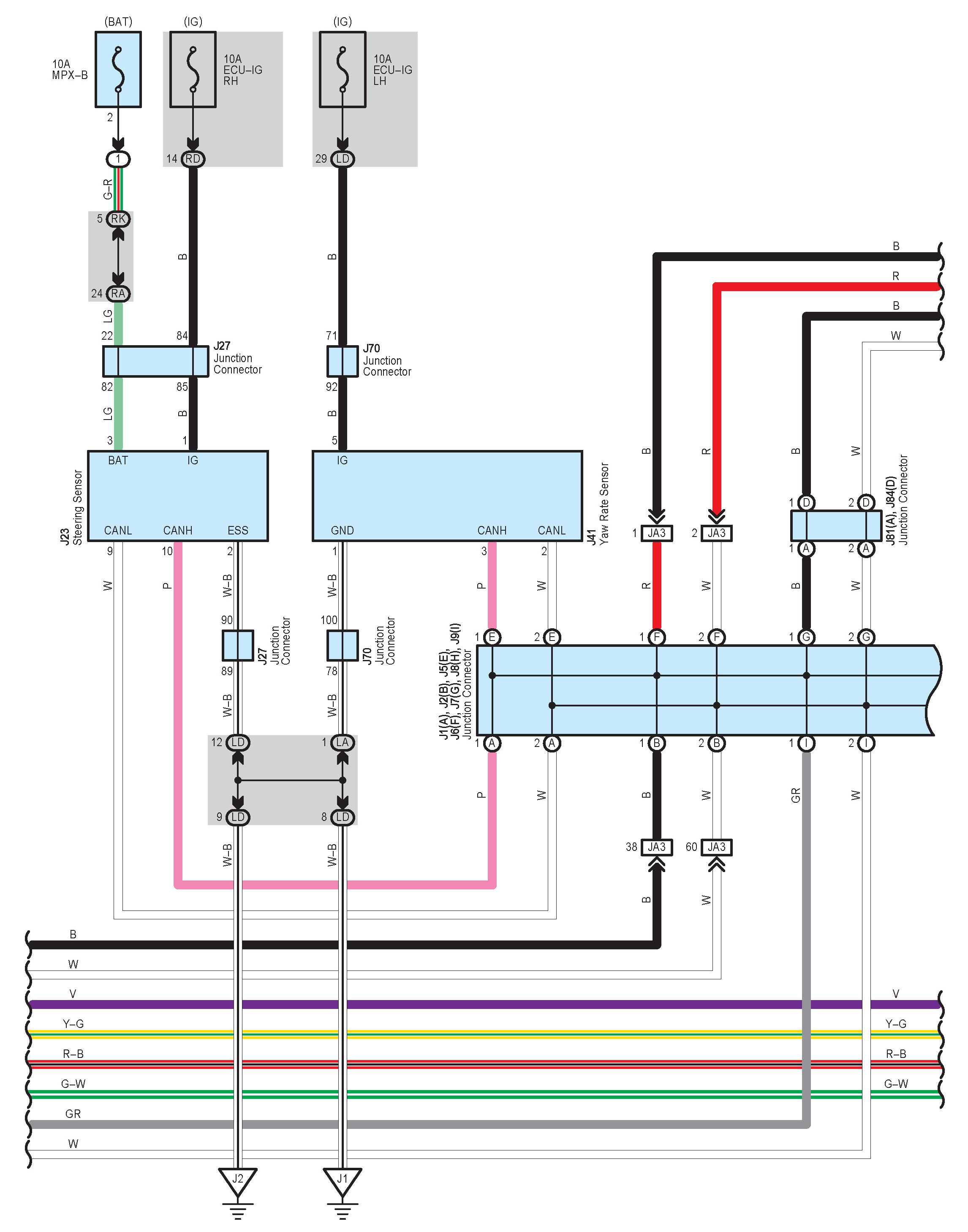

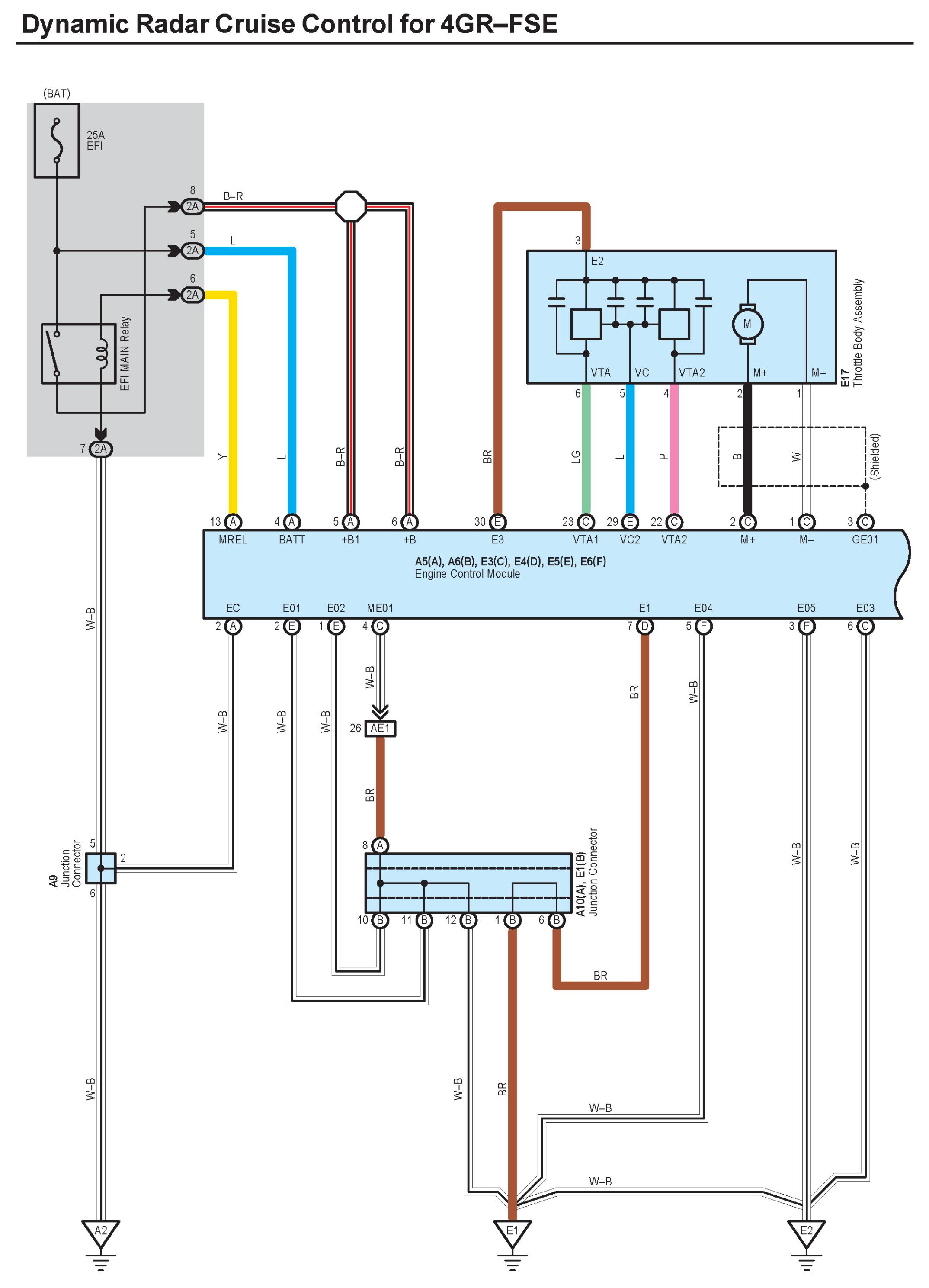

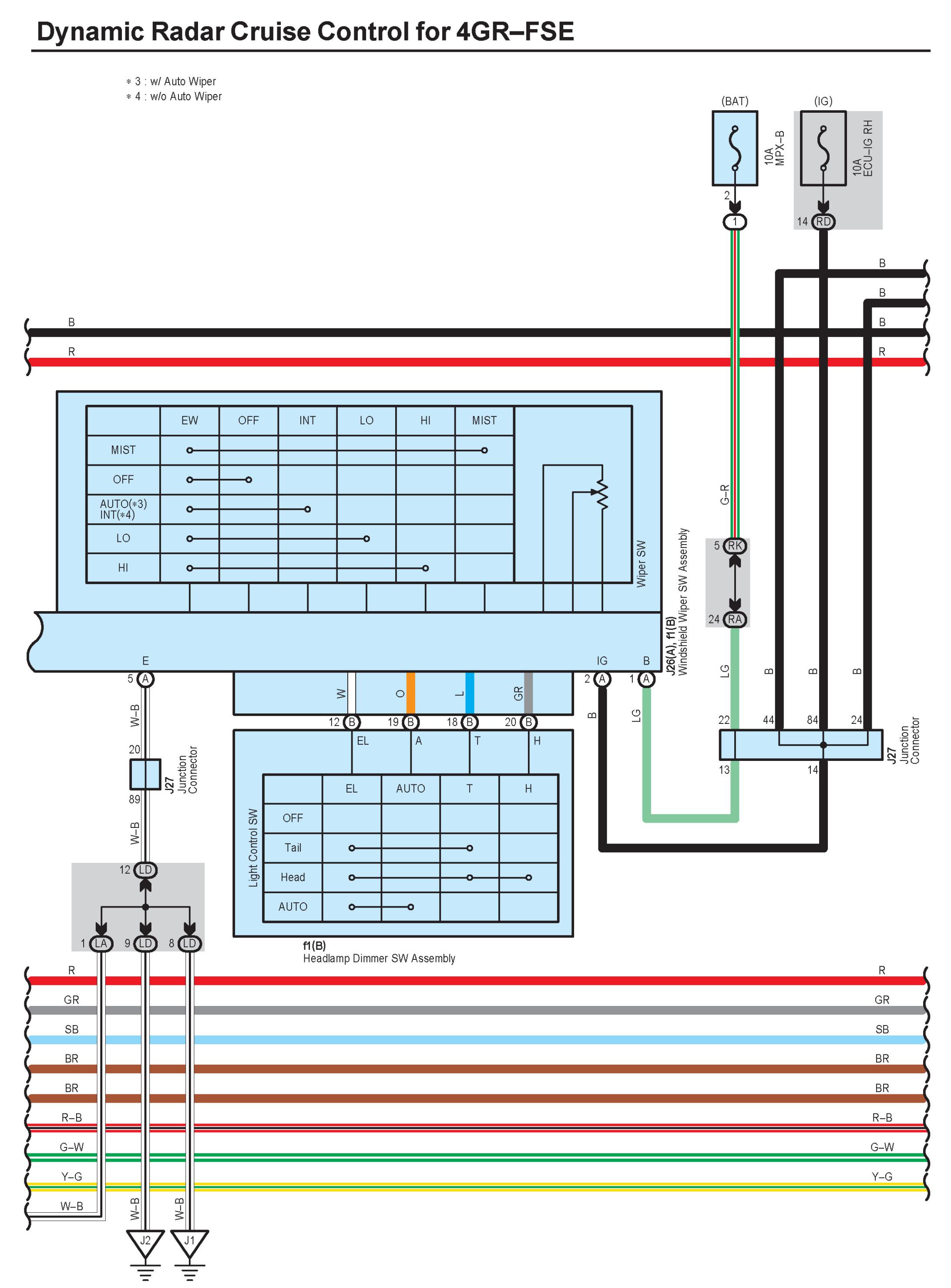

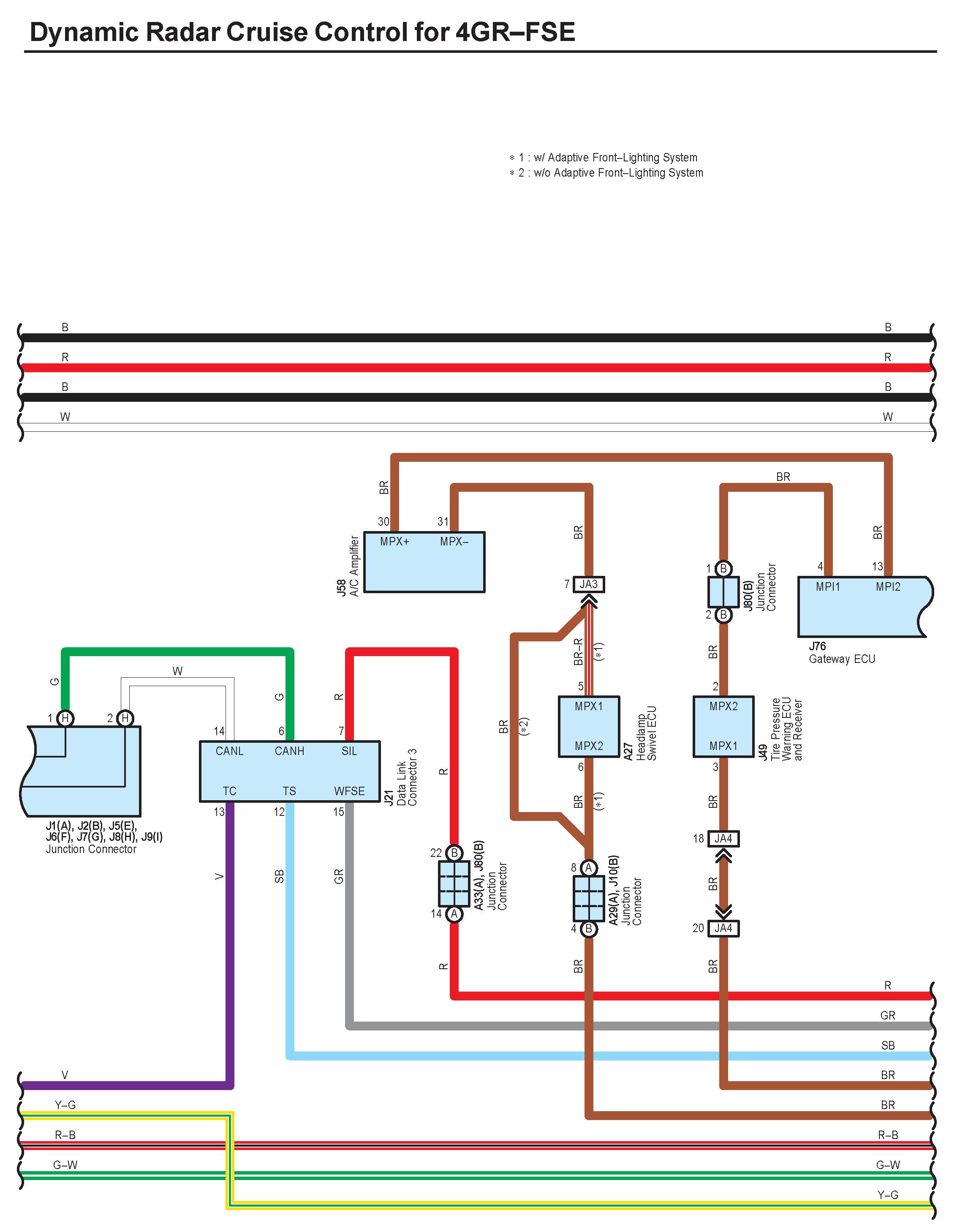

Dynamic Radar Cruise Control Part 1:

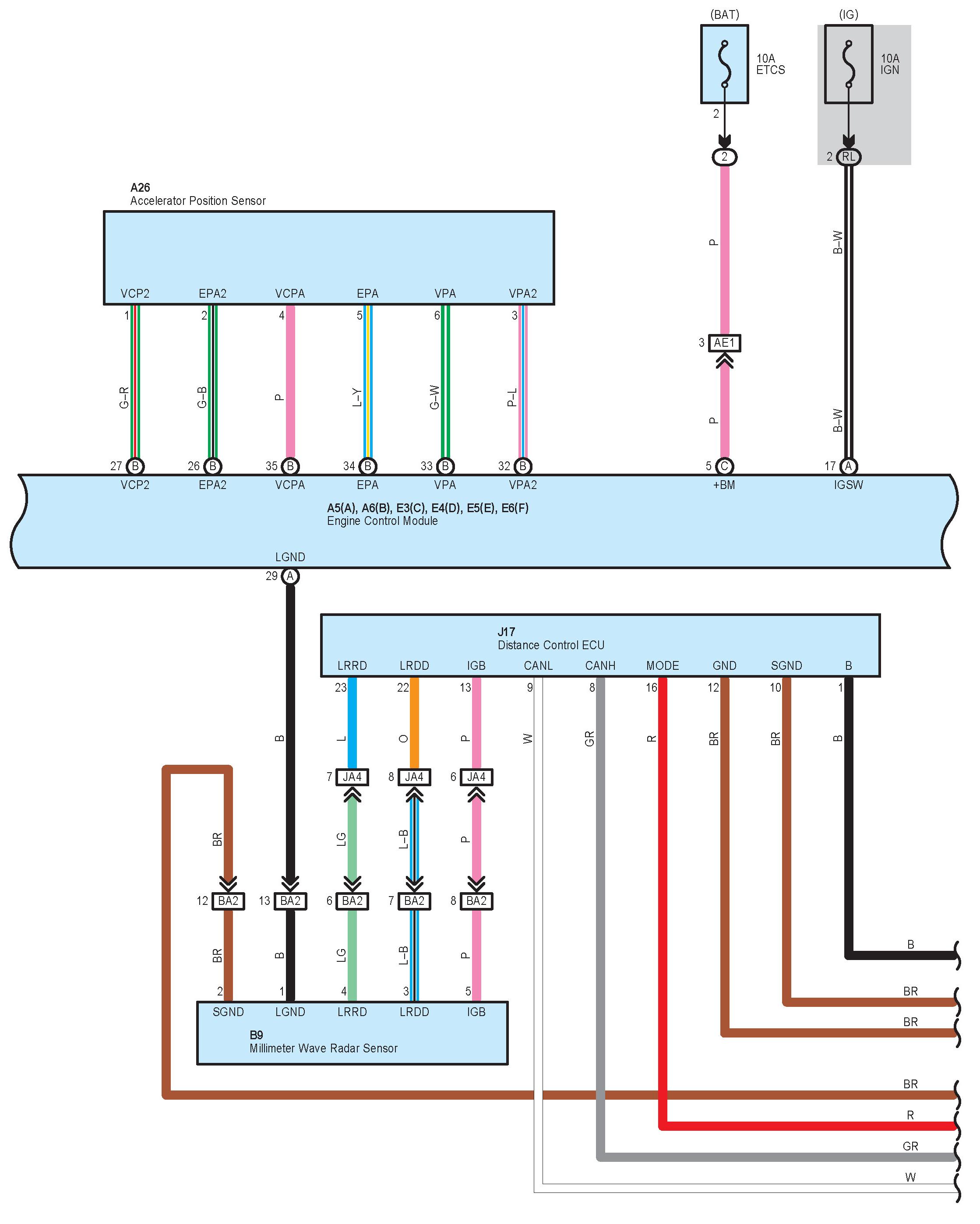

Dynamic Radar Cruise Control Part 2:

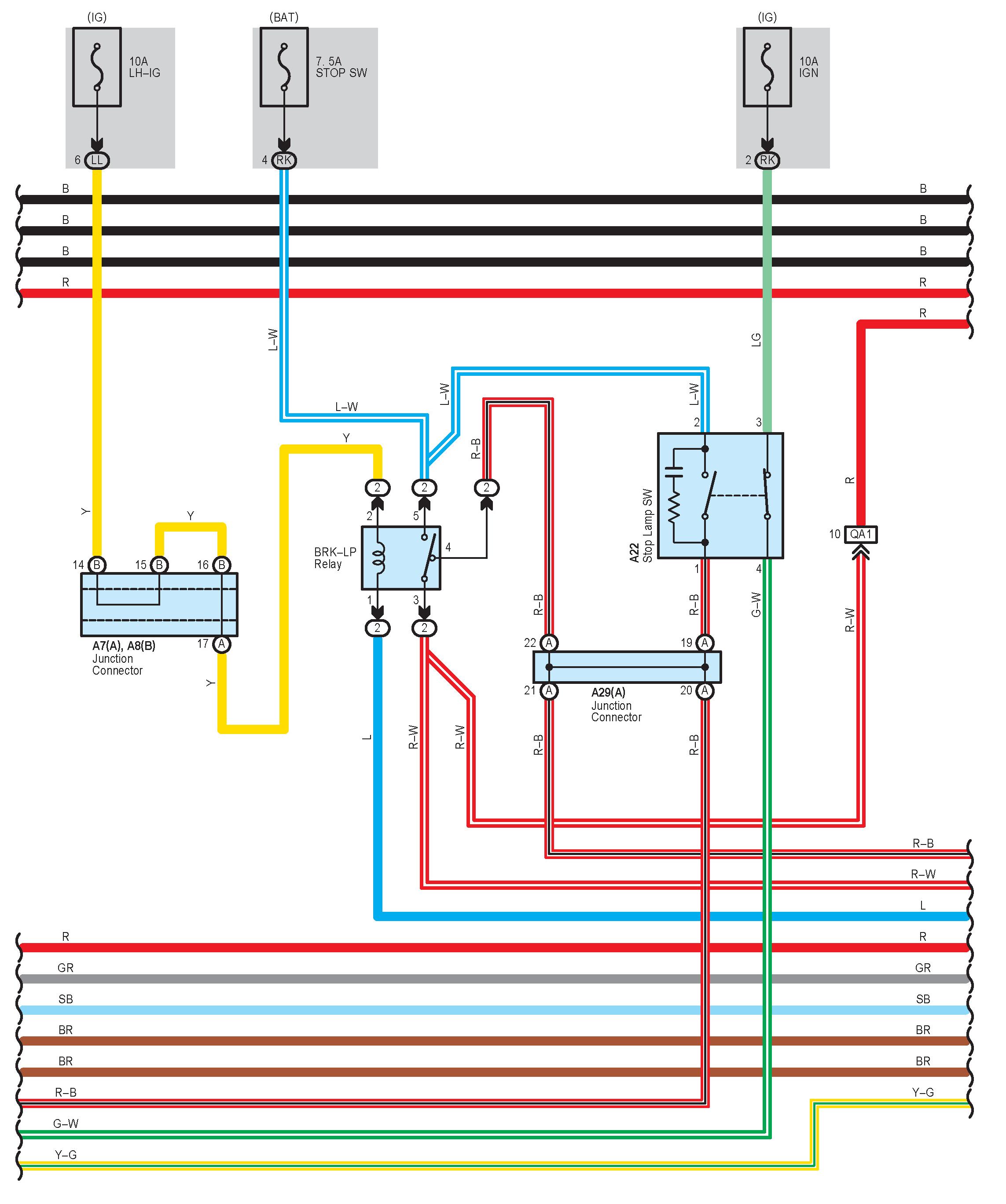

Dynamic Radar Cruise Control Part 3:

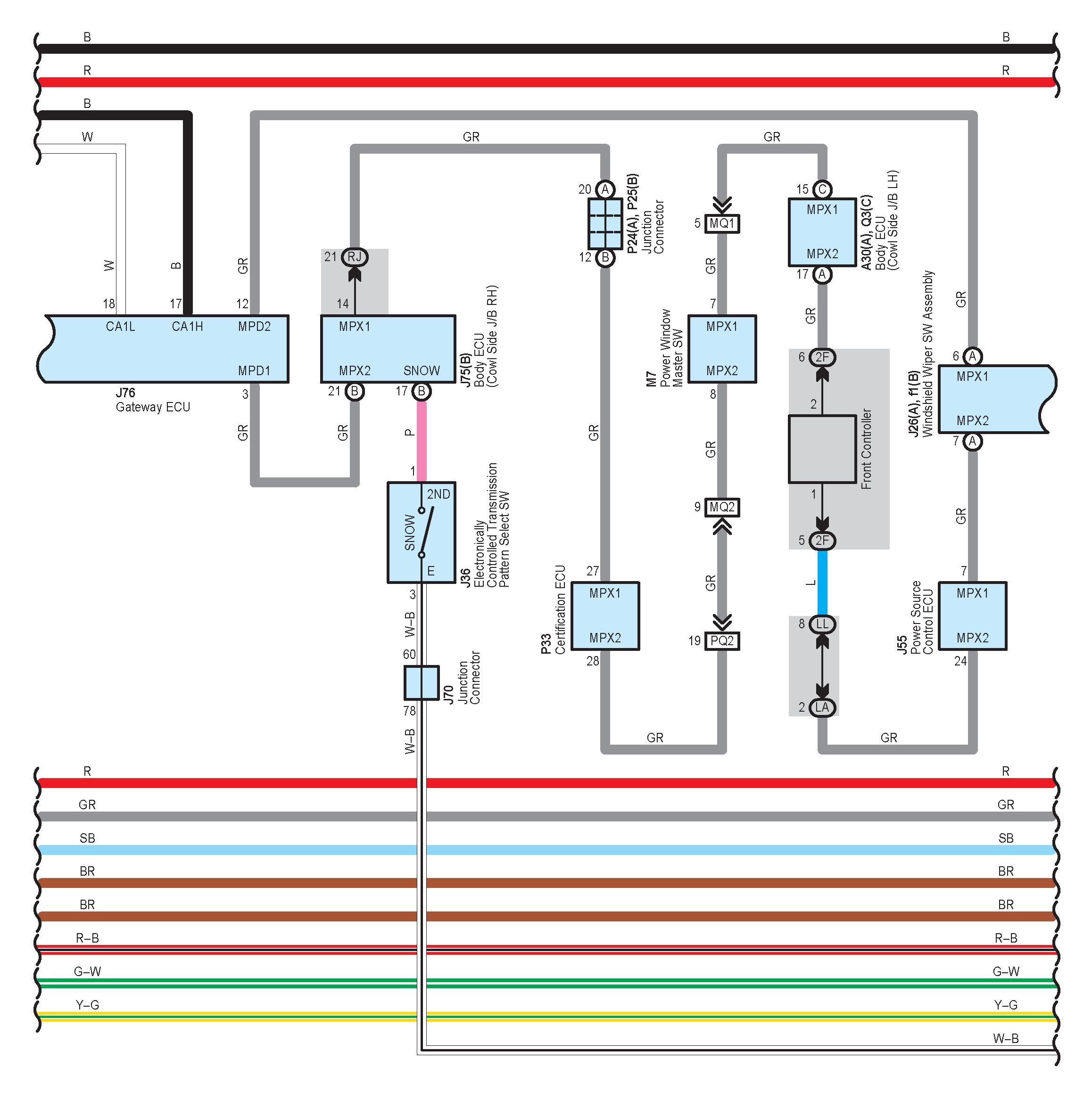

Dynamic Radar Cruise Control Part 4:

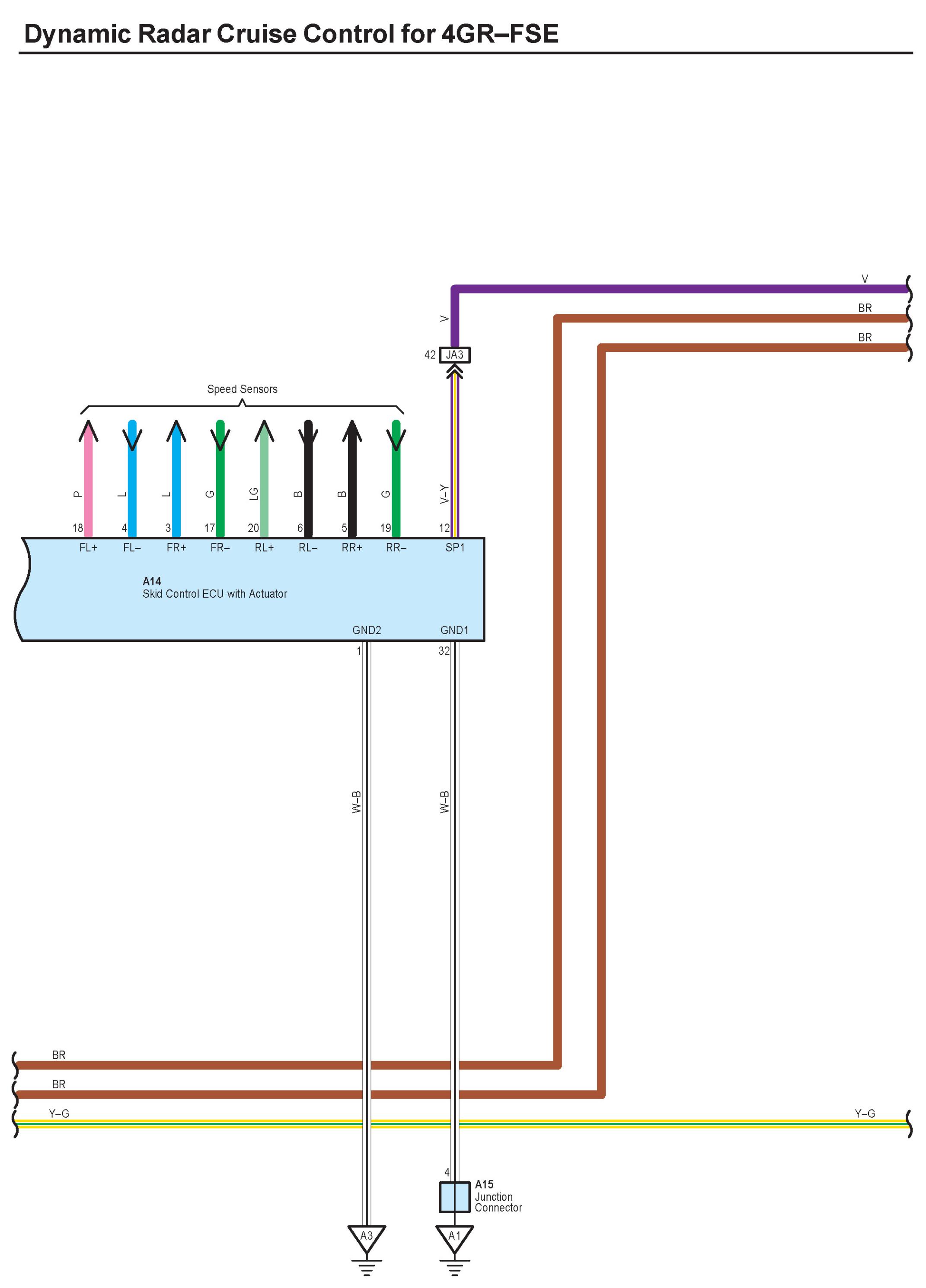

Dynamic Radar Cruise Control Part 5:




Dynamic Radar Cruise Control Part 6:




Dynamic Radar Cruise Control Part 7:




Dynamic Radar Cruise Control Part 8:




Dynamic Radar Cruise Control Part 9:




Dynamic Radar Cruise Control Part 10:




Dynamic Radar Cruise Control Part 11:




Dynamic Radar Cruise Control Part 12:




Dynamic Radar Cruise Control Part 13:




Dynamic Radar Cruise Control Part 14:

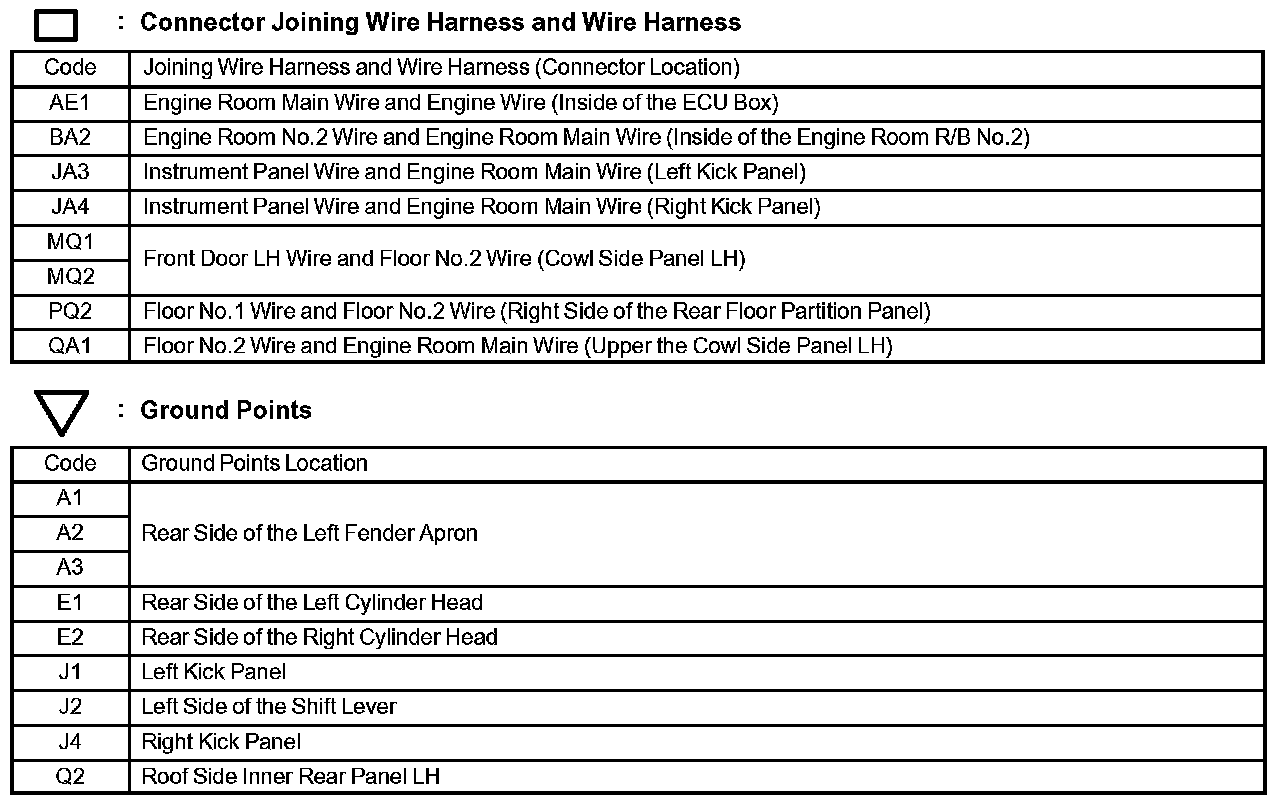

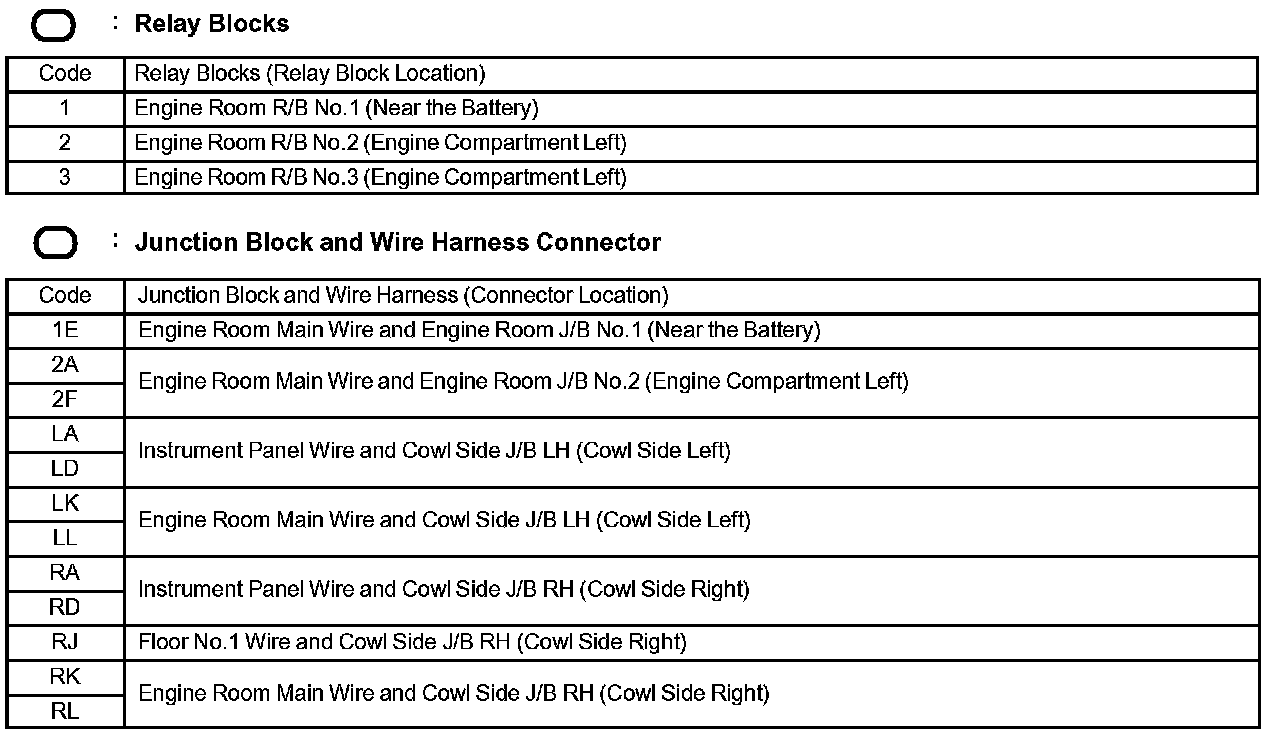

Diagram Legend Part 1:




Diagram Legend Part 2:






Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
