4WD Control ECU Communication Stop Mode

4WD Control ECU Communication Stop Mode

DESCRIPTION

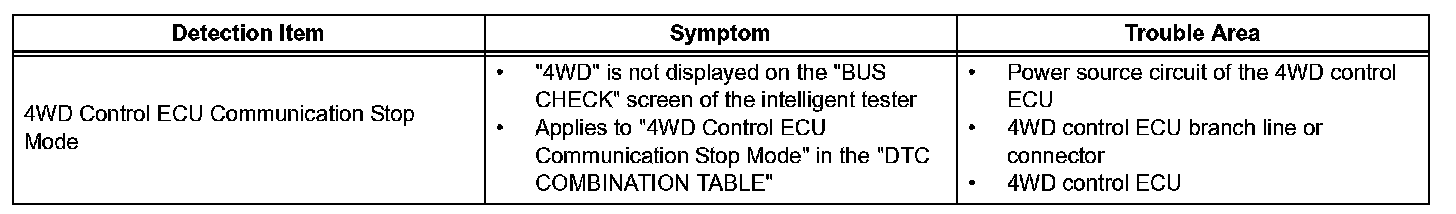

Detection Item:






HINT: "4WD" refers to the circuit that includes the 4WD control ECU.

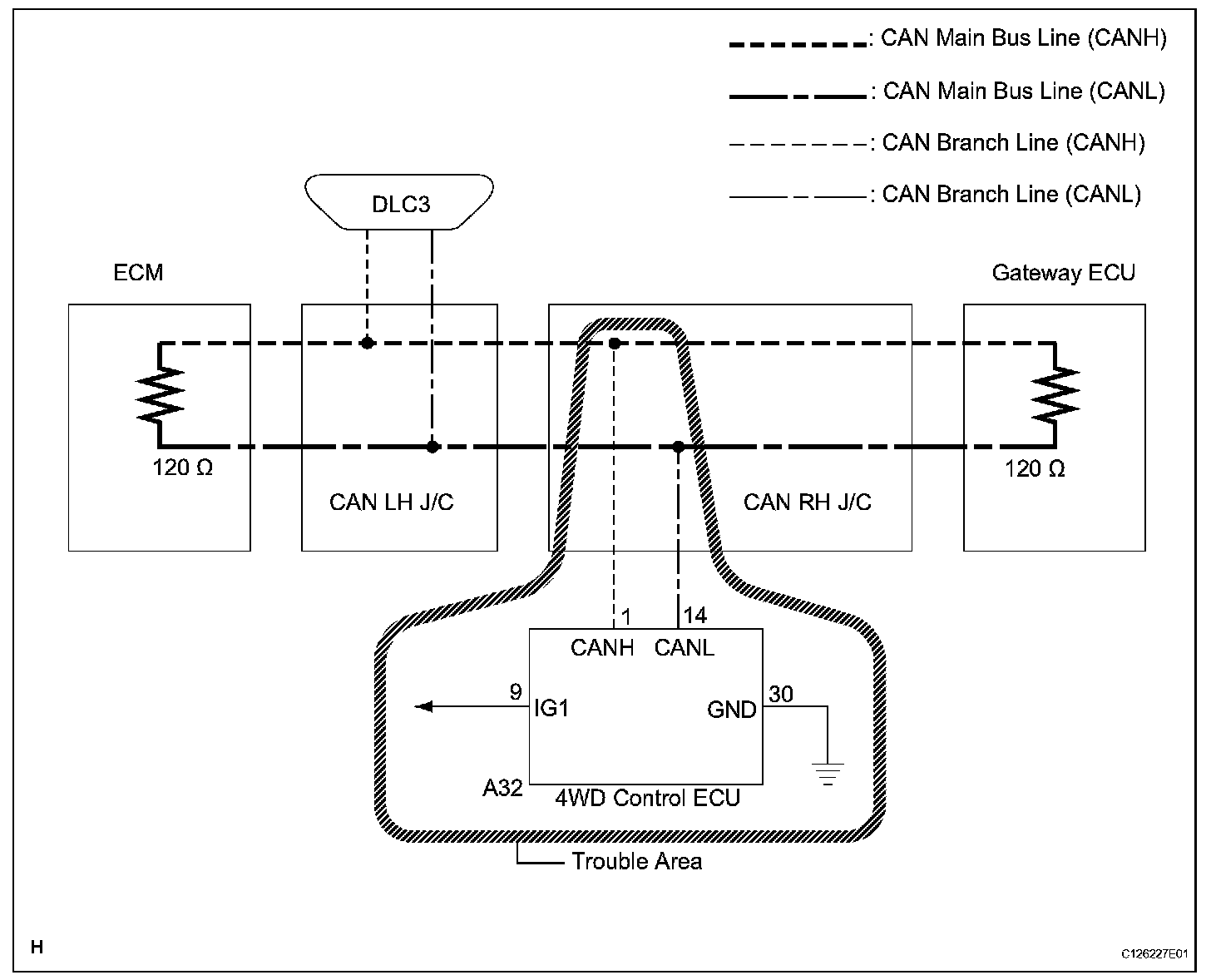

Wiring Diagram:

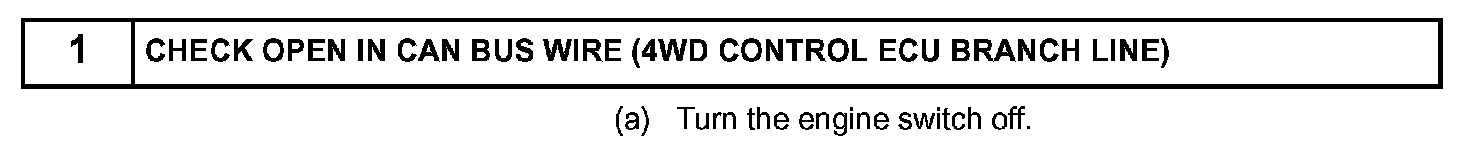

Step 1:

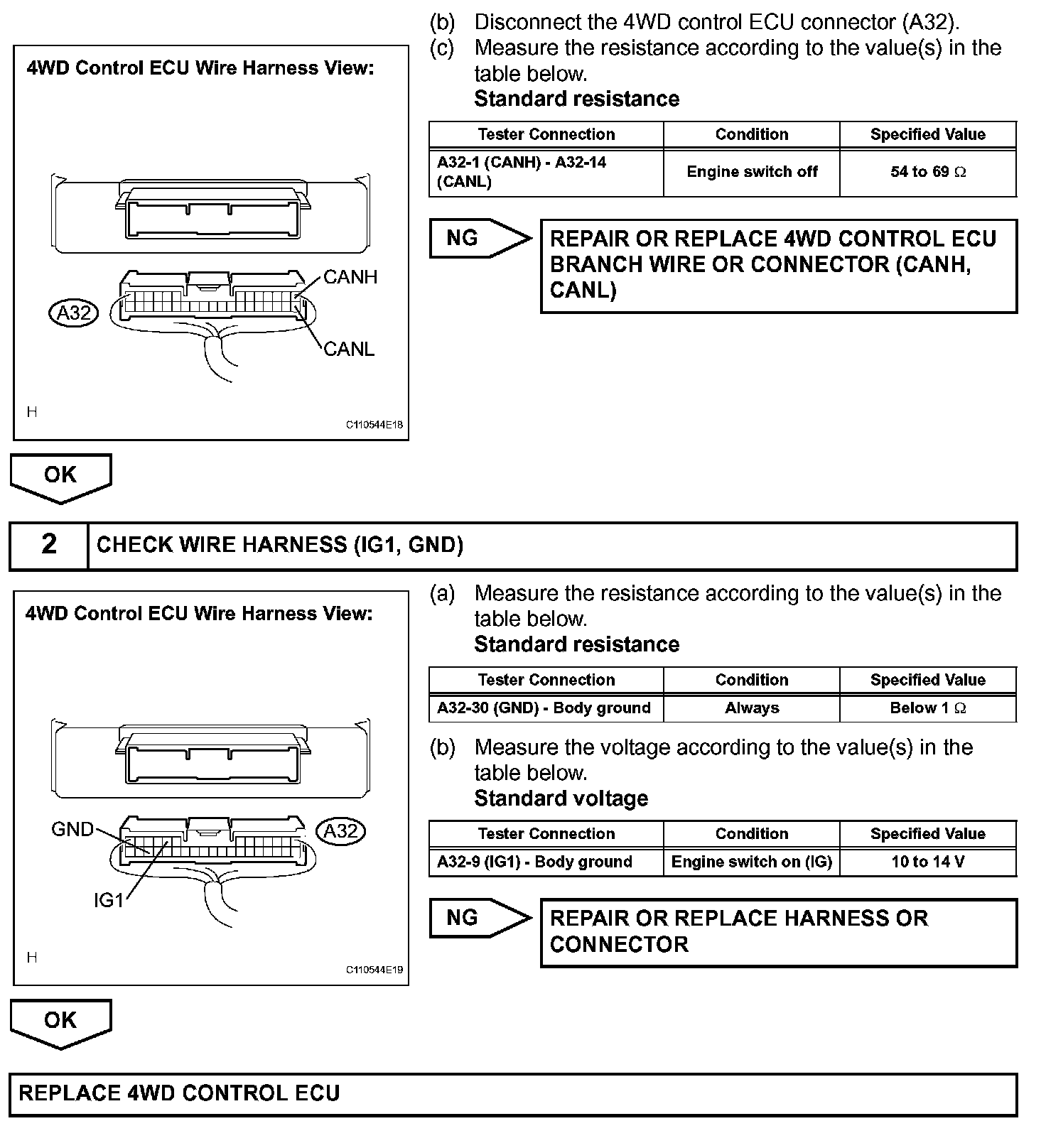

Step 1 (Continued)-2:




INSPECTION PROCEDURE
