Power Mirror Switch: Testing and Inspection

INSPECTION

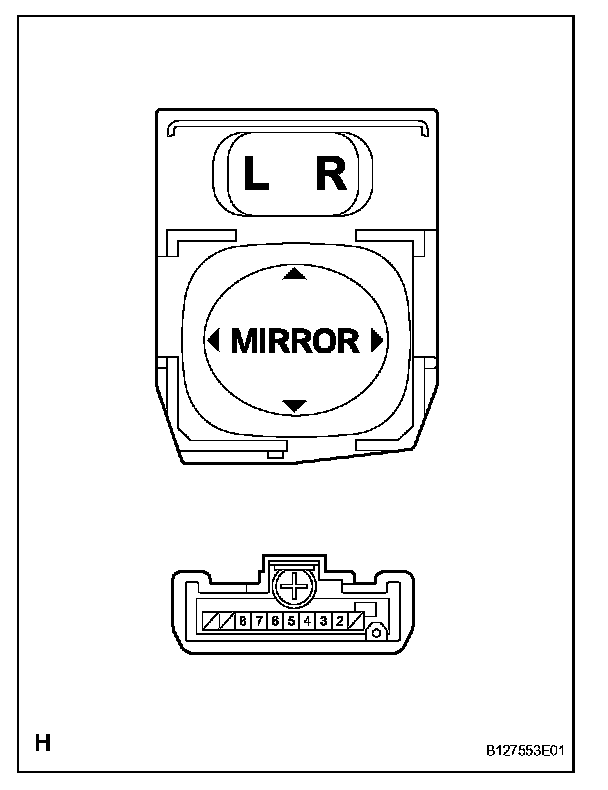

1. INSPECT OUTER MIRROR SWITCH (w/o Seat Position Memory System)








a. Inspect the outer mirror switch.

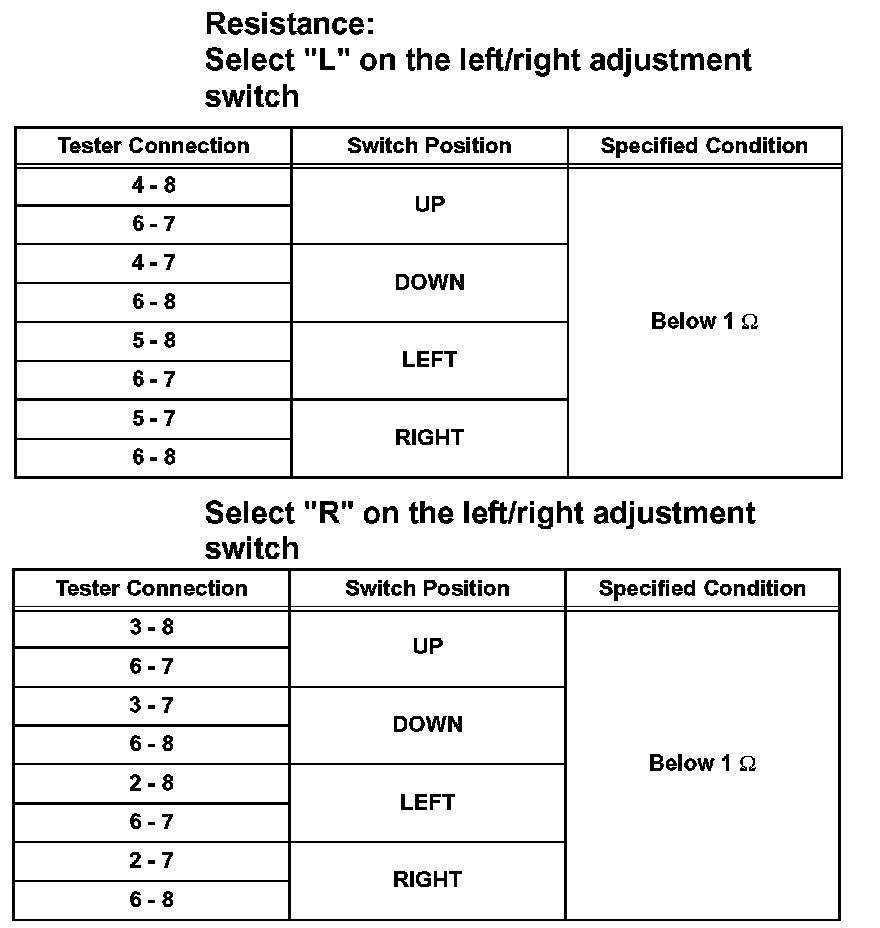

1. Measure the resistance according to the value(s) in the table when the switch is operated.

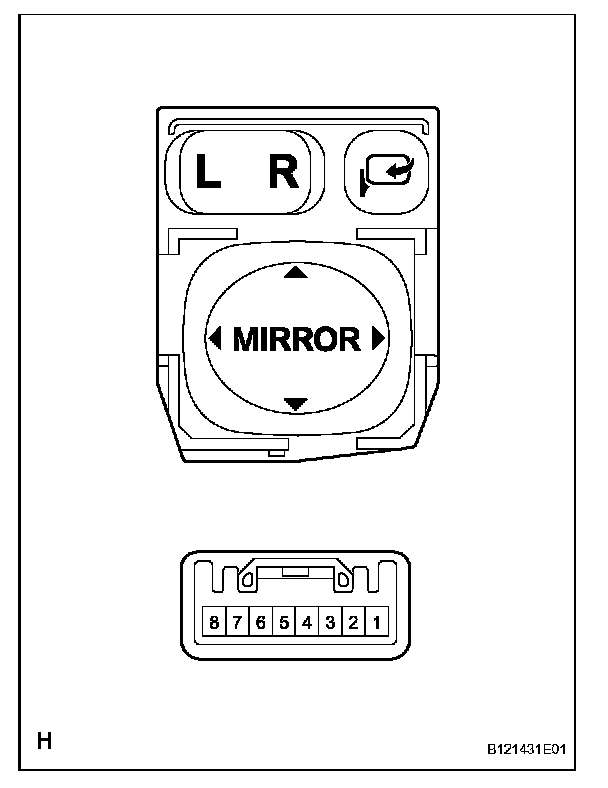

2. INSPECT OUTER MIRROR SWITCH (w/ Seat Position Memory System)








a. Inspect the outer mirror switch.
1. Measure the resistance according to the value(s) in the table when the switch is operated.
