ABS, TRAC and VSC

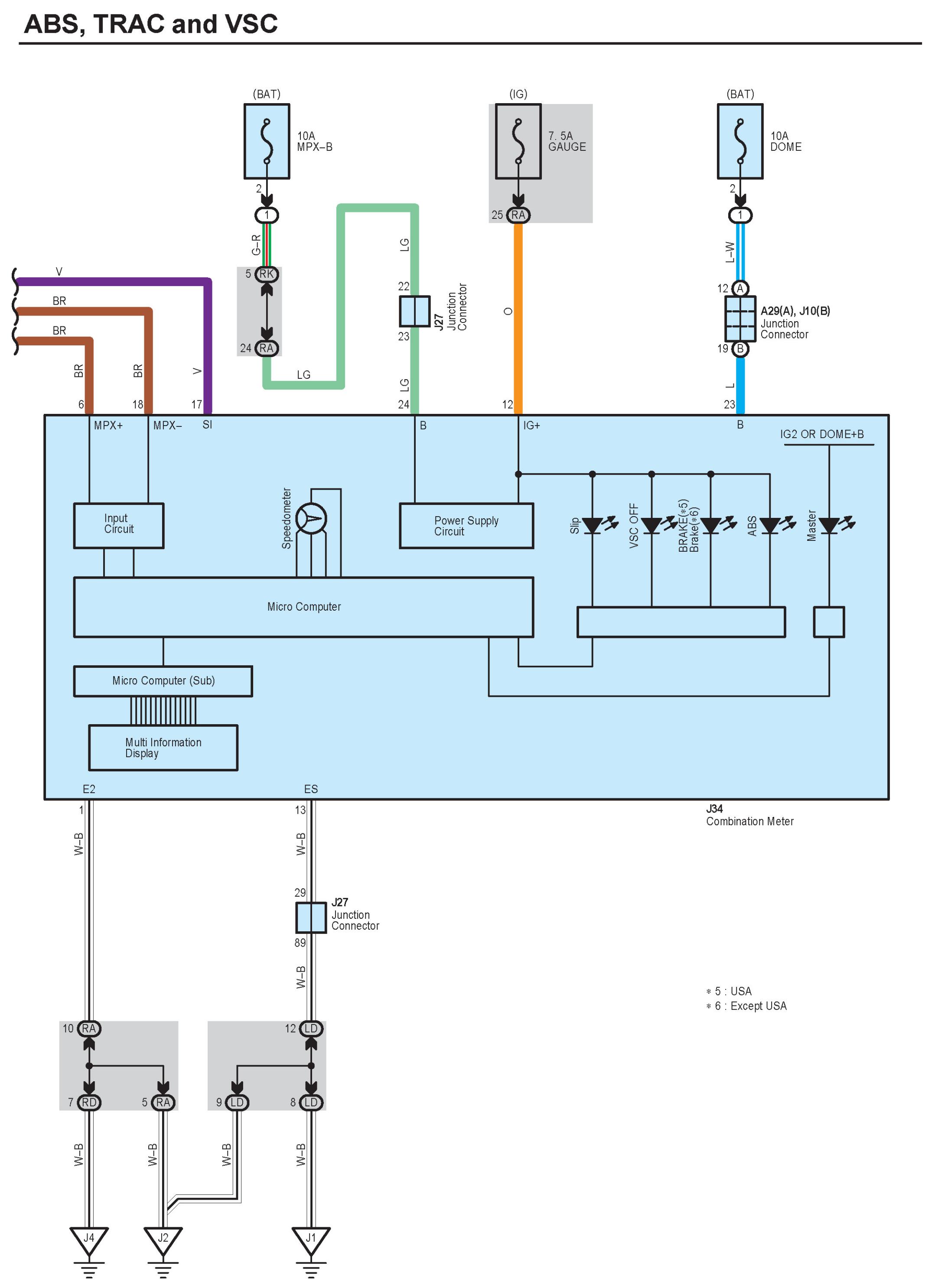

ABS,TRAC And VSC Part 1:

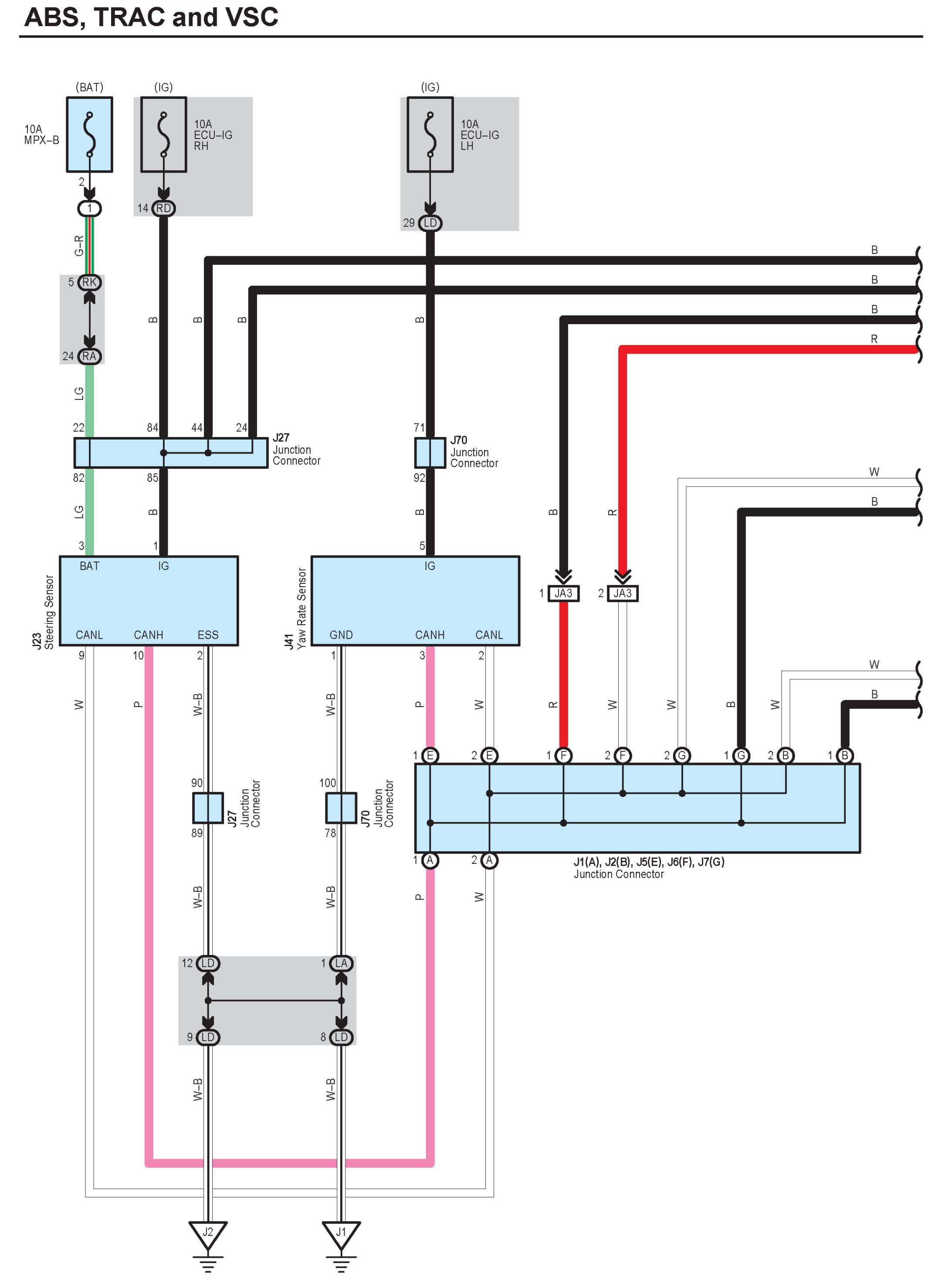

ABS,TRAC And VSC Part 2:

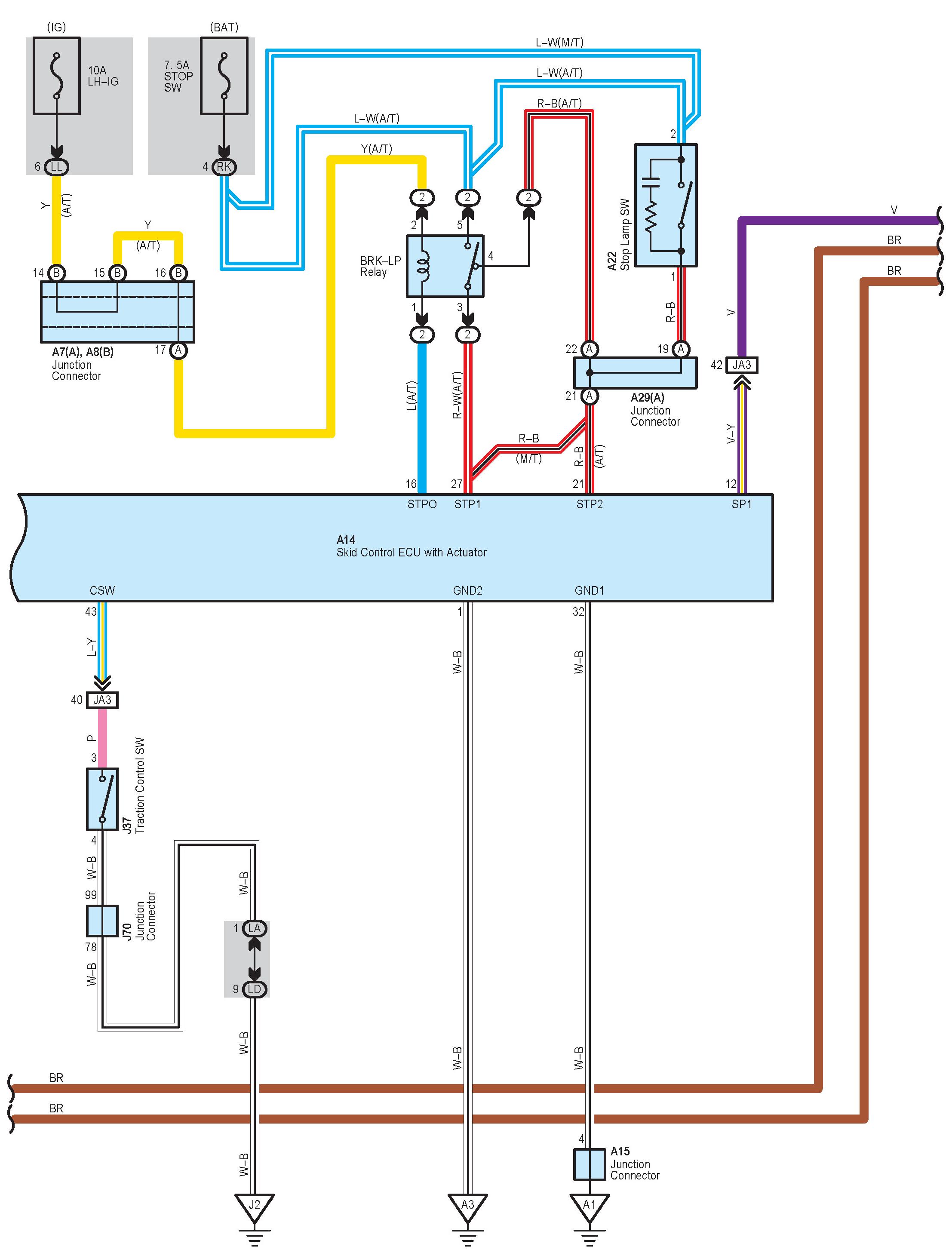

ABS,TRAC And VSC Part 3:

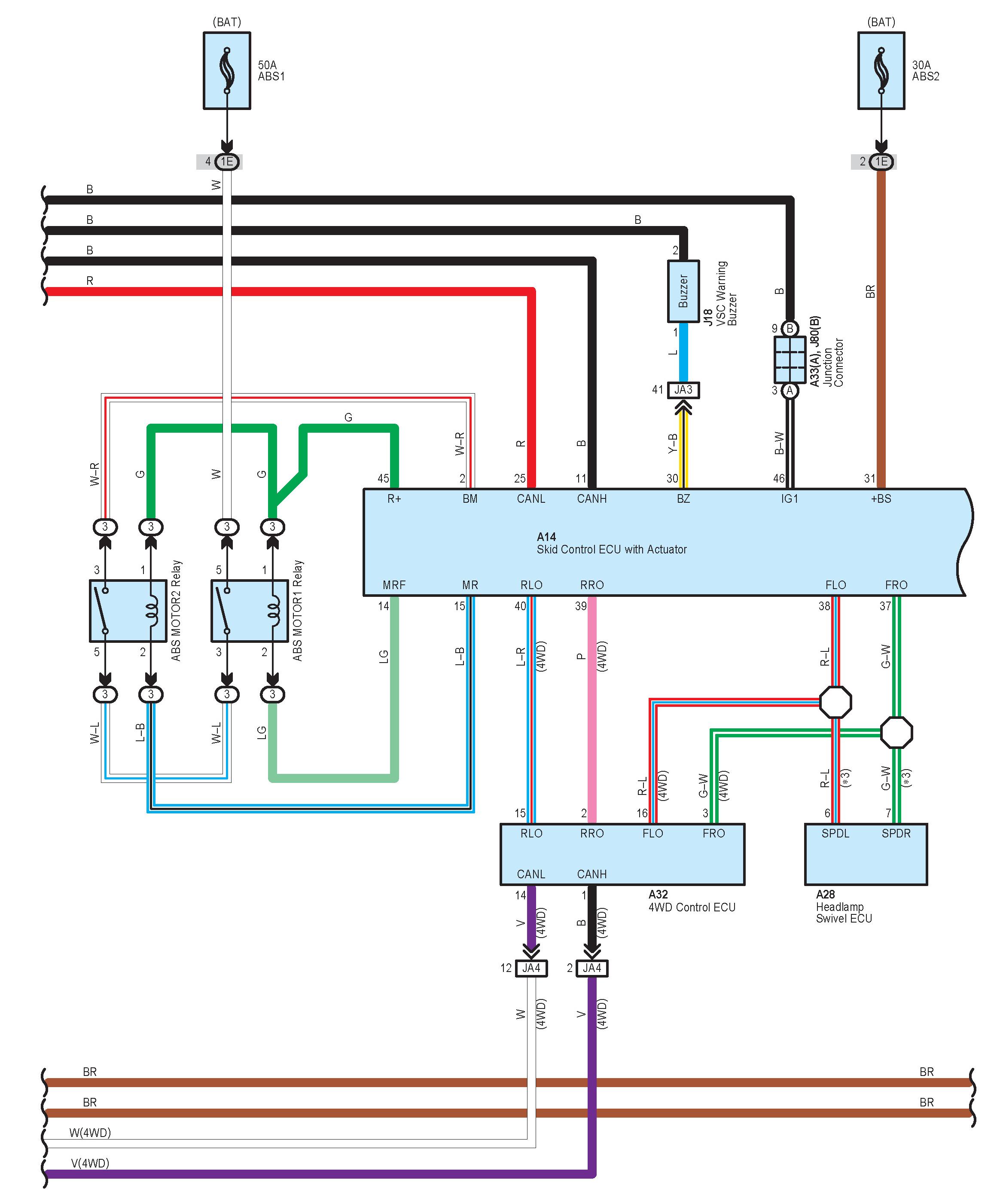

ABS,TRAC And VSC Part 4:

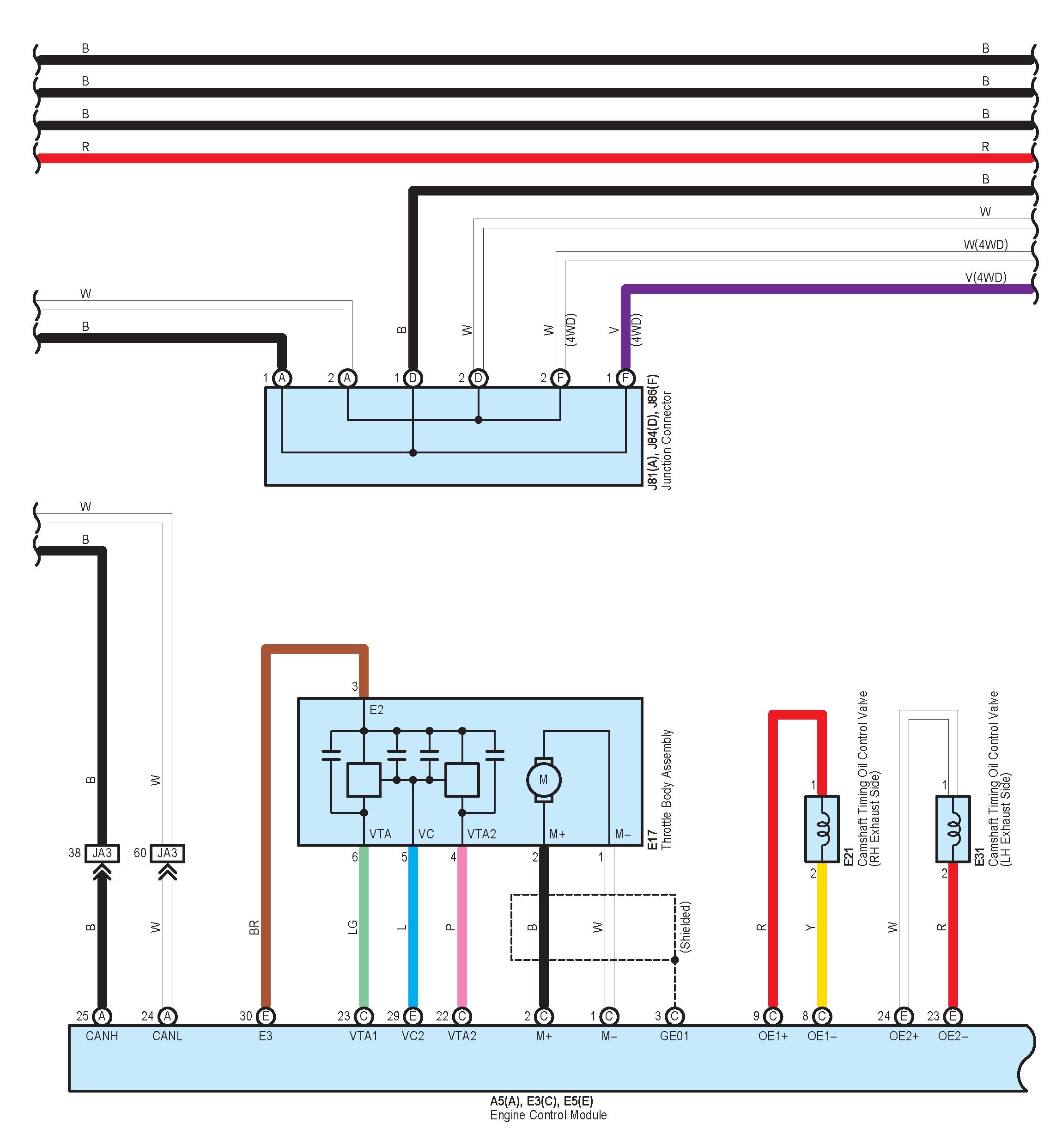

ABS,TRAC And VSC Part 5:

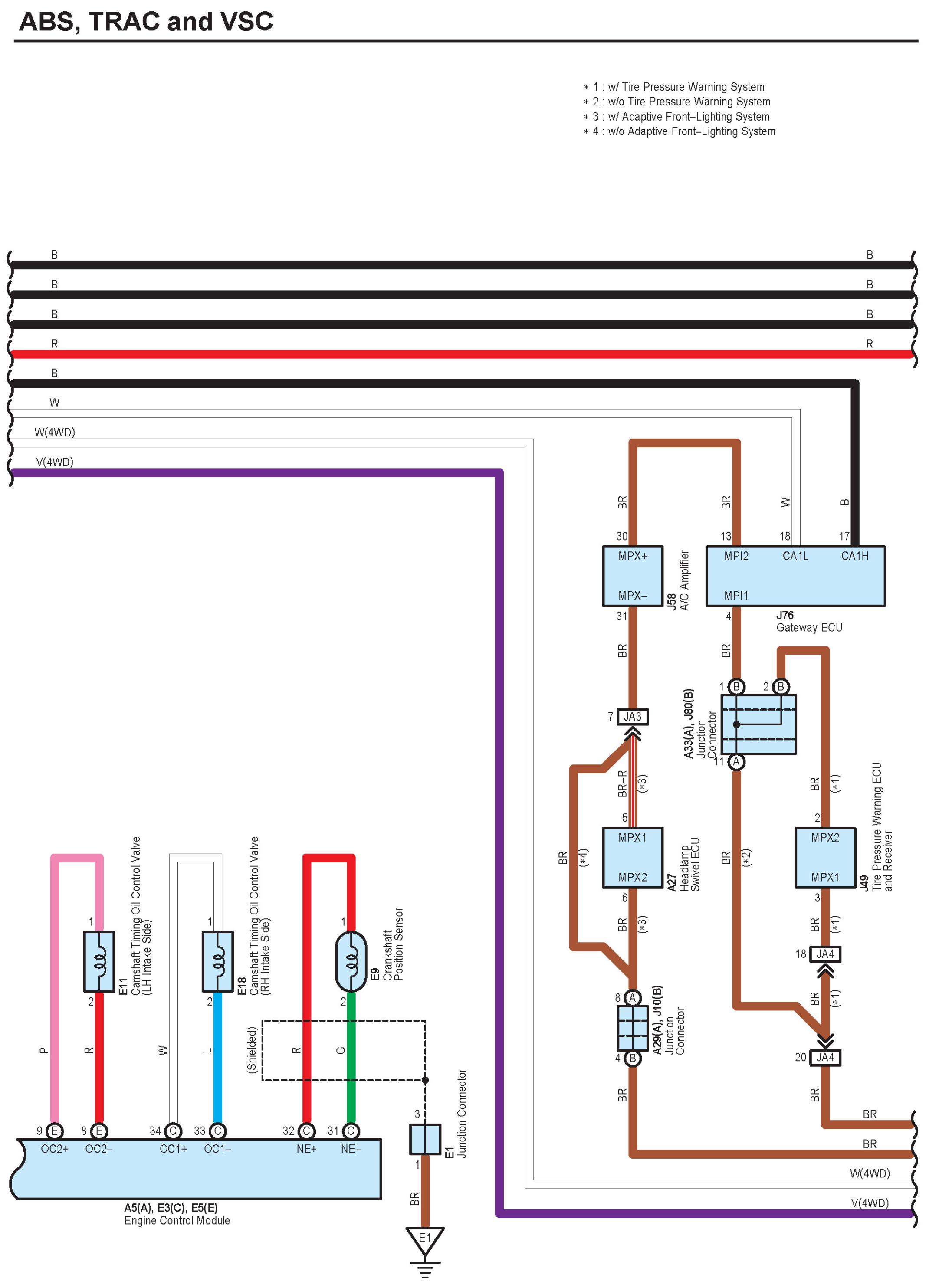

ABS,TRAC And VSC Part 6:

ABS,TRAC And VSC Part 7:

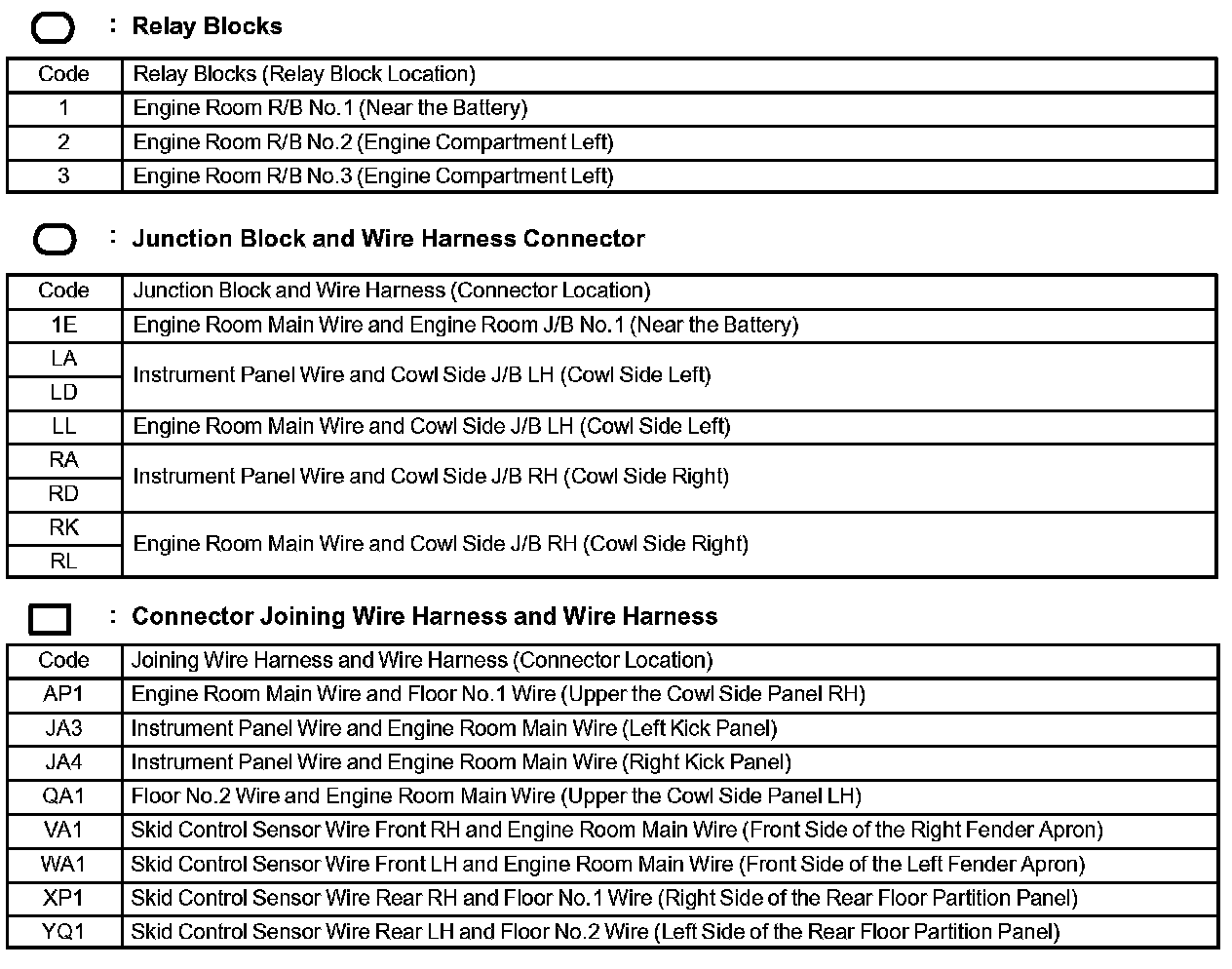

Diagram Legend Part 1:

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
