Headlight

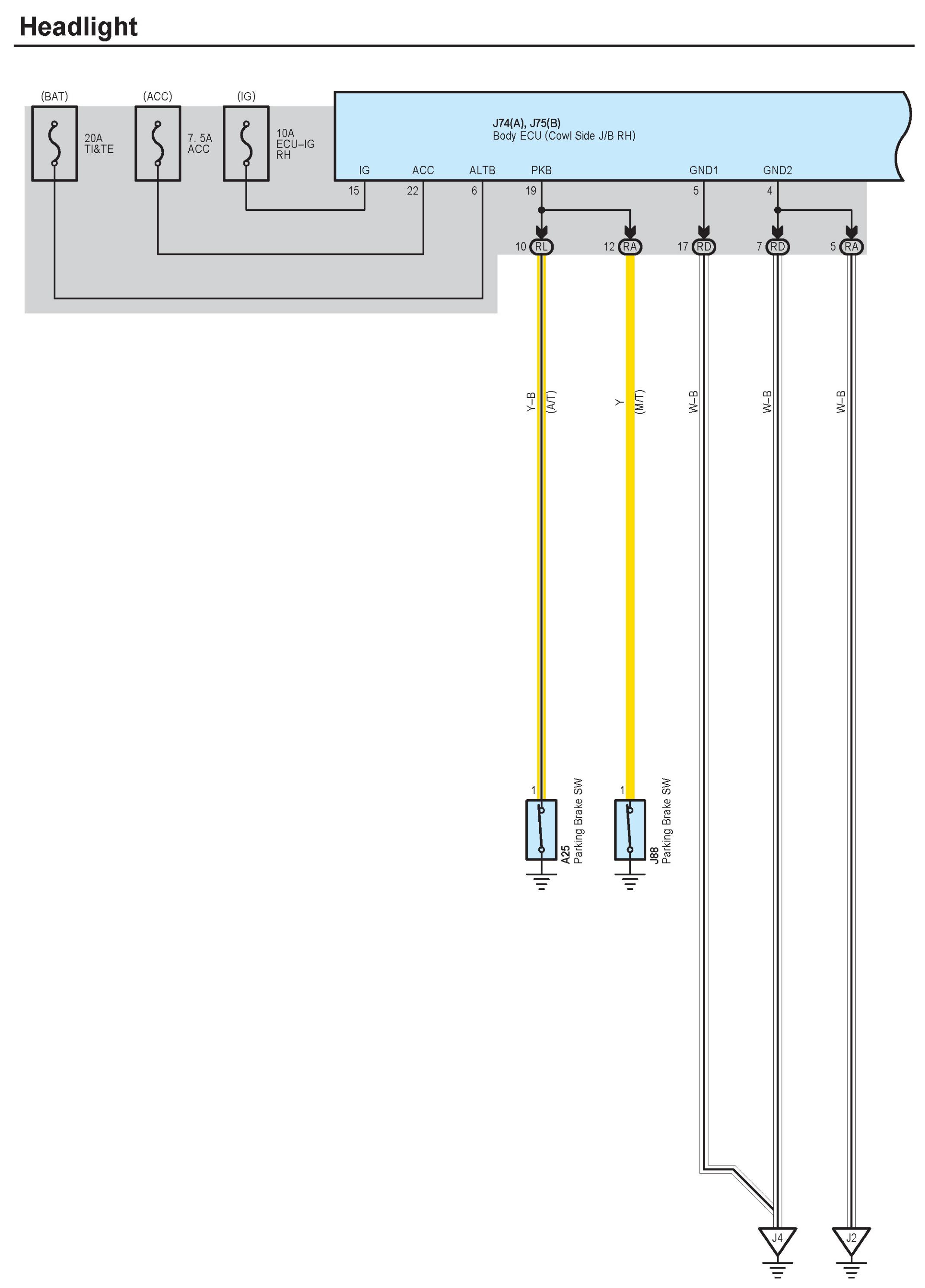

Headlight Part 1:

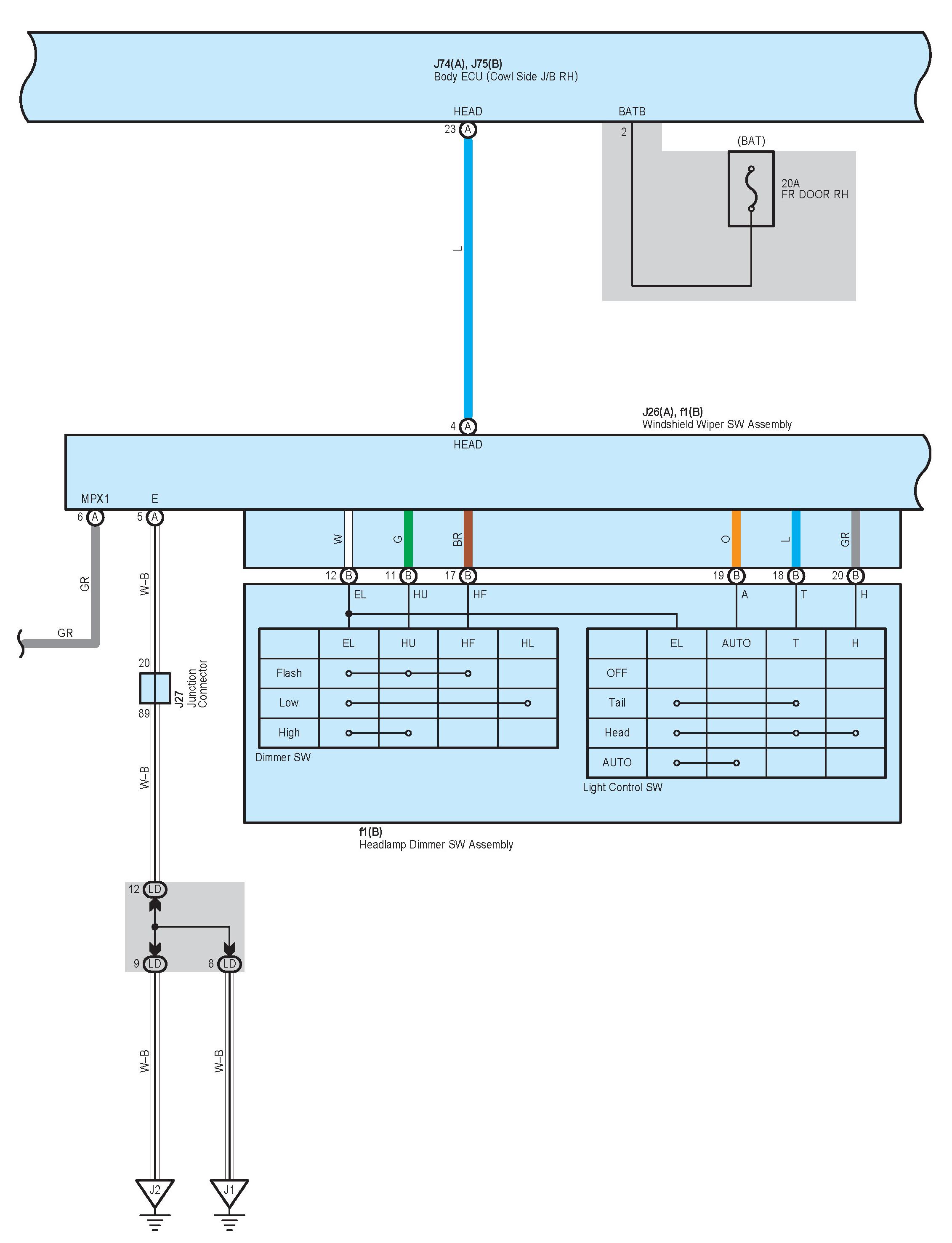

Headlight Part 2:

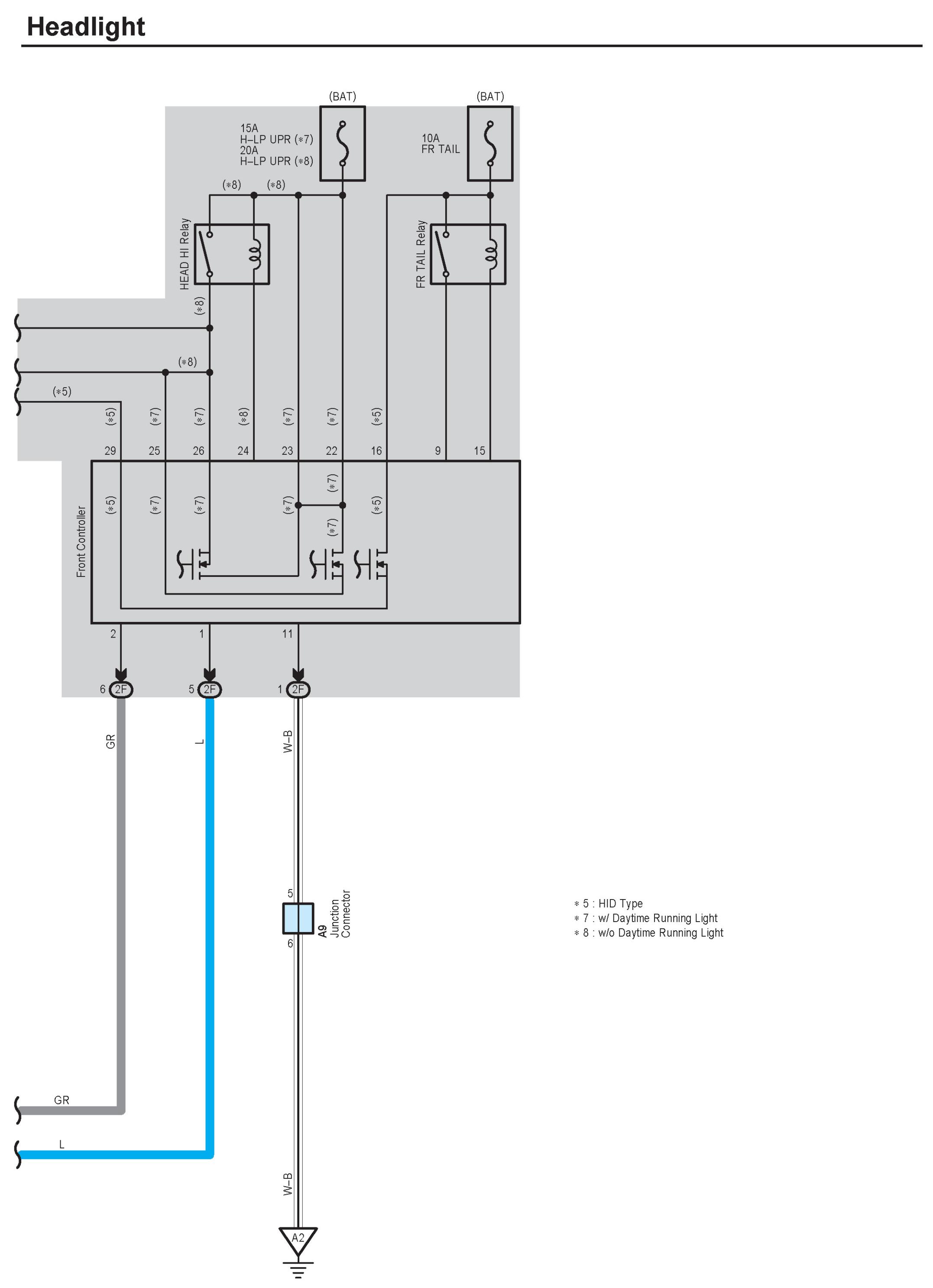

Headlight Part 3:

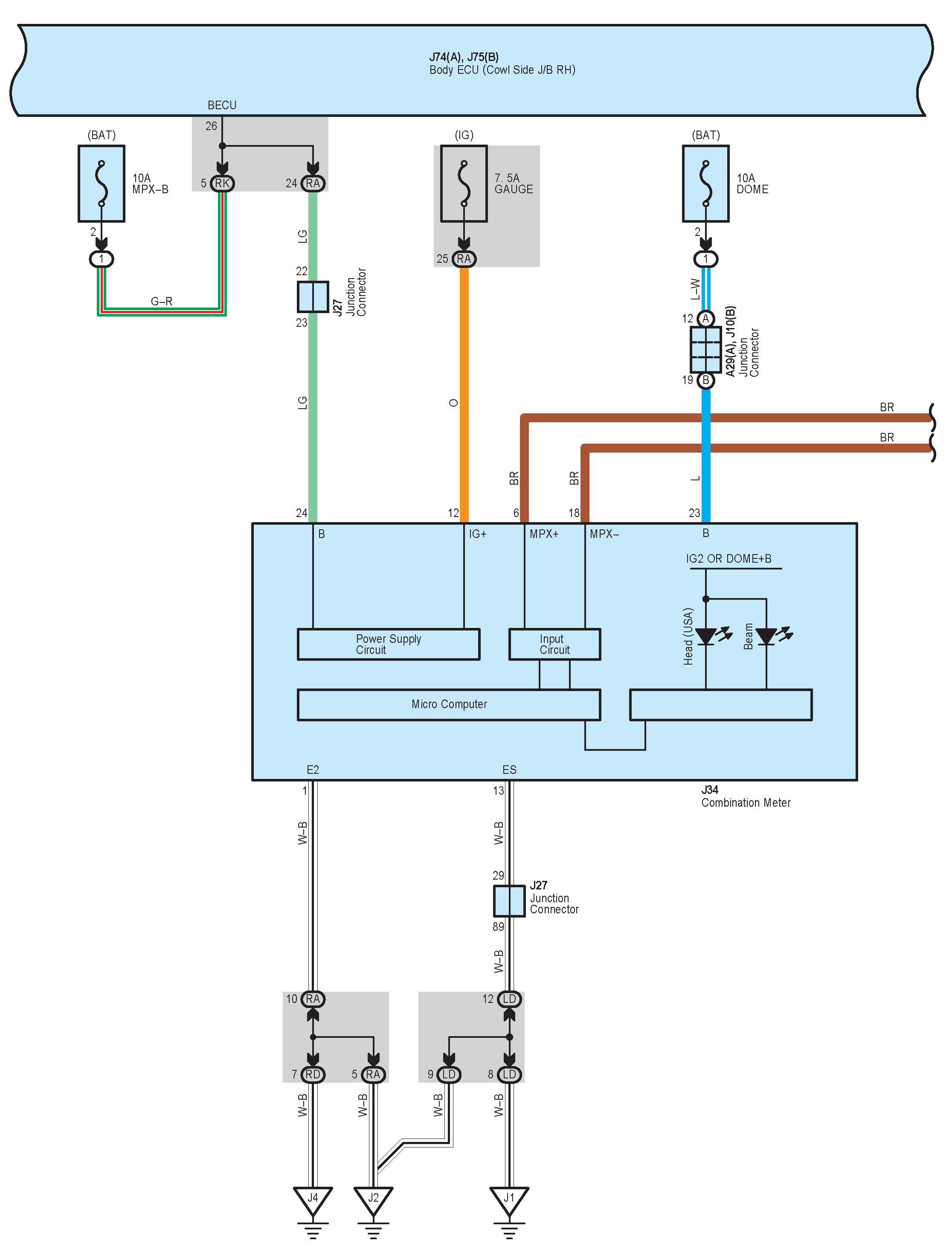

Headlight Part 4:

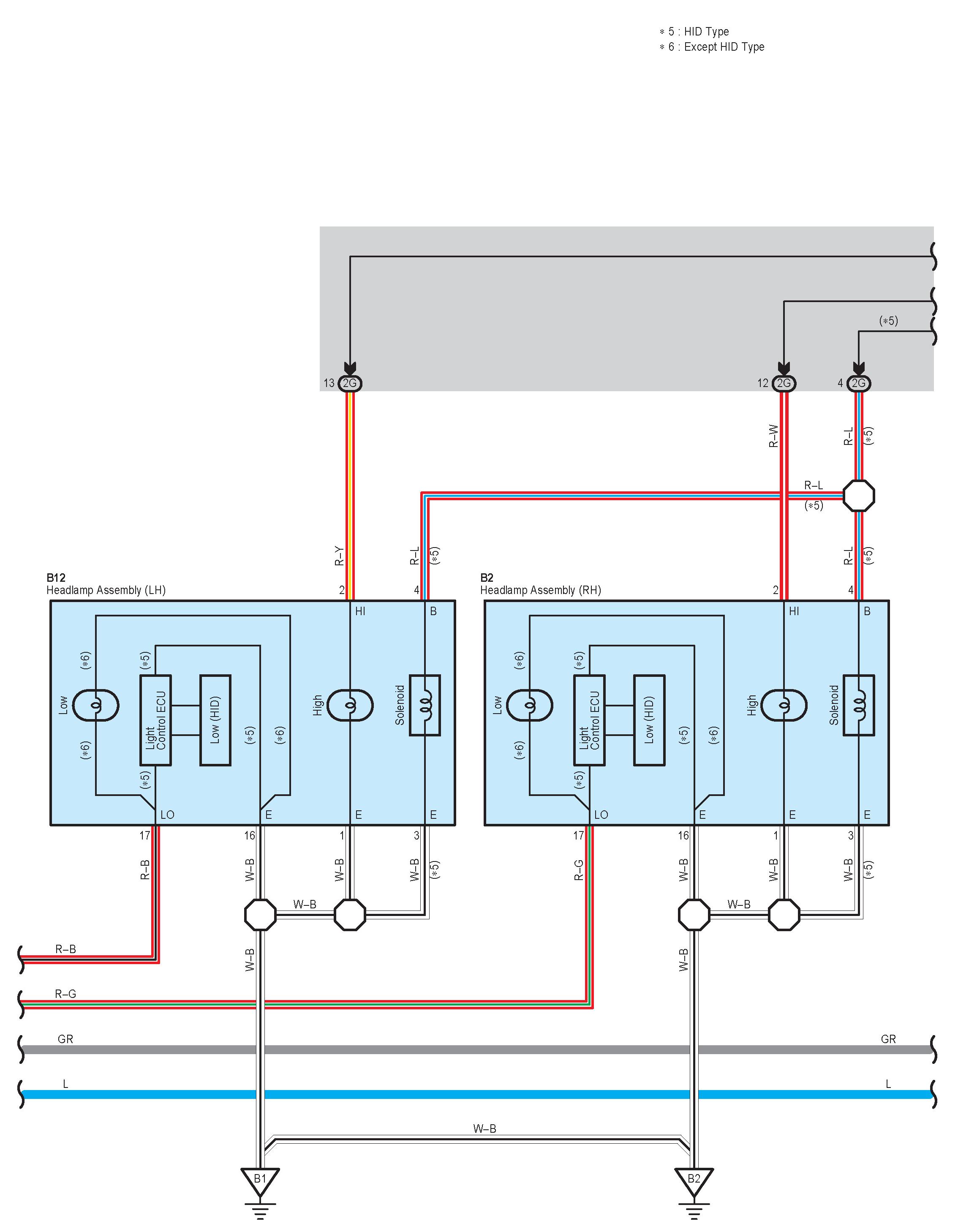

Headlight Part 5:

Headlight Part 6:

Headlight Part 7:

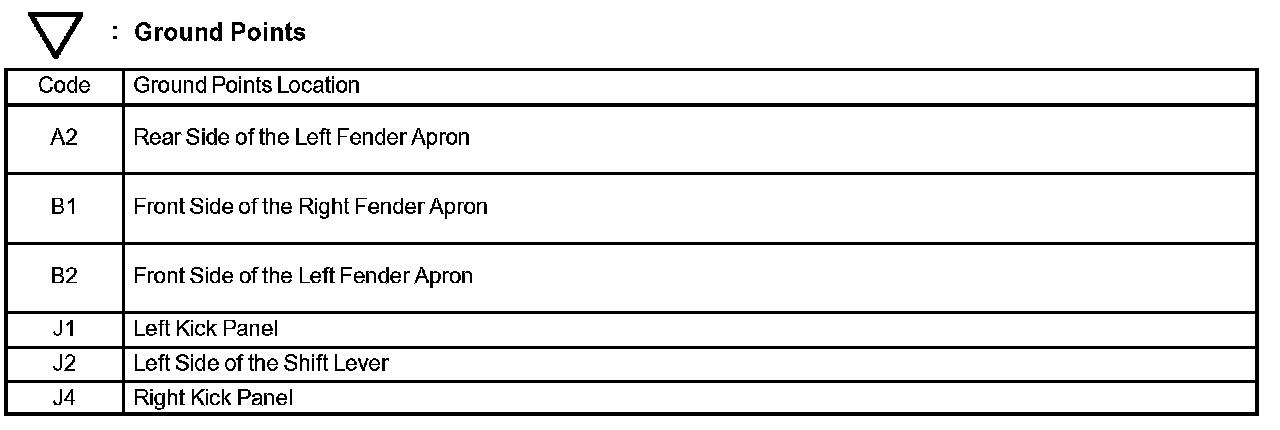

Diagram Legend Part 1:

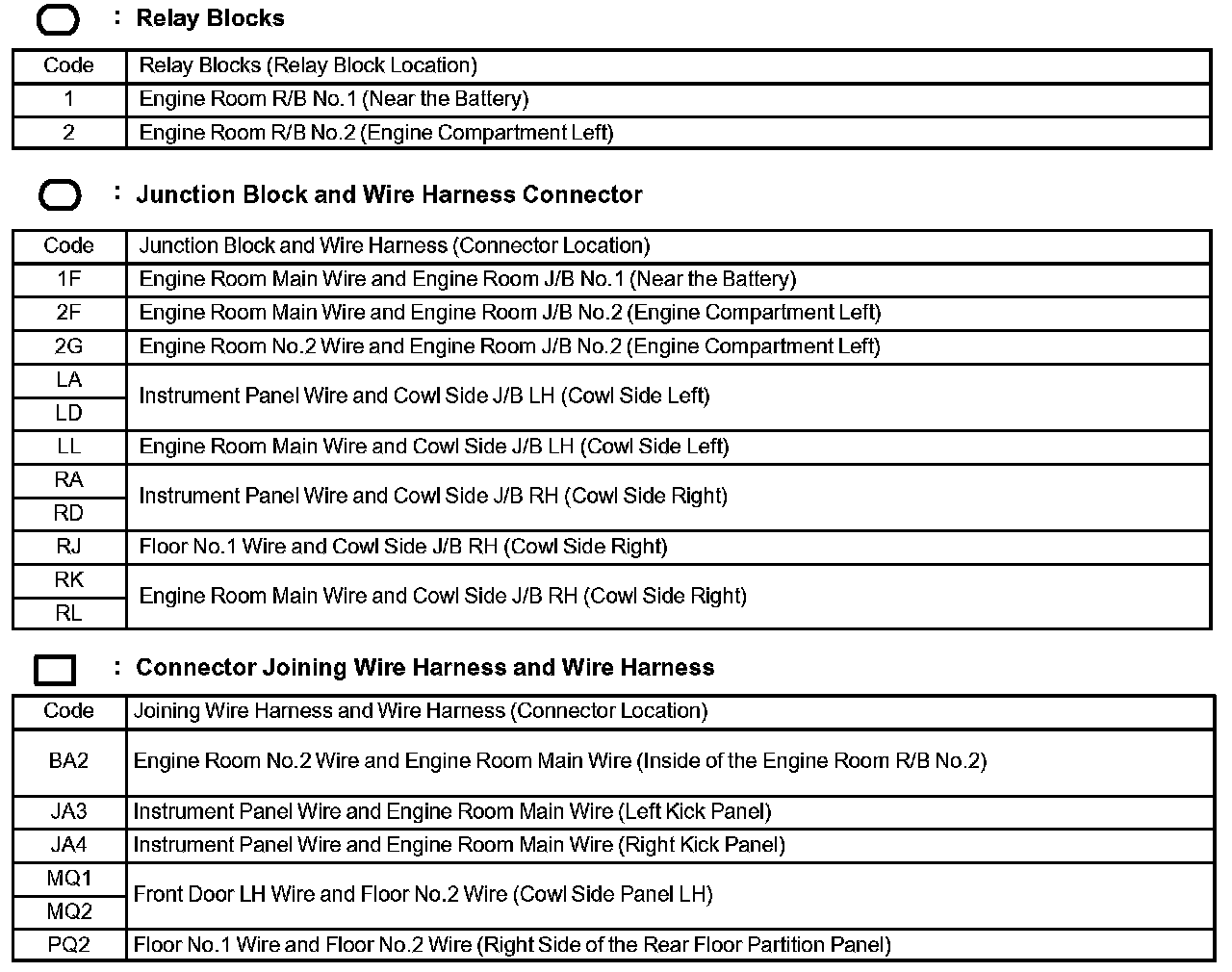

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
