Hazard Warning Switch Circuit
Hazard Warning Switch CircuitDESCRIPTION
The hazard warning switch sends a signal to the turn signal flasher.
The turn signal flasher blinks the turn signal lights.
Also, the main body ECU RH activates the flasher relay when the alarm of the theft deterrent system goes off.

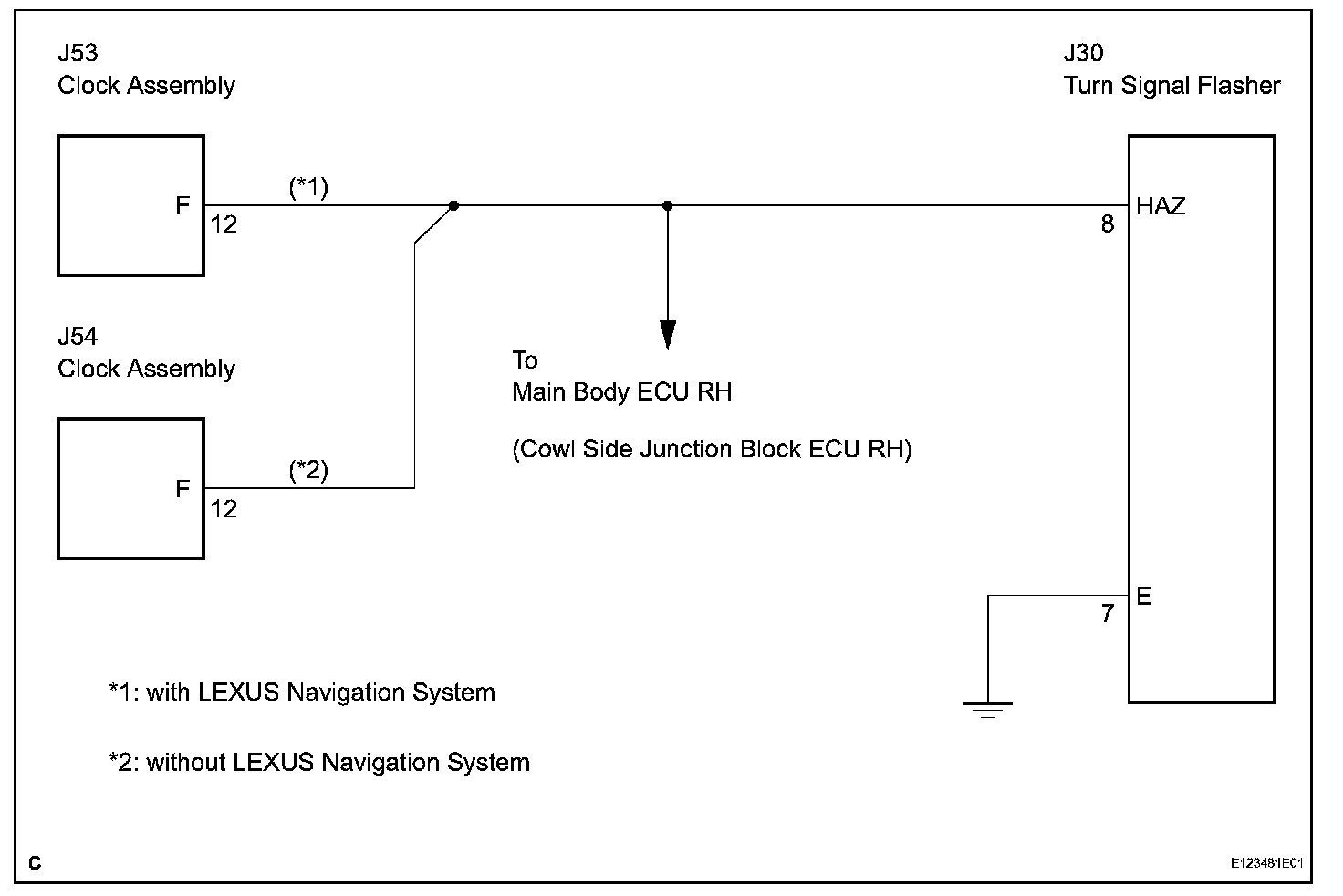

Wiring Diagram:
Step 1:
Step 1 (Continued)-3:
Step 3 (Continued)-5:
Step 5 (Continued)-6:

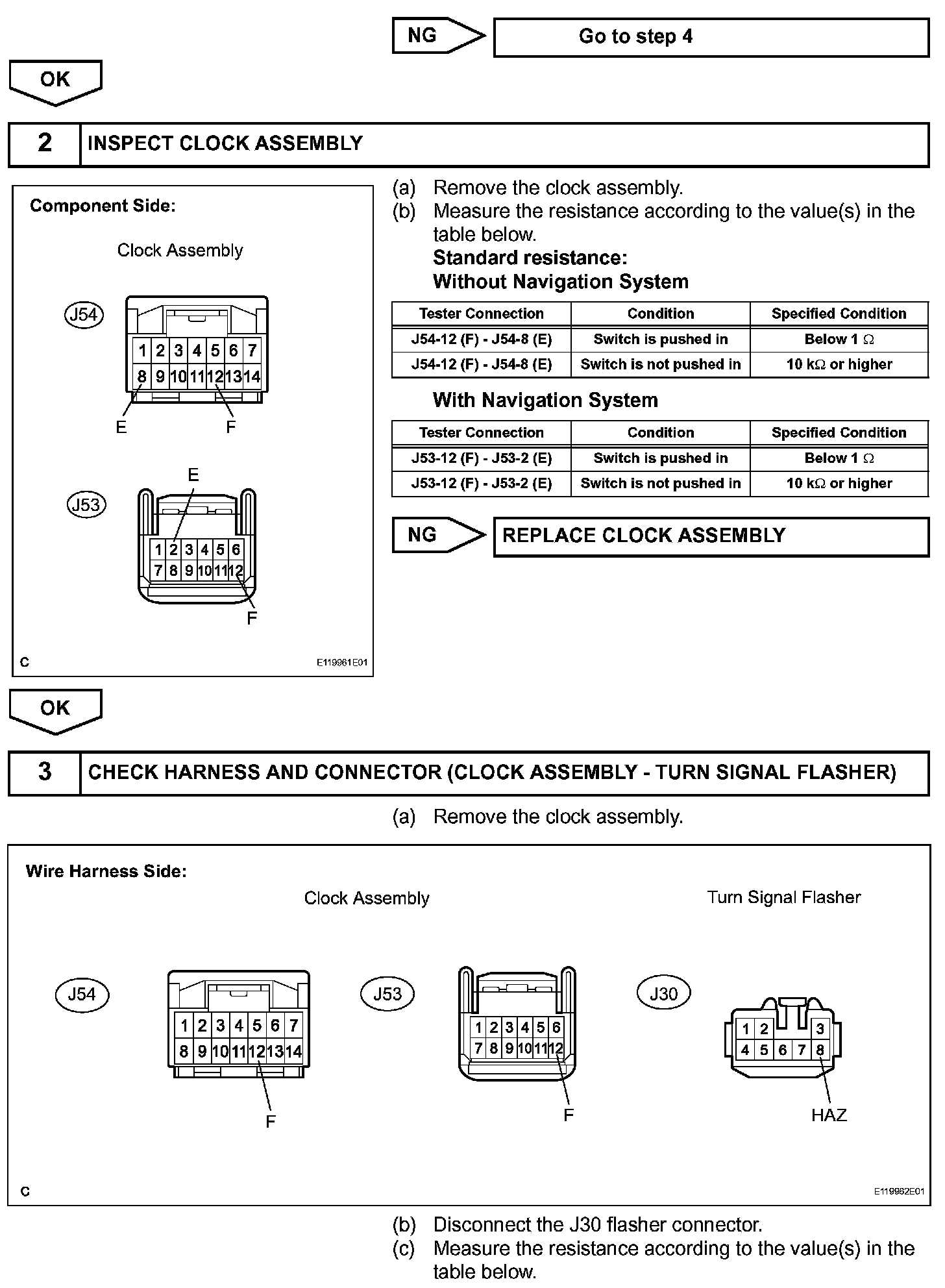

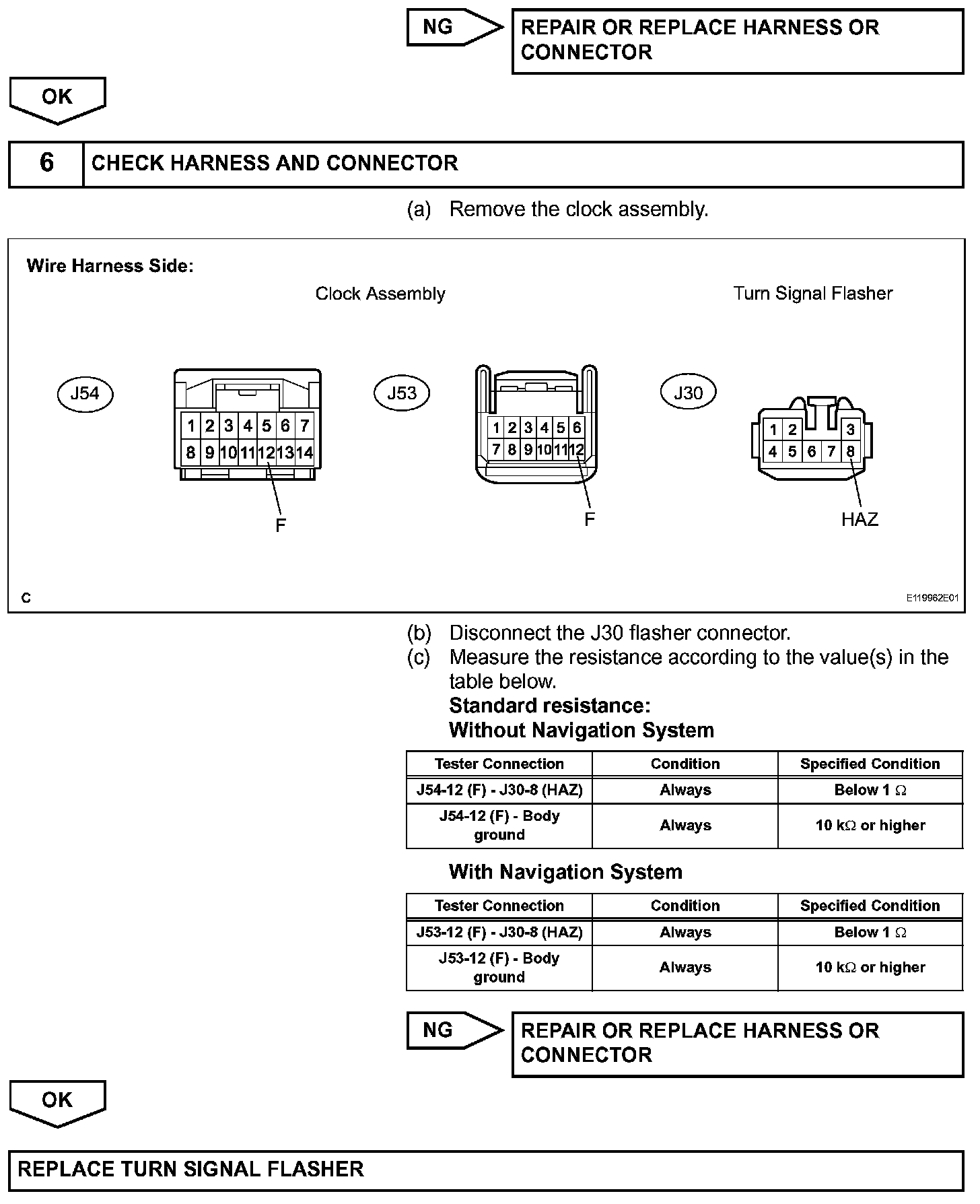

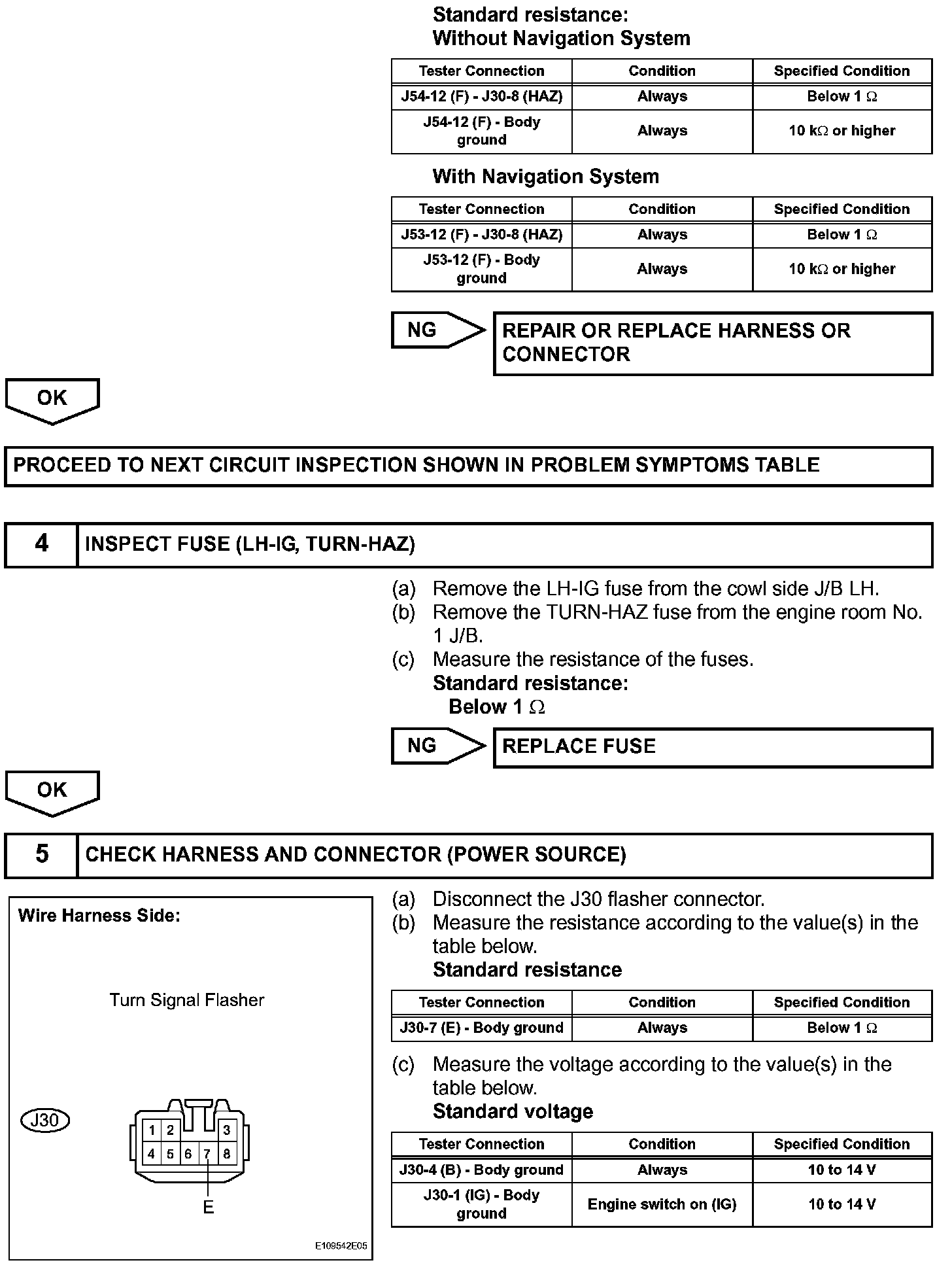

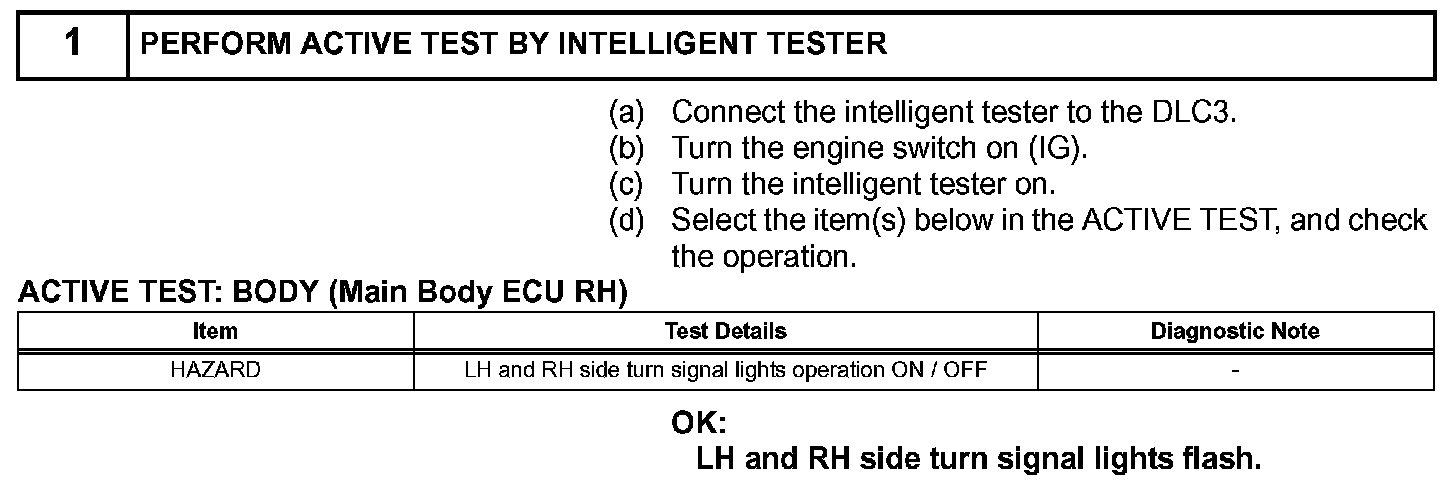

INSPECTION PROCEDURE
