Alarm Module: Testing and Inspection
Power Source CircuitDESCRIPTIONThis circuit provides power to operate the theft warning ECU assembly.

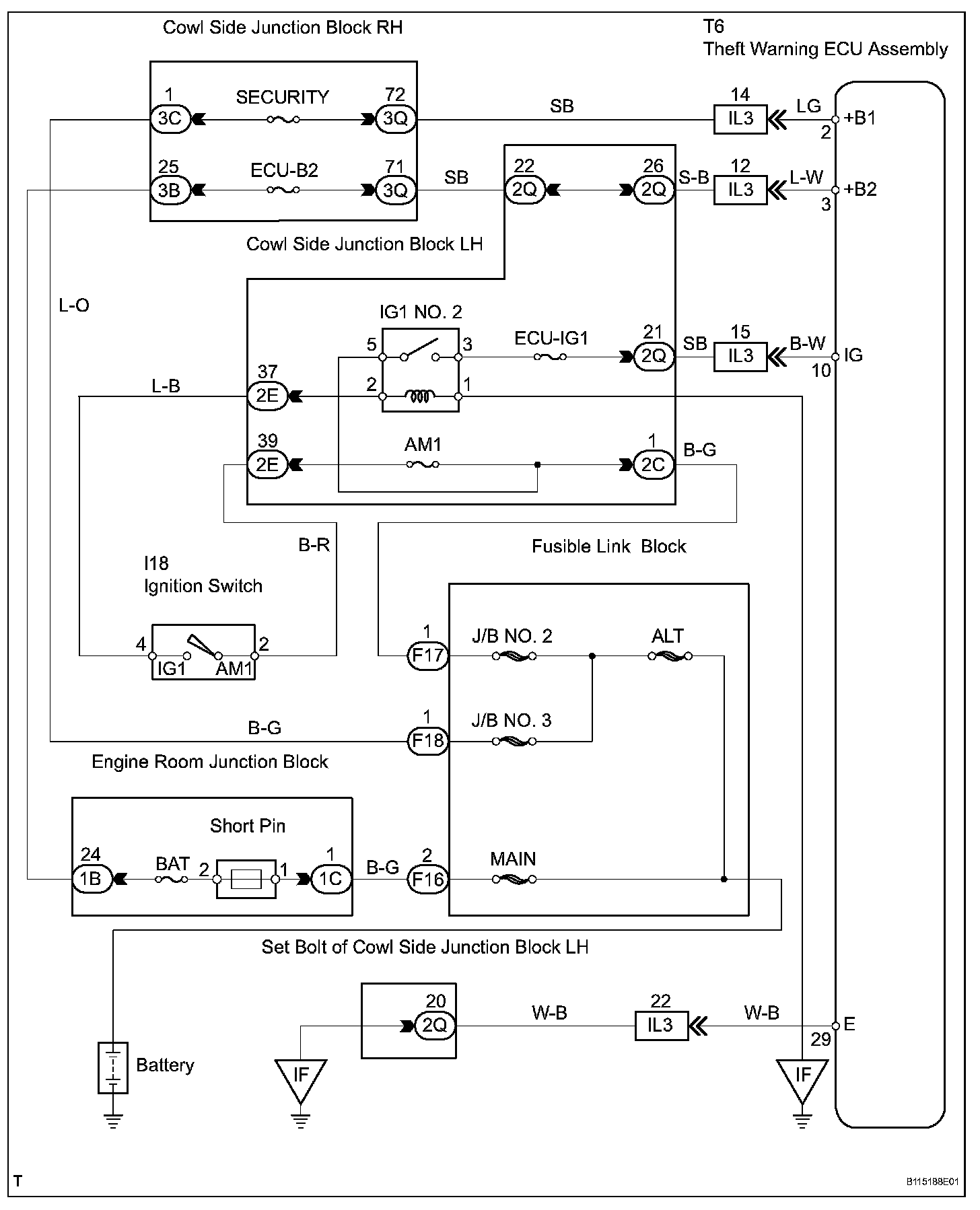

Wiring Diagram:

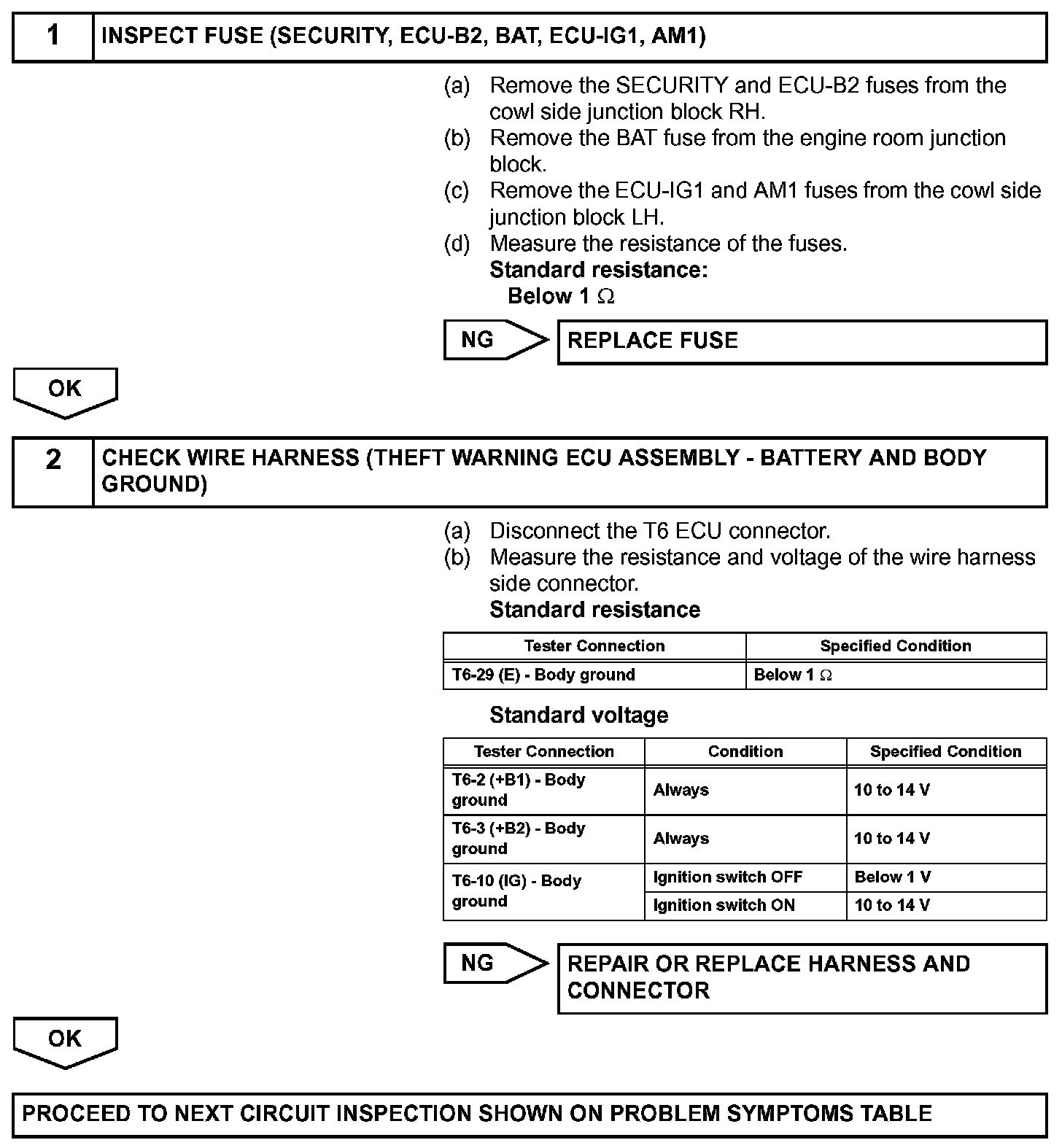

INSPECTION PROCEDUREStep 1-2:
