Front Door Lock

Front Door Lock:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

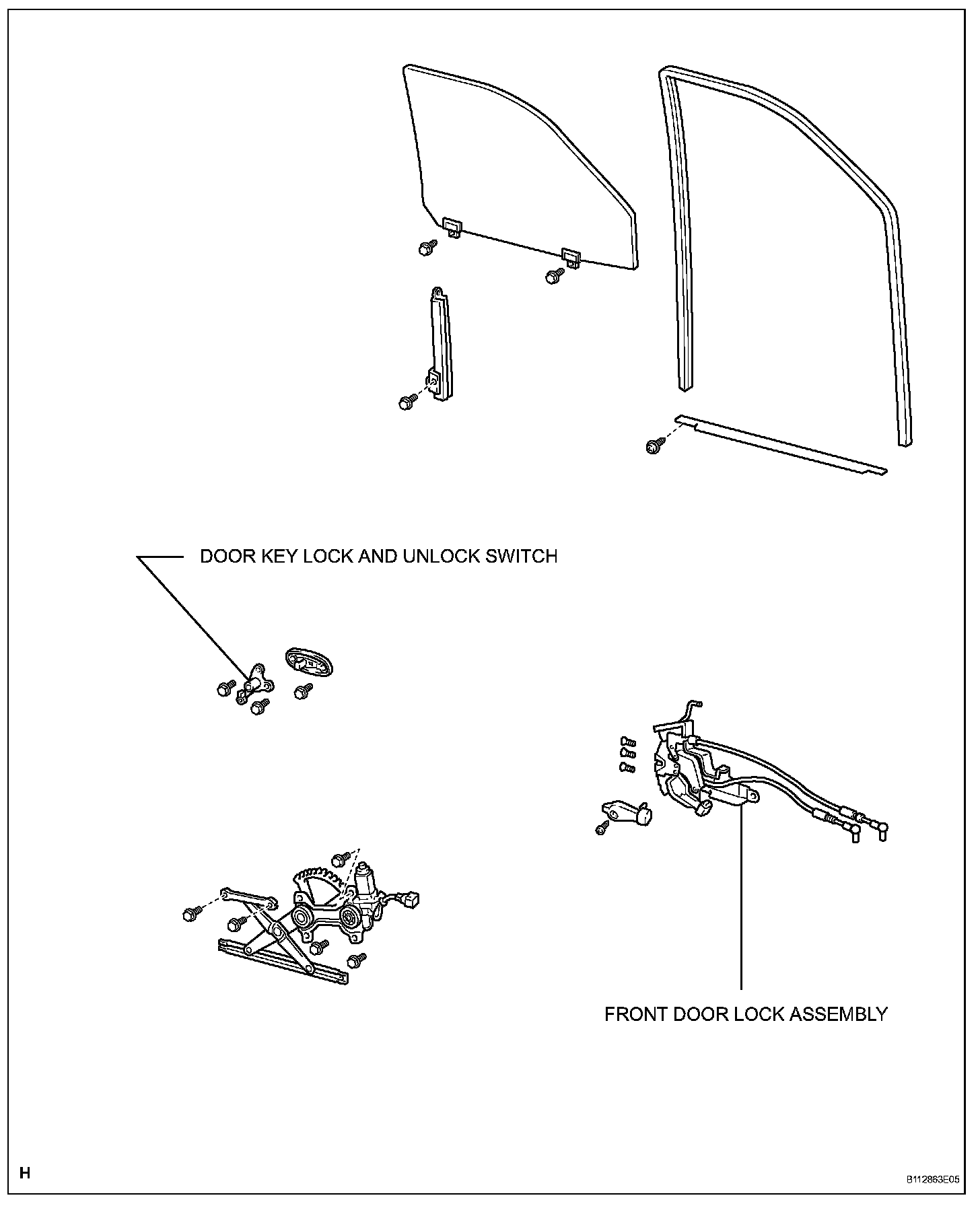

2. REMOVE FRONT DOOR LOCK ASSEMBLY
a. Remove the door lock assembly.

INSTALLATION

1. INSTALL FRONT DOOR LOCK ASSEMBLY
a. Install the door lock assembly.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
