Door Control Switch
INSPECTION 1.

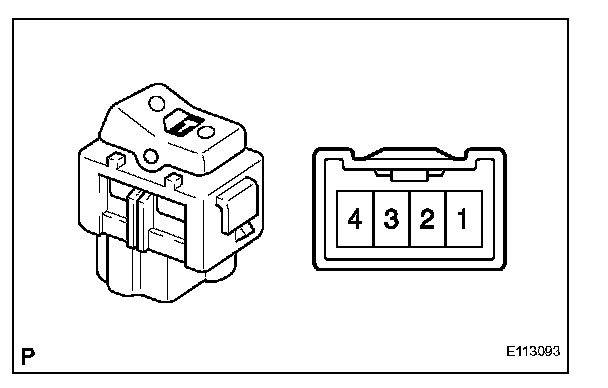

INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
a.

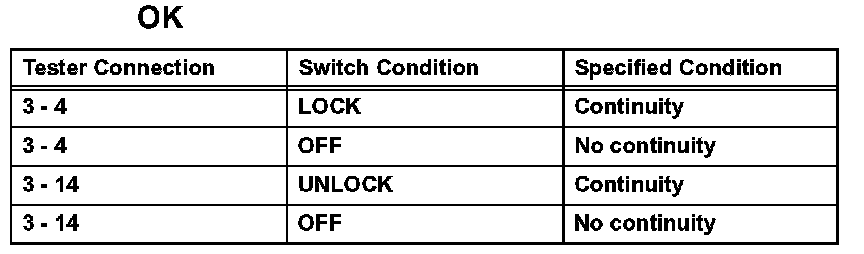

Check the continuity of the power window regulator master switch.
If the result is not as specified, replace the switch assembly.
2.

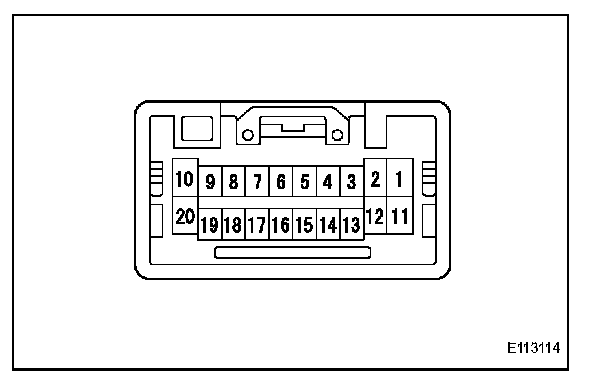

INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY
a.

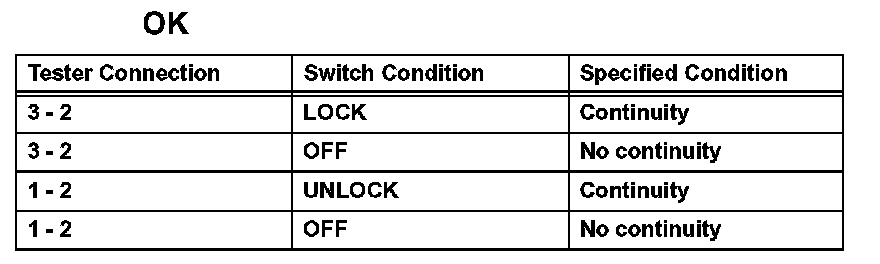

Check the continuity of the power window regulator switch.
If the result is not as specified, replace the switch assembly
