Data List

READ DATA LIST

HINT: The DATA LIST displayed on the intelligent tester, you can read the value of the switch, sensor, actuator and without removing any parts. Reading the DATA LIST of troubleshooting is one to time.

a. Connect the intelligent tester (with CAN VIM) to the DLC3.
b. Turn the ignition switch ON.

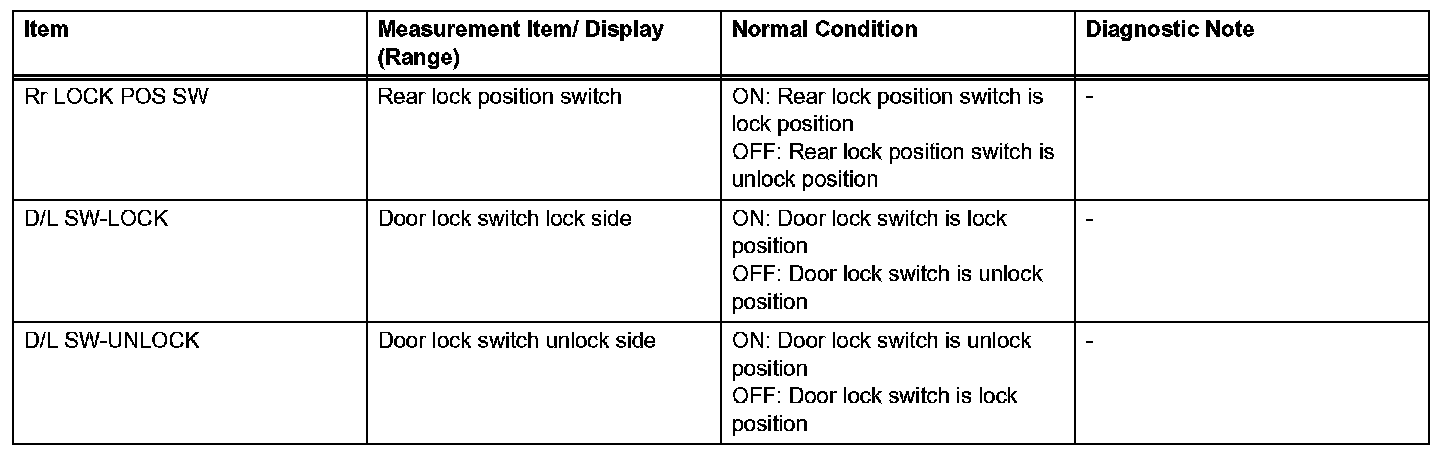

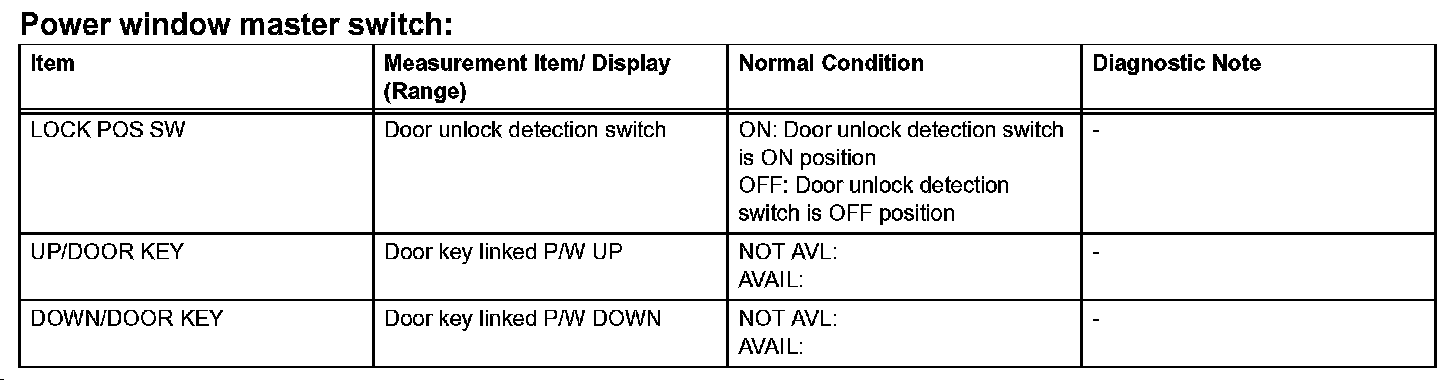

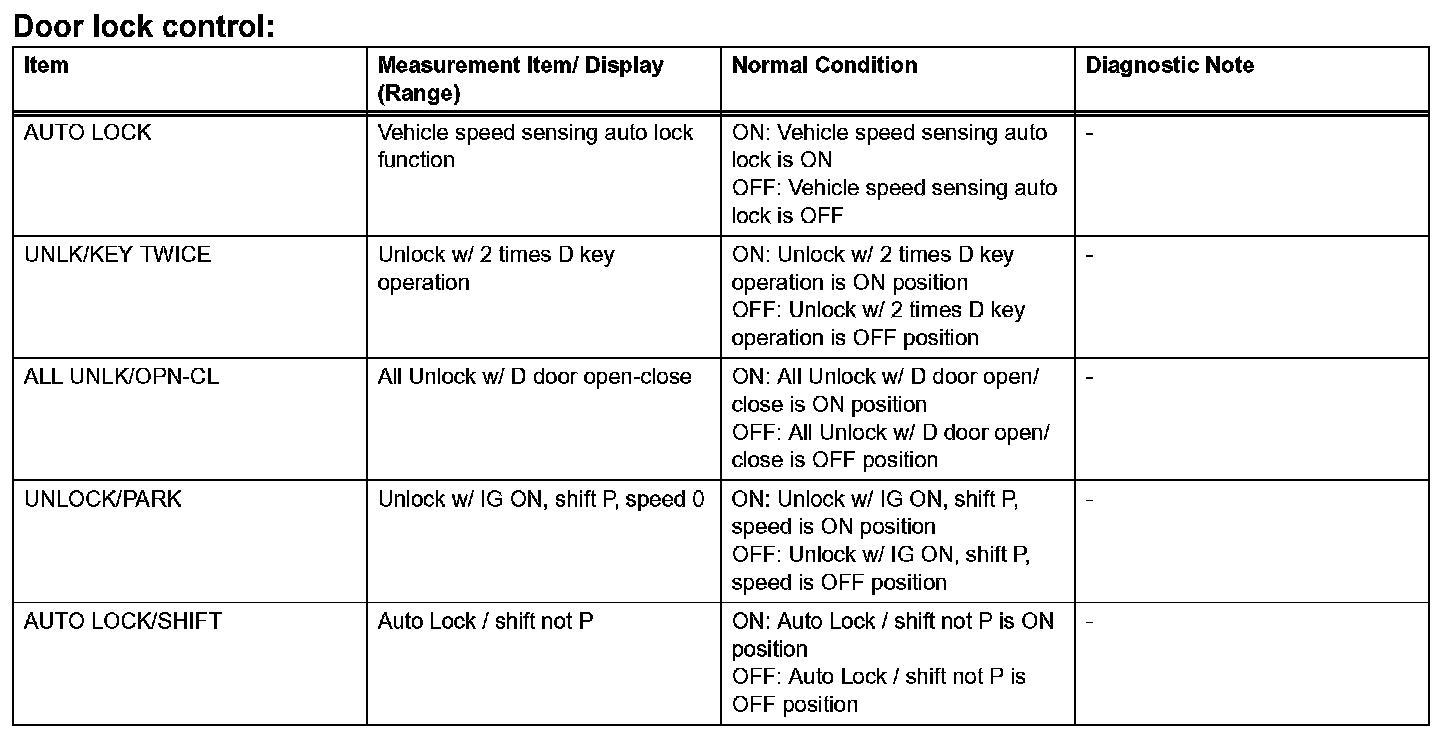

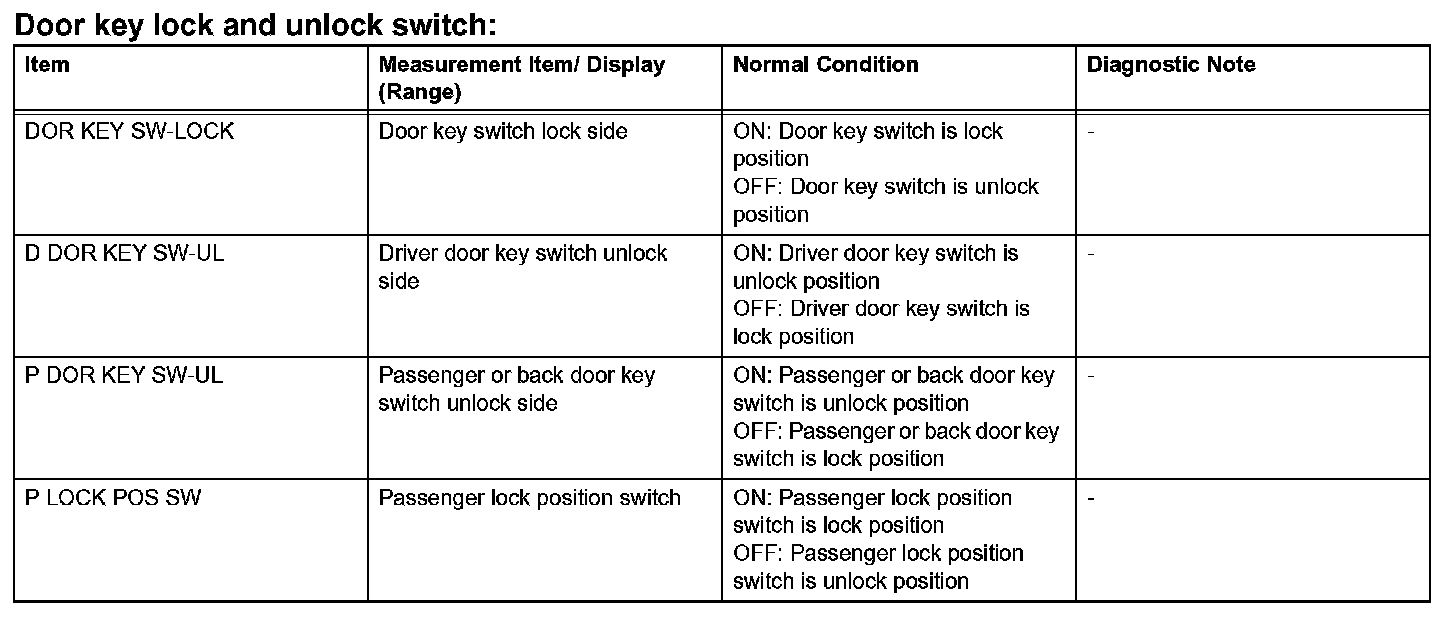

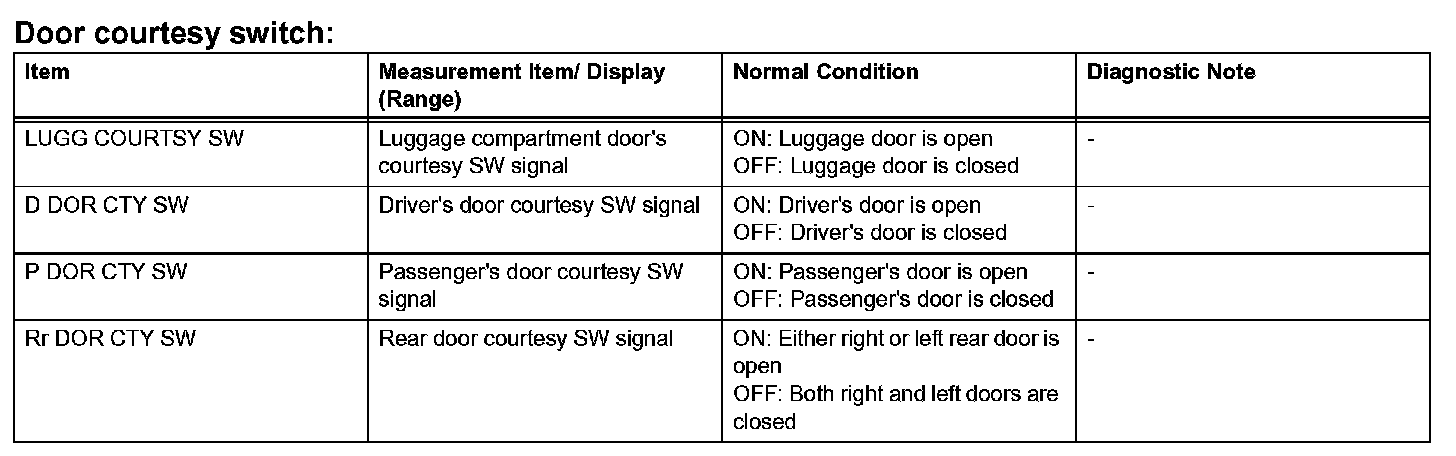

c. Read the "DATA LIST" according to the display on the tester.
