Power Seat Control Switch Circuit

Power Seat Control Switch Circuit

DESCRIPTION

This circuit provides power for power seat control switch (driver's power seat control switch) from power seat control ECU.

Also, the switch sends "SLIDE" signals as multiplexed voltage signals so that the seat slide can be operated even if the CPU for the switch fails or infrared ray is cut off.

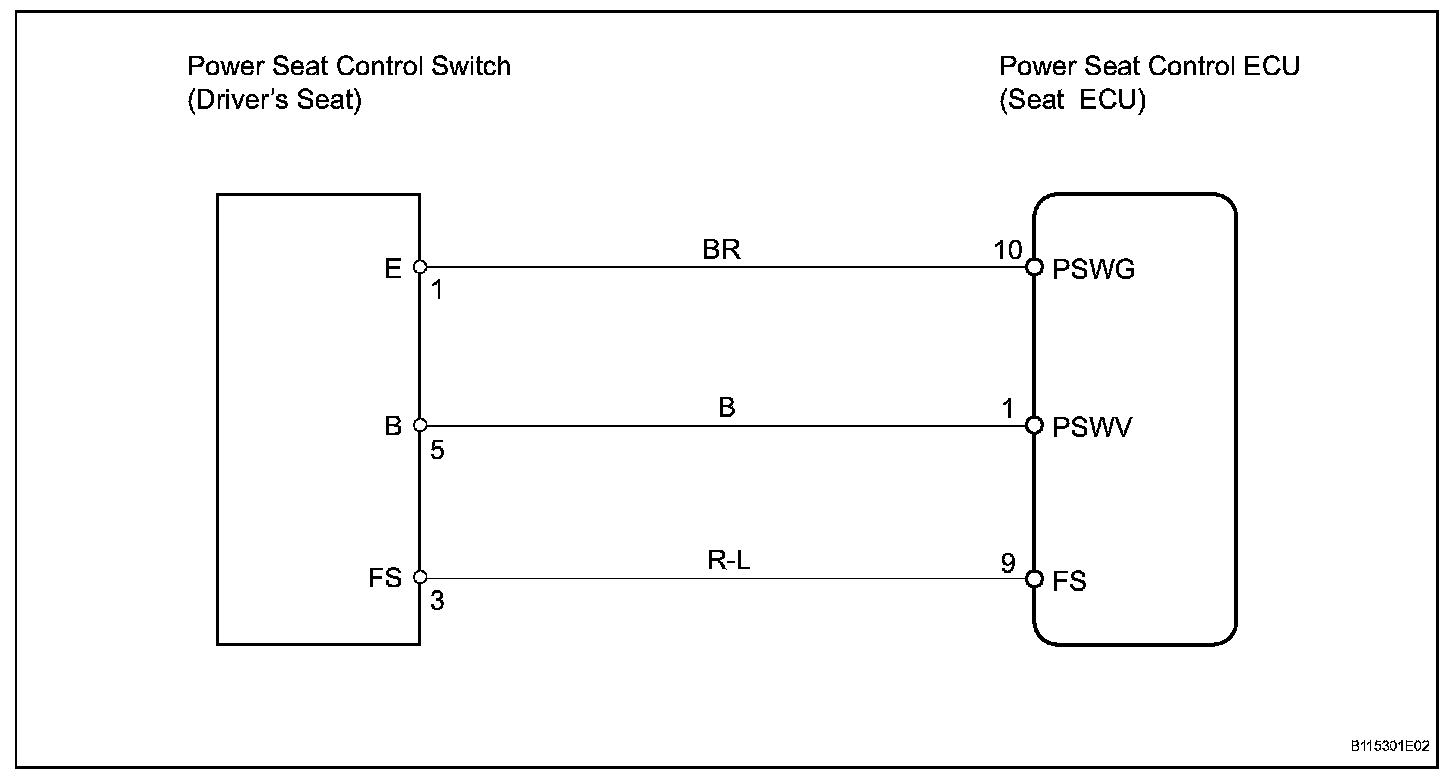

WIRING DIAGRAM

Wiring Diagram:

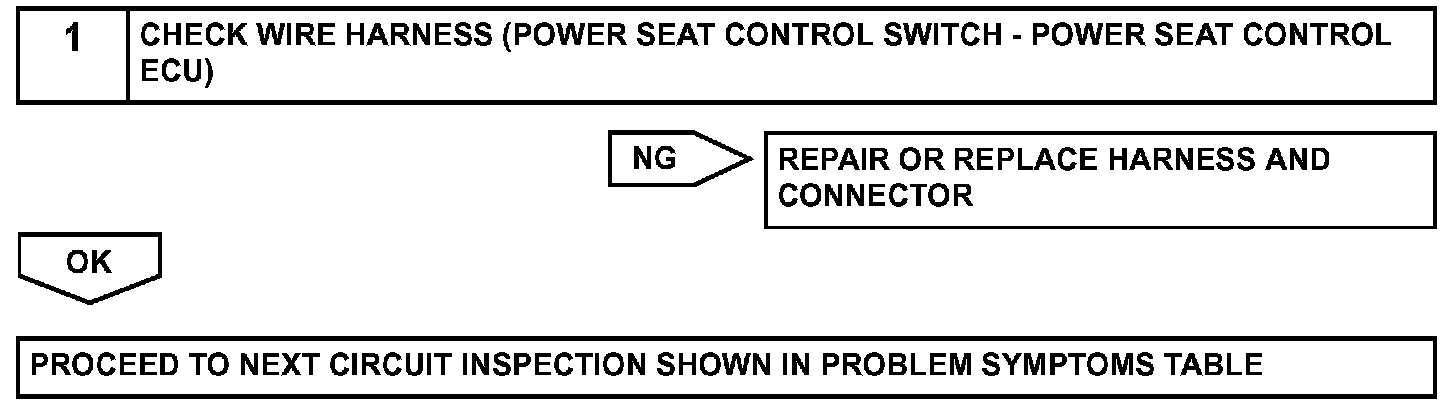

INSPECTION PROCEDURE

Step 1:
