Brakes and Traction Control: Testing and Inspection

PROBLEM SYMPTOMS TABLE

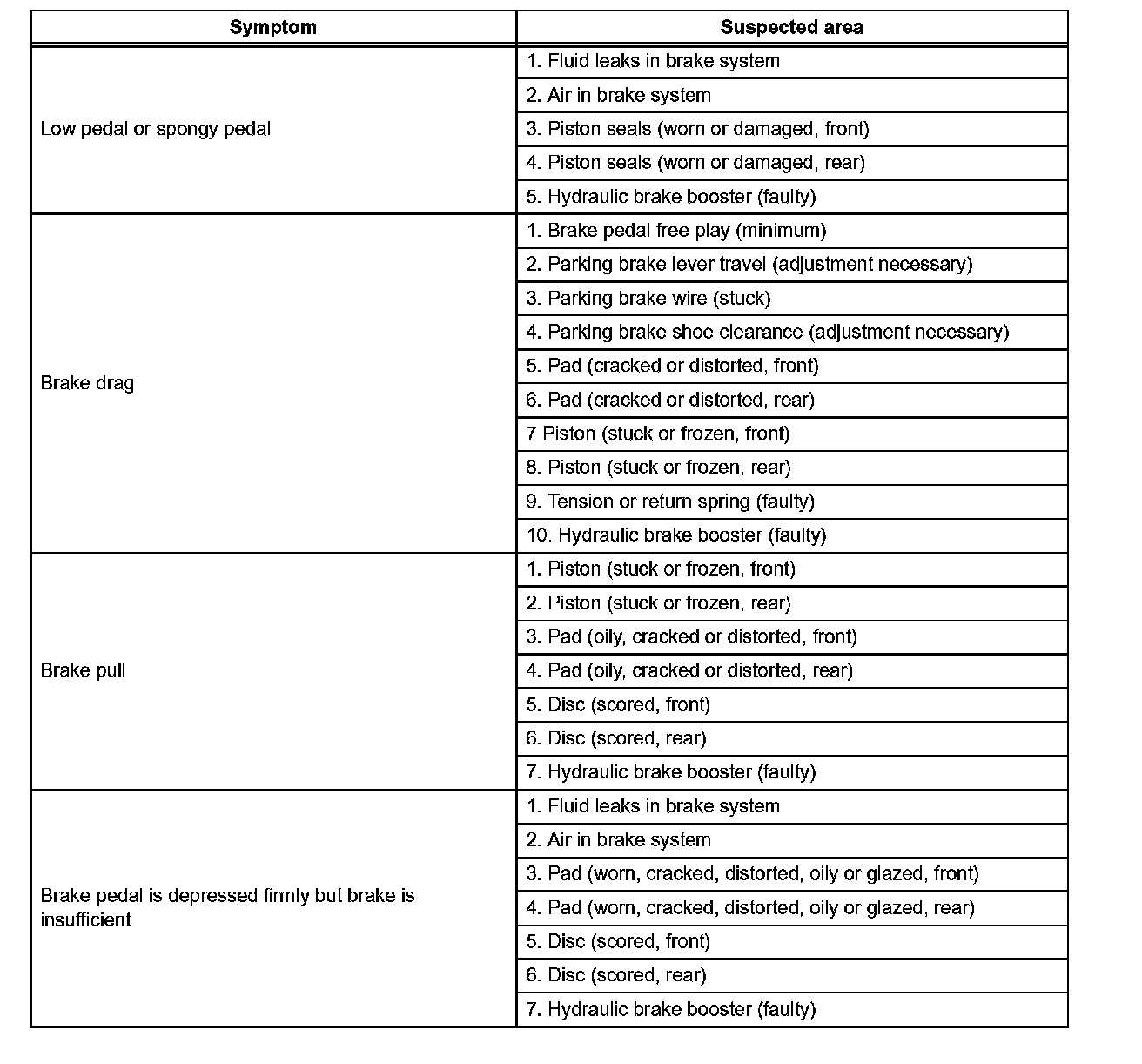

Problem Symptoms Table-Brake System (Part 1):

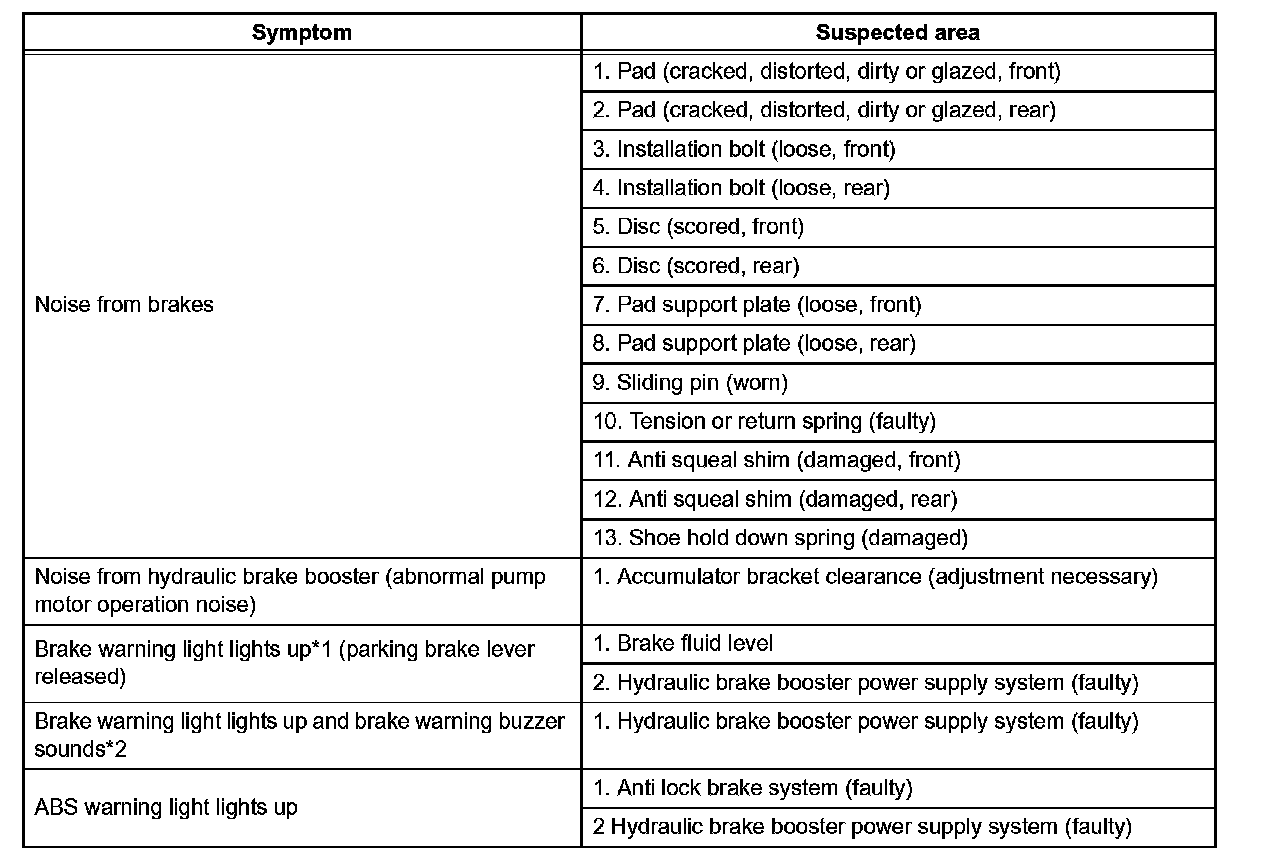

Problem Symptoms Table-Brake System (Part 2):

HINT: Use the table to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the Suspected Area column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.

HINT:
^ *1, *3: The light may stay on for about 60 seconds after the engine is started. It is normal if it goes out after a while.
^ *2, *3: Depressing the brake pedal repeatedly may turn on the warning light and buzzer. It is normal if the light goes out and the buzzer stops sounding after a few seconds.
^ *3: While ABS warning light is ON.
